Specifications
Equipped With
GENERAL SPECIFICATIONS:
SWING OVER BED 23.6"
SWING OVER CROSS SLIDE 16.7"
MAXIMUM TURNING LENGTH 63.2"
X AXIS TRAVEL 9.4"
Z AXIS TRAVEL 63.2"
RAPID TRAVERSE RATE X AXIS 472 IPM
RAPID TRAVERSE RATE Z AXIS 590 IPM
SPINDLE NOSE A2-8
SPINDLE BORE 4.1"
SPINDLE SPEEDS 9 - 2,500 RPM
SPINDLE MOTOR 30 HP AC

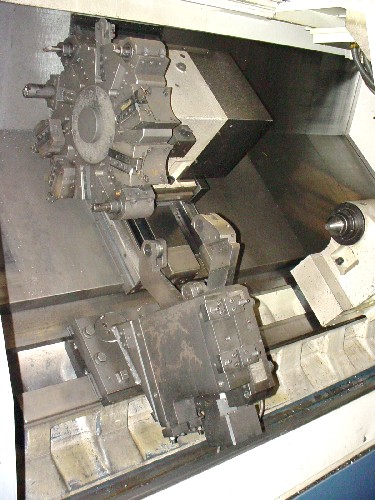

TURRET CAPACITY 10 STATION TURRET
TAILSTOCK QUILL TRAVEL 5.9"
TAILSTOCK QUILL TAPER / DIAMETER MT #5 / 4.1"
EQUIPPED WITH:
FANUC 18TC CNC CONTROL WITH 10.4" LCD
RS-232C PORT INTERFACE FOR DNC OPERATION

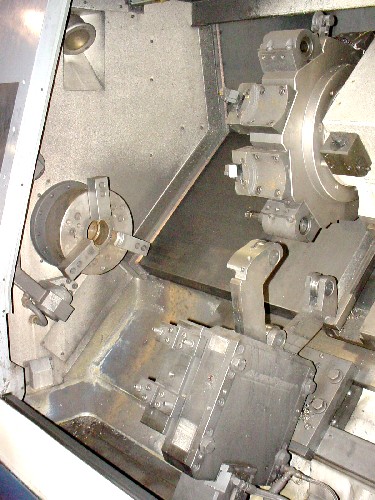

12" 3-JAW THROUGH HOLE HYDRAULIC CHUCK WITH JAWS
PROGRAMMABLE CLAMP STYLE HYDRAULIC STEADY REST
STANDARD COOLANT SYSTEM WITH TANK & PUMP
RIGHT HAND DISCHARGE CHIP CONVEYOR
ALL AVAILABLE TOOL BLOCK HOLDERS & MANUALS
