Specifications
Equipped With
GENERAL SPECIFICATIONS:
SWING OVER BED 23.6"
MAXIMUM TURNING DIAMETER 16.7"
MAXIMUM TURNING LENGTH 61.4"
X AXIS TRAVEL 9.4"
Z AXIS TRAVEL 67.4"
RAPID TRAVERSE RATE X AXIS 472.4 IPM
RAPID TRAVERSE RATE Z AXIS 590.6 IPM
SPINDLE NOSE A2-8
SPINDLE BORE 4.13"
SPINDLE SPEEDS 30 - 2,500 RPM
SPINDLE MOTOR 40 HP AC

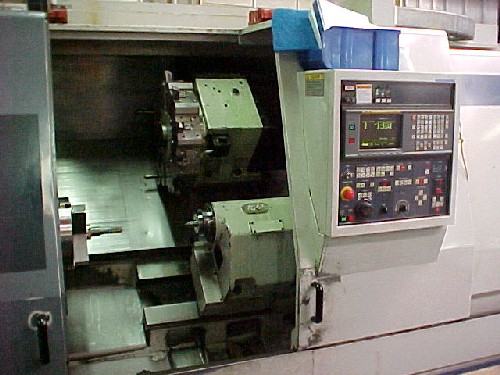

TURRET CAPACITY 10 STATION TURRET
TAILSTOCK BODY TRAVEL 44.8"
TAILSTOCK QUILL TAPER MT #5
TAILSTOCK QUILL TRAVEL 5.9"
EQUIPPED WITH:

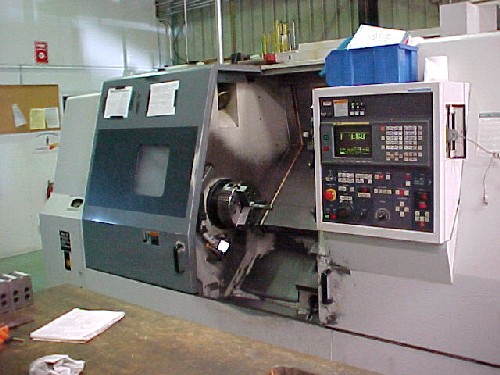

FANUC 16T CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION

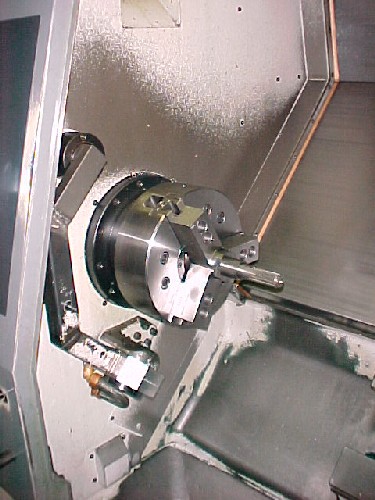

12" 3-JAW HYDRAULIC CHUCK WITH JAWS
TOOL EYE (TOOL LENGTH MEASUREMENT SYSTEM)
STANDARD COOLANT SYSTEM WITH TANK & PUMP
RIGHT HAND DISCHARGE CHIP CONVEYOR
ALL AVAILABLE TOOL BLOCK HOLDERS
ALL AVAILABLE MANUALS
