Specifications
Equipped With
GENERAL SPECIFICATIONS:

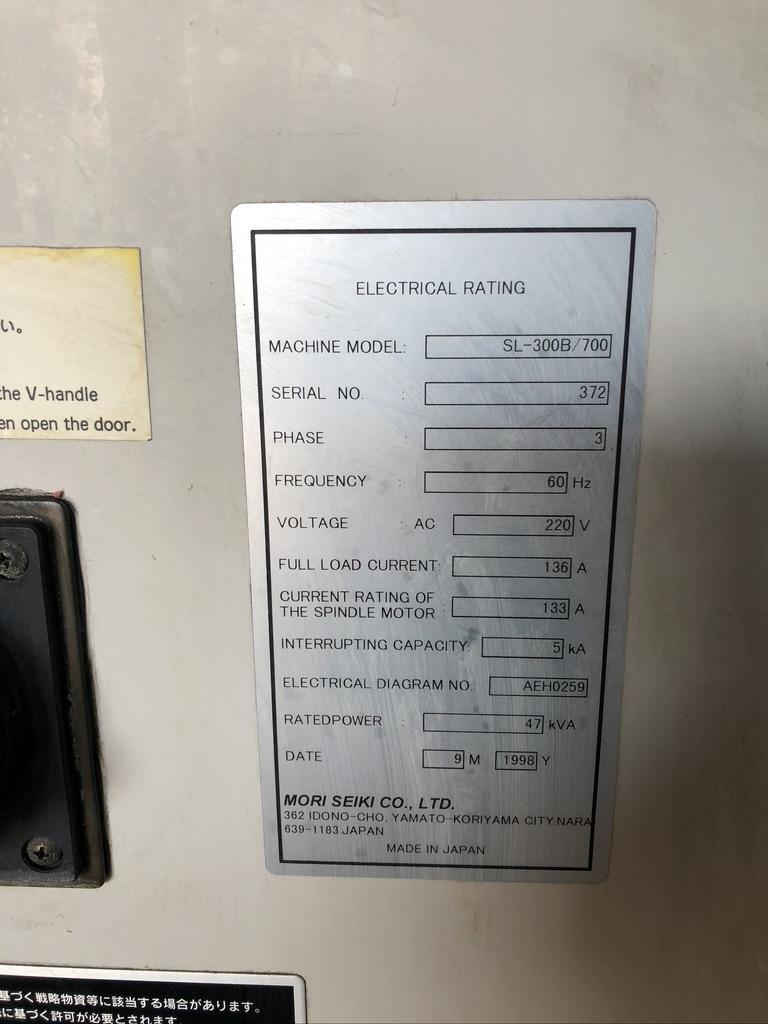

MANUFACTURER...................... MORI SEIKI
MODEL............................. SL-300B/700
SERIAL #.......................... 372
NEW............................... 1998
SWING............................. 28.1"
SWING OVER CROSS SLIDE............ 16.5"
CHUCK SIZE........................ 15"
CENTER DISTANCE................... 29.3"
MAX. MACHINING LENGTH............. 27.9"
SPINDLE SPEED RANGE............... 2500 RPM
SPINDLE BORE...................... 4.1"
SPINDLE NOSE...................... A2-8
X AXIS TRAVEL..................... 9.8"
Z AXIS TRAVEL..................... 31.5"
HOLE THRU SPINDLE................. 3.1"

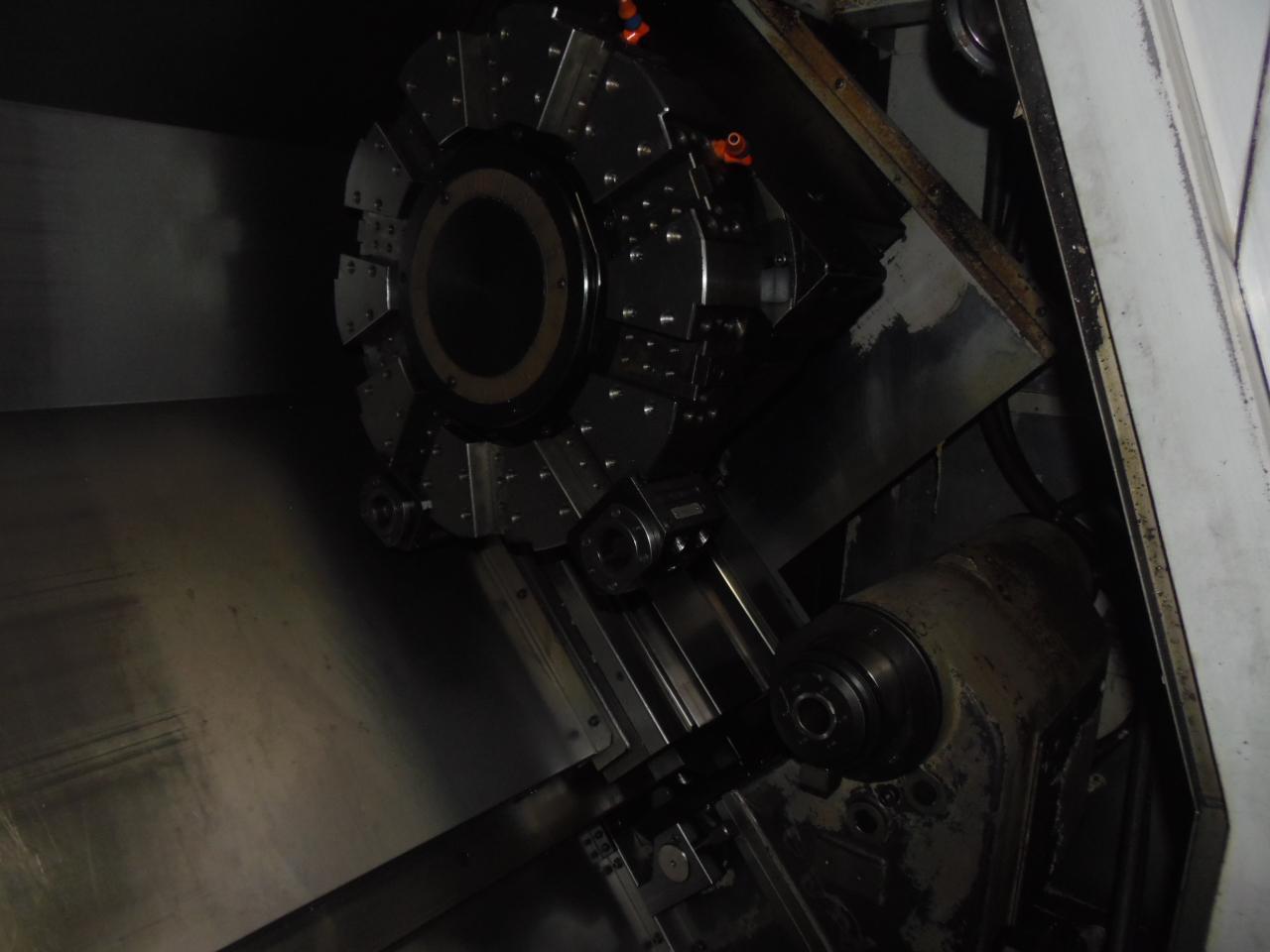

# OF TOOLS........................ 12
RAPID TRAVERSE RATE X............. 590 IPM
Z............. 940 IPM
MAIN MOTOR........................ 30/25 HP
WEIGHT (APPROX.).................. 17,000 LBS.
EQUIPPED WITH:

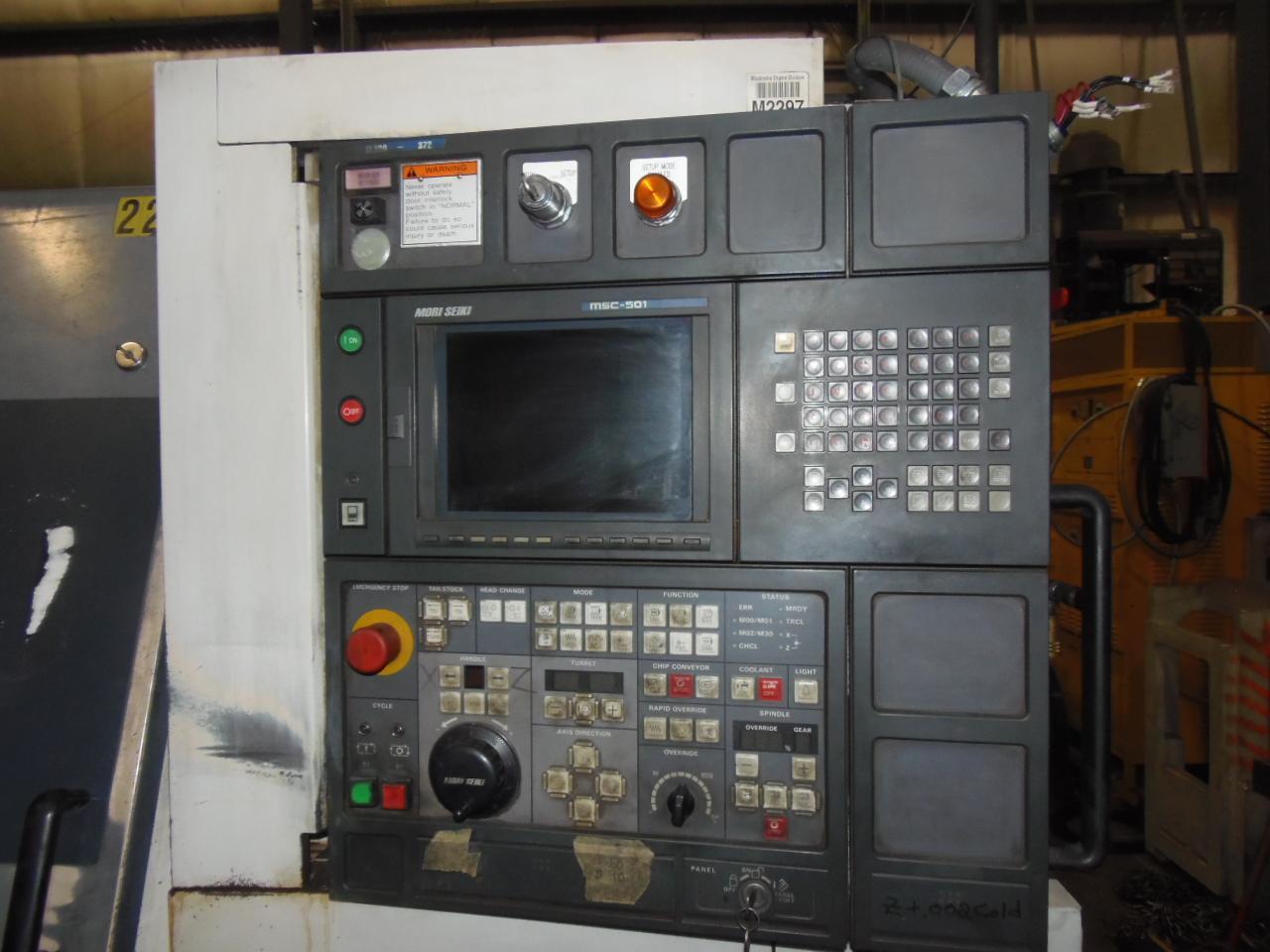

FANUC 18iT (MSC-501) CONTROL
TAILSTOCK
COOLANT SYSTEM

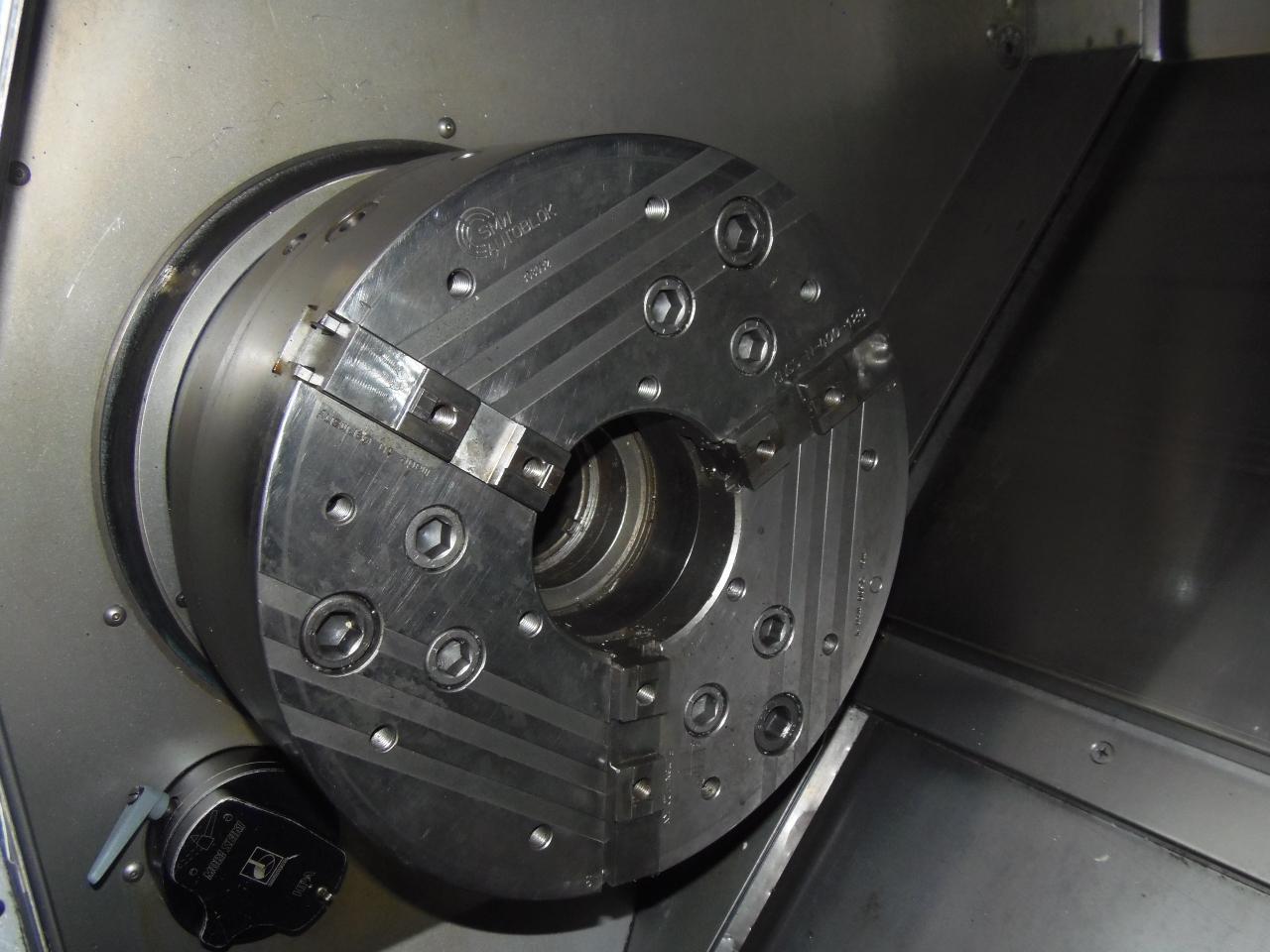

15" SMW AUTOBLOCK CHUCK MODEL KNCS-N-400-128 WITH 5.04" BORE
