Swing Over Bed ............................ 20.5"
Swing Over Cross Slide ................ 13.8"
Distance Between Centers ............ 24.6"
Standard Machining Diameter ....... 9.1"
Maximum Machining Length .......... 21.7"
X-Axis Travel .................................. 11.2"
Z-Axis Travel ................................... 23.2"
Main Spindle Speed ........................ 35 - 3500 RPM
Spindle Nose ................................... A2-6
Spindle Bore .................................... 3.1"
Milling Spindle Speeds .................... 80 - 2000 RPM
Rapid Feed Rate, X-Axis ................. 472.4 IPM
Rapid Feed Rate, Z-Axis ................. 590.6 IPM
Tailstock Travel ................................ 21.1"
Tailstock Quill Diameter ................... 3.3"
Tailstock Quill Travel ........................ 3.1"
Tailstock Quill Taper ......................... MT#3
Main Motor ....................................... 20 HP
Milling Spindle Motor ........................ 5 HP
Approximate Footprint ...................... 120" x 65"
Approximate Weight ......................... 10,000 Lbs
EQUIPPED WITH:

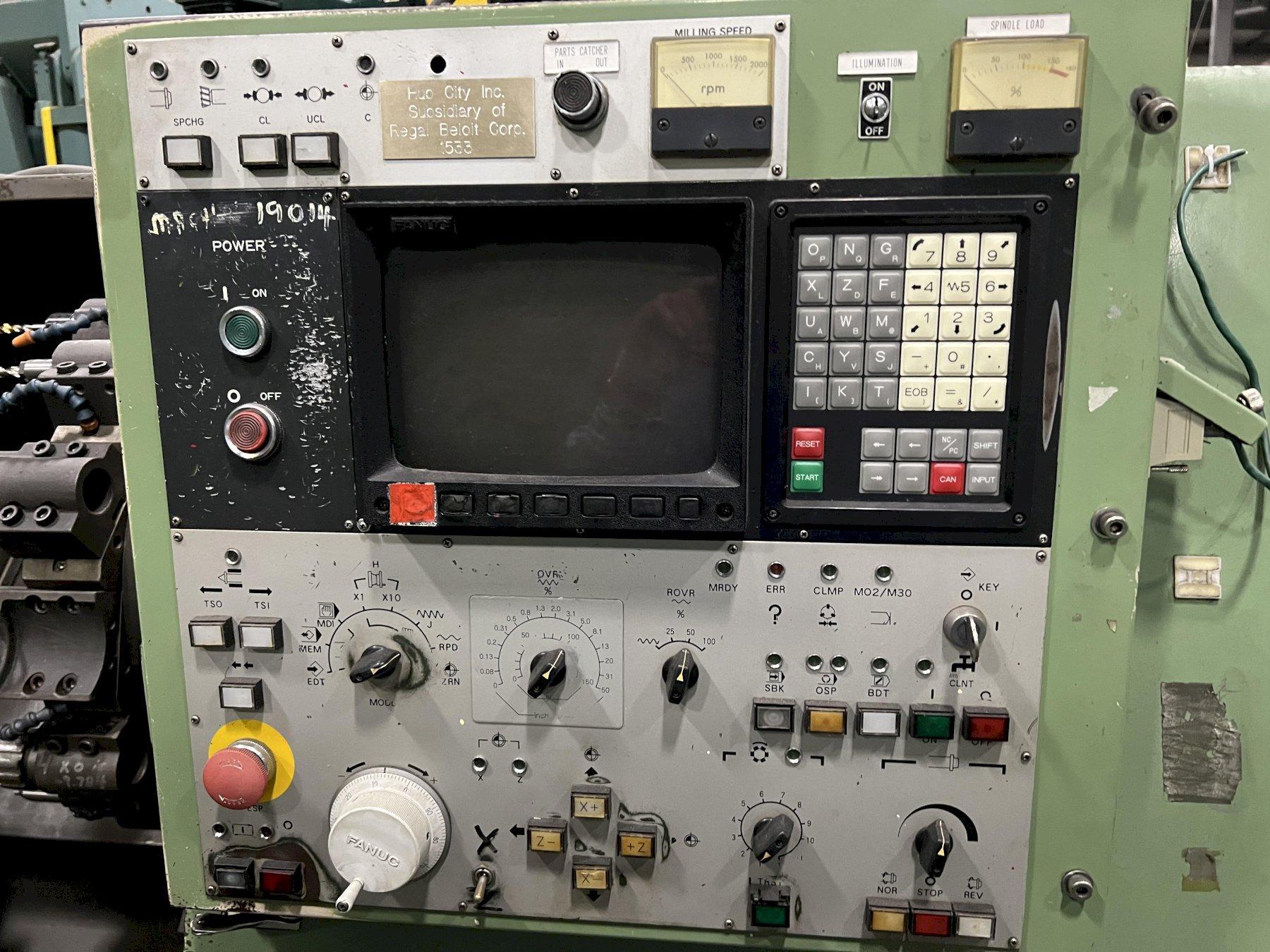

Fanuc 10T CNC Control

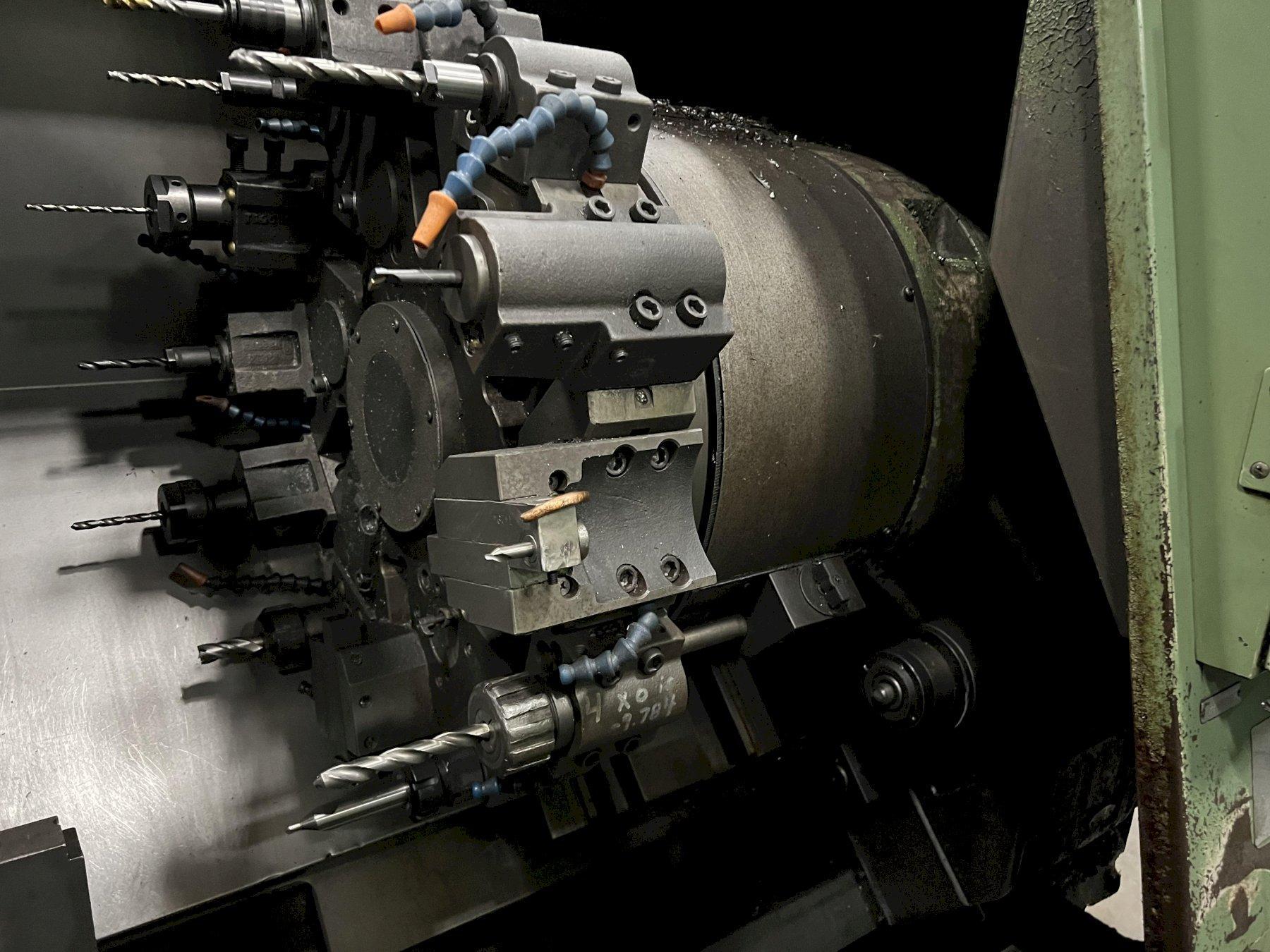

12-Station Turret
Live Milling

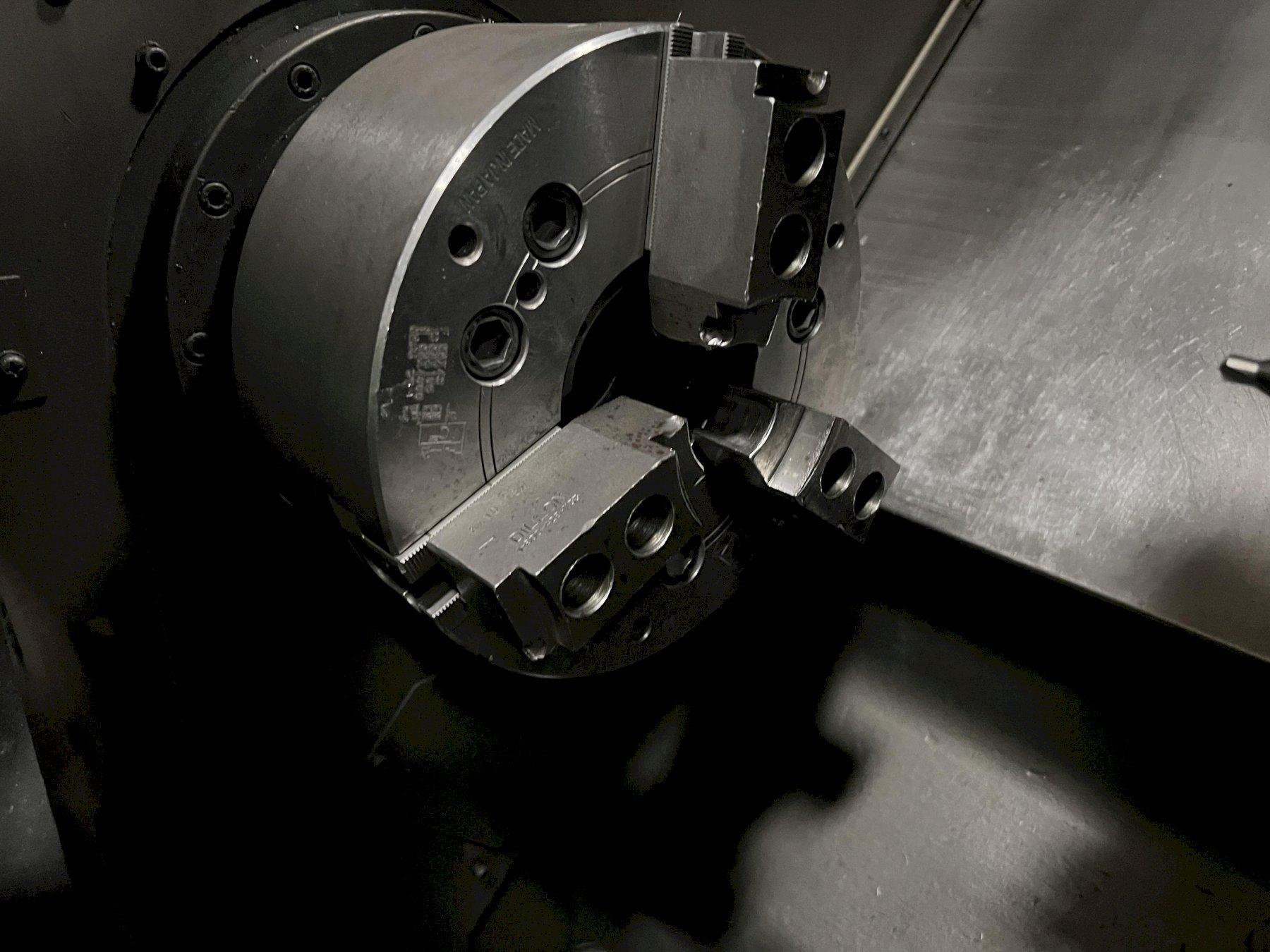

10" 3-Jaw Chuck
Royal Filtermist Mist Collector
Tailstock
Turbo Chip Conveyor
