Specifications
Equipped With
GENERAL SPECIFICATIONS:

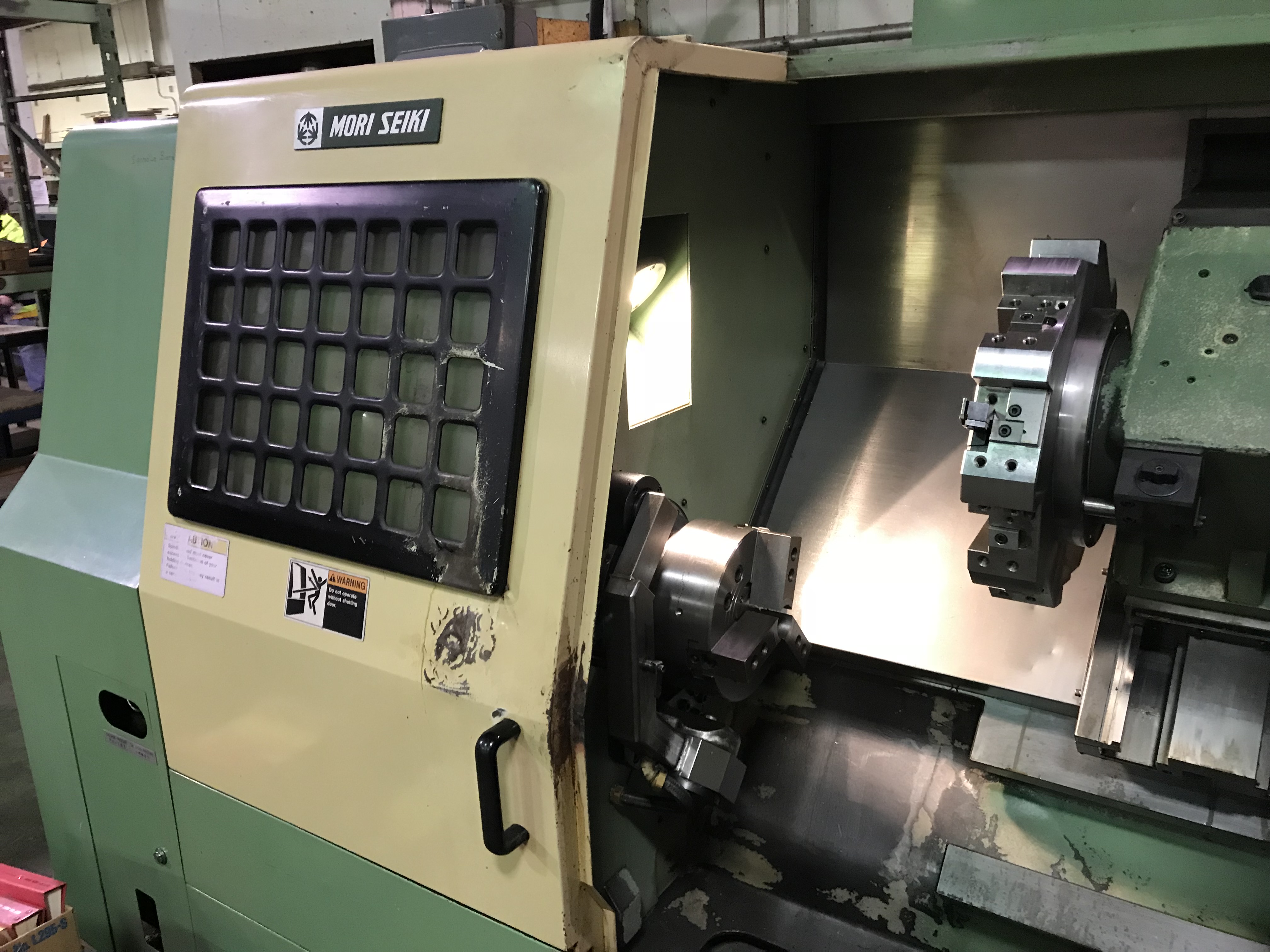

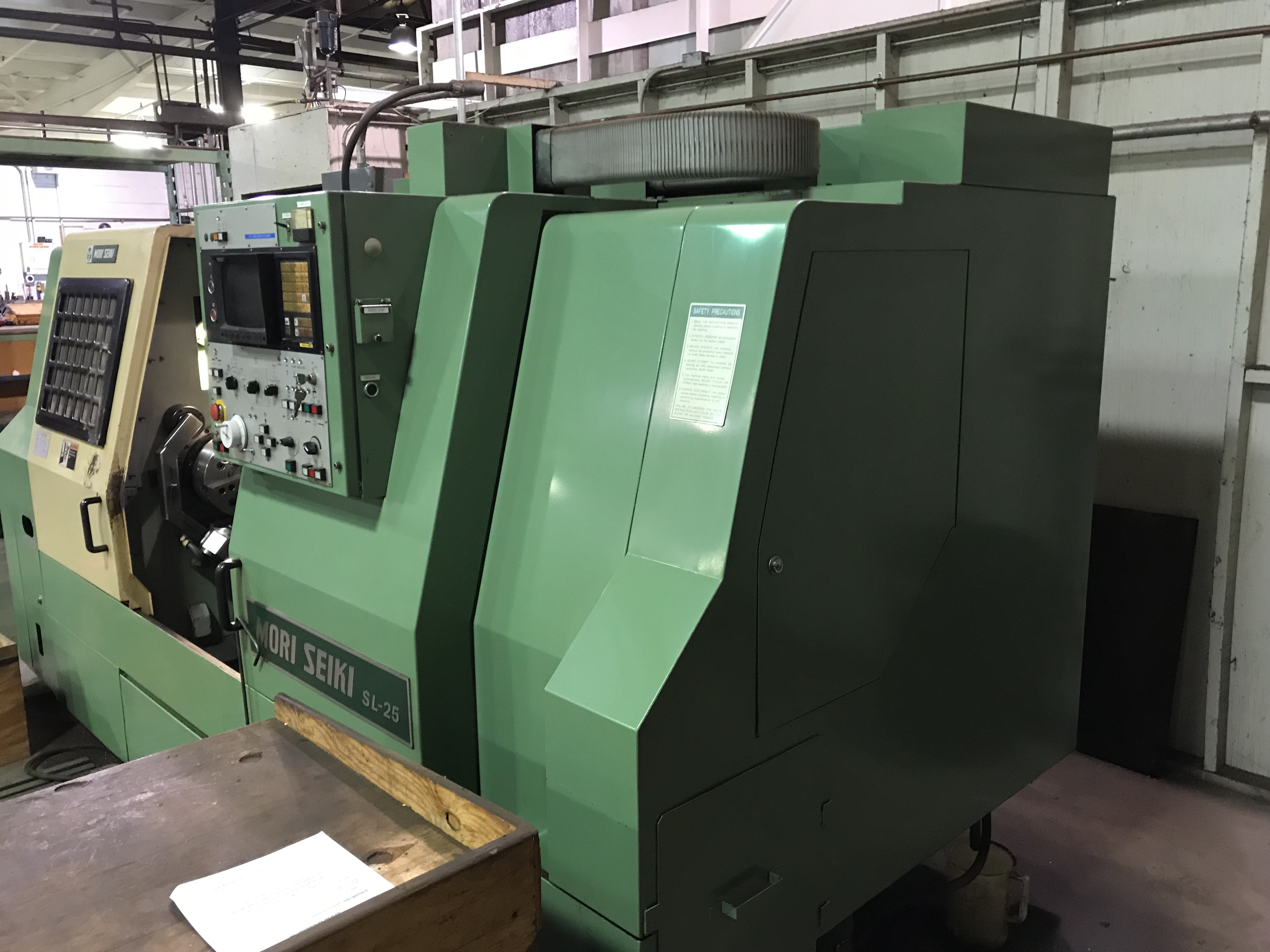

MANUFACTURER...................... MORI SEIKI
MODEL............................. SL-25B/1000
SERIAL #.......................... 1807
NEW............................... 1988
SWING............................. 20.5
SWING OVER CROSS SLIDE............ 13.8"
CHUCK SIZE........................ 10"
CENTER DISTANCE................... 44"
MAX. MACHINING LENGTH............. 40.5"
SPINDLE SPEED RANGE............... 35-3500 RPM
HOLE THRU SPINDLE................. 3.1"

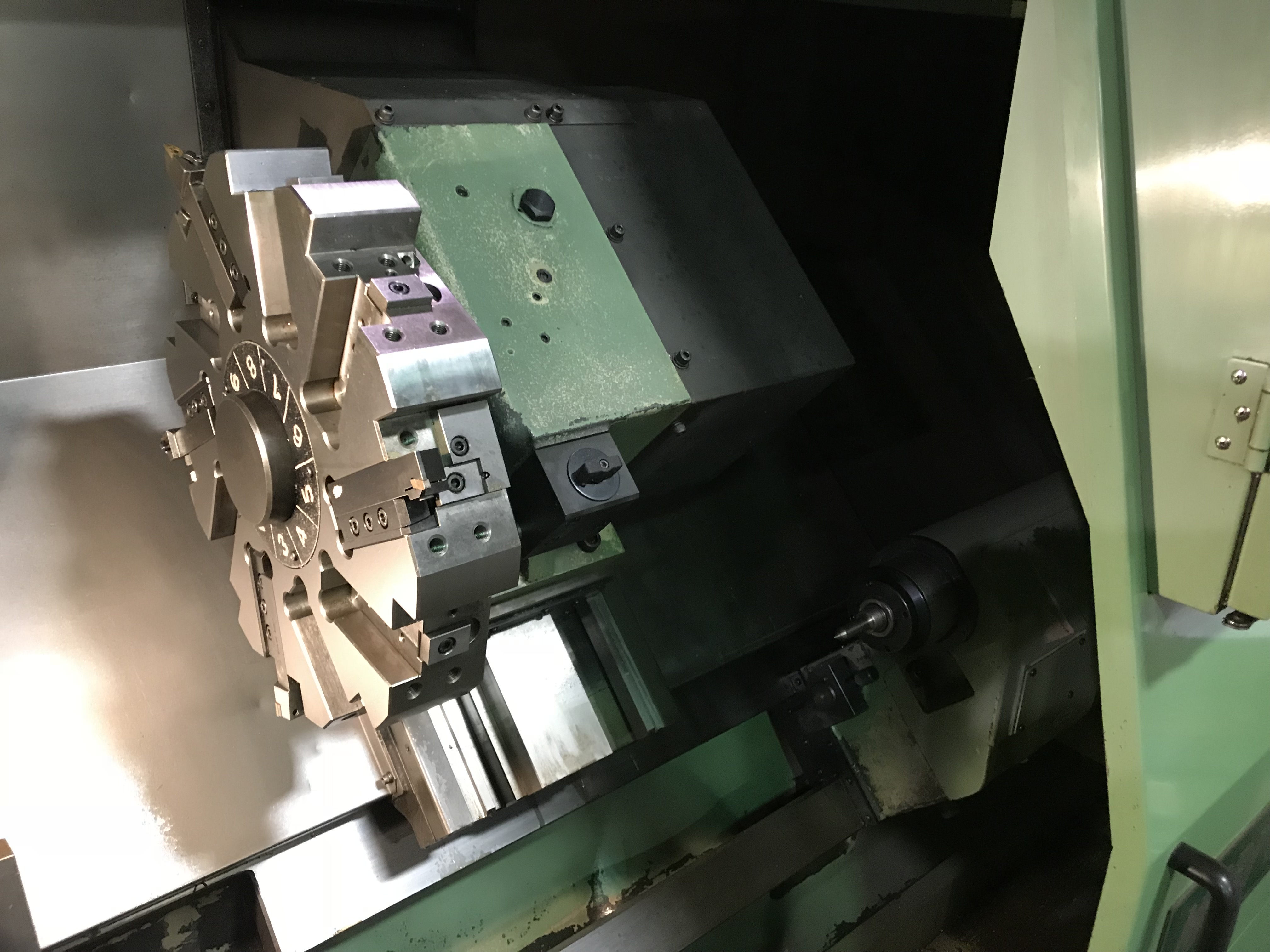

# OF TOOLS........................ 10
RAPID TRAVERSE RATE............... 472 IPM
MAIN MOTOR........................ 20 HP
WEIGHT (APPROX.).................. 12,100 LBS.
EQUIPPED WITH:

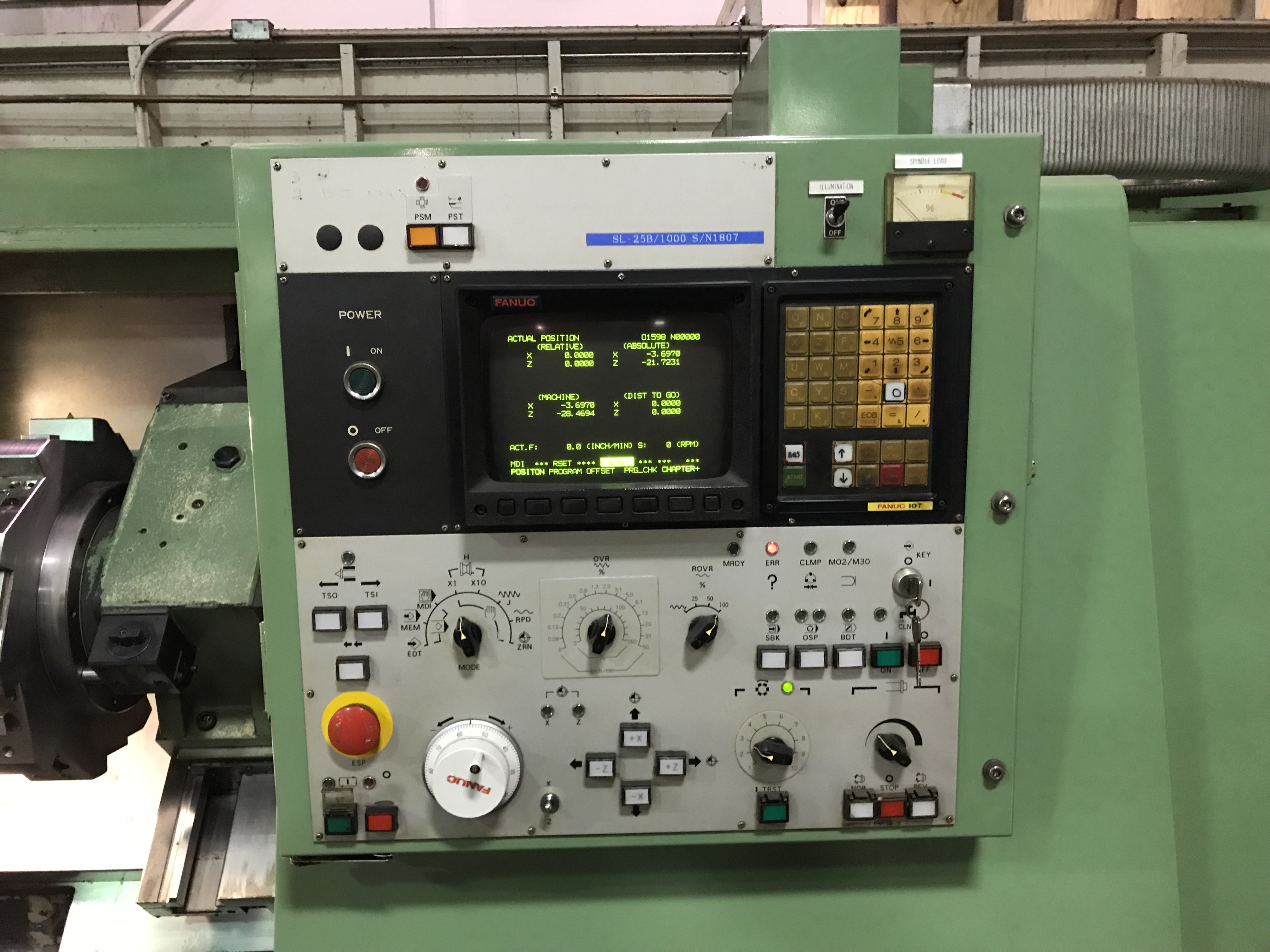

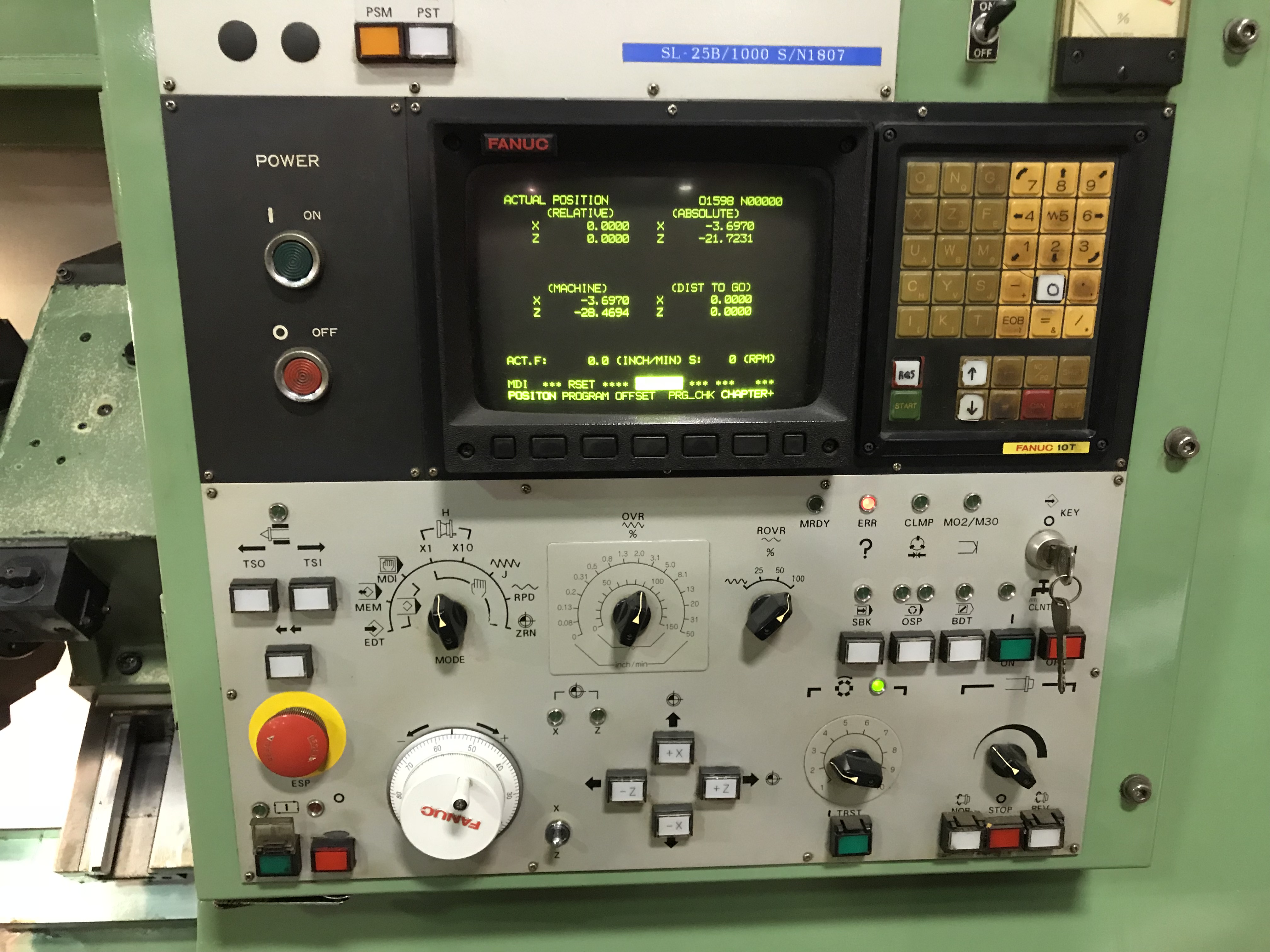

FANUC 10T CONTROL
COOLANT SYSTEM

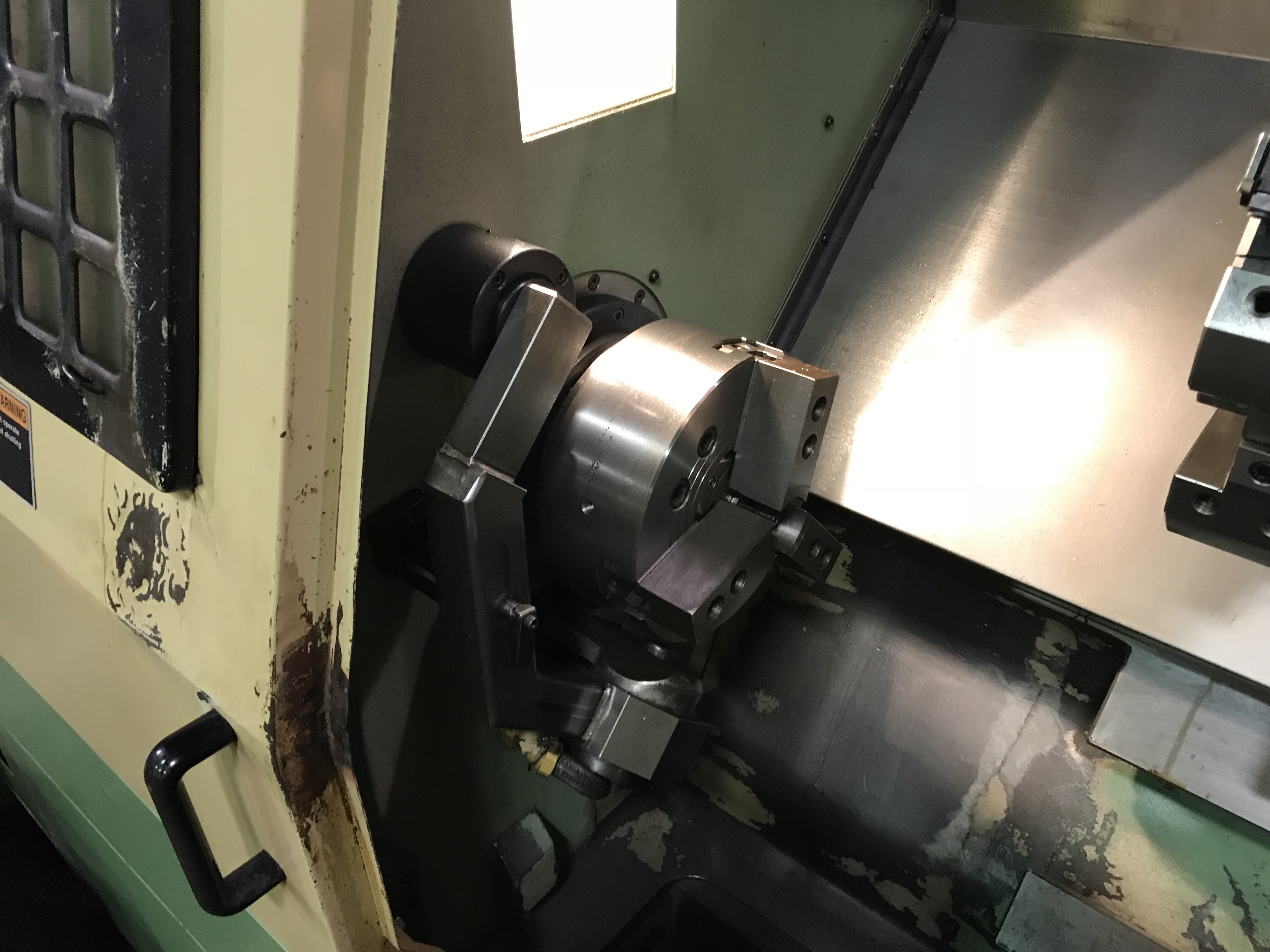

10" 3-JAW CHUCK
CHIP PAN

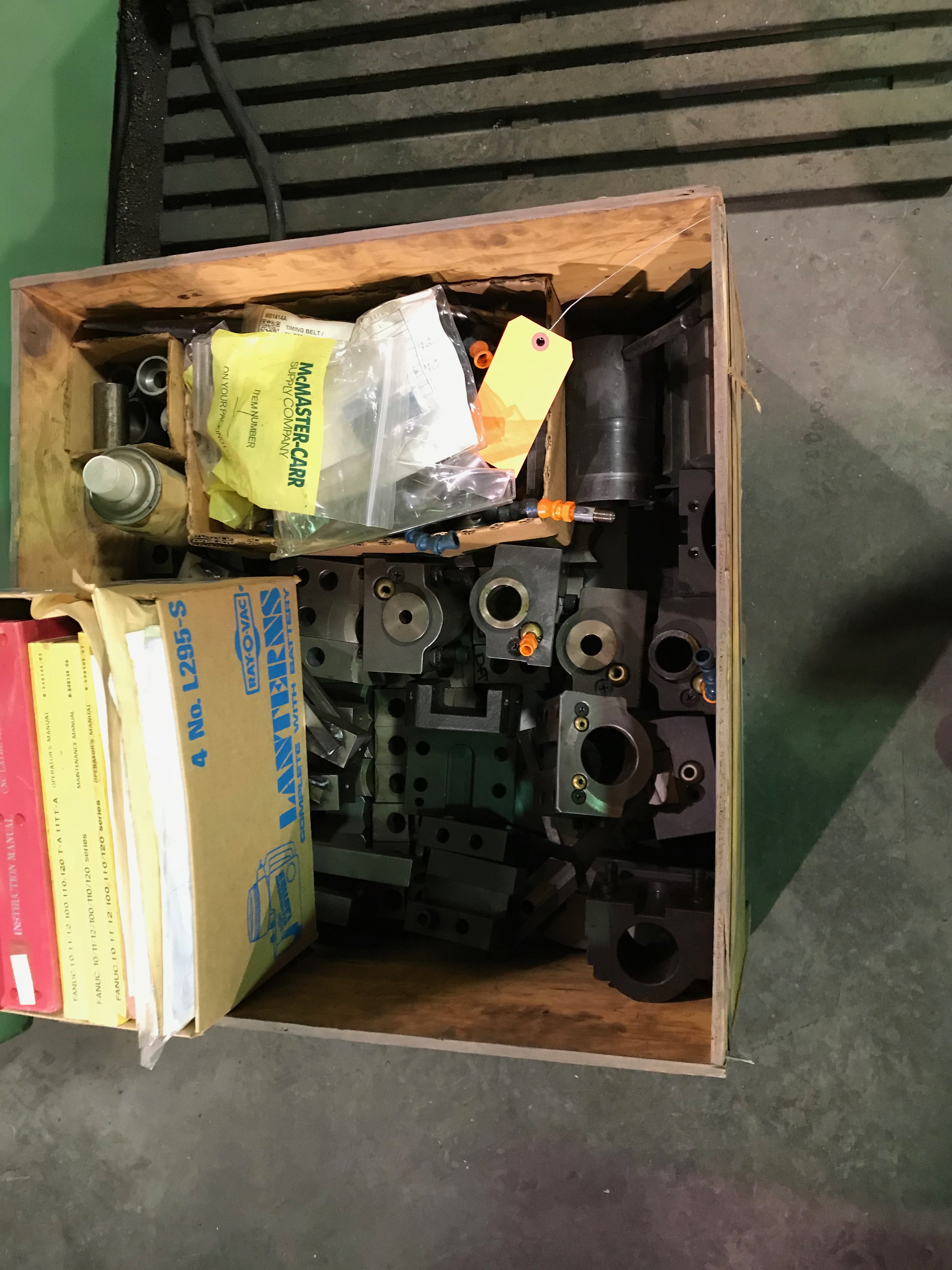

MISC TOOLHOLDERS
ONE OWNER LOW HOUR MACHINE
