Specifications
Equipped With
GENERAL SPECIFICATIONS:
SWING OVER BED / CROSS SLIDE 26.7" / 20.1"
SWING OVER FRONT COVER 17.8"
MAXIMUM TURNING DIAMETER / LENGTH 15.3" / 19.1"
X AXIS TRAVEL 9.3"
Z AXIS TRAVEL 19.5"
C AXIS INDEXING 0.001 DEG.
RAPID TRAVERSE RATE X AXIS 709 IPM
RAPID TRAVERSE RATE Z AXIS 945 IPM
SPINDLE NOSE A2-8
SPINDLE BORE 3.3"
SPINDLE SPEEDS 35 - 3,500 RPM
SPINDLE MOTOR 20 HP AC

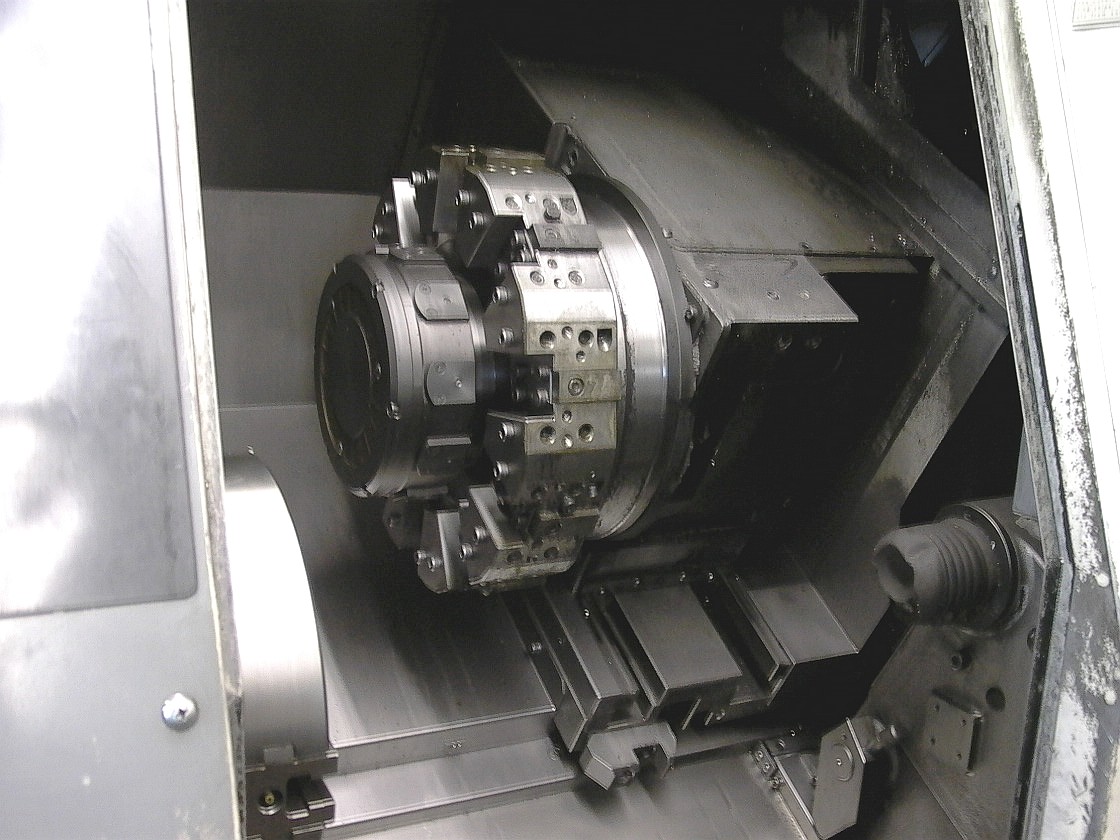

TURRET CAPACITY (ALL STATIONS LIVE) 12 STATION TURRET
LIVE TOOLING MOTOR 8.7 HP
LIVE TOOLING SPEEDS 50 - 3,000 RPM
TAILSTOCK BODY TRAVEL 20.3"
TAILSTOCK QUILL TAPER MT #5
TAILSTOCK QUILL TRAVEL 4.7"
EQUIPPED WITH:
FANUC 18T CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION

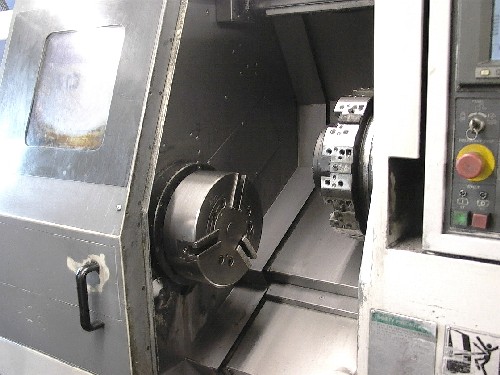

12" SMW 3-JAW HYDRAULIC CHUCK WITH JAWS
RIGHT HAND DISCHARGE CHIP CONVEYOR
ALL AVAILABLE LIVE TOOLING (2 HOLDERS)
ALL AVAILABLE TOOL HOLDERS & MANUALS
