Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER......................... MORI SEIKI
MODEL................................ SL-250AMC
SERIAL NUMBER........................ 400
YEAR................................. 1997
SWING................................ 26.8"
MAX. PART DIAMETER................... 15.3"
CHUCK SIZE........................... 10" HYDRAULIC
SPINDLE NOSE......................... A2-8
CENTER DISTANCE...................... 15.74"
SPINDLE BORE......................... 3.3"
BAR CAPACITY......................... 2.9"
RPM RANGE............................ 35 - 3500 RPM
TURRET POSITIONS..................... 10
LIVE TOOLING......................... YES
TAILSTOCK QUILL TAPER................ MT#5
TAILSTOCK QUILL DIAMETER............. 5.9"
TAILSTOCK QUILL STROKE............... 5.9"
SPINDLE HORSEPOWER................... 20
MACHINE WEIGHT....................... 10,000 LBS
MACHINE DIMENSIONS................... 8' L X 6' W X 8'2" TALL
CHIP CONVEYOR DIMENSIONS............. 7' L X 2' W X 5' TALL
EQUIPPED WITH:

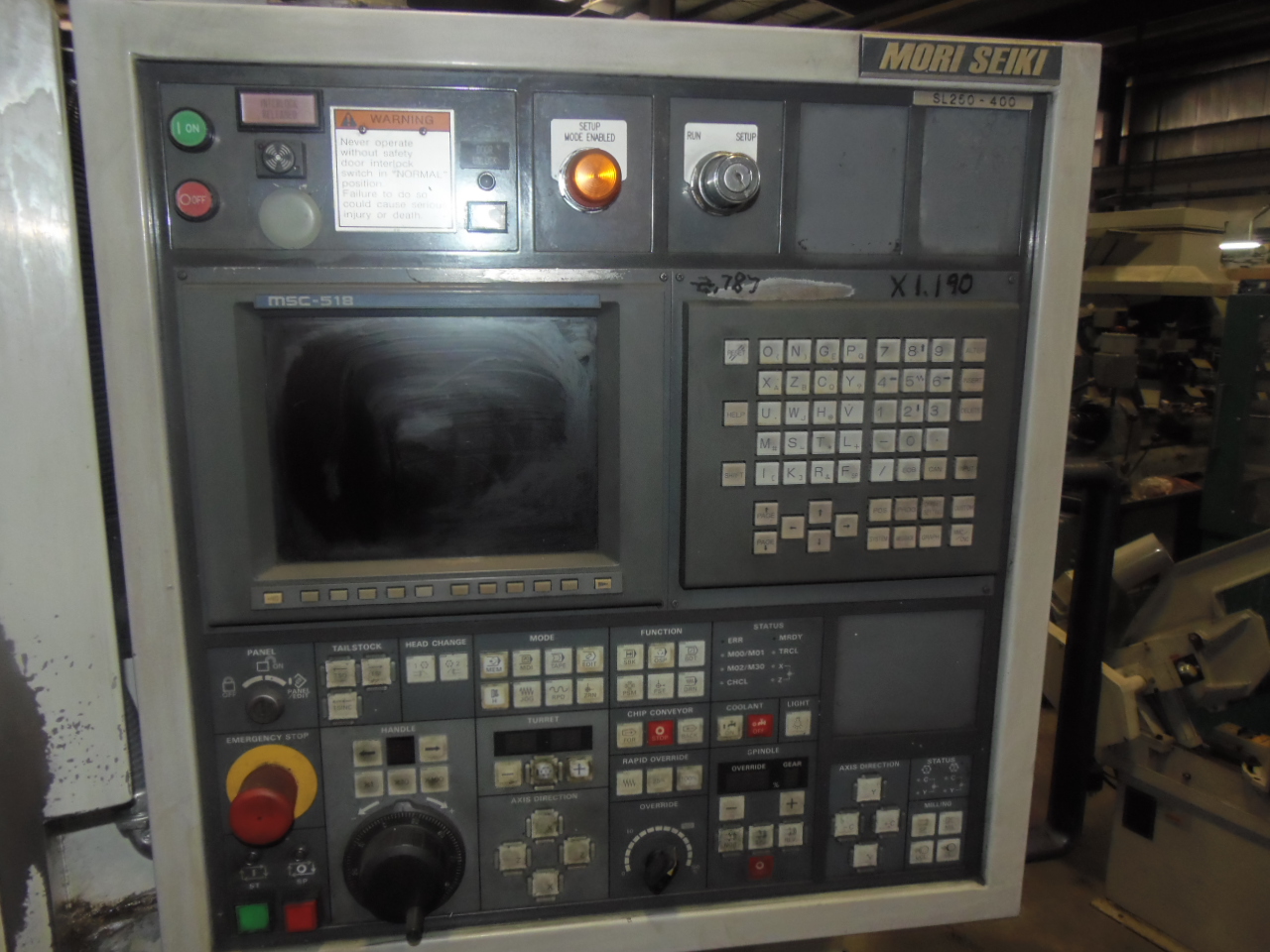

MORI SEIKI MSC-518 (FANUC 18T) CNC CONTROL

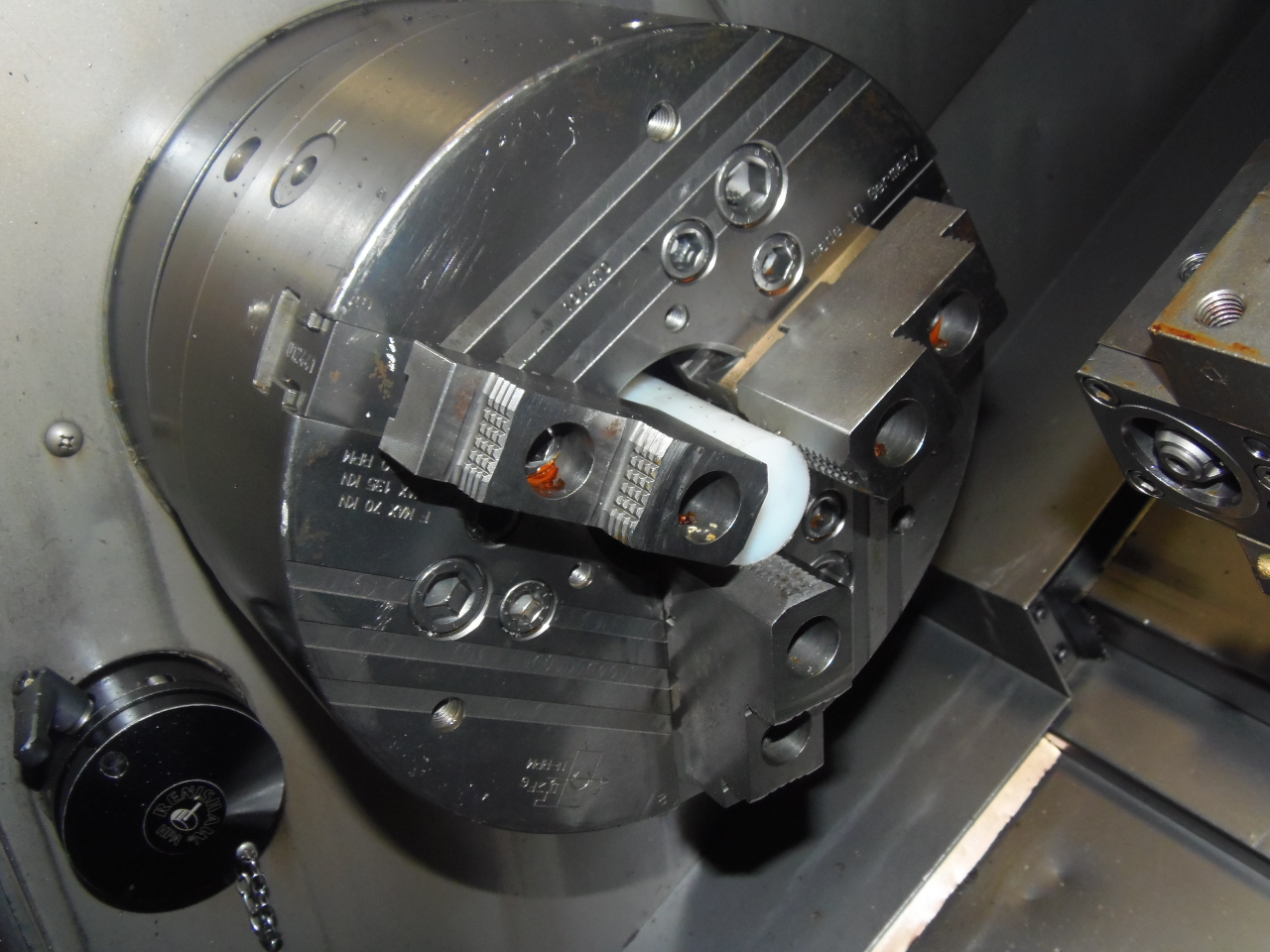

10" SMW AUTOBLOCK 3 JAW HYDRAULIC CHUCK

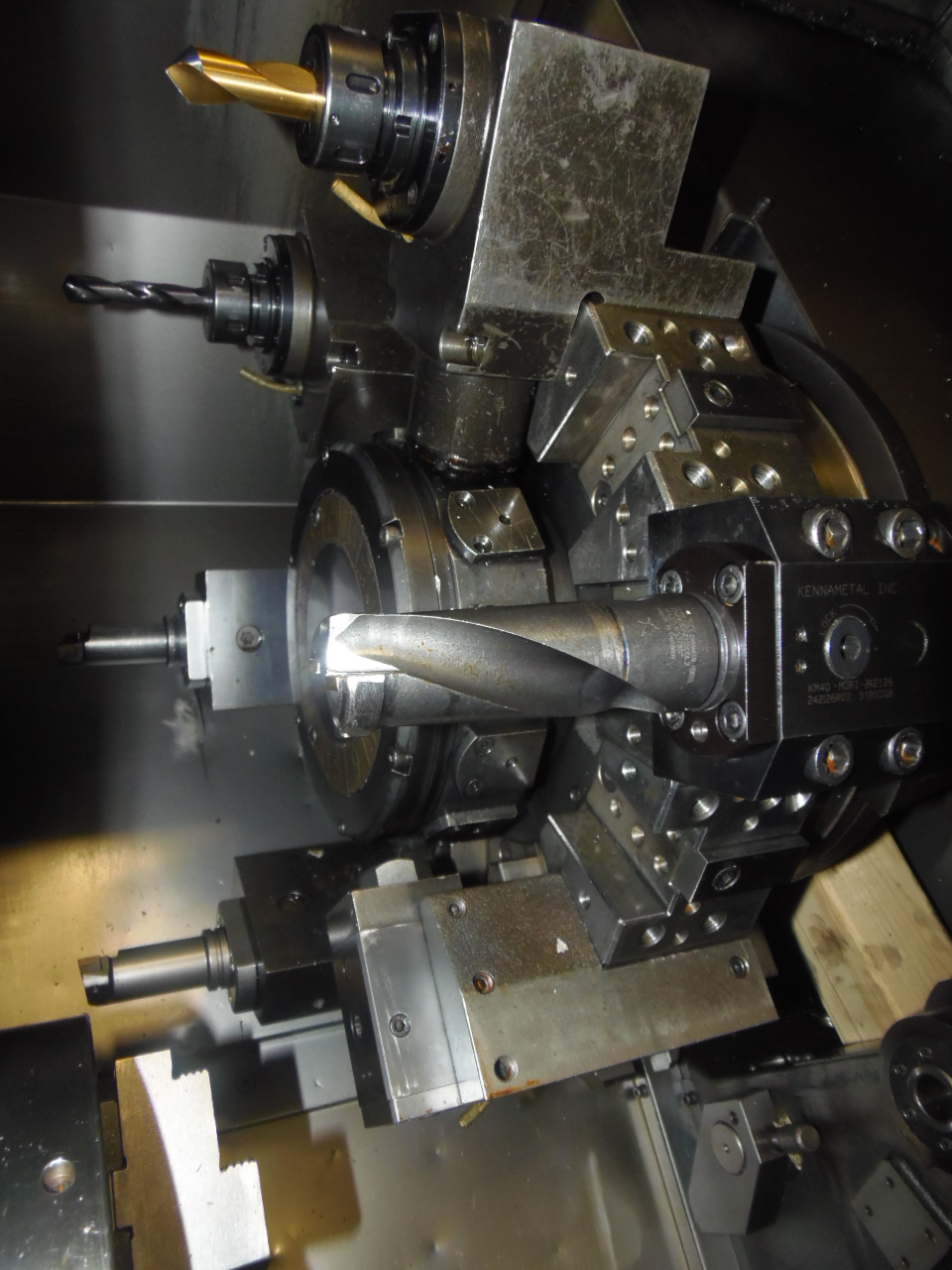

2 LIVE FACE HOLDERS, 1 LIVE OD HOLDER, 3 NON LIVE HOLDERS

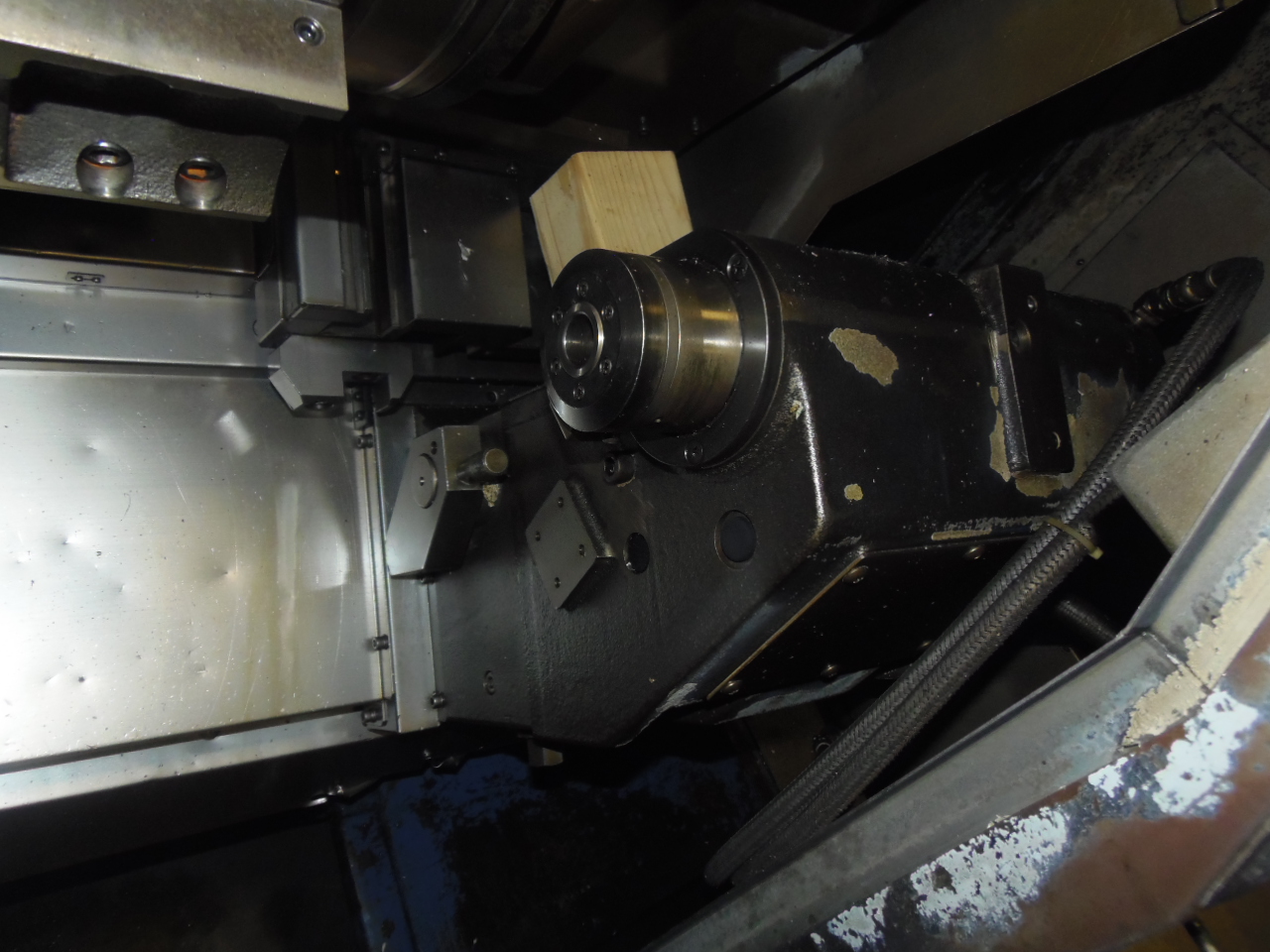

TAIL STOCK
STANDARD COOLANT SYSTEM WITH TANK AND PUMP
CHIP CONVEYOR
RS-232 PORT INTERFACE FOR DNC OPERATION
ALL AVAILABLE MANUALS
