Specifications
Equipped With
GENERAL SPECIFICATIONS:
SWING OVER BED / CROSS SLIDE 26.8" / 20.1"
SWING OVER FRONT COVER 17.9"
MAXIMUM TURNING DIAMETER / LENGTH 15.3" / 12.7"
X AXIS TRAVEL 9.3"
Z AXIS TRAVEL 19.5"
C AXIS INDEXING (MAIN SPDINLE) 0.001 DEG.
C AXIS INDEXING (SUB SPDINLE) 0.001 DEG.
RAPID TRAVERSE RATE X AXIS 709 IPM
RAPID TRAVERSE RATE Z AXIS 945 IPM
SPINDLE NOSE (MAIN / SUB SPINDLE) A2-6 / A2-5
SPINDLE BORE (MAIN / SUB SPINDLE) 2.9" / 1.7"
BAR CAPACITY (MAIN / SUB SPINDLE) 2.5" / 1.3"
SPINDLE SPEEDS (MAIN SPINDLE) 45 - 4,500 RPM
SPINDLE SPEEDS (SUB SPINDLE) 60 - 6,000 RPM
SPINDLE MOTOR (MAIN / SUB SPINDLE) 15 HP / 10 HP

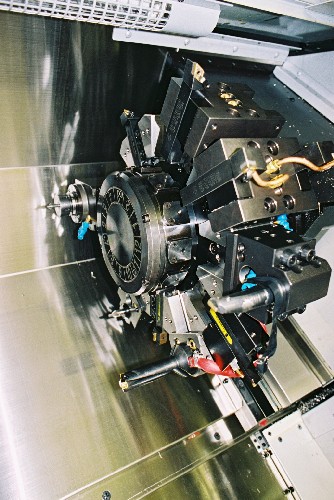

TURRET CAPACITY (ALL STATIONS LIVE) 12 STATION TURRET
LIVE TOOLING MOTOR 7.9 HP
LIVE TOOLING SPEEDS 100 - 3,000 RPM
EQUIPPED WITH:
FANUC 18iTA CNC CONTROL WITH 10.4" FLAT SCREEN LCD
RS-232C PORT FOR DNC OPERATION, UNIVERSAL BARFEED INTERFACE
8" KITAGAWA 3-JAW HYDRAULIC CHUCK WITH JAWS ON MAIN SPINDLE
6" KITAGAWA 3-JAW HYDRAULIC CHUCK WITH JAWS ON SUB SPINDLE
MANUAL TOOL PRESETTER, AUTOMATIC PARTS CATCHER
RIGHT HAND DISCHARGE TURBO LINK BELT CHIP CONVEYOR
ALL AVAILABLE LIVE TOOLING (5 LIVE TOOL HOLDERS)
ALL AVAILABLE TOOL BLOCK HOLDERS & ALL AVAIALBLE MANUALS
*****UNDER 100 TOTAL CUT TIME HOURS USAGE*****
