Specifications
Equipped With
GENERAL SPECIFICATIONS:

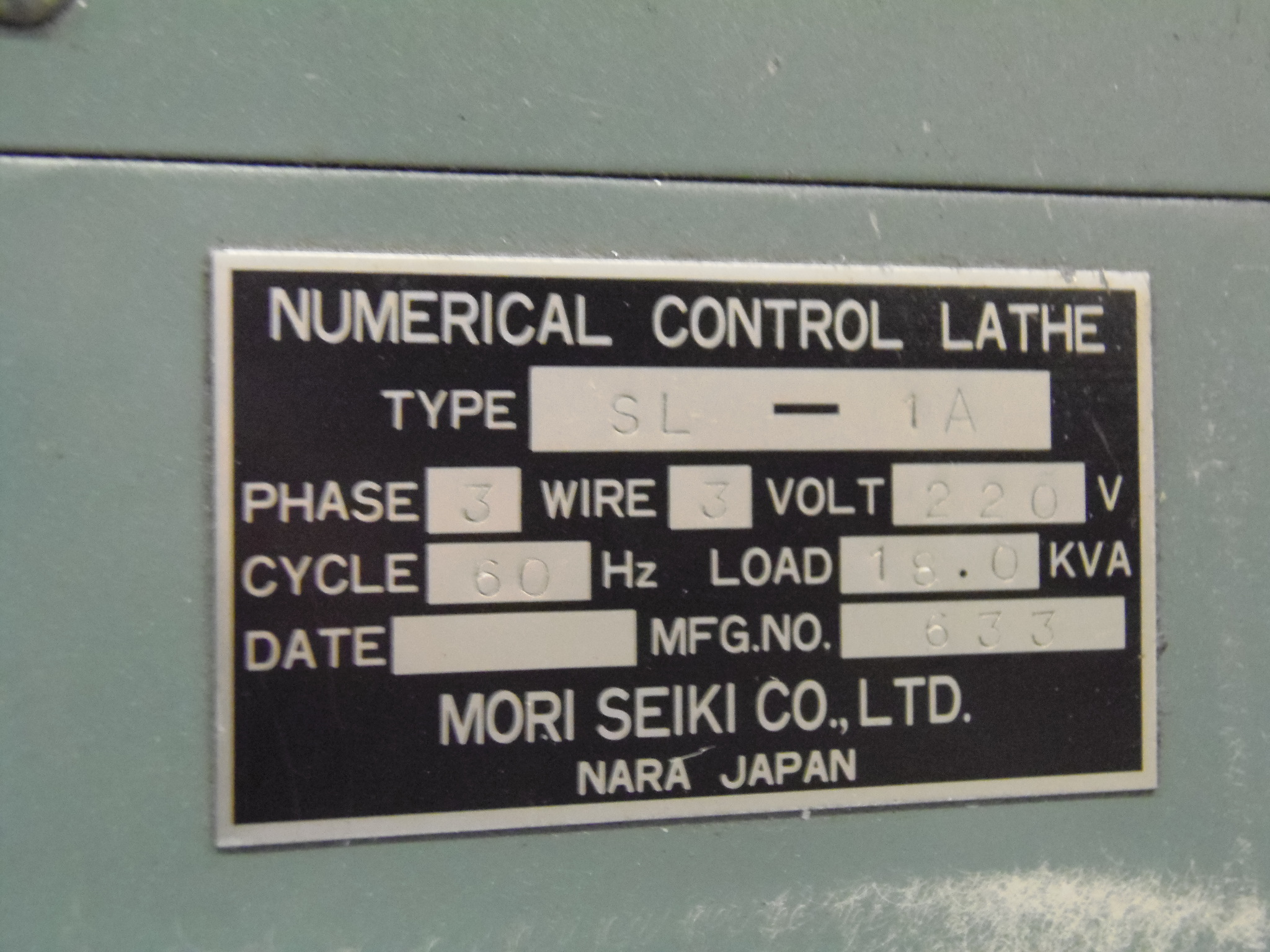

MANUFACTURER.......................... MORI SEIKI
MODEL................................. SL-1A
SERIAL NUMBER......................... 471
SWING................................. 16.5"
CHUCK SIZE............................ 6"
MAX. PART DIAMETER.................... 6.3"
LONGITUDINAL TRAVEL................... 10.8"
CROSS TRAVEL.......................... 3.9"
RAPIDS
X.................................. 157 IPM
Y.................................. 315 IPM
SPINDLE NOSE.......................... A-5
SPINDLE BORE.......................... 1.6"
SPINDLE SPEED......................... 6,000 RPM

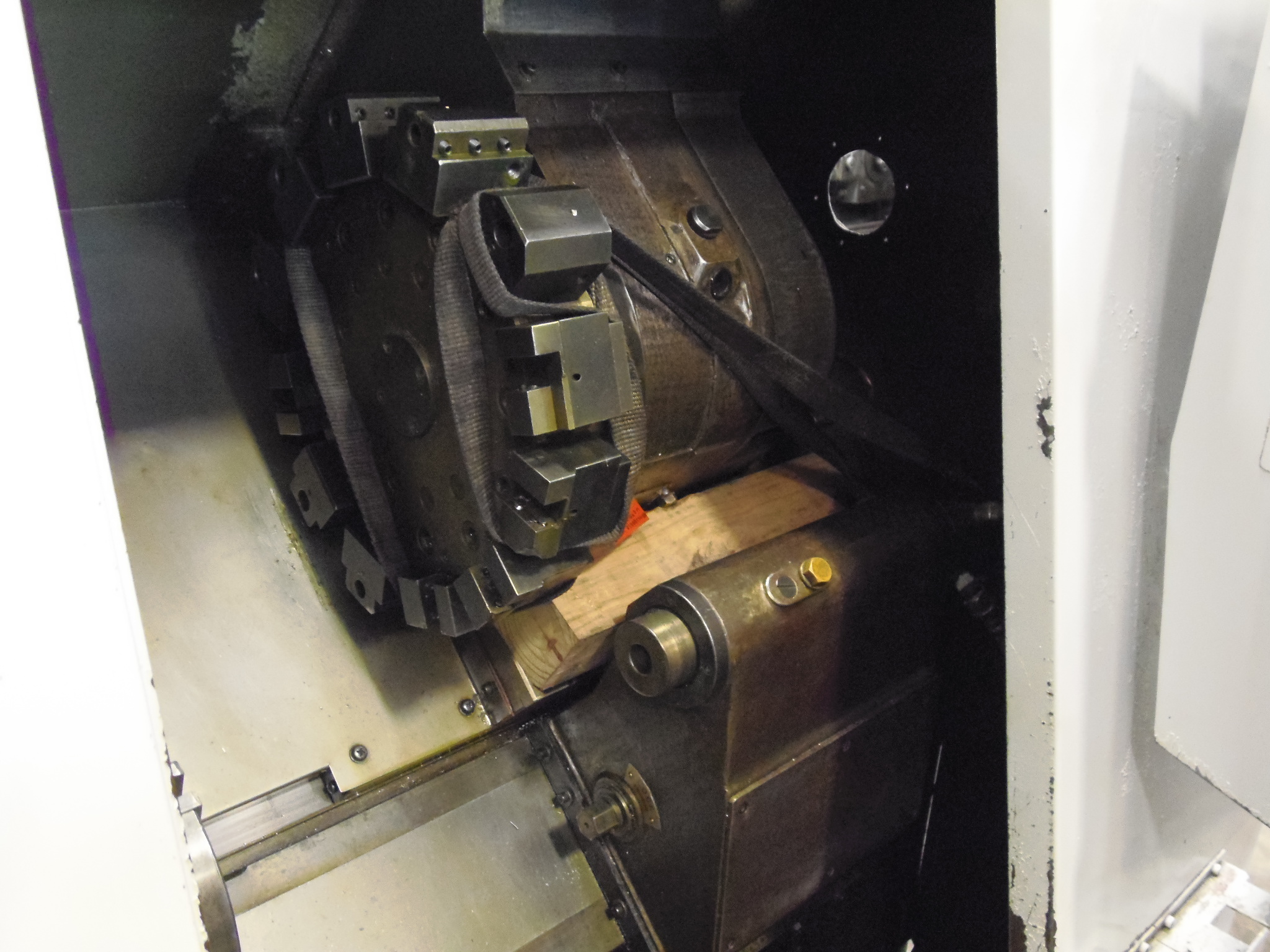

TURRET................................ 12 TOOL
MAIN MOTOR............................ 10 HP
WEIGHT (APPROX.)...................... 7,000 LBS.
EQUIPPED WITH:

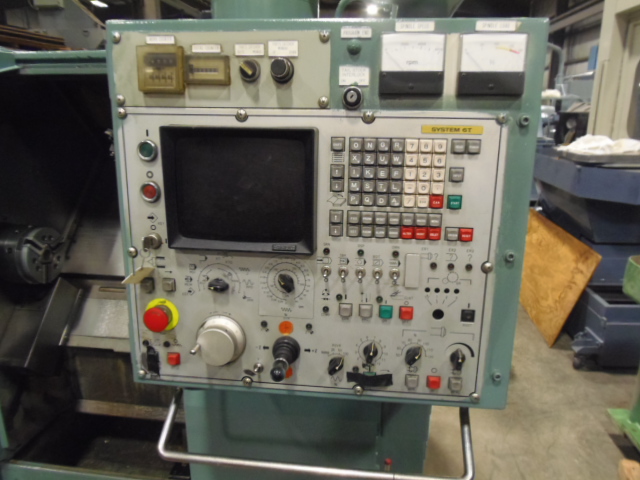

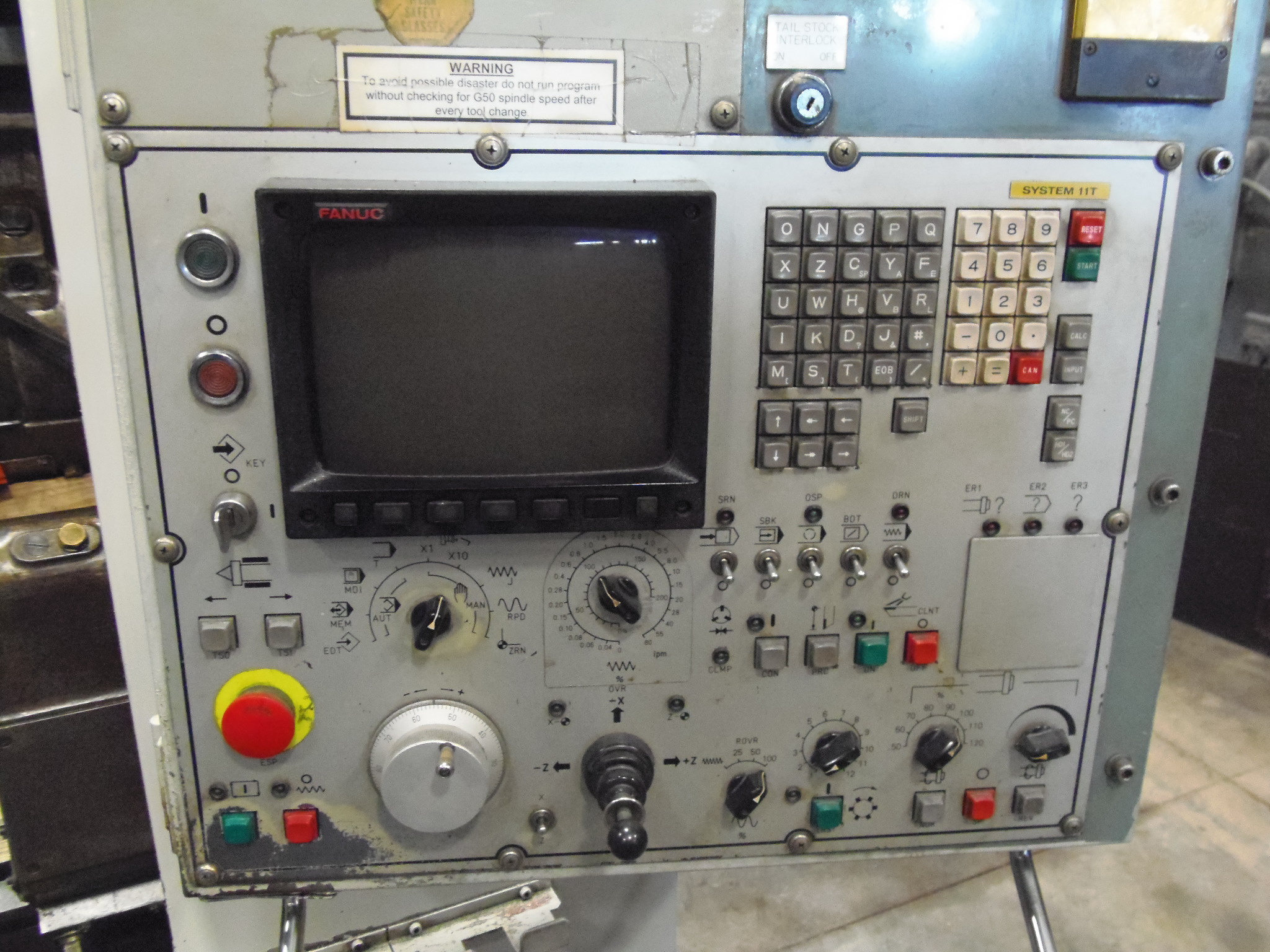

FANUC 6T CONTROL WITH CRT

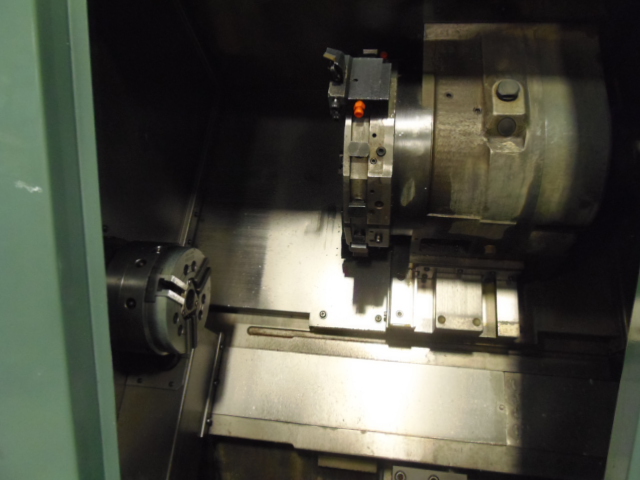

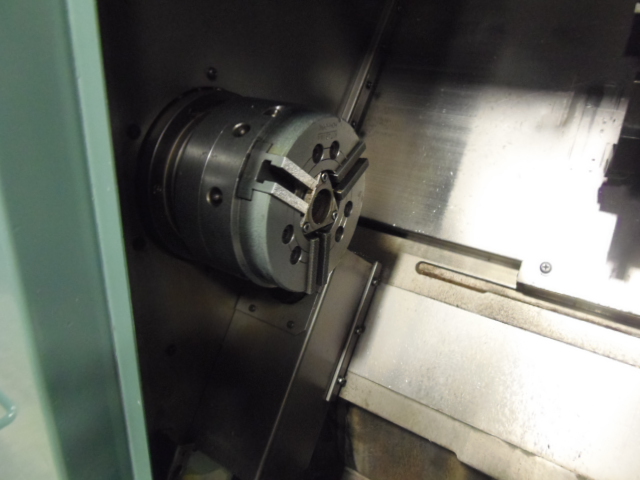

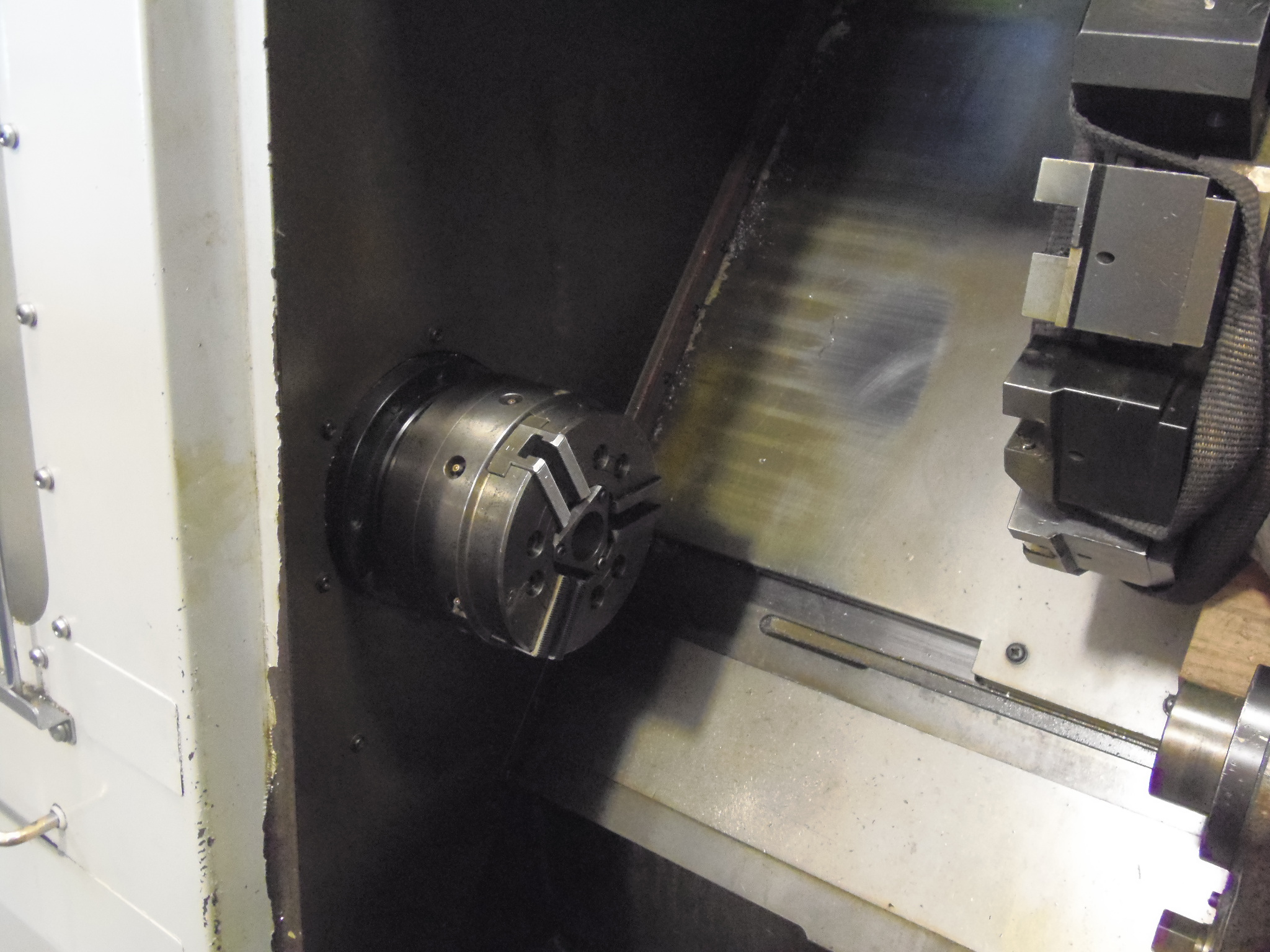

6" KITAGAWA HOH-06K 3 JAW POWER CHUCK
8 MISC TOOL HOLDERS

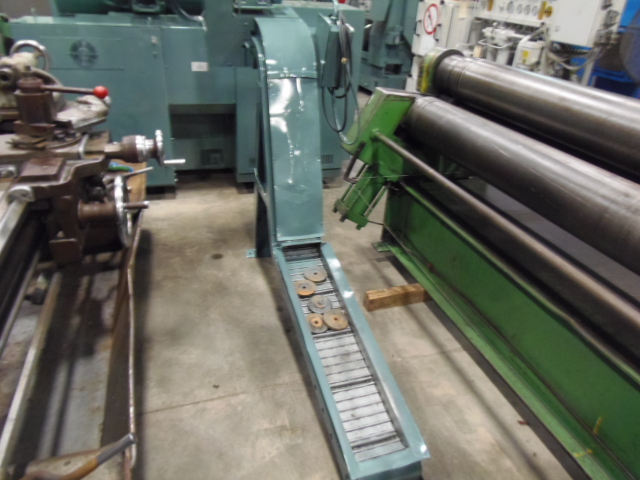

CHIP CONVEYOR
RS-232 INTERFACE
UNDER POWER FOR INSPECTION
SPECIFICATIONS SUBJECT TO VERIFICATION
