Specifications
Equipped With
GENERAL SPECIFICATIONS:

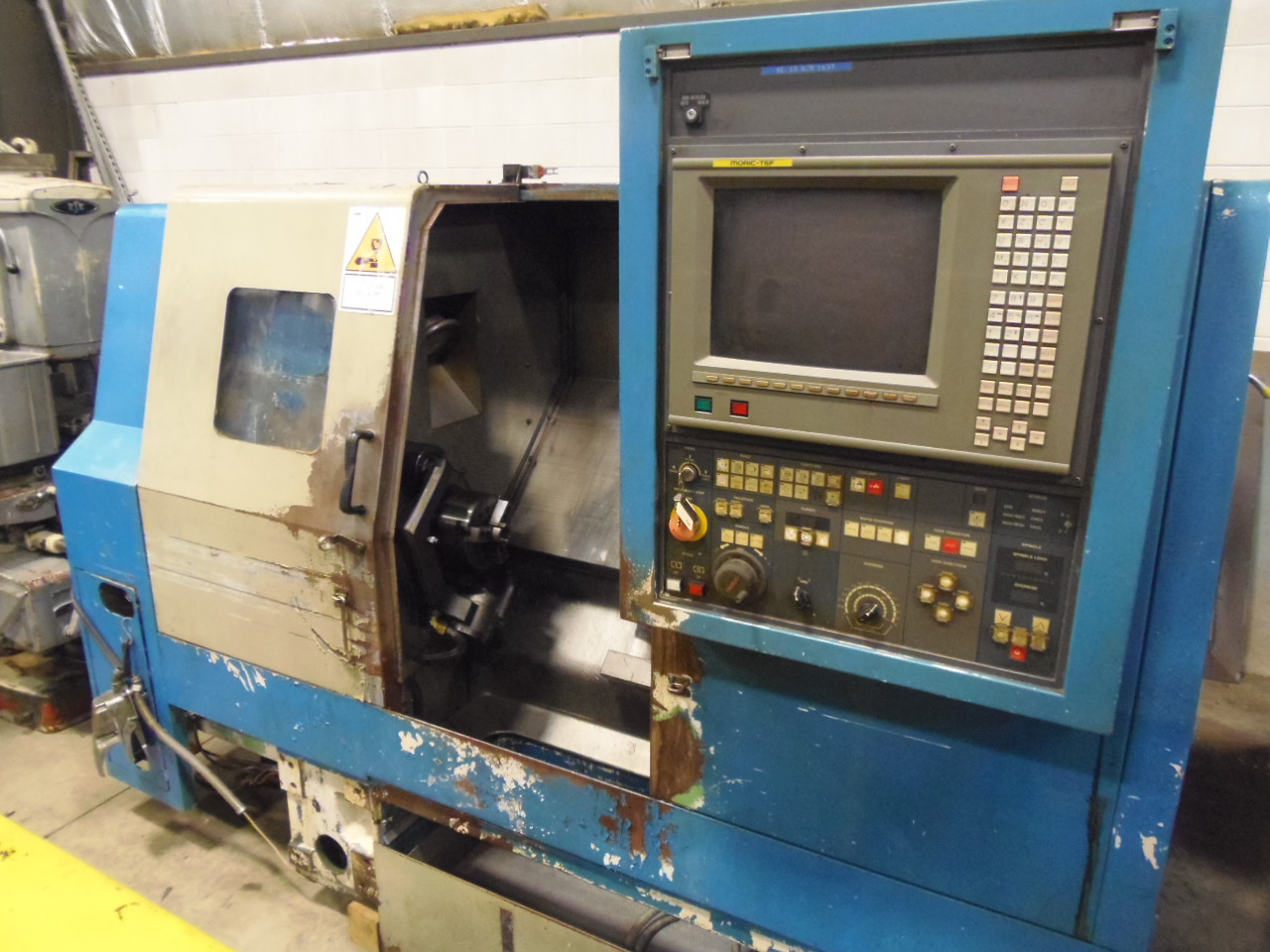

MAKE....................... MORI SEIKI
MODEL...................... SL-15
SERIAL NUMBER.............. 1637
AGE (APPROX)............... 1993
SWING OVER BED............. 17.72" (450 MM)
SWING OVER CROSS SLIDE..... 11.81" (300 MM)
DIST. BETWEEN CENTERS...... 23.43" (595 MM)
MAX. TURNING DIAMETER...... 6.30" (160 MM)
MAX. TURNING LENGTH........ 20.67" (525 MM)
X AXIS TRAVEL.............. 5.31" (135 MM)
Z AXIS TRAVEL.............. 22.05" (560 MM)
SPINDLE SPEED RANGE........ 60-6000 RPM
SPINDLE NOSE............... A2-5
THROUGH SPINDLE HOLD DIA... 2.05" (52 MM)
SPINDLE BEARING INNER DIA.. 3.54" (90 MM)

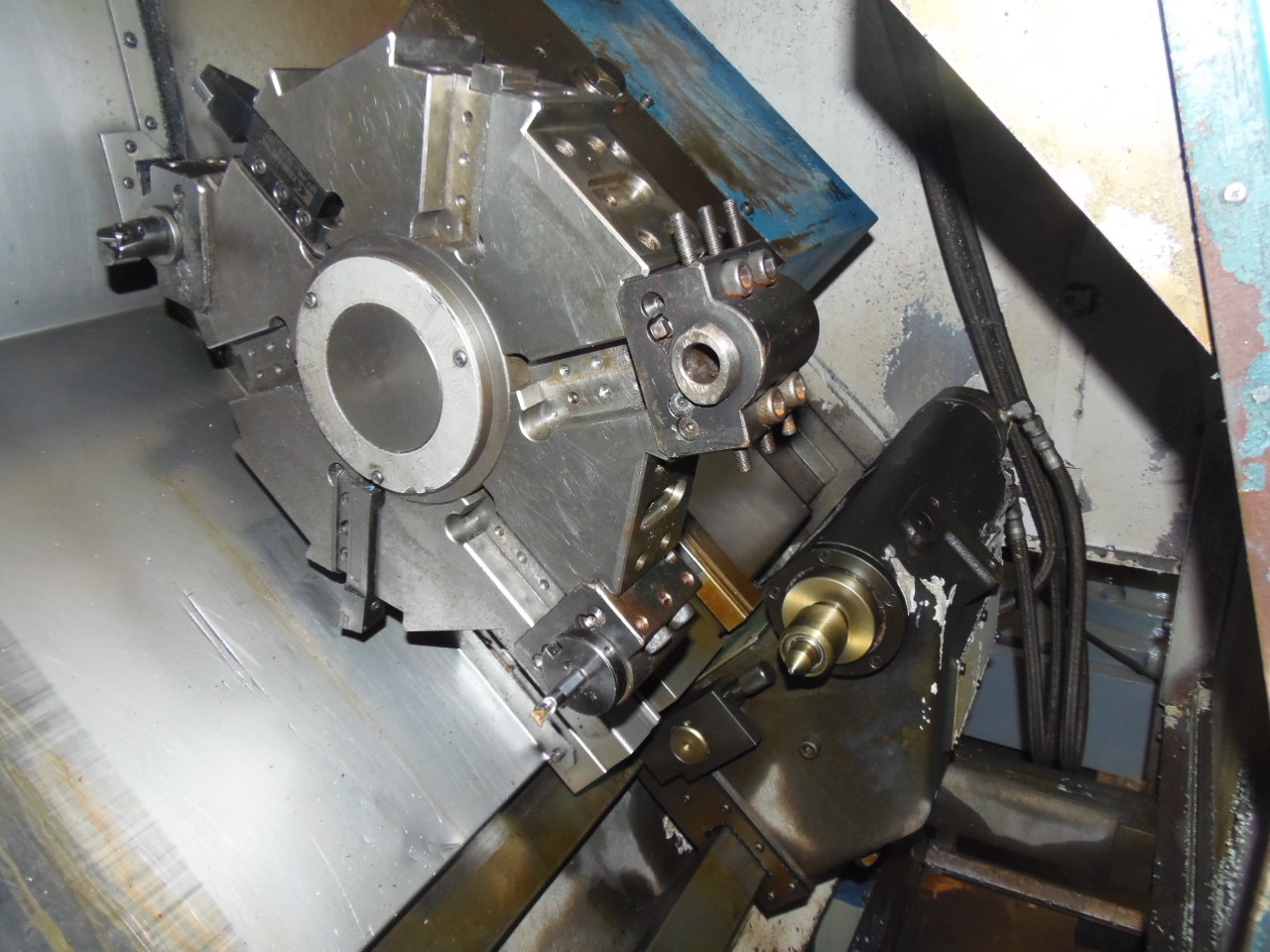

TURRET STATIONS............ 12
SHANK HEIGHT SQUARE TOOL... 0.79" (20 MM)
SHANK DIAMETER BORING BAR.. 1.26" (32 MM)
RAPID TRAVERSE (X)......... 472.44 INCH/MIN
........................... 12000 MM/MIN
RAPID TRAVERSE (Z)......... 590.55 INCH/MIN
........................... 15000 MM/MIN
FEED PER REVOLUTION (X).... 0-7.87 IN.
........................... 0.0002-200 MM
FEED PER REVOLUTION (Z).... 0-9.84 IN.
........................... 0.0002-250 MM
JOG FEEDRATE (X,Z)......... 49.61" (1260 MM)
TAILSTOCK TRAVEL........... 17.72" (450 MM)
TAILSTOCK SPINDLE DIAMETER. 2.95" (75 MM)
TAPER HOLE OF TAILSTOCK.... MT4 (LIVE CENTER)
TAILSTOCK SPINDLE TRAVEL... 3.15" (80 MM)
SPINDLE MOTOR.............. 10.05/7.37 HP

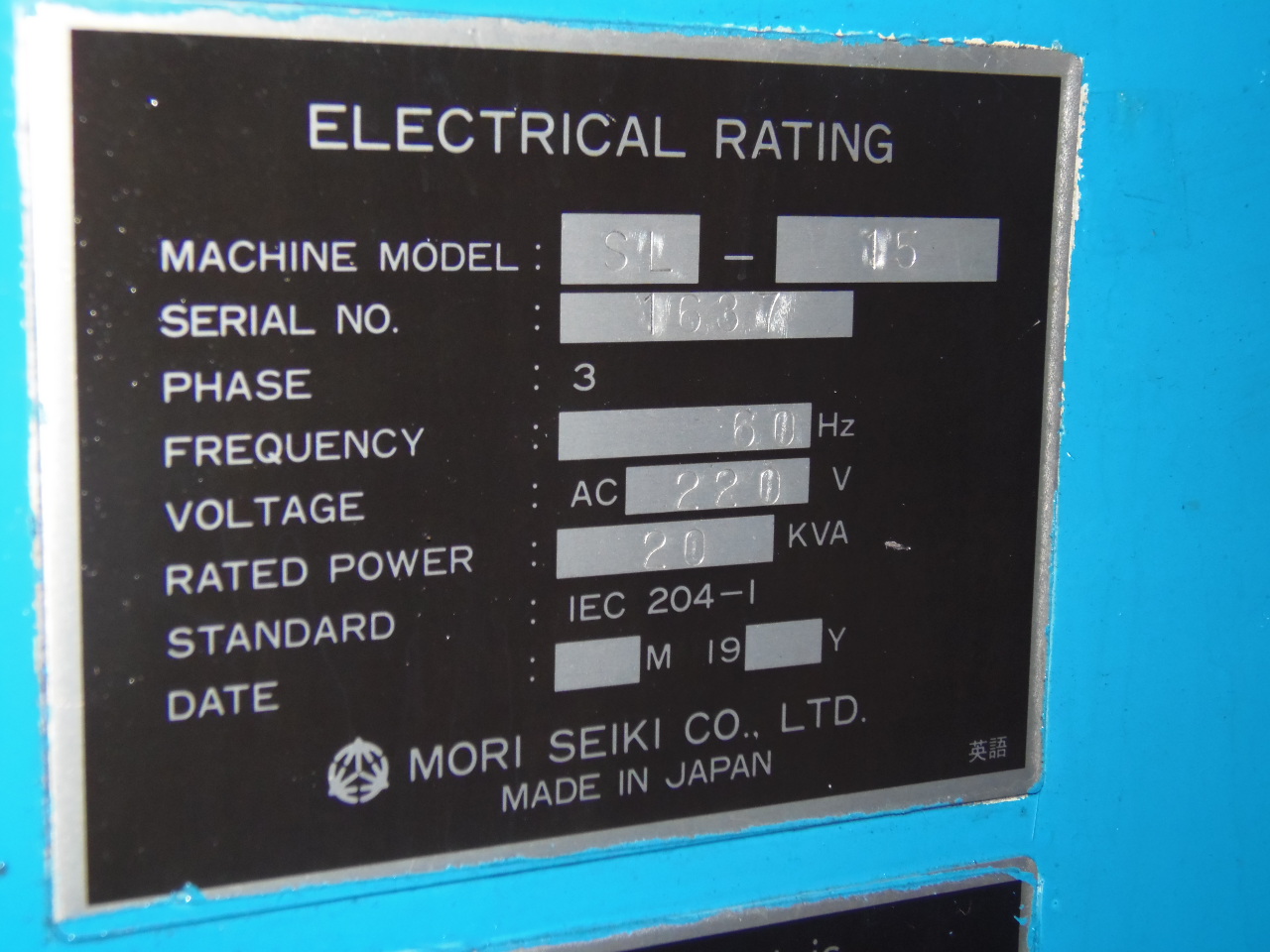

ELECTRICS.................. 220V/3PH/60HZ
WEIGHT (APPROX)............ 4000 LBS.
DIMENSIONS................. 96" X 60" X 76" H
EQUIPPED WITH:

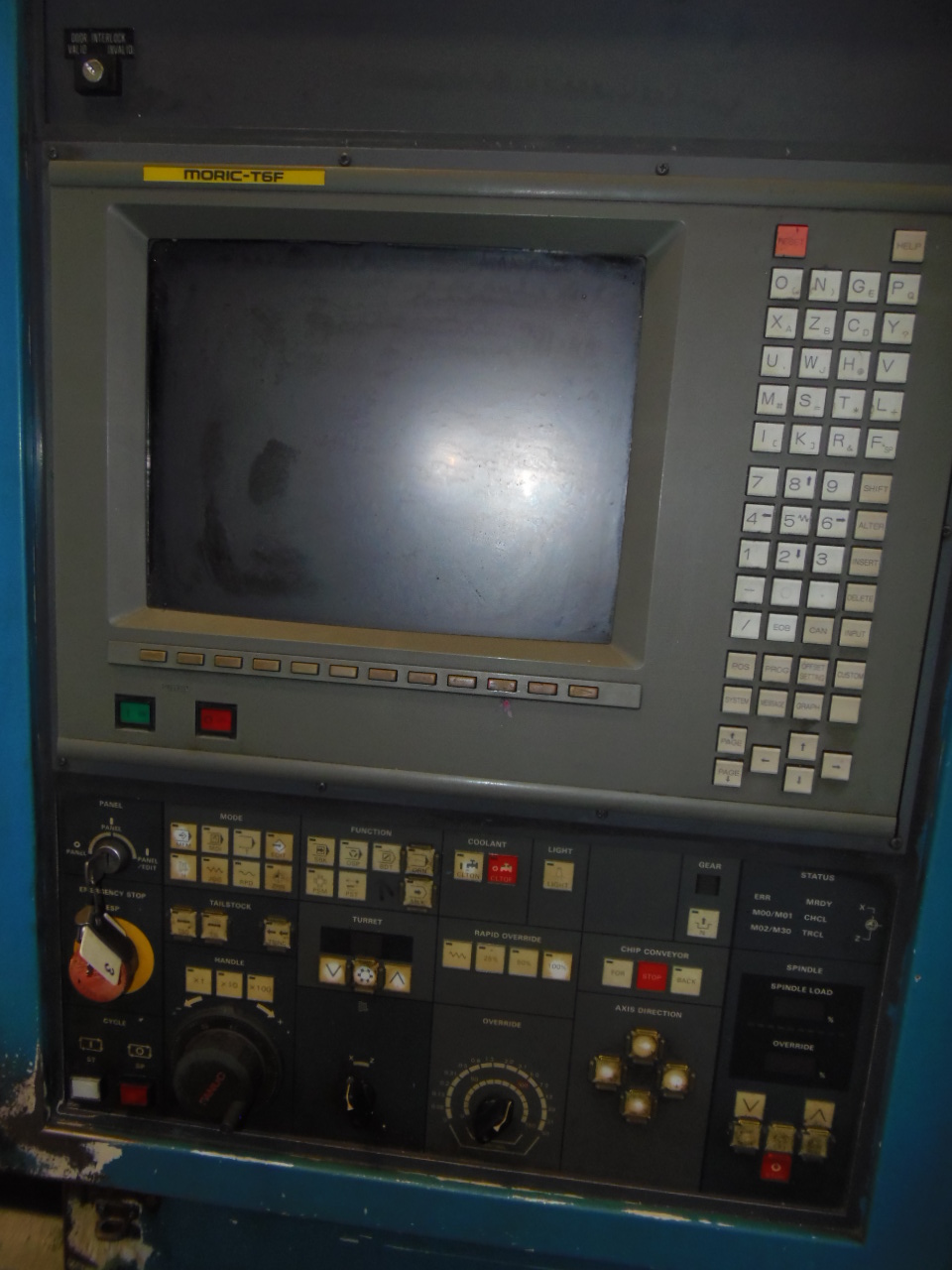

MORIC-T6F (FANUC 16T) CONTROL
TAILSTOCK

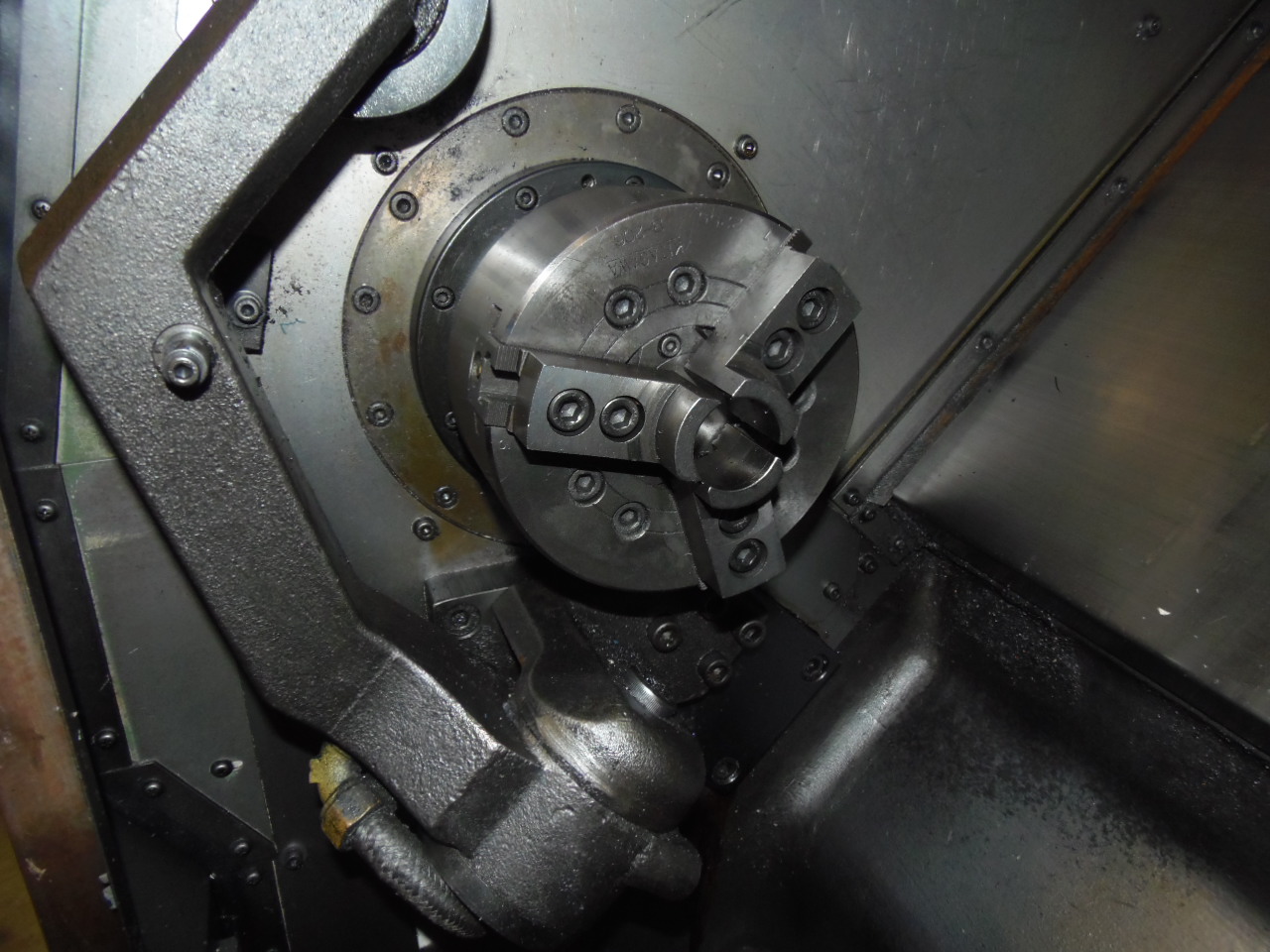

6.5" KITAGAWA 3-JAW CHUCK

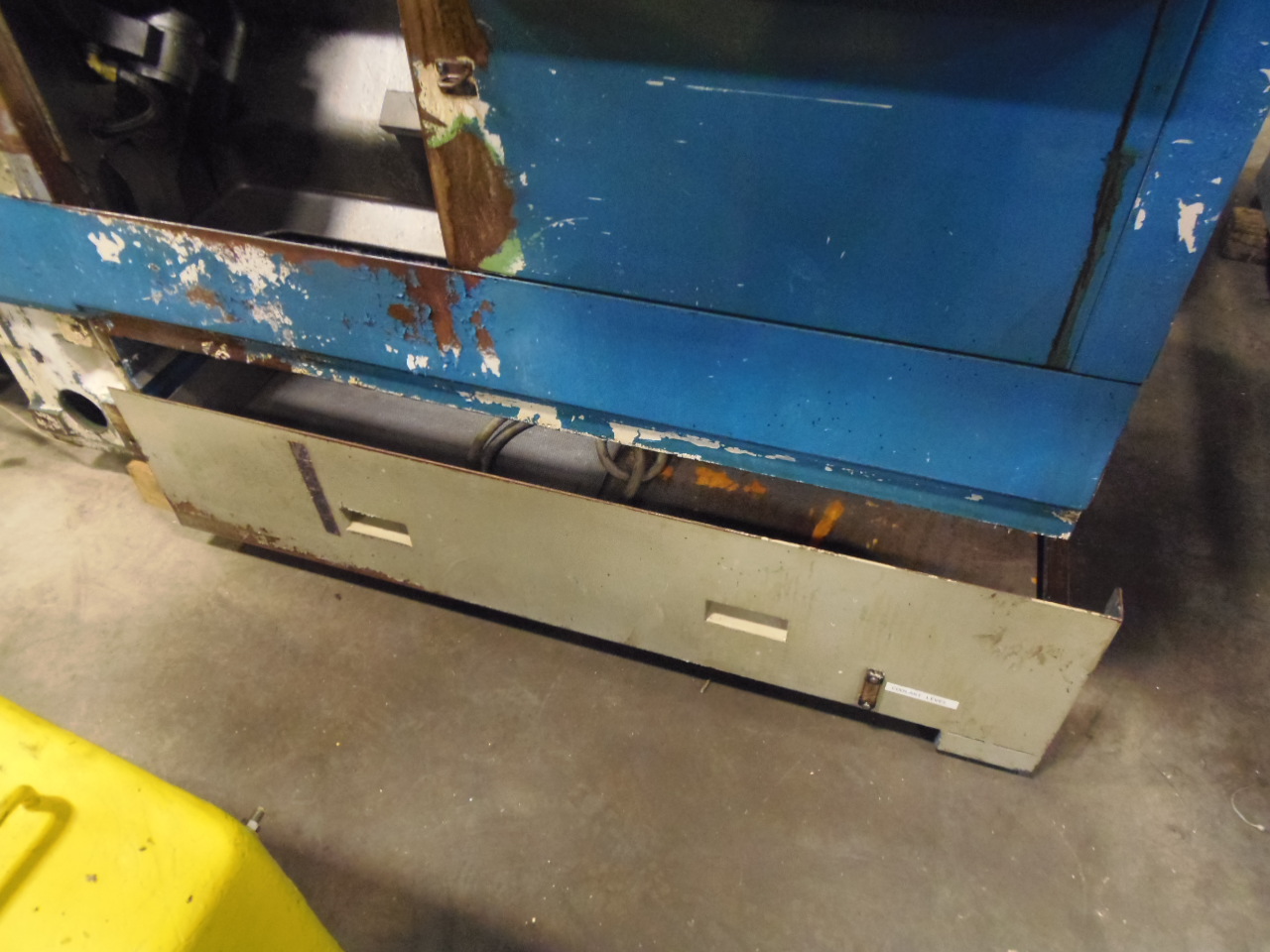

CHIP PAN/COOLANT TANK
LOTS OF MANUALS
