Specifications
Equipped With
GENERAL SPECIFICATIONS
MANUFACTURER........................... MORI SEIKI
SERIAL NUMBER.......................... 483
AGE.................................... 1996
MODEL.................................. SH-50
X-Axis Travel ......................... 24.8"
Y-Axis Travel ......................... 23.6"
Z-Axis Travel ......................... 25.6"
Number of Pallets ..................... 3
Pallet Size ........................... 19.69" x 19.69"
Spindle center to table top............ 2" - 25.6"
Table Center to spindle................ 5.9" - 31.5"
Pallet Indexing ....................... 1 DEGREE
Spindle Speed ......................... 12,000 RPM
Tool Changer Capacity.................. 60 ATC
Spindle Taper ......................... CAT 40
Spindle Drive Motor ................... 30 HP AC
Rapid Traverse (X,Y,Z) ................ 1260 IPM
Tool Change Time Tool to Tool.......... 1.3 Seconds
Equipped with:

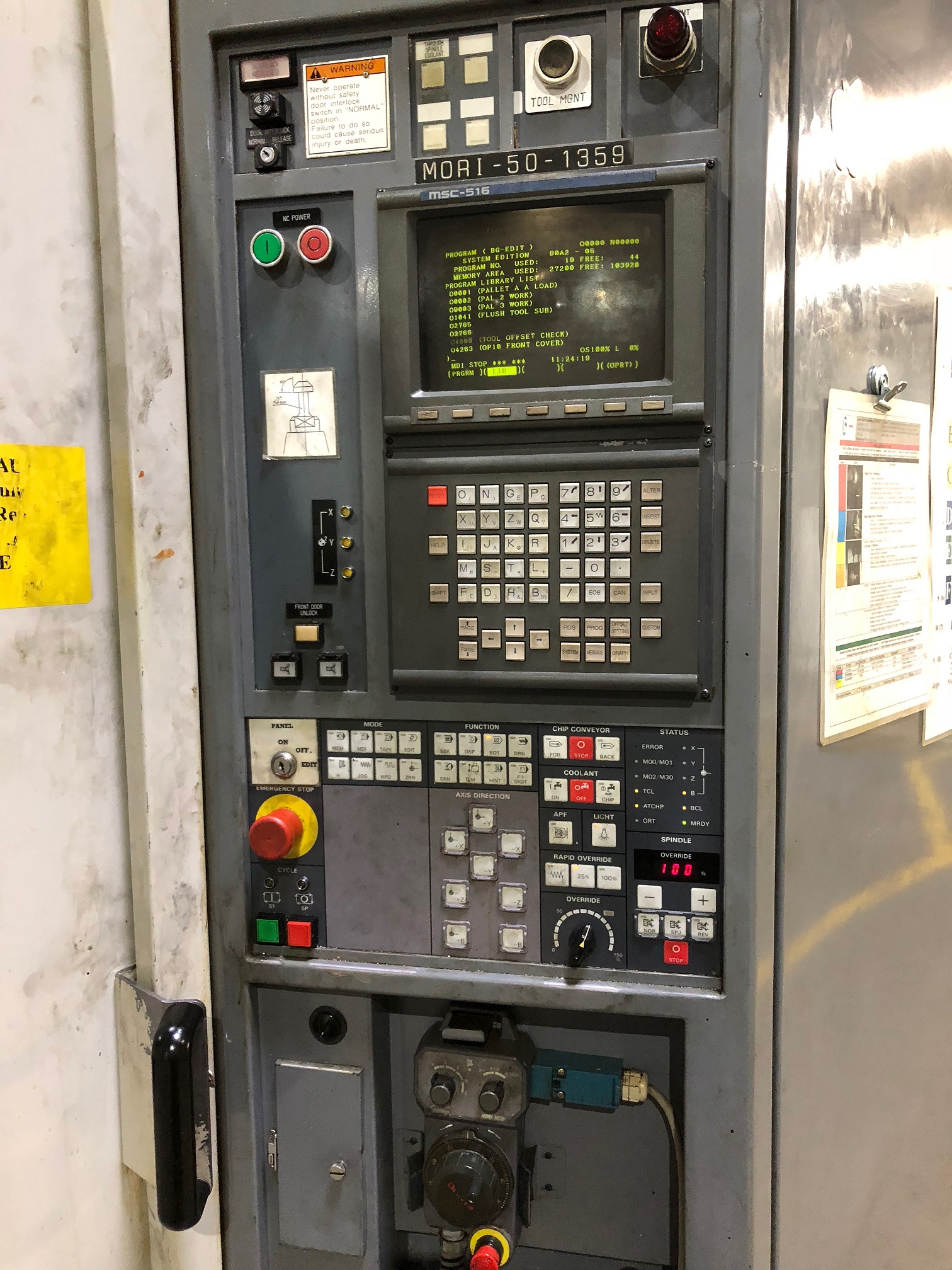

MSC-516 control (fanuc 16)
1000 psi thru spindle coolant
coolant tank with chip conveyor
