Specifications
Equipped With
GENERAL SPECIFICATIONS:

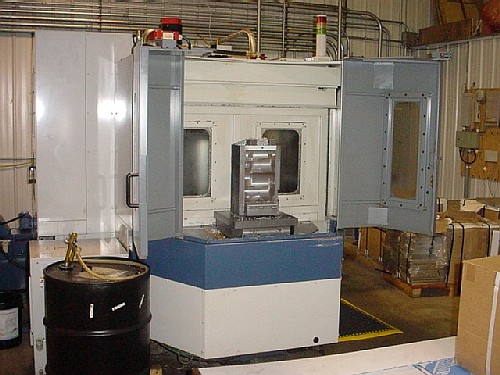

PALLET SIZE 15.75" X 15.75"
PALLET CHANGE TIME 5 SECONDS (7 SECONDS)
MAXIMUM TABLE LOAD (W/7 SEC APC) 1,100 LBS
SPINDLE NOSE TO PALLET CENTER 3.9" - 24.0"
SPINDLE CENTER TO PALLET SURFACE 2.0" - 22.0"
X AXIS TRAVEL 22"
Y AXIS TRAVEL 20.1"
Z AXIS TRAVEL 20.1"
B AXIS INDEXING 1 DEG.
RAPID TRAVERSE RATE X, Y & Z AXES 1300 IPM
CUTTING FEED RATE 0.01 - 1300 IPM
SPINDLE SPEEDS 50 - 12,000 RPM
SPINDLE TAPER CAT 40
SPINDLE MOTOR 30 HP AC
TOOL CHANGER CAPACITY 40 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL) 1.5 SECONDS
EQUIPPED WITH:

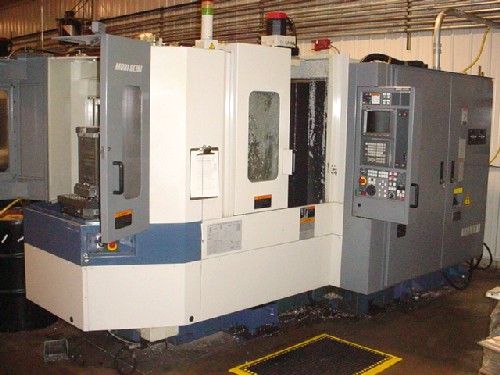

FANUC 18M CNC CONTROL WITH 9" CRT & RS-232C PORT
RIGID TAP, 250 PSI COOLANT THROUGH THE SPINDLE (DIN STYLE)
OVERHEAD SHOWER COOLANT & OIL HOLE COOLANT SYSTEMS
INTERNAL SPIRAL & EXTERNAL CHIP CONVEYOR WITH FILTRATION
2 ADDTIONAL PALLETS, SPINDLE CHILLER (OIL COOLER)
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
