Specifications
Equipped With
GENERAL SPECIFICATIONS:

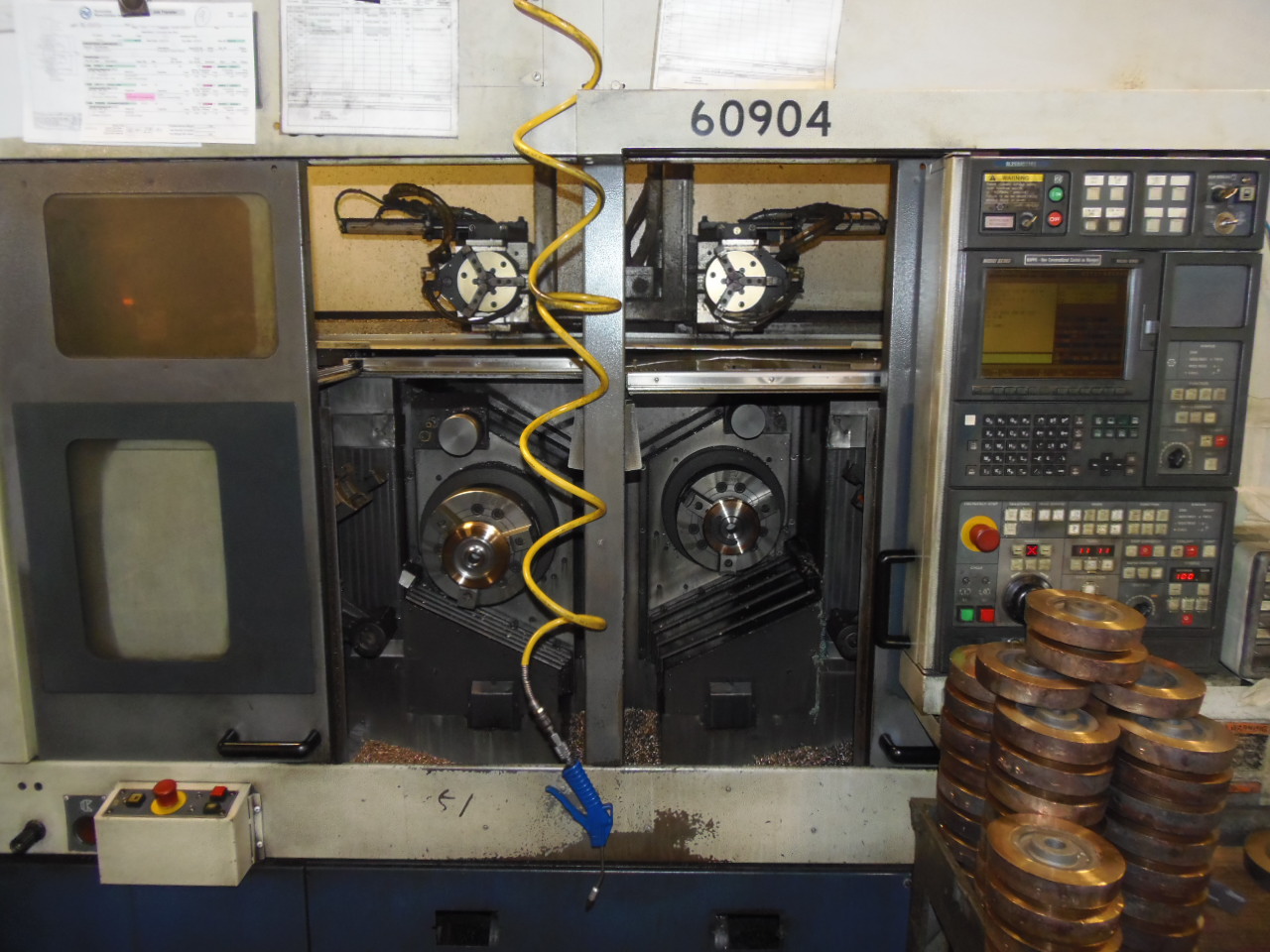

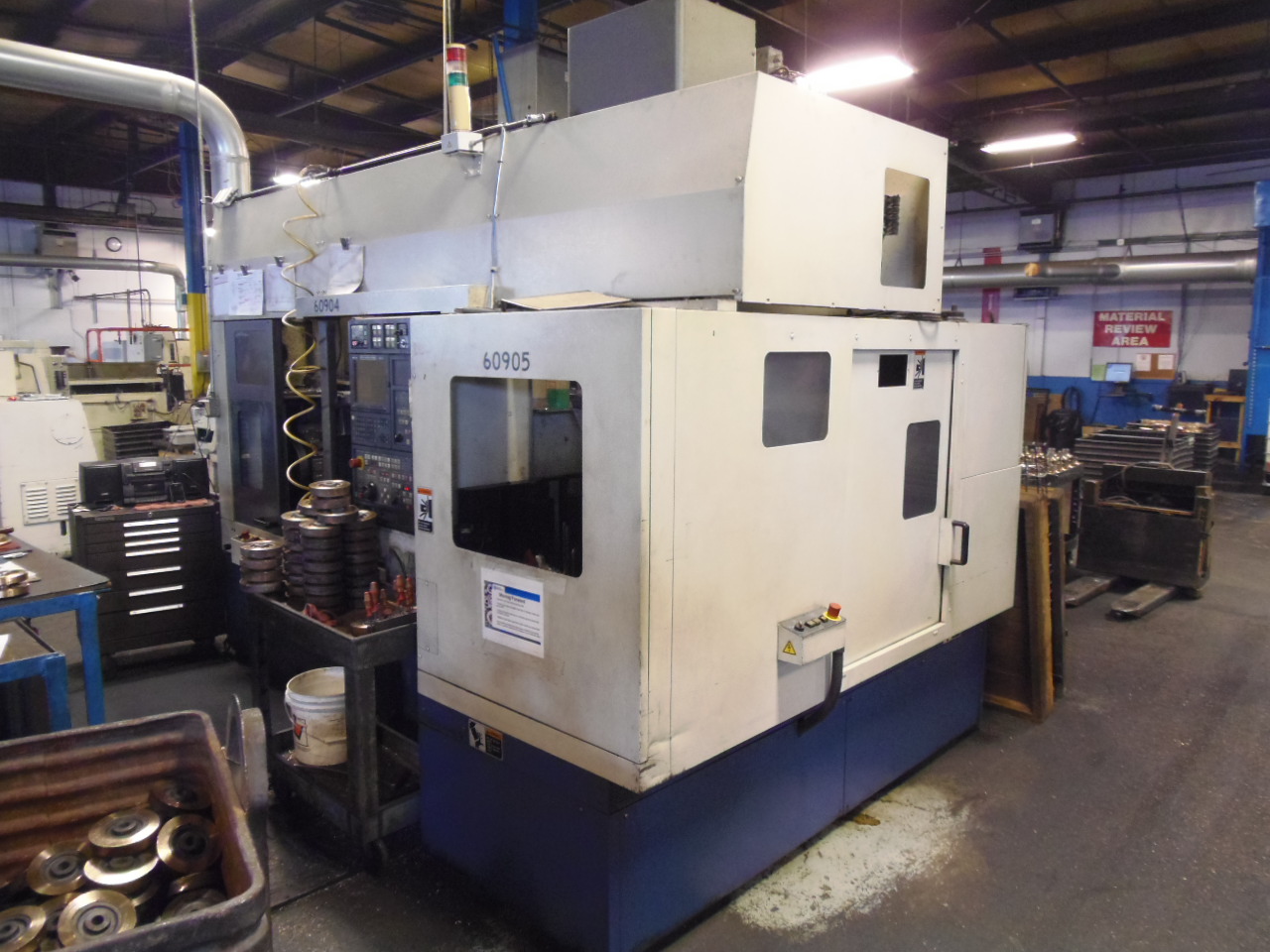

MANUFACTURER............................. MORI SEIKI
MODEL.................................... RL-253
YEAR..................................... 2001
MAX. SWING DIA. OF WORK PIECES........... 15.5" X 2
MAX. DISTANCE BETWEEN SPINDLES........... 22"
MAX. TURNING LENGTH...................... 7.0"
MAX. CUTTING AREA........................ 13.3"
MAX. BAR CAPACITY........................ 2.7"
SPINDLE NOSE............................. A2-8"
SPINDLE THRU HOLE DIA.................... 3.38"

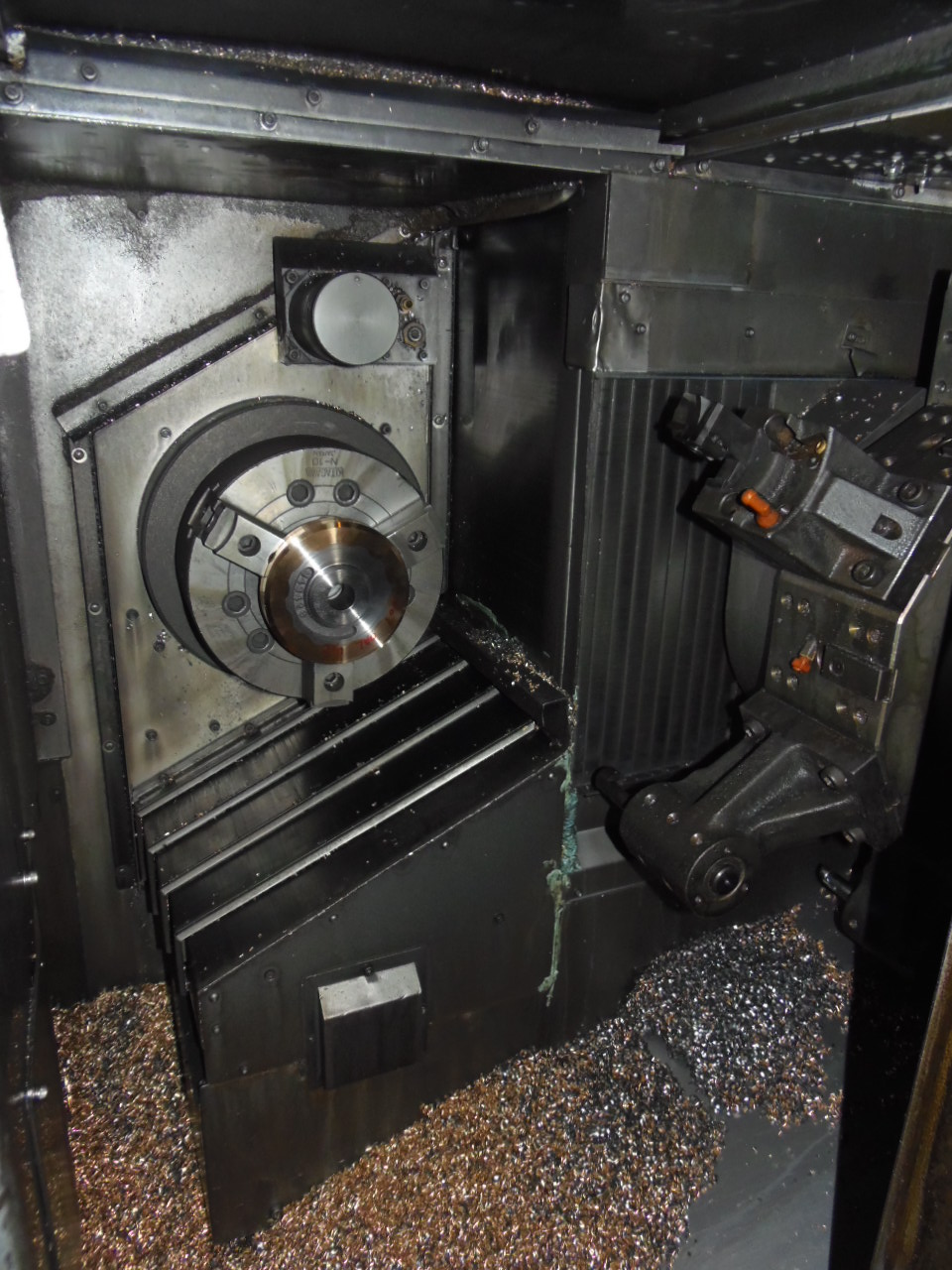

CHUCK SIZE (2)........................... 10"
SPINDLE SPEED............................ 3500 RPM
MAIN SPINDLE MOTOR....................... 20 HP AC

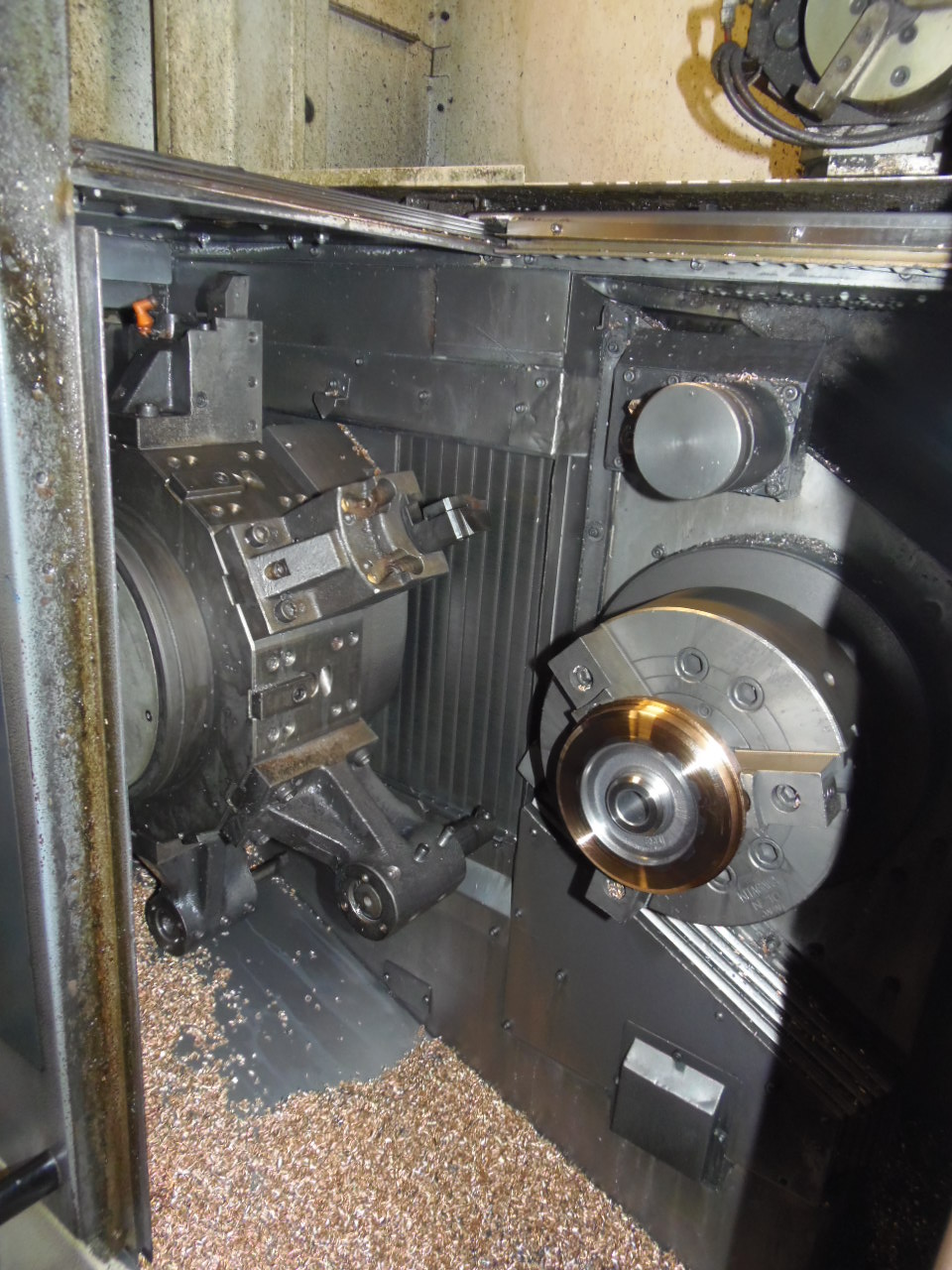

TURRET TYPE (2).......................... 12 DRUM TURRET
STROKE OF X AXIS......................... 7.5"
STROKE OF Z AXIS (L-R)................... 10.4"
EQUIPPED WITH:

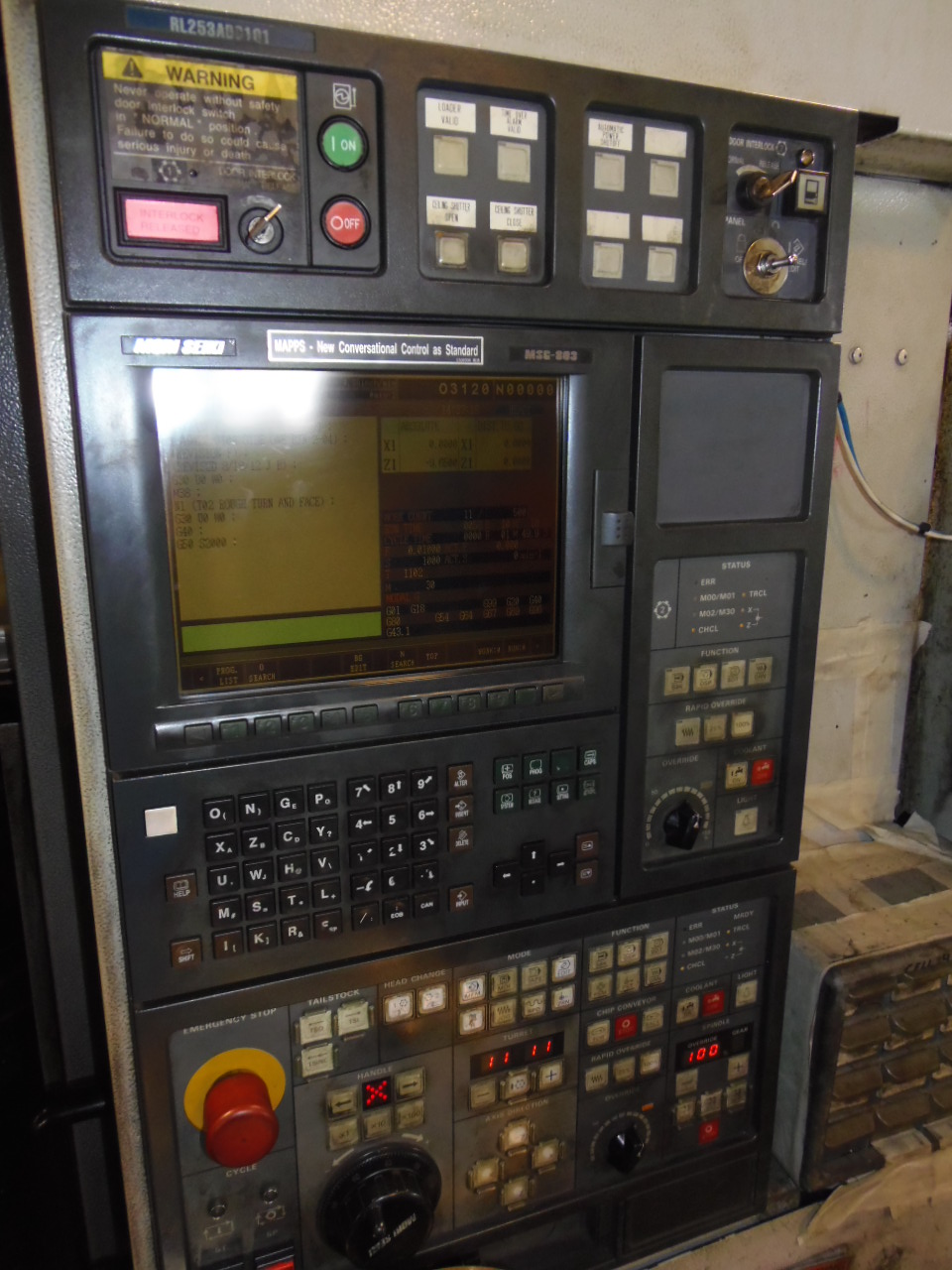

MORI SEIKI MSG CNC CONTROLS

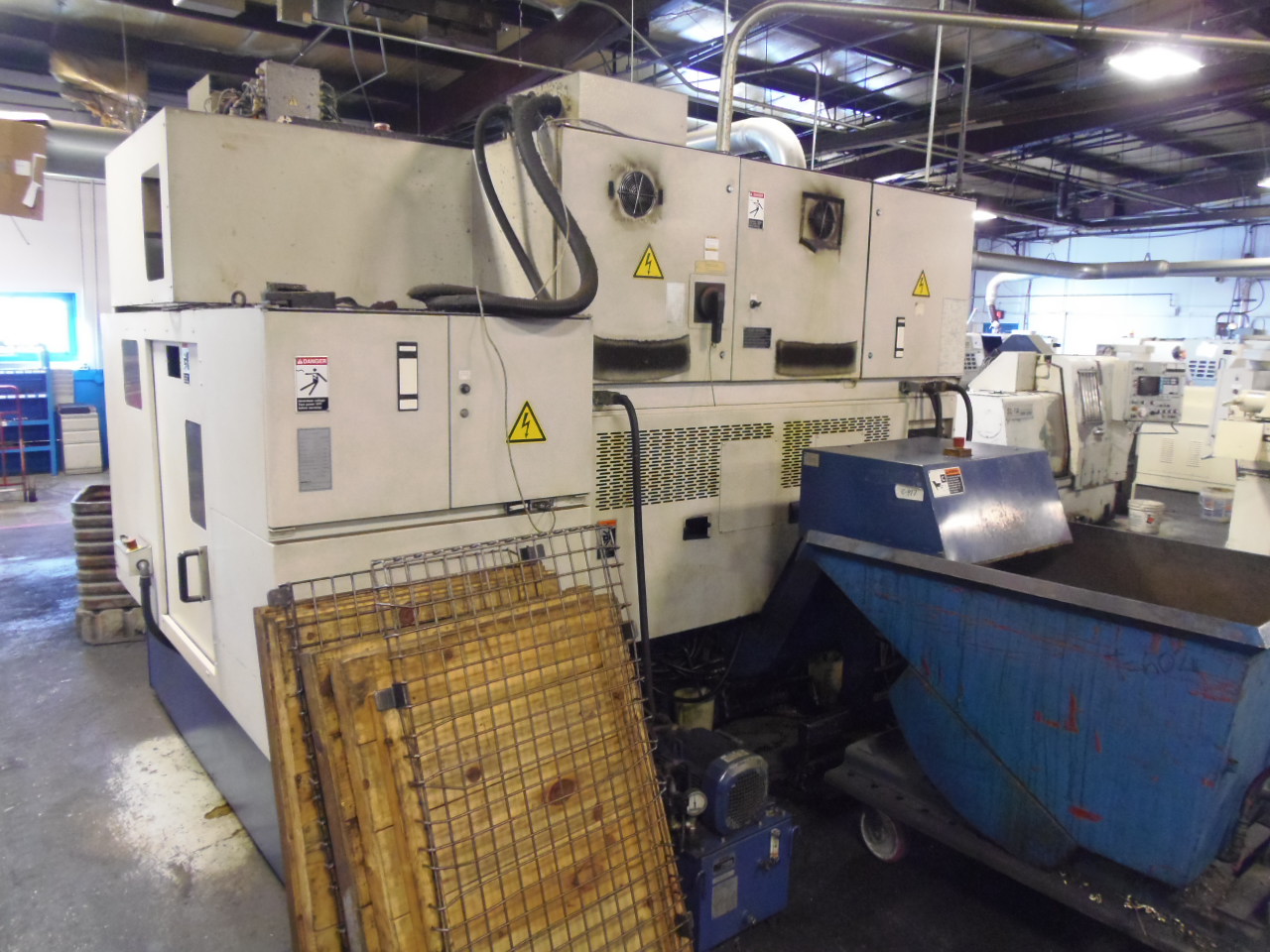

CHIP CONVEYOR
2-10" CHUCKS

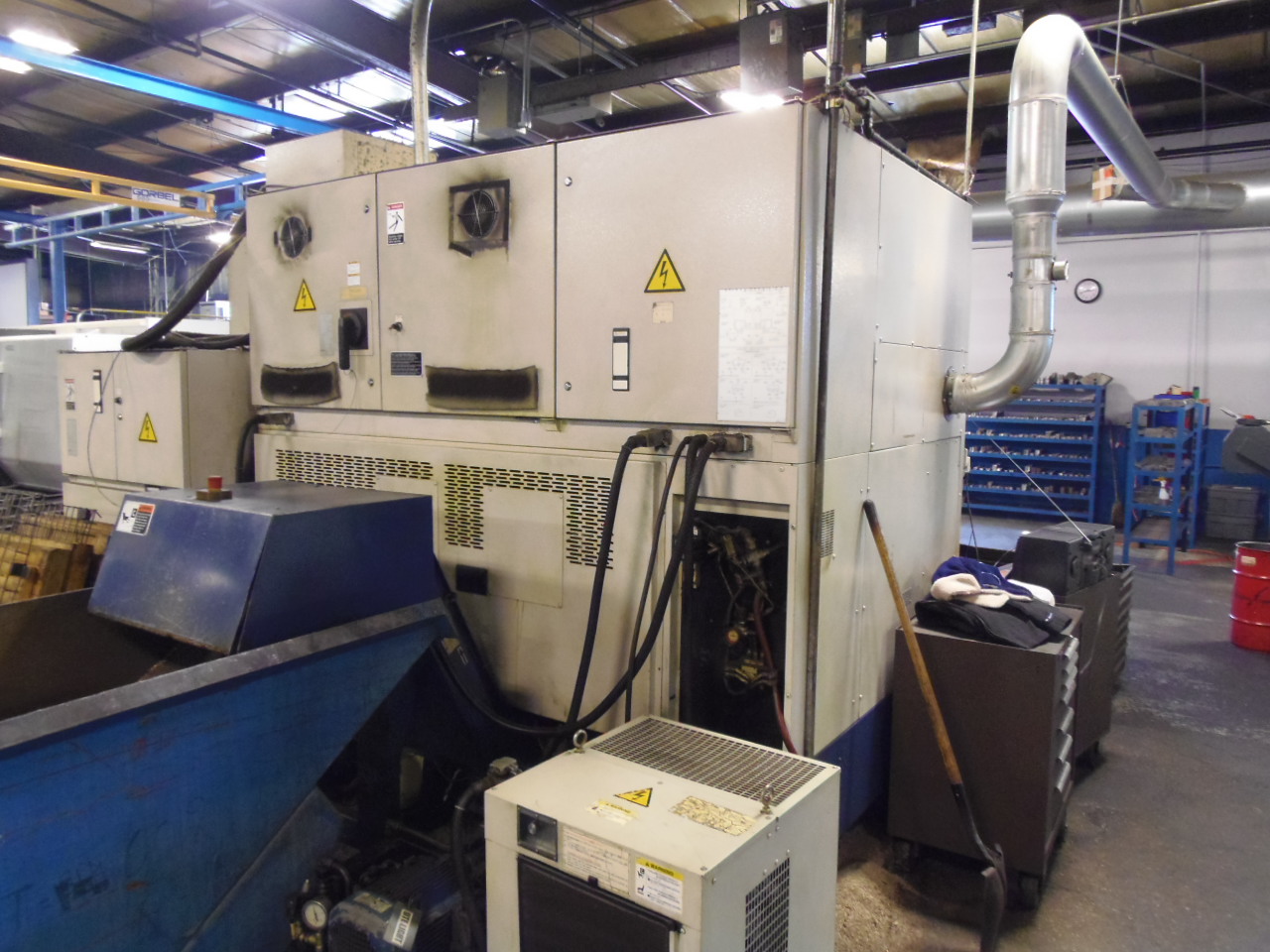

COOLANT SYSTEM

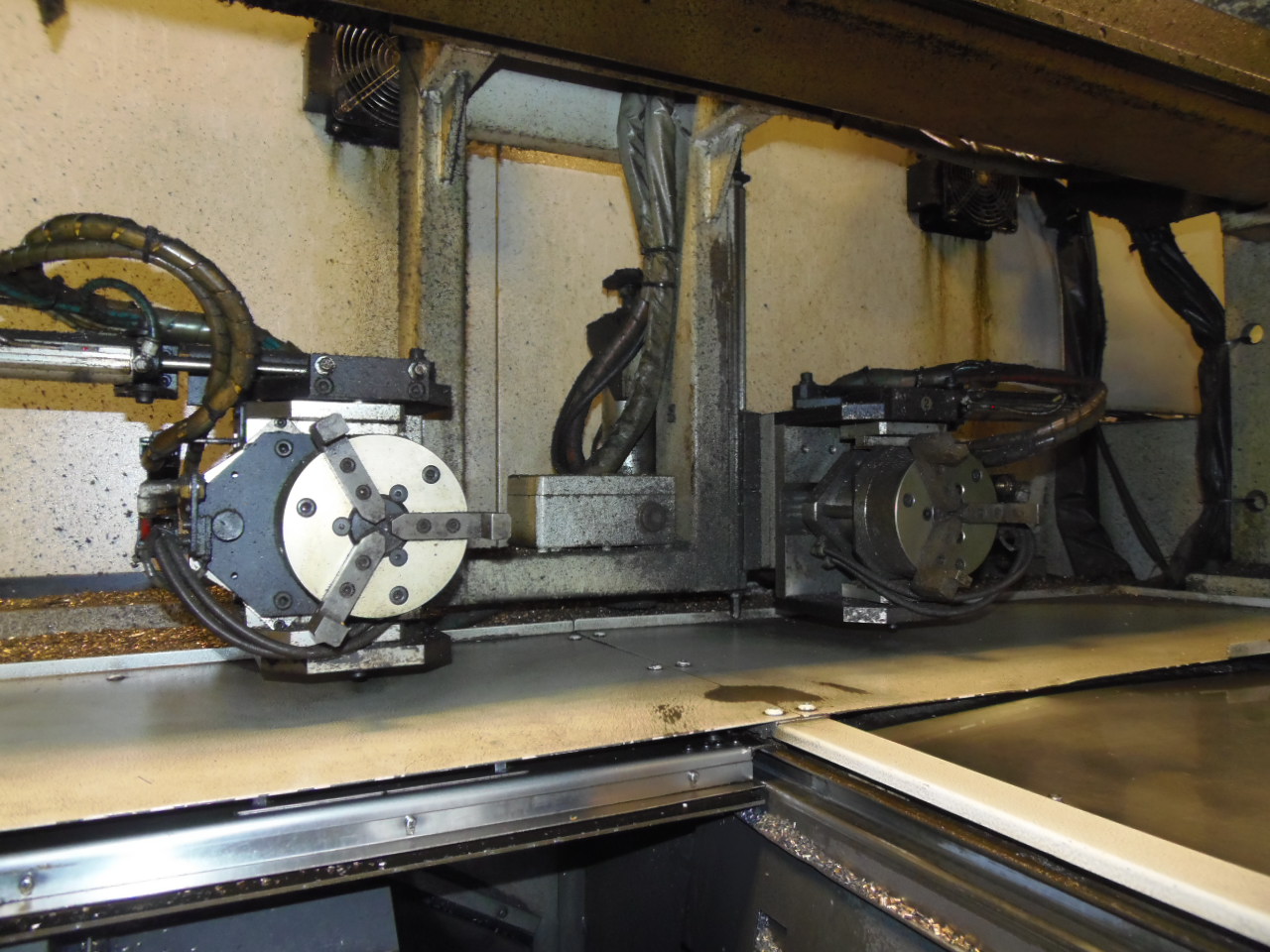

GANTRY LOADER (NOT WORKING)
