GENERAL SPECIFICATIONS:

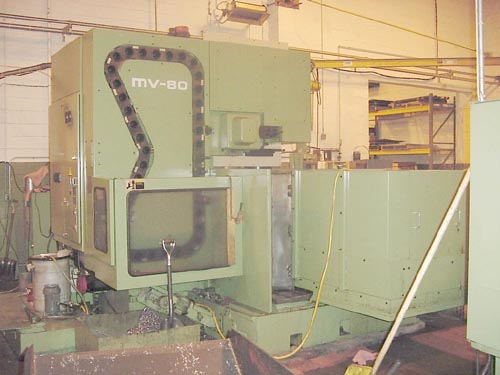

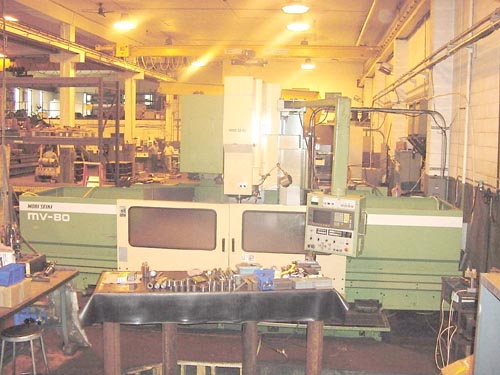

MODEL MV-80B
NEW APPROXIMATELY 1993

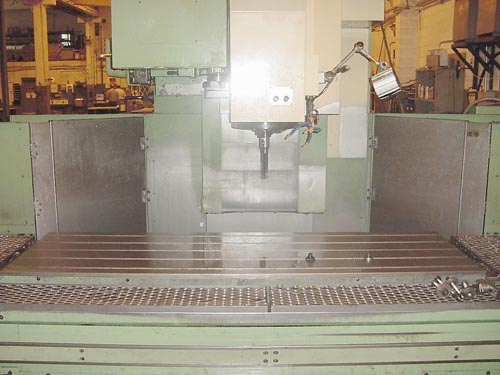

TABLE SIZE 98.5" X 32"
MAX. TABLE LOAD 6,615 LBS.
SPINDLE NOSE TO TABLE TOP 7.9" - 37.4"
TRAVELS: X 80"
Y 32"
Z 29.5"
RAPID TRAVERSE RATE: X 590 IPM
Y & Z 470 IPM
SPINDLE SPEEDS 10-3500 RPM
SPINDLE TAPER CAT 50
SPINDLE MOTOR 20 HP
TOOL CHANGER CAPACITY 40
TOOL CHANGER TIME (TOOL TO TOOL) 5.6 SEC.
DIMENSIONS (APPROX.) 224"Lx156"Wx138"H
WEIGHT (APPROX.) 46,000 LBS.
EQUIPPED WITH:
FANUC 15MB CNC CONTROL W/RS232 PORT
REMOTE PULSE GENERATOR
WIRED W/4TH AXIS DRIVE
'ZERO SENSOR' POSITIONING PROBE
GLASS SCALES
DUAL CHIP CONVEYOR
SPINDLE CHILLER
COOLANT TANK/PUMP
FULLY ENCLOSED GUARDING
