GENERAL SPECIFICATIONS:

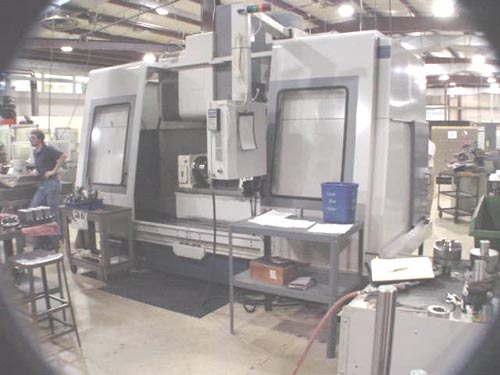

MODEL # MV-65B/50
NEW APPROXIMATELY 1996
X AXIS (MAX. TABLE TRAVEL) 60"
Y AXIS (MAX. SADDLE TRAVEL) 25.6"
Z AXIS (MAX. HEADSTOCK TRAVEL) 25.6"
TABLE SIZE 67" X 25.6"
MAX. WEIGHT ON TABLE 4,400 LBS.
SPINDLE SPEEDS UP TO 6,000 RPM
SPINDLE TAPER CAT 50 TAPER
RAPID FEED RATE XY: 590 IPM
Z: 472 IPM
FEED RATE: .01 TO 197 IPM
SPINDLE MOTOR 30 HP
REQUIRED FLOOR SPACE 170" X 146" X 123" TALL
MACHINE WEIGHT 29,260 LBS.
EQUIPPED WITH:
MORI-SEIKI MF-M6 CONTROL

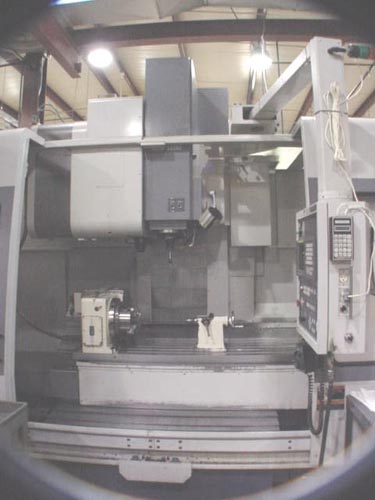

TSUDAKOMA RNCM-301R FULL 4TH AXIS WITH 10"
3-JAW SCROLL CHUCK AND TAILSTOCK
30 POSITION AUTOMATIC TOOL CHANGER
OIL COOLER
HELICAL INTERPOLATION
