GENERAL SPECIFICATIONS:
MAKE.................. MORI SEIKI
MODEL................. MV-65/50
SERIAL NUMBER......... 532
AGE................... 1990

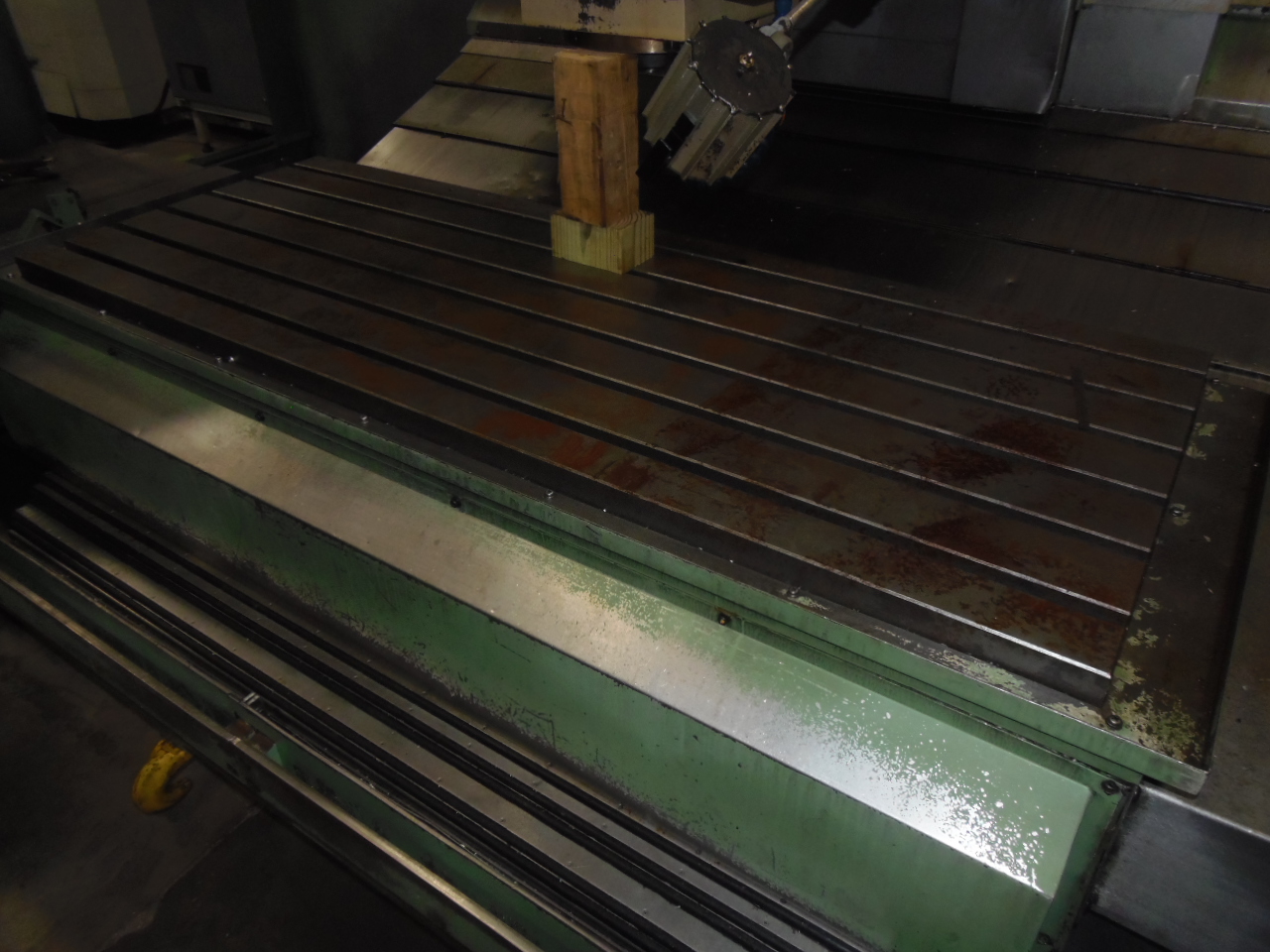

TABLE SIZE............ 25.5" X 76"
MAX TABLE WEIGHT...... 4400 LBS.
TRAVELS X............. 50"
TRAVELS Y............. 25"
TRAVELS Z............. 25"
SPINDLE TAPER......... CAT 50
SPINDLE SPEED......... 4000 RPM

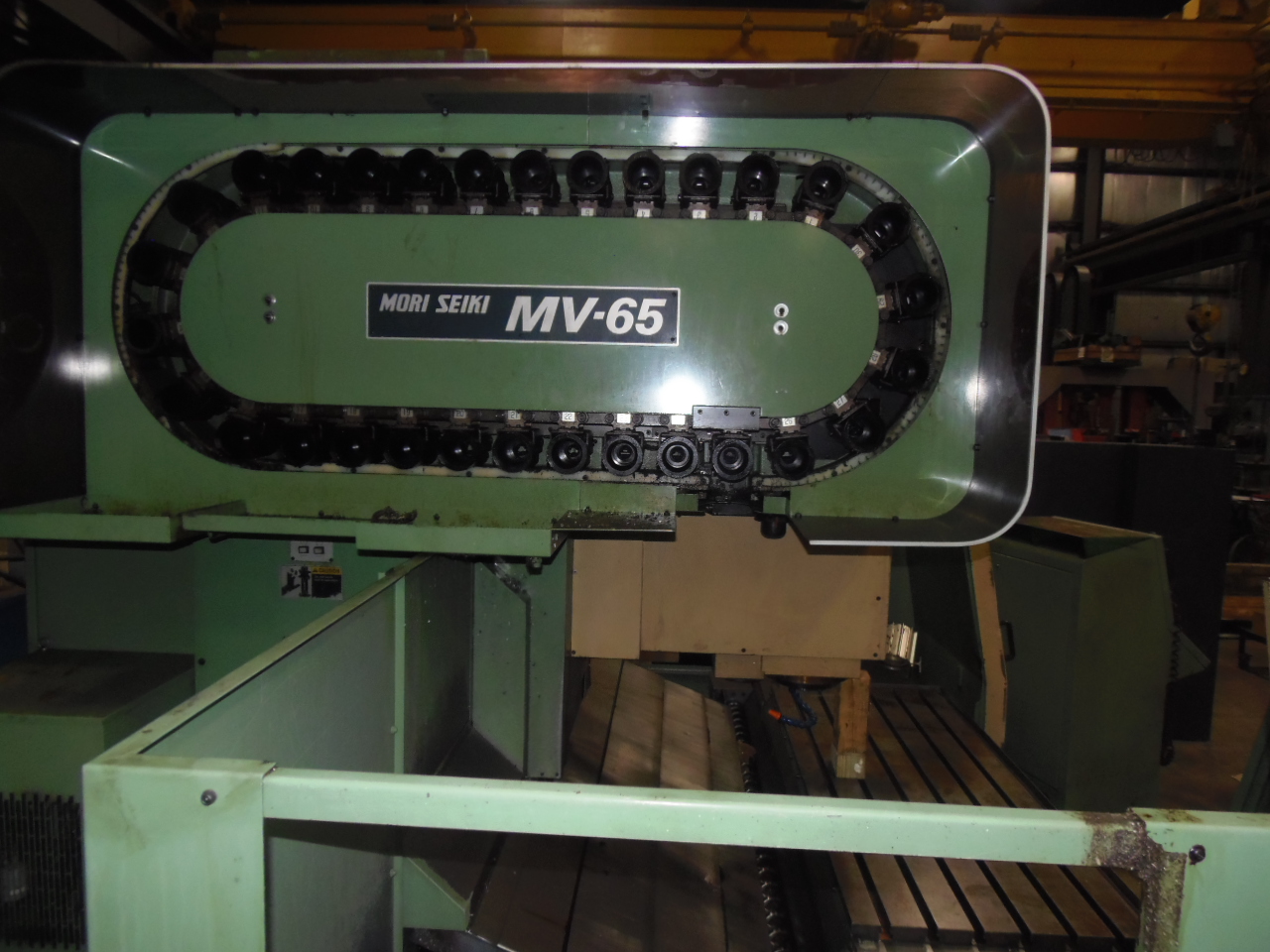

TOOL CHANGER.......... 30 ATC
WEIGHT APPROX......... 30,000 LBS.
FLOOR SPACE........... 169" X 145" X 123" H
EQUIPPED WITH:

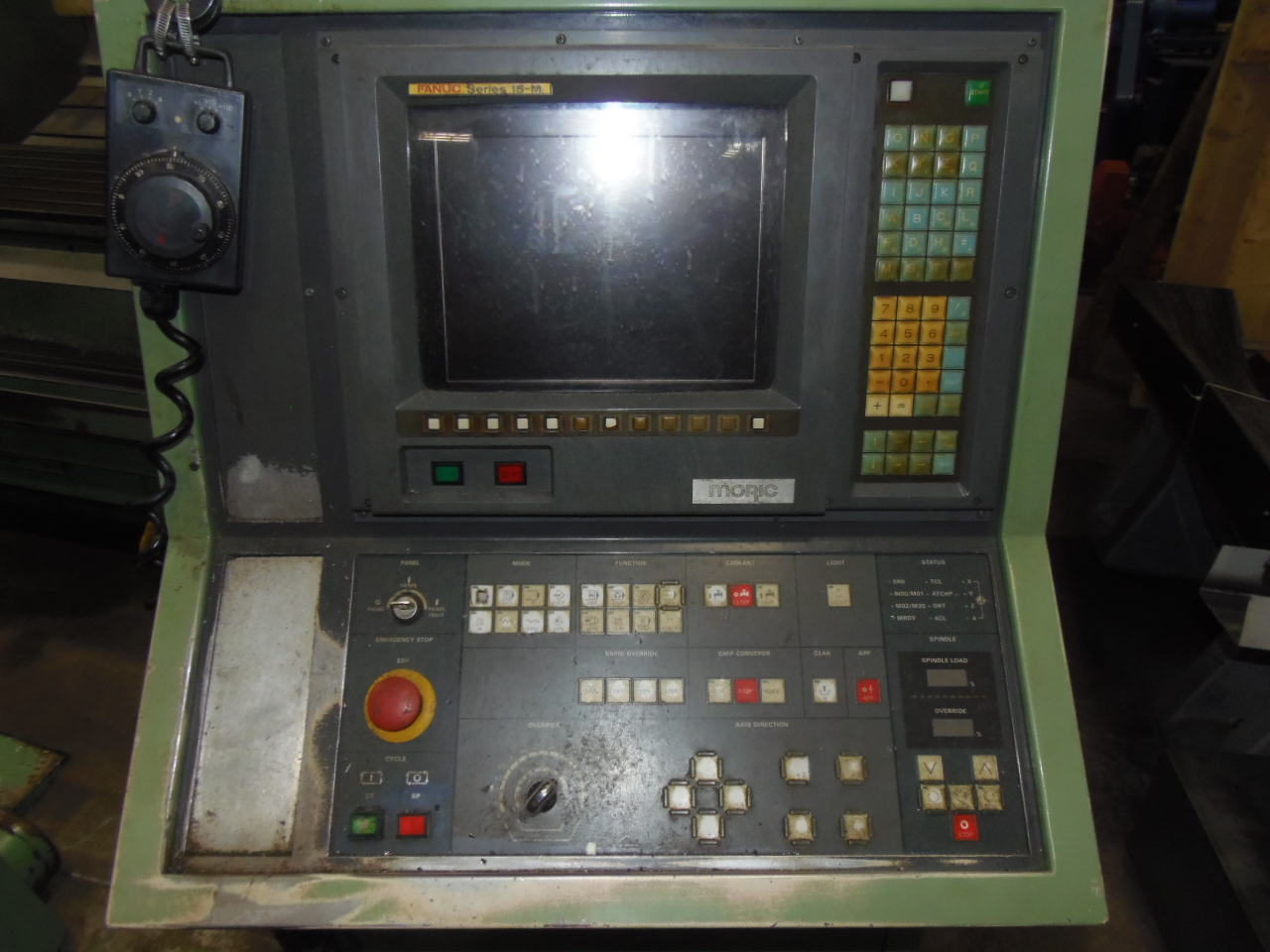

FANUC 15-M CONTROL
CHIP CONVEYOR,
THRU SPINDLE COOLANT SYSTEM
WIRED FOR 4TH AXIS
MANUALS
SPECIFICATIONS SUBJECT TO VERIFICATION
