Specifications
Equipped With
GENERAL SPECIFICATIONS:

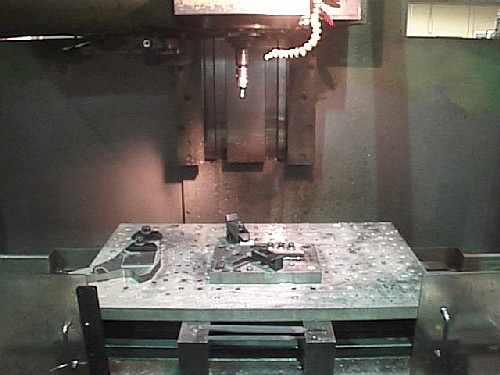

TABLE SIZE 55.11" x 21.65"
MAXIMUM TABLE LOAD 2,200 LBS
SPINDLE NOSE TO TABLE TOP 9.84" - 31.49"
X AXIS TRAVEL 40.15"
Y AXIS TRAVEL 21.65"
Z AXIS TRAVEL 21.65"
RAPID TRAVERSE RATE X AXIS 394 IPM
RAPID TRAVERSE RATE Y AXIS 394 IPM
RAPID TRAVERSE RATE Z AXIS 394 IPM
CUTTING FEED RATE 0.04 - 140 IPM
SPINDLE SPEEDS 20 - 3,500 RPM
SPINDLE TAPER CAT 50
SPINDLE MOTOR (2 SPEED GEARED) 15 HP AC
TOOL CHANGER CAPACITY 24 STATION ATC
MAXIMUM TOOL WEIGHT 33 LBS
EQUIPPED WITH:
FANUC 6MB CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
SPINDLE OIL COOLING SYSTEM (SPINDLE CHILLER)
STANDARD COOLANT SYSTEM WITH TANK & PUMP
REAR DISHCARGE STYLE LIFT-UP TYPE CHIP CONVEYOR
TABLE HEIGHT GUARDING, ALL AVAILABLE MANUALS
