Specifications
Equipped With
GENERAL SPECIFICATIONS:

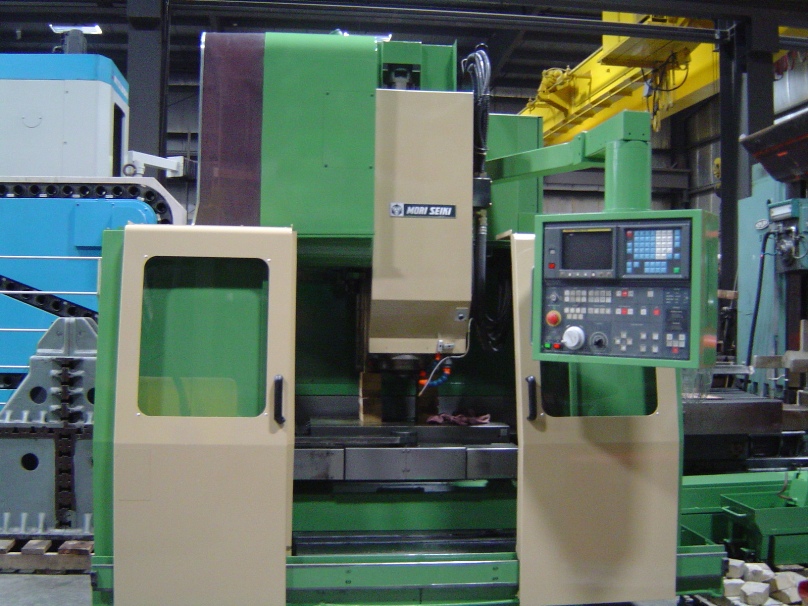

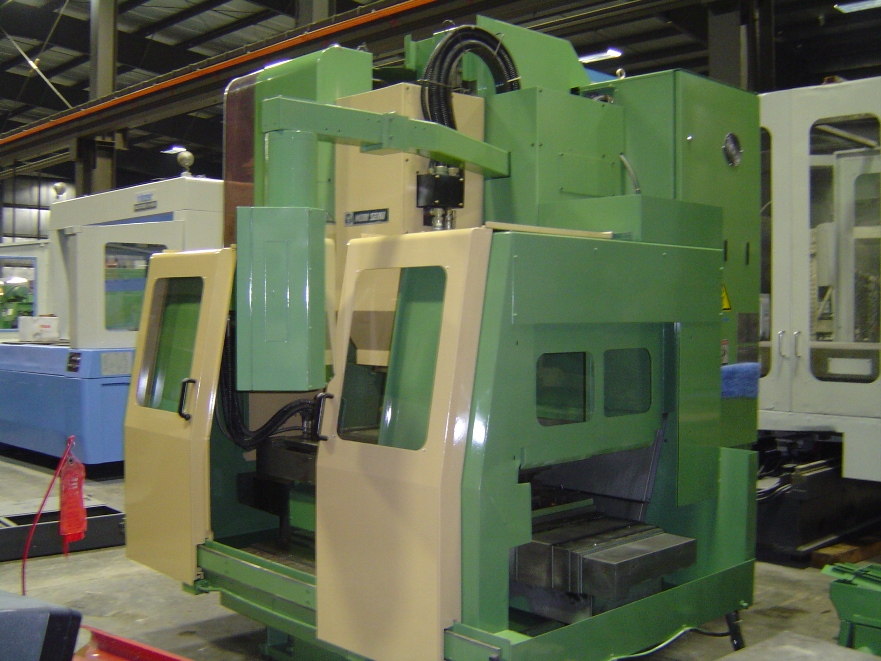

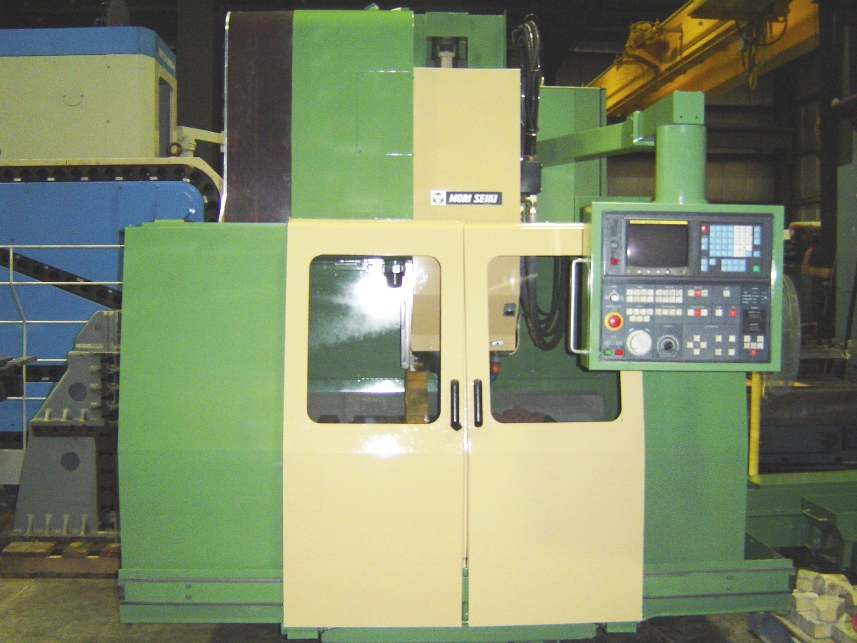

MANUFACTURER MORI SEIKI
MODEL MV-40
AGE 1990
SERIAL NUMBER 2523

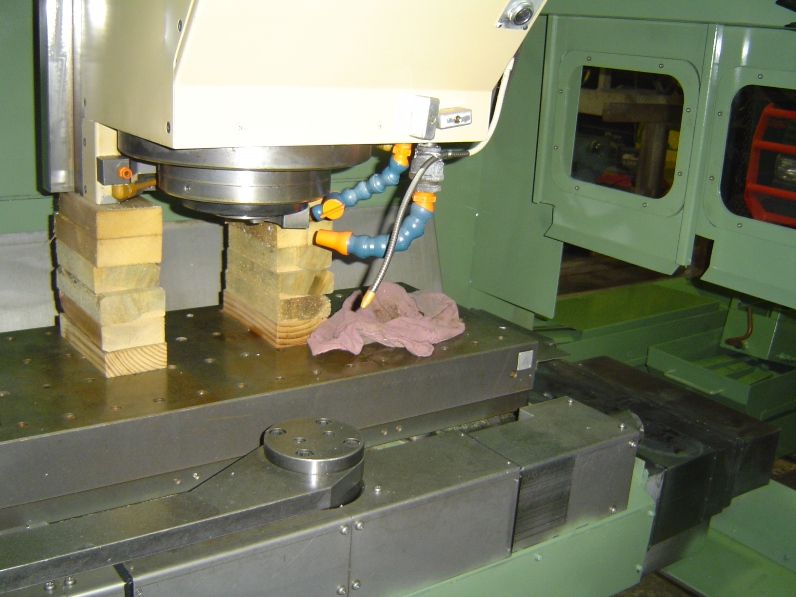

PALLET SIZE 35.4" x 15"
MAXIMUM TABLE LOAD 660 LBS
PALLET CHANGE TIME 16 SECONDS
SPINDLE NOSE TO TABLE TOP 5.9" - 26"
X AXIS TRAVEL 31.5"
Y AXIS TRAVEL 16.1"
Z AXIS TRAVEL 20.1"
RAPID TRAVERSE RATE X AXIS 787 IPM
RAPID TRAVERSE RATE Y AXIS 787 IPM
RAPID TRAVERSE RATE Z AXIS 590 IPM
CUTTING FEED RATE 0.04 - 196.9 IPM
SPINDLE SPEEDS 50 - 8,000 RPM
SPINDLE TAPER CAT 40
SPINDLE MOTOR (2 SPEED GEARED) 10 HP

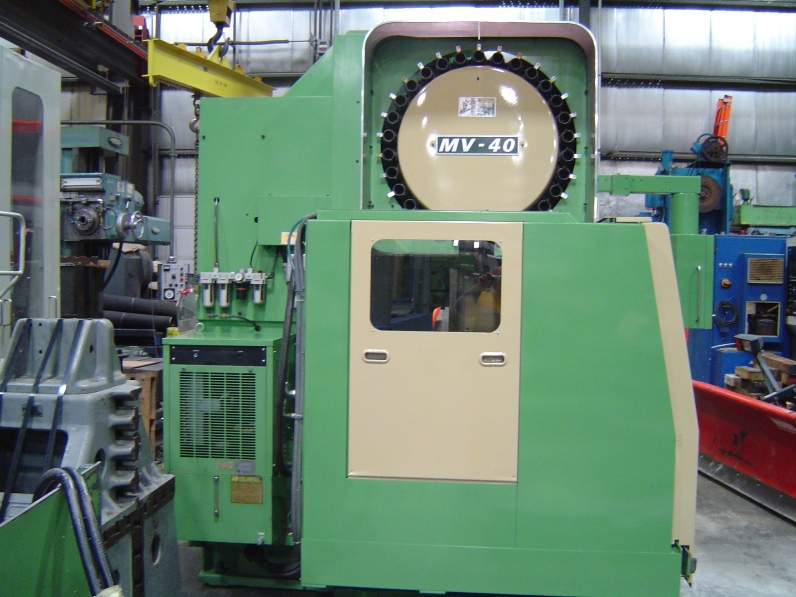

TOOL CHANGER CAPACITY 20 STATION ATC
MAXIMUM TOOL WEIGHT 18 LBS
APROXIMATE WEIGHT 13,000 LBS
EQUIPPED WITH:
OUT OF AEROSPACE FACILITY

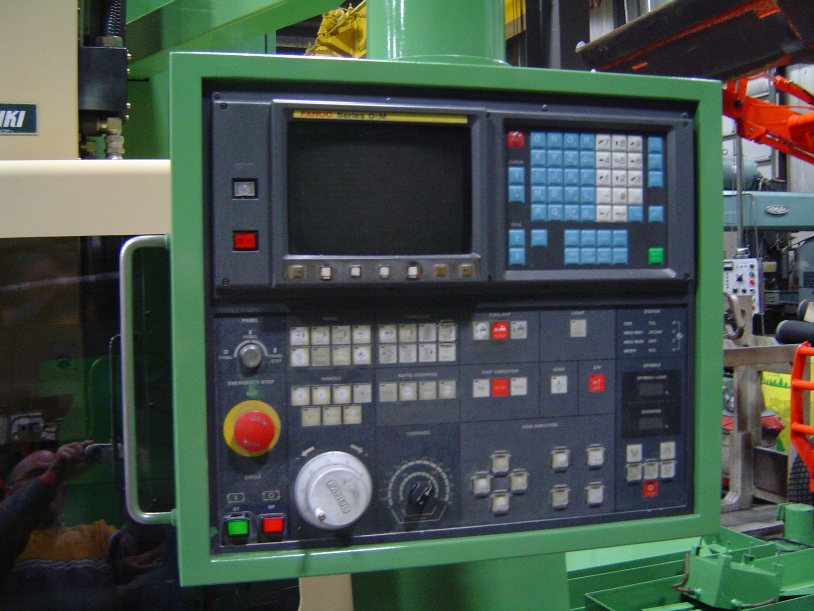

FANUC 0-M MODEL C CNC CONTROL WITH CRT, RIGID TAPPING, MACRO EXECUTER, 40M ADDITIONAL MEMORY, CANNED CYCLES, WORK COORDINATE SYSTEM, AND RS-232C PORT INTERFACE FOR DNC OPERATION

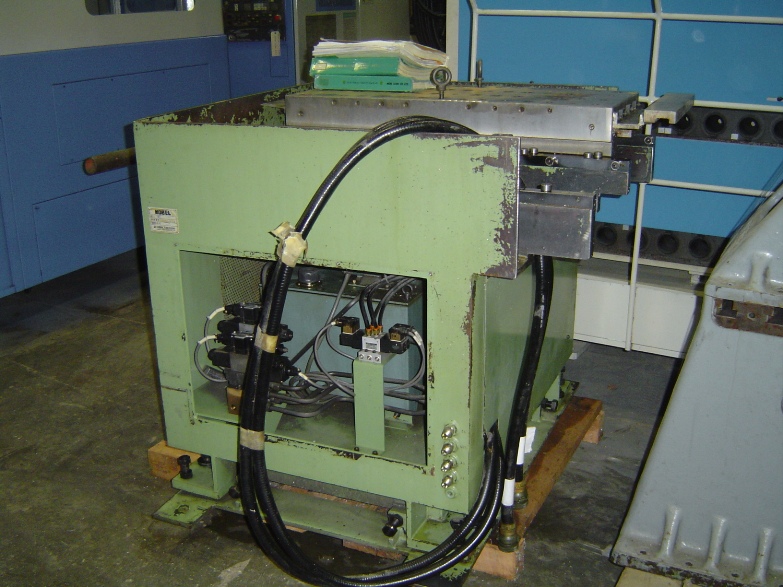

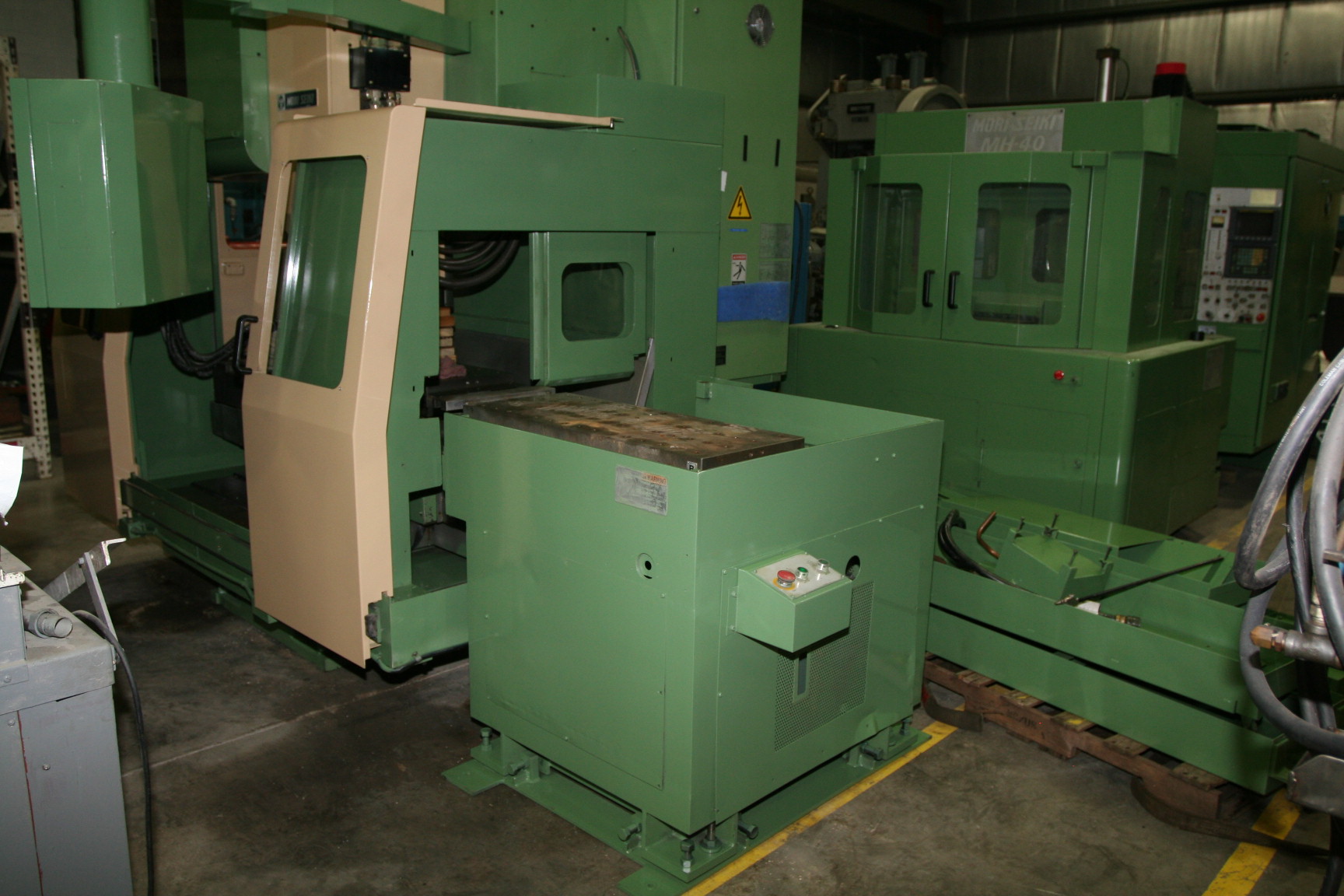

FACTORY INSTALLED AUTOMATIC 2-PALLET CHANGER
SPINDLE OIL COOLING SYSTEM (SPINDLE CHILLER)
HALOGEN WORK LIGHT
STANDARD COOLANT SYSTEM WITH TANK & PUMP
SIDE DISHCARGE STYLE LIFT-UP TYPE CHIP CONVEYOR
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
