GENERAL SPECIFICATIONS:
MANUFACTURER......................... MORI SEIKI
MODEL................................ MH-40
NEW ................................. 1994
PALLET SIZE (2)...................... 15.9" X 15.9" (400 MM X 400 MM)
X-AXIS............................... 22.05"
Y-AXIS............................... 19.69"
Z-AXIS............................... 20.08"
MAX DISTANCE ABOVE TABLE............. 21.66"
SPINDLE NOSE TO TABLE CENTER......... 3.94"-24.02"
MAX SPINDLE SPEED.................... 7,000 RPM
RAPID TRAVERSE RATE.................. 787.4 IPM
TAPER................................ CAT 40
AUTOMATIC TOOL MAGAZINE.............. 60 TOOLS
NUMBER OF PALLETS.................... 2
SPINDLE MOTOR........................ 15 HP
TABLE INDEX POSITIONING.............. 1 DEGREE
WEIGHT (APPROX.)..................... 22,000 LBS.
SHIPPING DIMENSIONS, MAIN MACHINE.... 166" x 74" x 105" H
CHIP PANS............................ 85" x 30" x 36"
EQUIPPED WITH:
THRU SPINDLE COOLANT

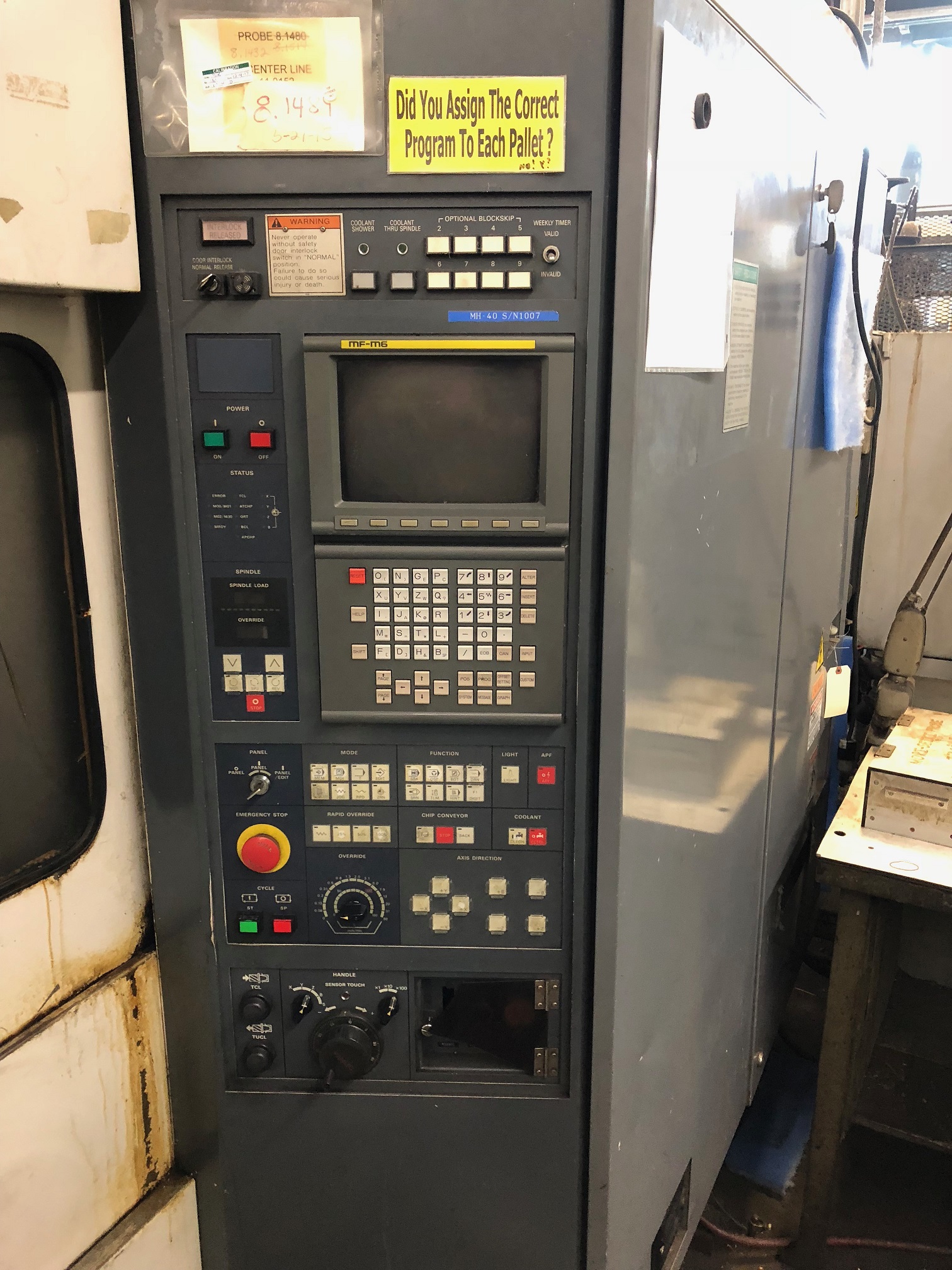

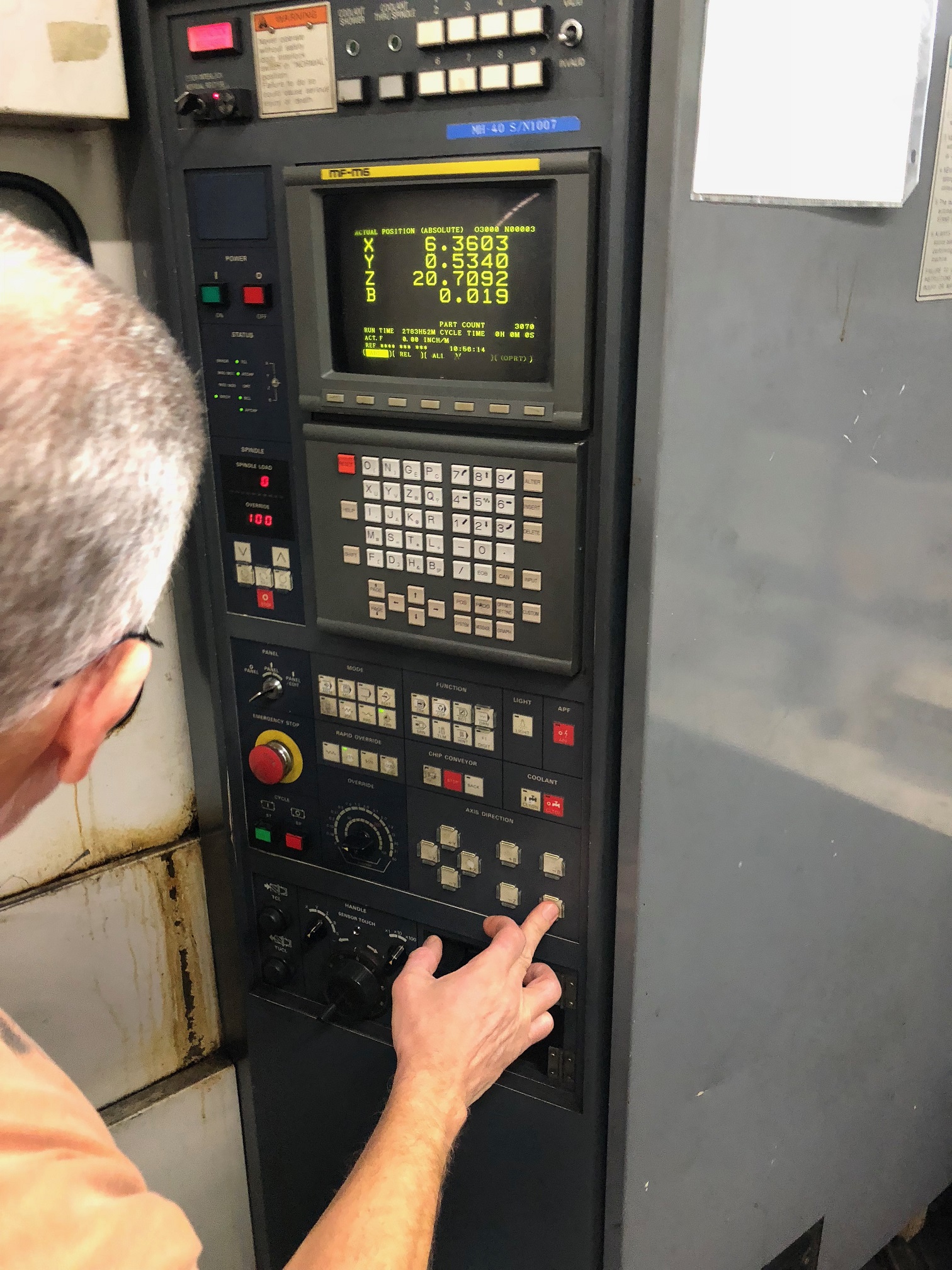

FANUC 16M CNC CONTROL (MORI MF-M6)INCLUDING HELICAL INTERPOLATION, G10 EXTERNAL DATA INPUT, TOOL LIFE MANAGEMENT, 160 METERS OF MEMORY,48 SET OF ADDITIONAL WORK COORDINATES, HIGH SPEED TAPPING
INTERNAL SCREW TYPE CHIP CONVEYOR
COMPLETE COVER
RENISHAW PROBE PACKAGE
