GENERAL SPECIFICATIONS:
NEW APPROXIMATELY 1985
SERIAL NUMBER 84
TABLE SIZE 15.7" PALLETS
TABLE INDEXING ANGLE 1 DEGREE
TRAVELS: X 21.7"
Y 15.7"
Z 15.7"
SPINDLE CENTER TO PALLET: Y 17.7" TO 19.7"
SPINDLE END TO PALLET : Z 19.7" TO 23.6"
FEED RATE 472 IPM
SPINDLE SPEEDS 45 TO 6000 RPM
GEAR TRANSMISSION 2 RANGE
SPINDLE MOTOR 7.5 HP
SPINDLE TAPER CAT 40
TOOLS 60
APPROXIMATE WEIGHT 16,500 LBS
EQUIPPED WITH:

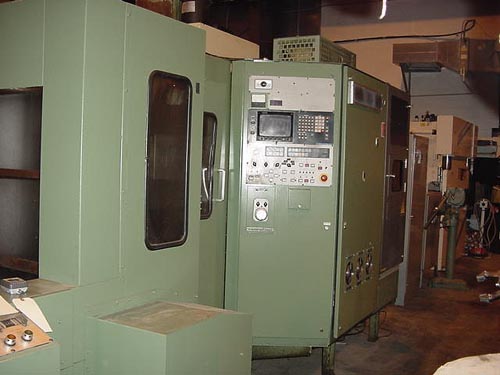

FANUC 11 M CONTROL
TRIPLE LAMP BUZZER
OIL SHOT FOR TAPPING
SERVICE HISTORY:JUNE 95-NEW TOOL CARRIER MOTOR, AUGUST 95-NEW IO BOARD,OCT 95-NEW SPINDLE BEARINGS, JAN 96-DUPLEX & TRIPLEX BEARINGS, MAY 96-NEW SPINDLE & SHAFT, APRIL 98-NEW SUBARM MOTOR, MAIN ARM SPRINGS, GUIDEPINS, & FINGER PINS, DEC 99-X & Y AXIS BEARINGS, JUNE 2000-FANUC DRIVES REPLACED.
