Specifications
Equipped With
GENERAL SPECIFICAITONS:
MANUFACTURER MORI SEIKI
MODEL M300L2
SERIAL # 174
NEW (APPROX.) 1993
(X) TRAVEL 62.99"
(Y) TRAVEL 19.69"
(Z) TRAVEL 18.5"
TABLE SIZE (2 PALLETS) 32.68" X 21.26"
MAX. WORKLOAD 1,540 LBS.
SPINDLE TAPER 40
NUMBER OF TOOLS IN CHANGER 21
DRIVE MOTOR 10/7.5 HP
SPINDLE SPEED 100-6000 RPM
WEIGHT (APPROX.) 20,000 LBS.
DIMENSIONS (APPROX.) 181" x 154" x 142"H
EQUIPPED WITH:

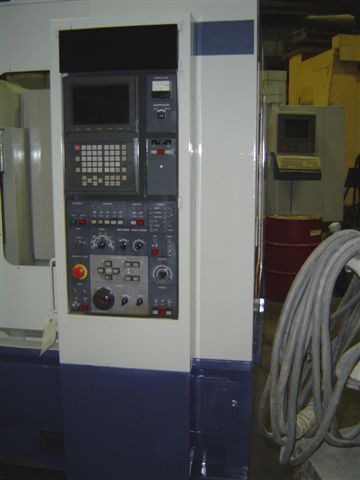

FANUC MF-M6 (FANUC 16M)
32 POSITION ATC
2-21 X 32 TABLES (PALLETS)
FULL ENCLOSURE
CHIP CONVEYOR
COOLANT SYSTEM
TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
