Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER.................................. MORI SEIKI
MODEL......................................... PARTNER M 300 A
SERIAL#....................................... 813
AGE APPROXIMATELY............................. 1991

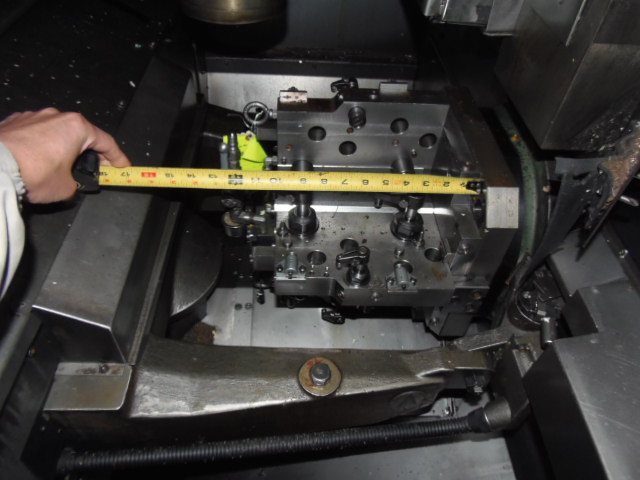

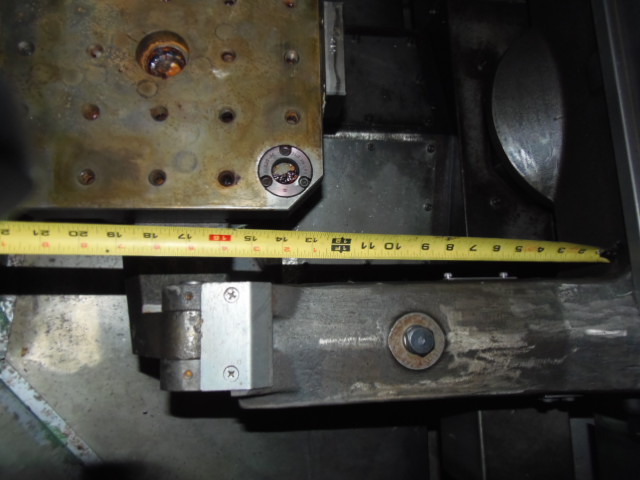

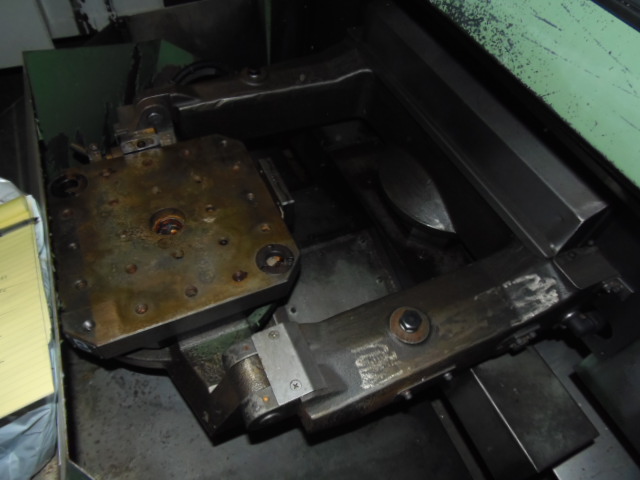

PALLET SIZE................................... 12.4"
TABLE INDEXING ANGLE.......................... 5 DEGREES
MAX LOAD ON PALLET............................ 330 LBS
CLAMPING FORCE................................ 7500 LBS
PALLET CENTER HEIGHT.......................... 29.5"
TRAVELS (X)................................... 15.7"
(Y)................................... 11.8"
(Z)................................... 19.5"
DISTANCE PALLET TOP TO SPINDLE CENTER......... 1" TO 12.8"
DISTANCE PALLET CENTER TO SPINDLE NOSE........ 4.9" TO 24.4"
RAPID FEED RATE............................... 78.7 FPM
CUTTING FEED RATE............................. 16.4 FPM
SPINDLE SPEED................................. 60-6,000 RPM
SPINDLE MOTOR................................. 6.5HP
SPINDLE TAPER................................. NT 40
NUMBER OF TOOLS............................... 20
MACHINE WEIGHT APPROXIMATELY.................. 14,500 LBS
MACHINE DIMENSIONS.............................90" X 120" X 96" H
EQUIPPED WITH:
** FOR PARTS, NOT WORKING **
MF-M4 (FANUC OM) CONTROL
CHIP CONVEYOR
100 LITER COOLANT TANK
SYNCHRONIZED (HIGH SPEED) TAPPING
MACRO TO ACCOMPLISH SIMPLE TOOL LIFE MANAGEMENT
80M PART STORAGE
PRICED "AS IS" LOADED ON TRUCK
SPECIFICATIONS SUBJECT TO VERIFICATION
