Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER...................................MORI SEIKI
MODEL..........................................PARTNER M 300 A
SERIAL#........................................746
AGE APPROXIMATELY..............................1991

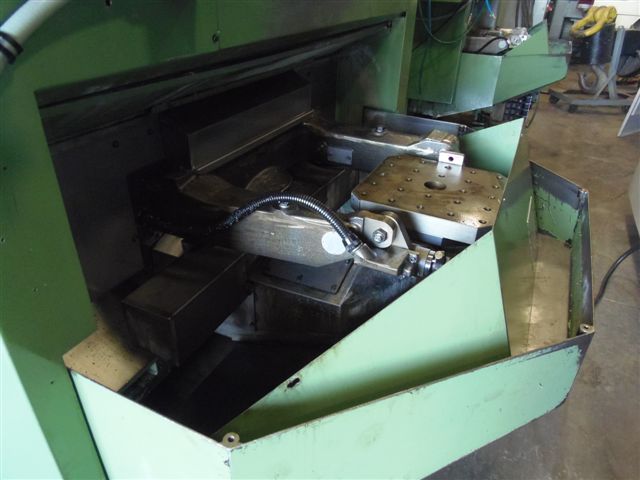

PALLET SIZE....................................12.4"
MAX LOAD ON PALLET.............................330 LBS
CLAMPING FORCE.................................7500 LBS
PALLET CENTER HEIGHT...........................29.5"
TRAVELS (X)....................................15.7"
(Y)....................................11.8"
(Z)....................................19.5"
DISTANCE PALLET TOP TO SPINDLE CENTER..........1" TO 12.8"
DISTANCE PALLET CENTER TO SPINDLE NOSE.........4.9" TO 24.4"
RAPID FEED RATE................................78.7 FPM
CUTTING FEED RATE..............................16.4 FPM
SPINDLE SPEED..................................60-6,000 RPM
SPINDLE MOTOR..................................6.5HP
SPINDLE TAPER..................................BT 40
NUMBER OF TOOLS................................20
MACHINE WEIGHT APPROXIMATELY...................14,500 LBS
MACHINE DIMENSIONS.............................90" X 120" X 96" H
EQUIPPED WITH:

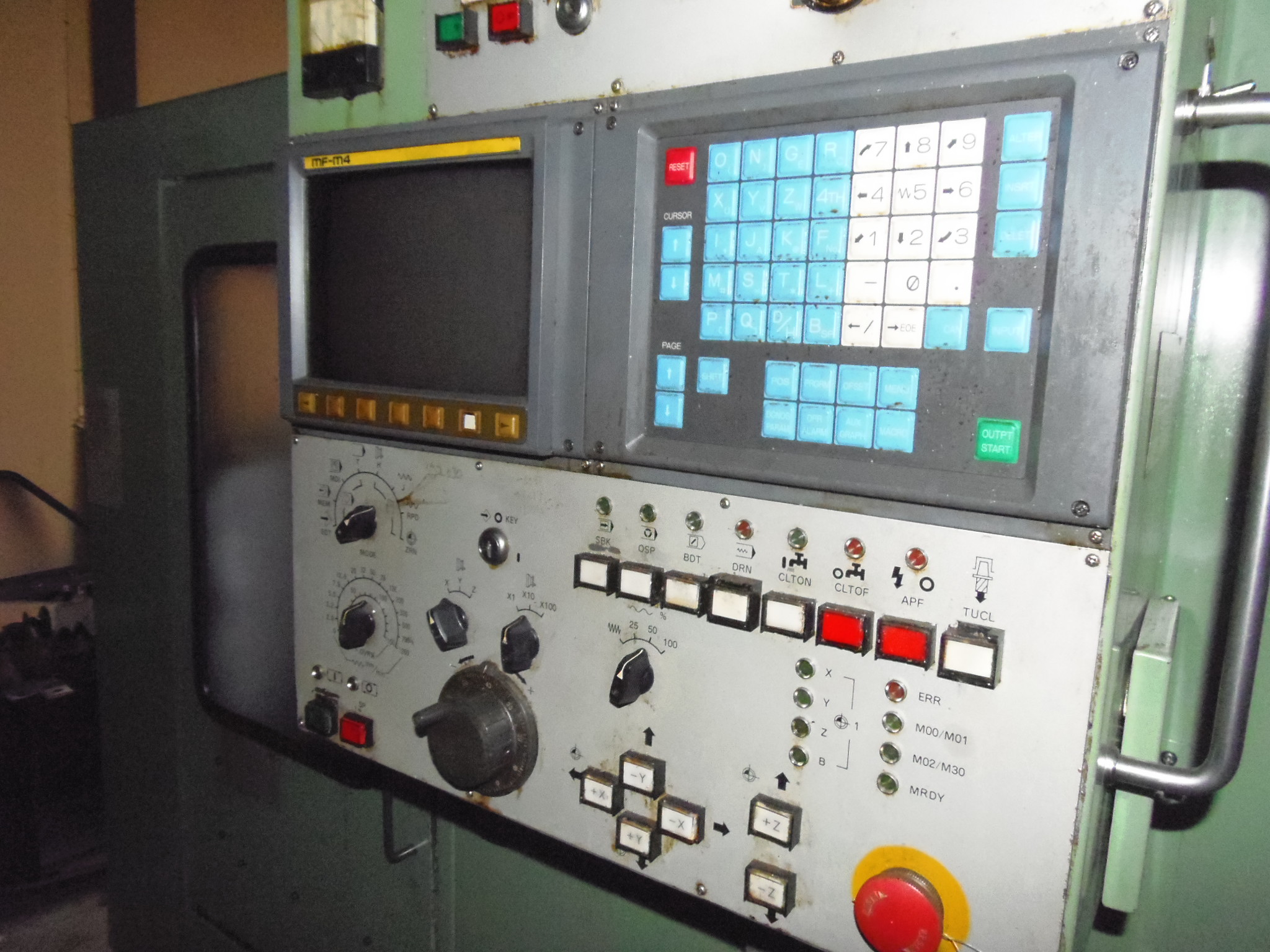

MF-M4 (FANUC OM) CONTROL
PRICED "AS IS" LOADED ON TRUCK
