Specifications
Equipped With
GENERAL SPECIFICATIONS:

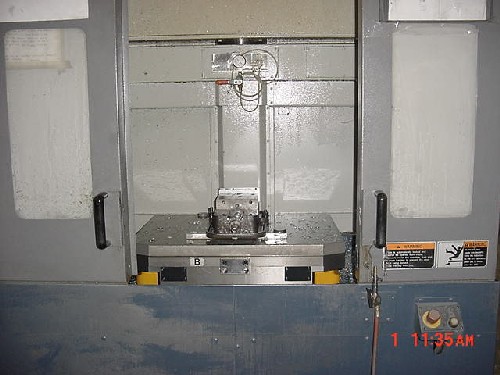

PALLET SIZE 29.5" x 21.7"
MAXIMUM TABLE LOAD 660 LBS (x2)
PALLET CHANGE TIME 7.0 SECONDS
SPINDLE NOSE TO PALLET SURFACE 5.9" - 24.0"
X AXIS TRAVEL 24.0"
Y AXIS TRAVEL 20.1"
Z AXIS TRAVEL 18.1"
RAPID TRAVERSE RATE X, Y & Z AXES 1653.5 IPM
CUTTING FEED RATE 0.04 - 1653.5 IPM
SPINDLE SPEEDS 50 - 12,000 RPM
SPINDLE TAPER CAT 40
SPINDLE MOTOR (2 SPEED GEARED) 15 HP AC
TOOL CHANGER CAPACITY 30 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL) 0.9 SECONDS
TOOL CHANGE TIME (CHIP TO CHIP) 3.7 SECONDS
EQUIPPED WITH:
MITSUBISHI 805M CONVERSATIONAL CNC CONTROL WITH 10.4" LCD
RS-232C PORT INTERFACE FOR DNC OPERATION, RIGID TAPPING
PREPPED FOR COOLANT THROUGH THE SPINDLE (DIN STYLE)
SPINDLE CHILLER, SHOWER COOLANT, COOLANT GUN, AIR BLAST
TOOL LENGTH MEASUREMENT & LIFE MGMT, TOOL BREAKAGE DETECTION
MANUAL PULSE GENERATOR, 600M MEMORY, 10 SETS ADDITION M CODES
INTERNAL CHIP CONVEYOR & EXTERNAL TURBO CHIP CONVEYOR
FULLY ENCLOSED SPLASH GUARDING, ALL AVAILABLE MANUALS
