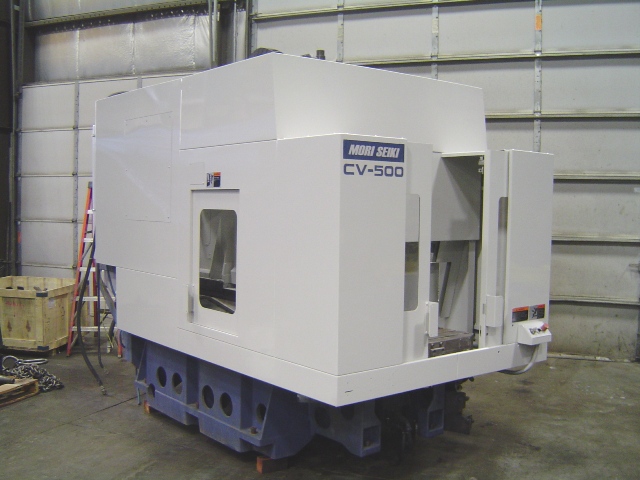

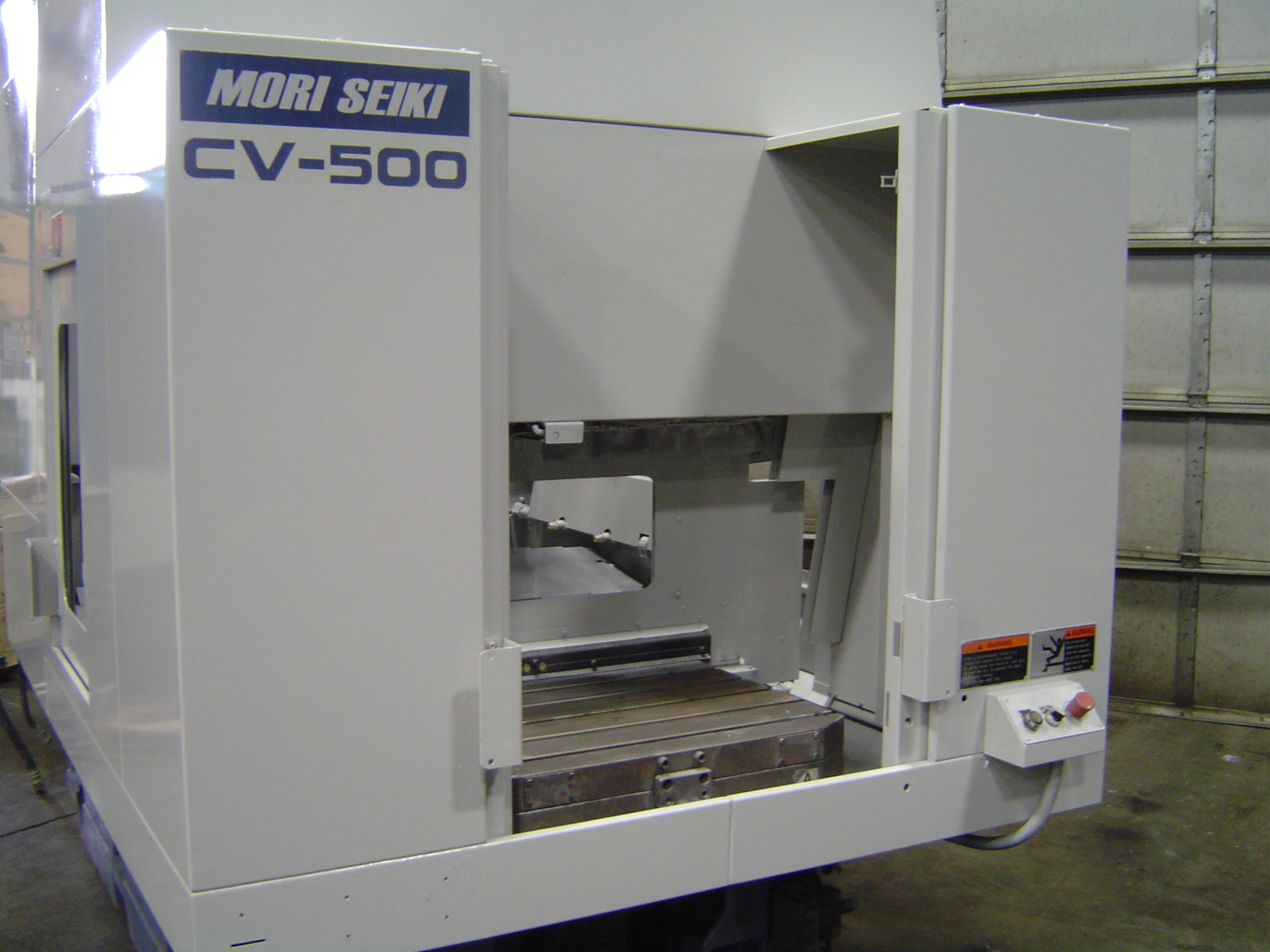

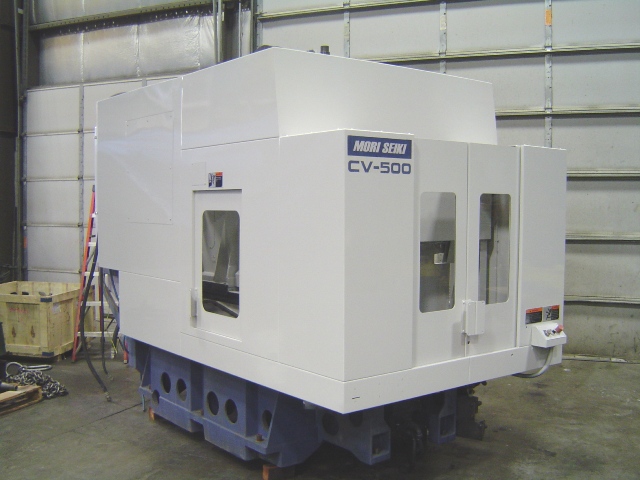

MORI SEIKI CV500A VERTICAL MACHINING CENTER, 20.08"X, Y, Z, 21.7" x 29.5" TWIN PALLETS, 25 ATC, 12,000 RPM, MSC-803 CNC, CAT 40, 1998

Specifications:

Travels:
X travel: .......................... 20.08"
Y Travel: .......................... 20.08"
Z Travel: .......................... 20.08"
Width: ............................. 21.7"
Length: ............................ 29.5"
Maximum Table Load: ................ 440 Lbs
Spindle Speeds: .................... 0 to 12,000 RPM
Spindle Taper: ..................... CAT 40
Max. Distance From Spindle to Table: 25.6"
Tool Changer Positions: ............ 25 ATC
Max. Tool Diameter: ................ 3.9"
Max. Tool Mass: .................... 13.2 Lbs
Electrics: ......................... 15 HP
Spindle Motor 220V, 3PH, 60 CY, 33.17 KVA, 26.6 KW

Pallet Size: ....................... 21.7" x 29.5"
Max. Table Load: ................... 440 Lbs

Overall Dimensions: ................ 79"W x 137"L x 116"H

Overall Weight: .................... 9,700 Lbs

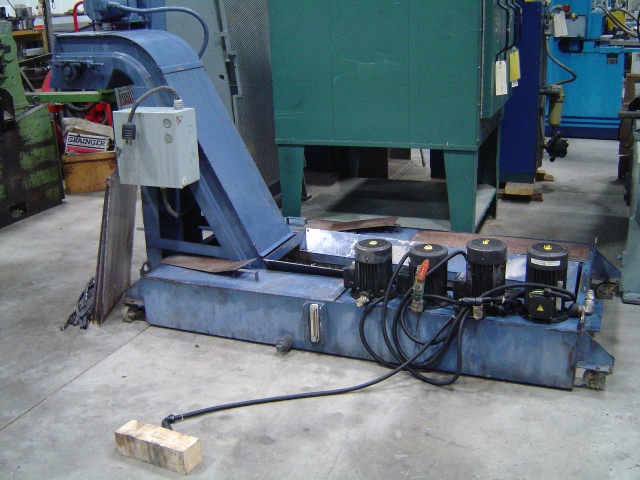

Chip Conveyor Size: ................ 42"W x 99"L x 65"H

Equipped With:

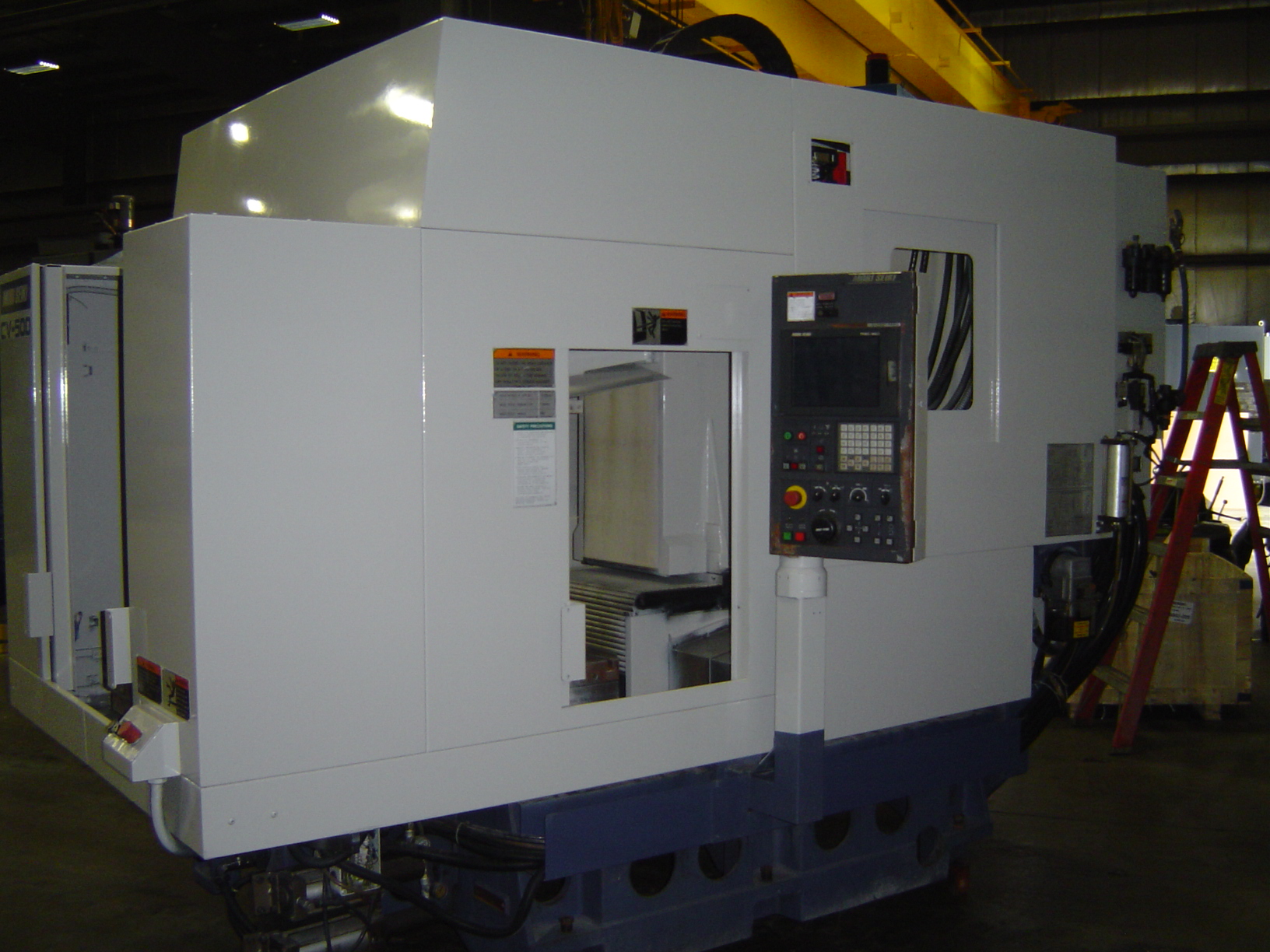

MSC-803 CNC Control
25 ATC
Rigid Taping
Chip COnveyor
Thru Spindle and FloodCoolant
Twin Pallets
