Specifications
Equipped With
GENERAL SPECIFICATIONS:

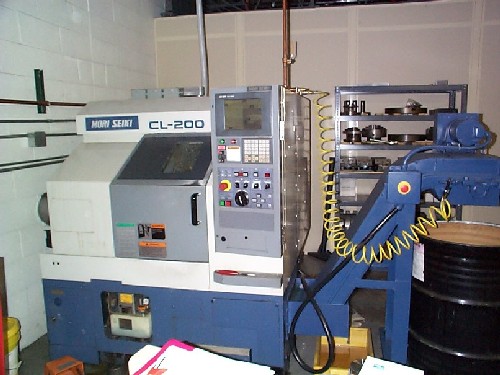

MODEL # CL-200B
NEW APPROXIMATELY 1997
SWING OVER BED 20.3"
STANDARD TURNING DIAMETER 7.8"
MAXIMUM TURNING DIAMETER 16.1"
MAXIMUM TURNING LENGTH 21.7"
X AXIS TRAVEL 9.3"
Z AXIS TRAVEL 22.4"
RAPID TRAVERSE RATE X AXIS 1181 IPM
RAPID TRAVERSE RATE Z AXIS 1181 IPM
SPINDLE NOSE A2-6
SPINDLE BORE 2.8"
MAXIMUM BAR CAPACITY (ROUND) 2.5"
SPINDLE SPEEDS 35 - 3,500 RPM
SPINDLE MOTOR 15 HP AC
TURRET CAPACITY 10 STATION TURRET
TURRET INDEX TIME 0.7 SECONDS
EQUIPPED WITH:
MORI MSC-803 CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
8" 3-JAW HYDRAULIC CHUCK WITH JAWS
STANDARD COOLANT SYSTEM WITH TANK & PUMP
RIGHT HAND DISCHARGE CHIP CONVEYOR
ALL AVAILABLE TOOL BLOCK HOLDERS
ALL AVAILABLE MANUALS
