GENERAL SPECIFICATIONS:

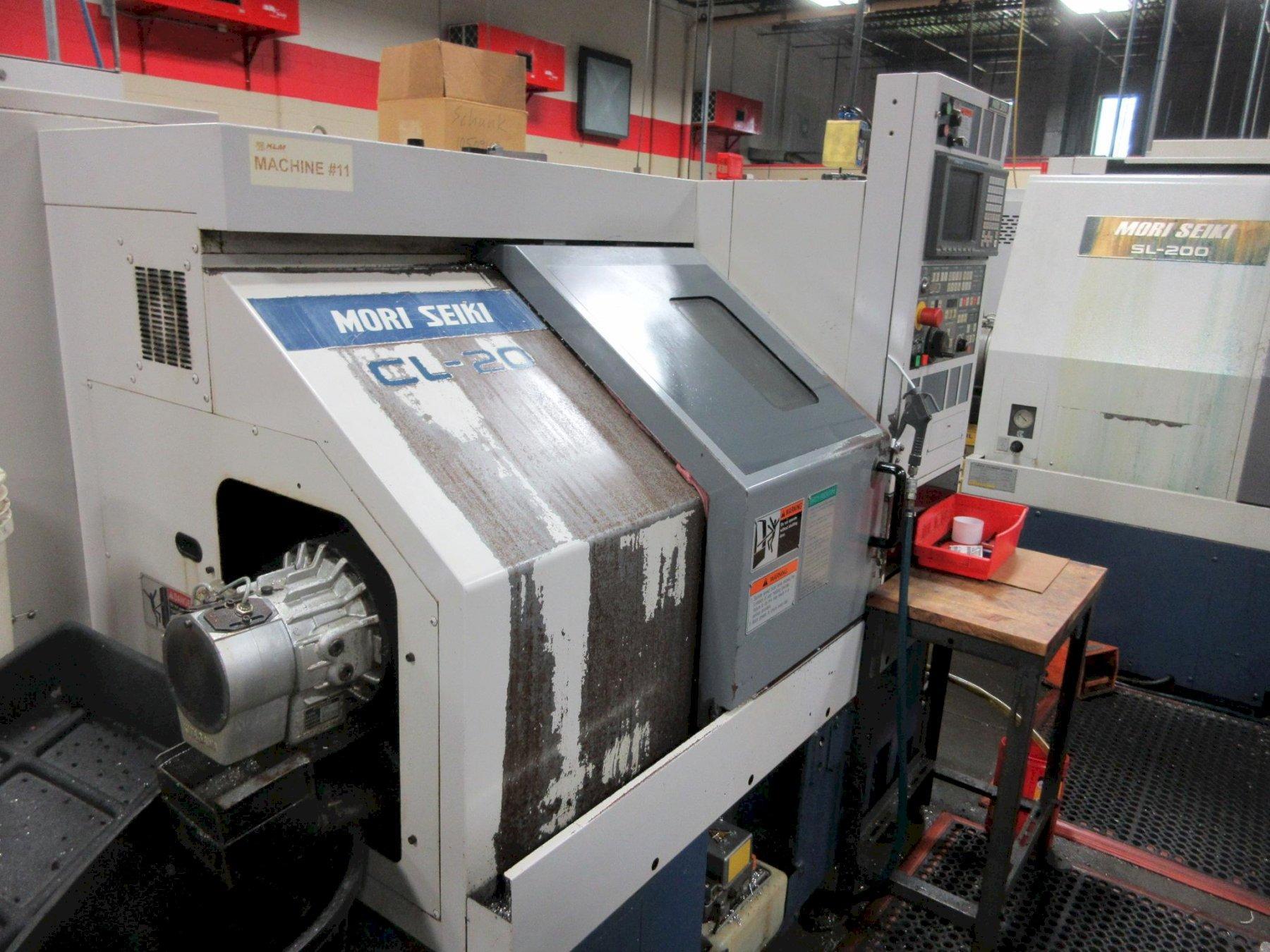

MAKE.................. MORI SEIKI
MODEL................. CL-20A
SERIAL NUMBER......... 1933
AGE (YEAR)............ 1996
SWING................. 18"
TURNING DIAMETER...... 12.2"
MAX TURNING LENGTH.... 13"
X AXIS TRAVEL......... 7.5"
Z AXIS TRAVEL......... 14.6"
BAR CAPACITY.......... 2"
SPINDLE SPEED......... 40-4000 RPM
TOOL CHANGE TURRET.... 10
HP.................... 10
ELECTRICS............. 220V / 3PH
DIMENSIONS............ 111" X 63" X 68" H
DIMENSION W/O CHIP.... 73" X 63" X 68" H
WEIGHT (APPROX)....... 5700 LBS.
EQUIPPED WITH:

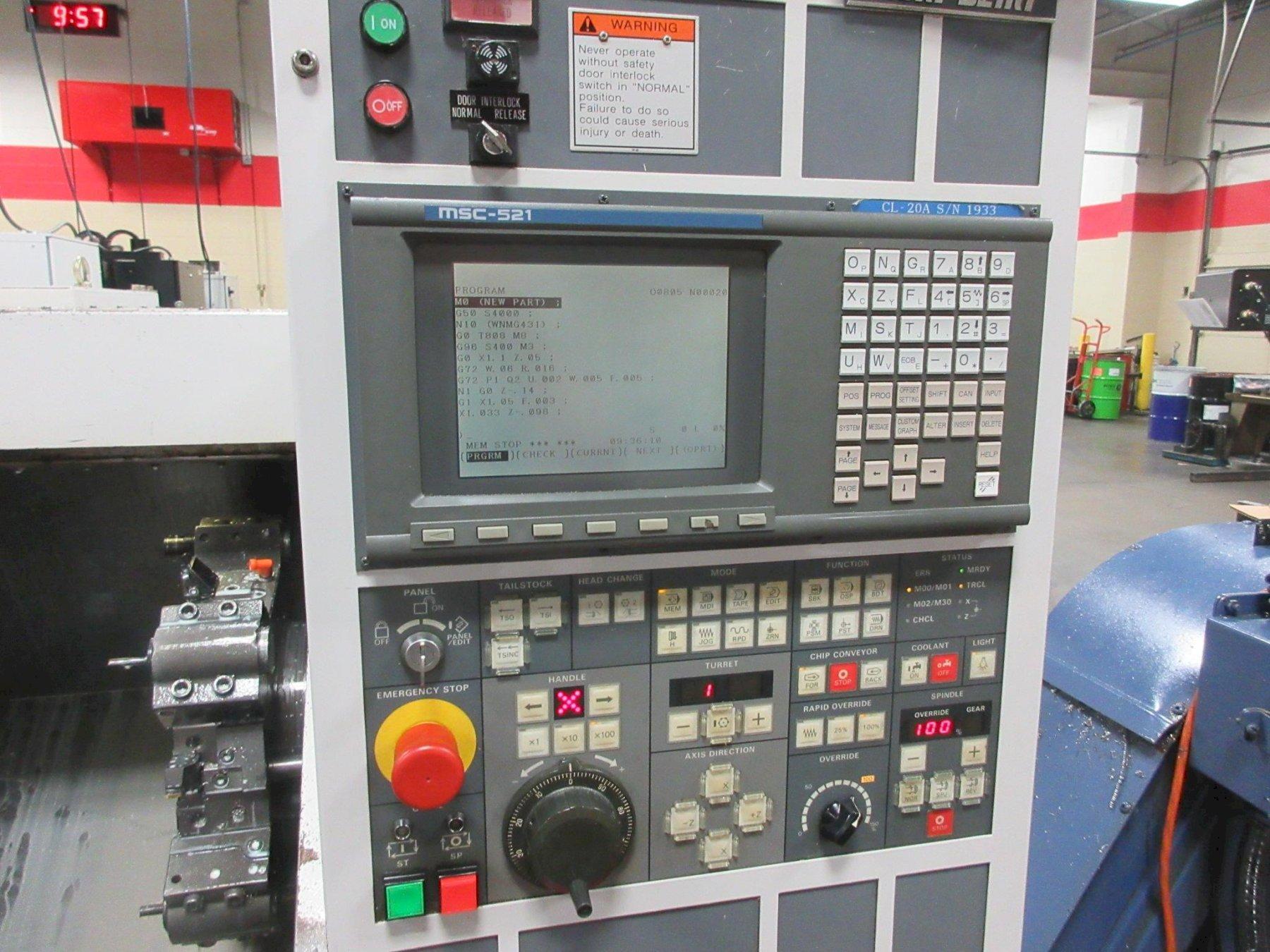

MSC-521 (FANUC) CONTROL

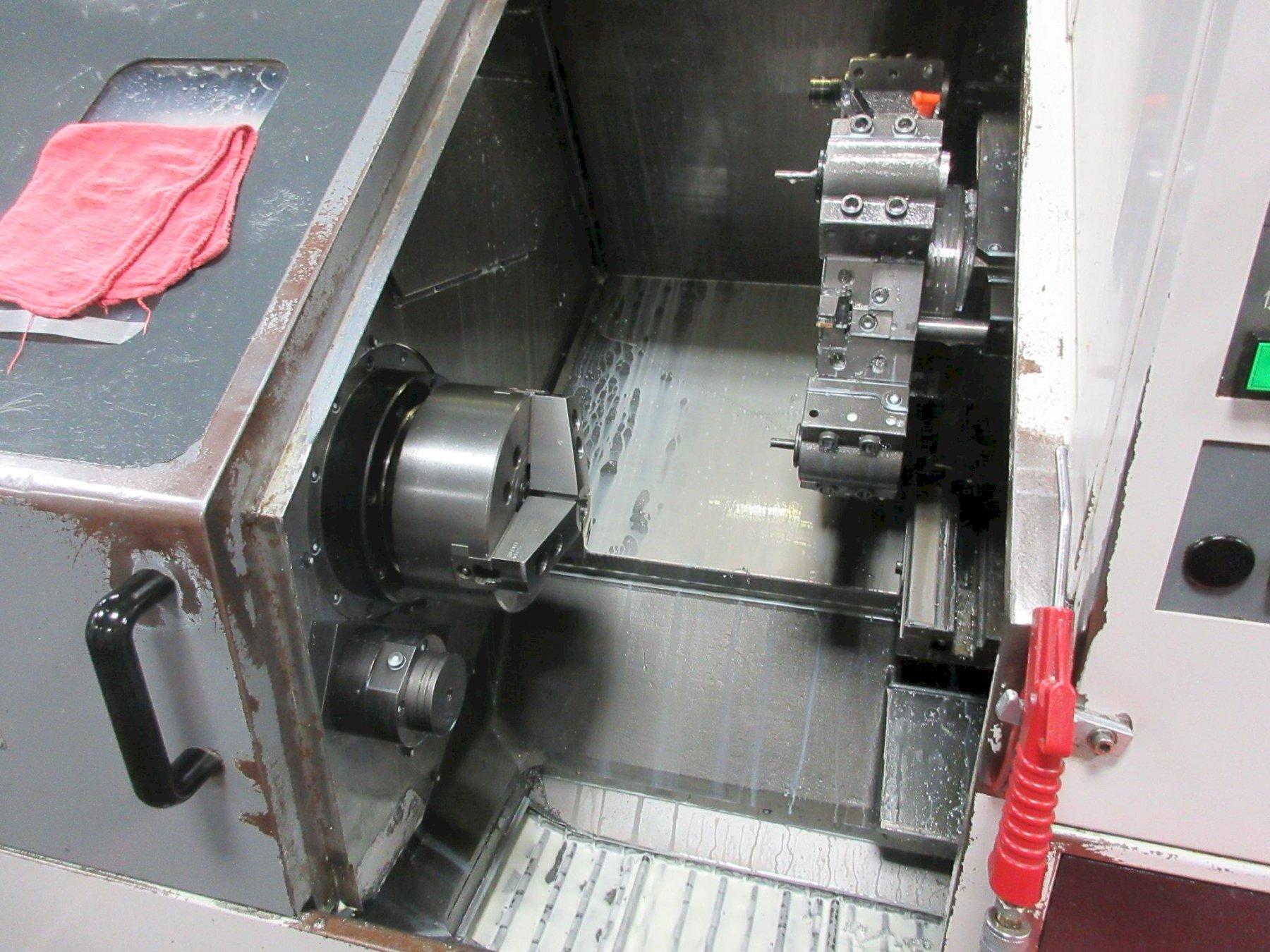

8" 3 JAW HYDRAULIC CHUCK
5C COLLET CHUCK
PRESETTER

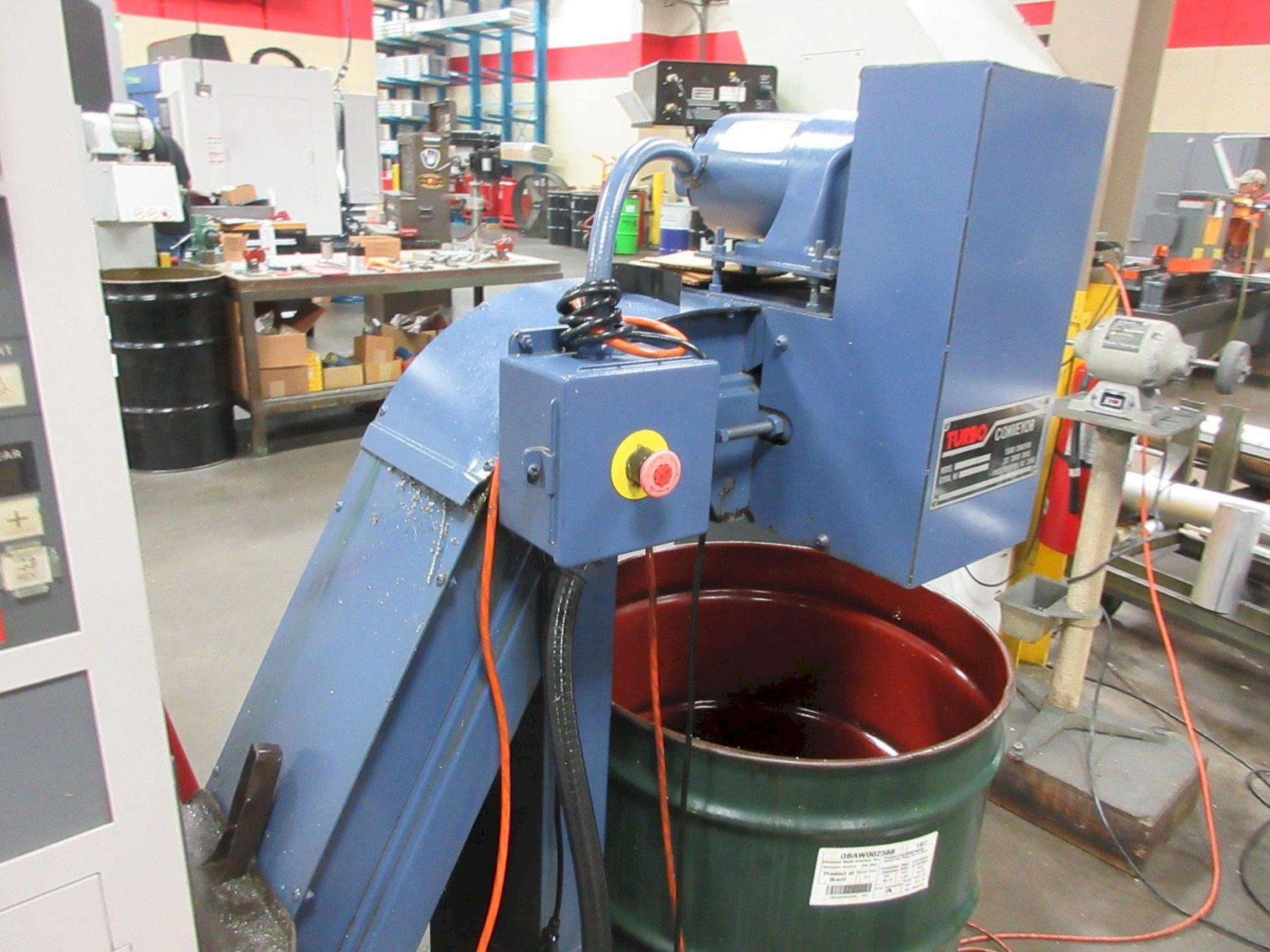

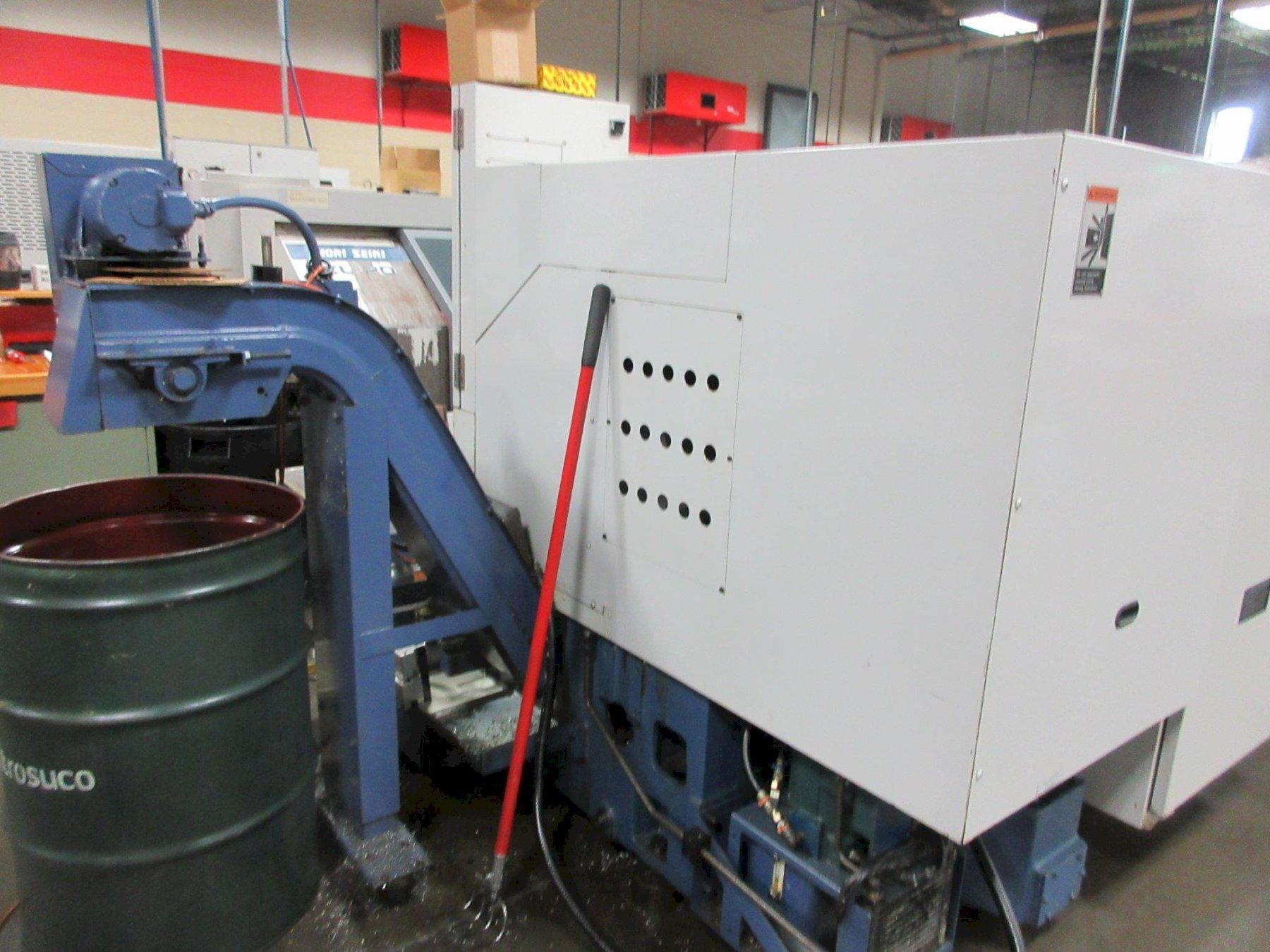

CHIP CONVEYOR
SPECIFICATIONS SUBJECT TO VERIFICATION
