GENERAL SPECIFICATIONS:
MANUFACTURER MORI SEIKI
MODEL CL-153
SERIAL # 439
NEW (APPROX.) 1999
SWING OVER BED 20.28"
MAX. TURNING DIAMETER 16.14"
STANDARD TURNING DIAMTER 7.83"
MAX. TURNING LENGTH 11.93"
BAR WORK CAPACITY 1.30"
X-AXIS TRAVEL 9.25"
Z-AXIS TRAVEL 12.20"
SPINDLE SPEED RANGE 60 - 6000 RPM
# OF SPINDLE SPEED RANGES 1
SPINDLE NOSE A2-5
THRU SPINDLE HOLE DIAMTER 1.69"
SPINDLE BEARING INNER DIAMETER 3.14"
# OF TOOLS ON TURRET 10
SQUARE SHANK HEIGHT OF TOOL 3/4
SHANK DIAMETER OF BORING BAR 2
RAPDI TRAVERSE RATE 1181.10 IPM
JOG FEED RATE 0 - 50 IPM
SPINDLE DRIVE MOTOR 10/7.5 HP
FEED MOTORS 2/2.68 HP
HYDRAULIC PUMP MOTOR 1 HP
MACHINE FAN MOTOR 0.23 HP
COLLANT PUMP MOTOR 1/2 HP
CHIP CONVEYOR MOTOR 1/4 HP
HYDRAULIC OIL TANK CAPACITY 1.85 GAL.
LUBRICANT TANK CAPACITY 1.11 GAL.
DIMENSIONS (APPROX.) 57.09" x 66.93" x 65.55"H
WEIGHT (APPROX.) 5,390 LBS.
EQUIPPED WITH:

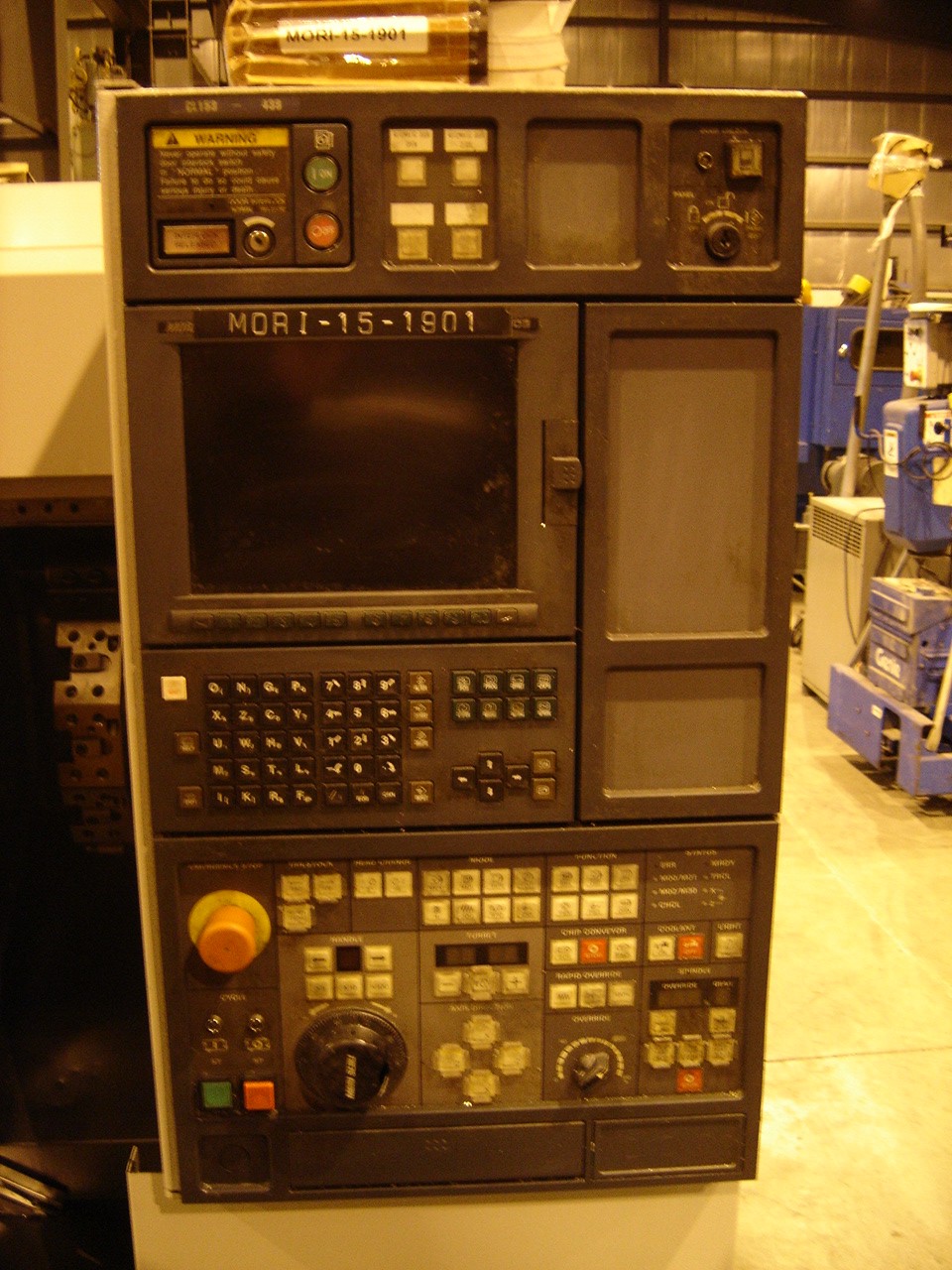

MSG-803 CONTROL
KITAGAWA F1236H ACTUATOR
NOTE:
CONTROL SPECS ON FILE
