Specifications
Equipped With
GENERAL SPECIFICATIONS:

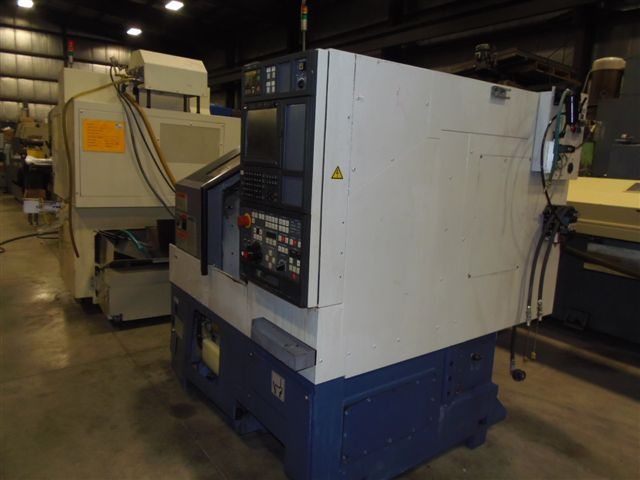

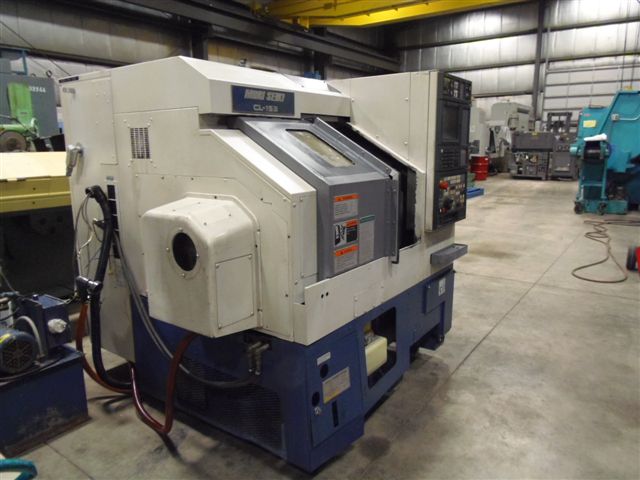

MANUFACTURER.....................MORI SEIKI
MODEL............................CL-153
SERIAL #.........................426
NEW (APPROX.)....................1999
SWING OVER BED...................20.28"
MAX. TURNING DIAMETER............16.14"
STANDARD TURNING DIAMETER........7.83"
MAX. TURNING LENGTH..............11.93"
BAR WORK CAPACITY................1.30"
X-AXIS TRAVEL....................9.25"
Z-AXIS TRAVEL....................12.20"
SPINDLE SPEED RANGE..............60 - 6000 RPM
# OF SPINDLE SPEED RANGES........1
SPINDLE NOSE.....................A2-5
THRU SPINDLE HOLE DIAMETER.......1.69"
SPINDLE BEARING INNER DIAMETER...3.14"

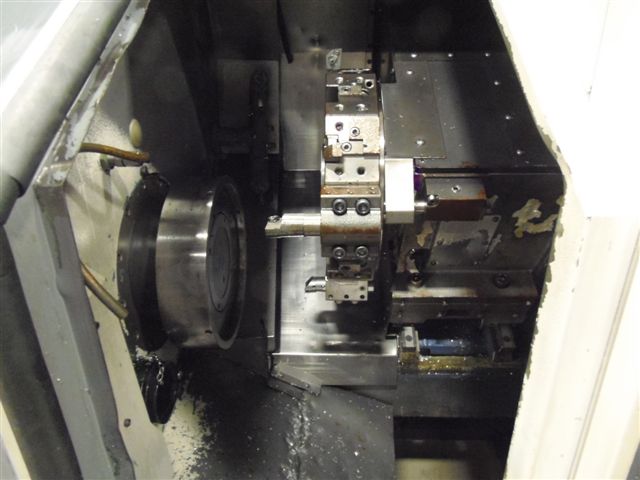

# OF TOOLS ON TURRET.............10
SQUARE SHANK HEIGHT OF TOOL......3/4
SHANK DIAMETER OF BORING BAR.....2
RAPID TRAVERSE RATE..............1181.10 IPM
JOG FEED RATE....................0 - 50 IPM
SPINDLE DRIVE MOTOR..............10/7.5 HP
FEED MOTORS......................2/2.68 HP
HYDRAULIC PUMP MOTOR.............1 HP
MACHINE FAN MOTOR................0.23 HP
COOLANT PUMP MOTOR...............1/2 HP
HYDRAULIC OIL TANK CAPACITY......1.85 GAL.
LUBRICANT TANK CAPACITY..........1.11 GAL.
DIMENSIONS (APPROX.) 57.09" x 66.93" x 65.55"H
WEIGHT (APPROX.).................5,390 LBS.
EQUIPPED WITH:

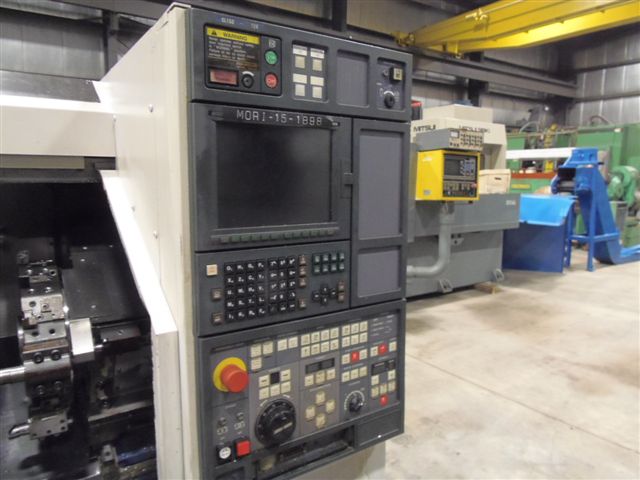

MSG-803 CONTROL
ELECTRIC TOOL SETTING ARM
KITAGAWA F1236H ACTUATOR
NOTE:
CONTROL SPECS ON FILE
TEMPORARY
SPECIFICATIONS SUBJECT TO VERIFICATION
