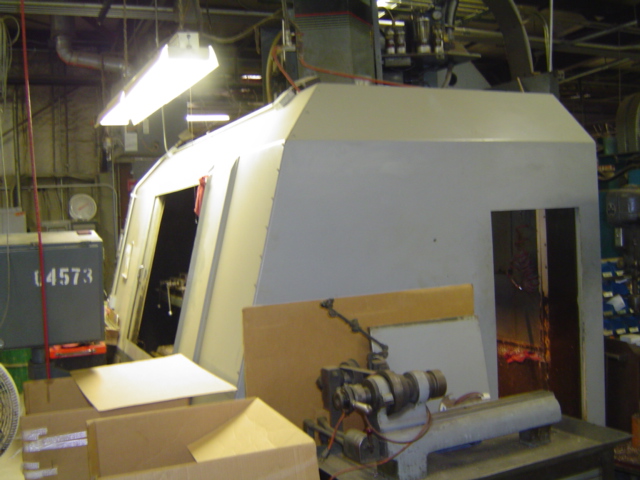

MONARCH VMC-150, 30" x 60" TBL, 50"-X, 30"-Y, 32"-Z, 5.75" QUILL DIA., 15 HP, FANUC 11M CNC CTRL, RIGID TAPPING, CHIP CONVEYOR, 1988

GENERAL SPECIFICATIONS:
MANUFACTURER MONARCH
MODEL VMC-150
NEW (APPROX.) 1988
TABLE SIZE 30" x 60"
X-AXIS TRAVEL 50"
Y-AXIS TRAVEL 30"
Z-AXIS TRAVEL 32"
TABLE LOAD CAPACITY 4,000 LBS.
SPINDLE NOSE TO WEAR PLATE 0" - 32.5"
QUILL DIAMETER 5.75"
QUILL THRUST 5,000 LBS.
MAX RPM 4500 RPM
SPINDLE DRIVE MOTOR 15 HP
DIMENSIONS (APPROX.) 188" x 144" x 120"H
WEIGHT (APPROX.) 21,000 LBS.

EQUIPPED WITH:

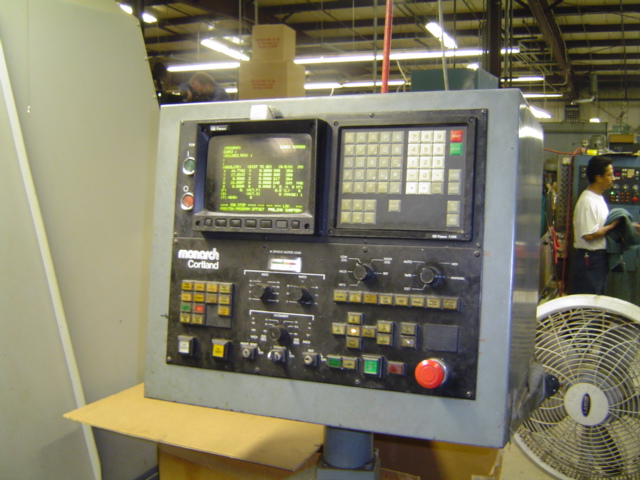

FANUC 11M CNC CONTROL
FANUC SERVO MOTORS
CAPABLE OF THRU SPINDLE COOLANT
RIGID TAPPING
CHIP CONVEYOR
ASSORTED MANUALS
