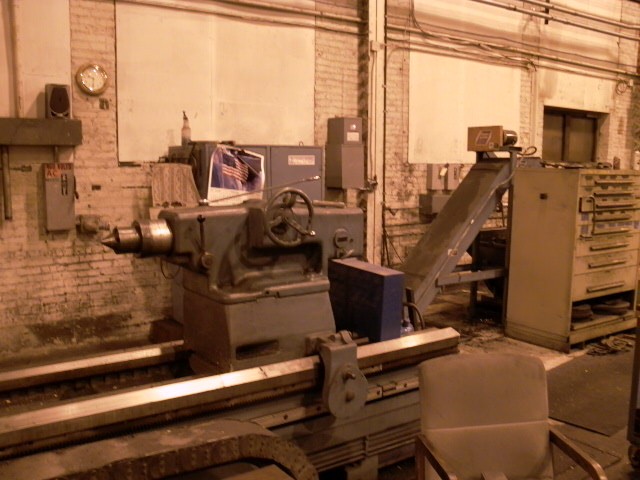

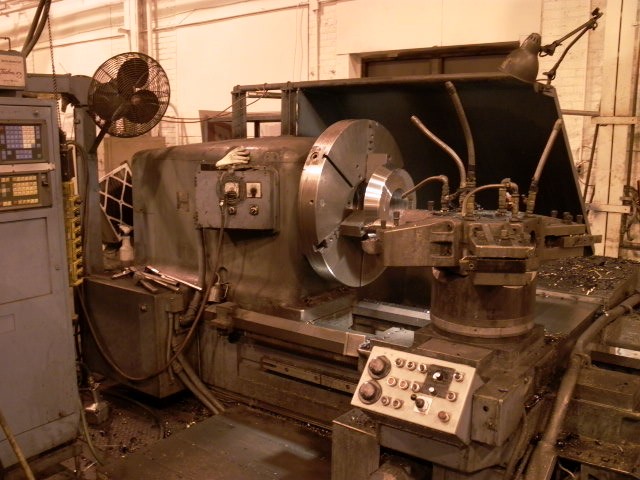

MONARCH 4025, 40" OVER WAYS, 25" OVER CS, 156" CTRS, 4" HOLE, 4 POS. & 6 POS. TURRET, 750 RPM, FANUC 0T CTRL, FANUC DRIVES, THREADING

GENERAL SPECIFICAITONS:
MANUFACTURER MONARCH
MODEL 4025
SERIAL # 487987VC
SWING OVER WAYS 40"
SWING OVER CROSS SLIDE 25"
CHUCK SIZE (3 JAW) 36"
CENTER DISTANCE 156"
HOLE THRU SPINDLE 4"
MAX. SPEED 750 RPM
TURRET INDEX POSITIONS 12
DIMENSIONS (APPROX.) 24'L x 8'H x 10'W
WEIGHT (APPROX.) 35,000 LBS.

EQUIPPED WITH:

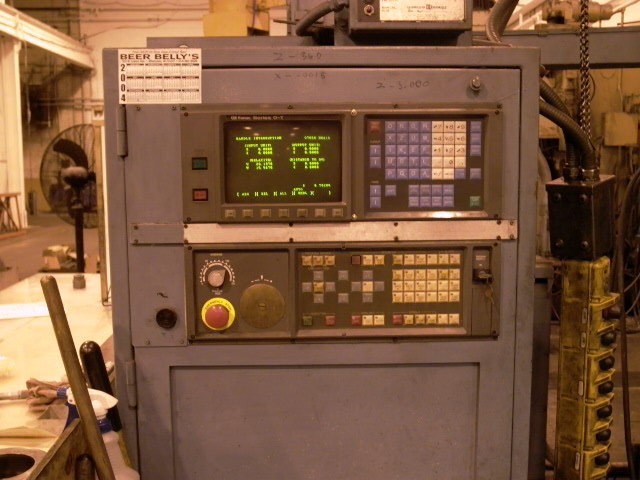

FANUC OTC CONTROL
3-JAW CHUCK
FANUC DRIVES & MOTORS
HEAVY DUTY TAILSTOCK
FULL LENGTH CHIP CONVEYOR
CNC THREADING
GEARED HEADSTOCK
PROGRAMMABLE RPM
BED AND CROSSSLIDE REDONE IN 2001
VIDEO AVAILABLE OF THE MACHINE RUNNING
