Specifications
Equipped With
GENERAL SPECIFICATIONS:

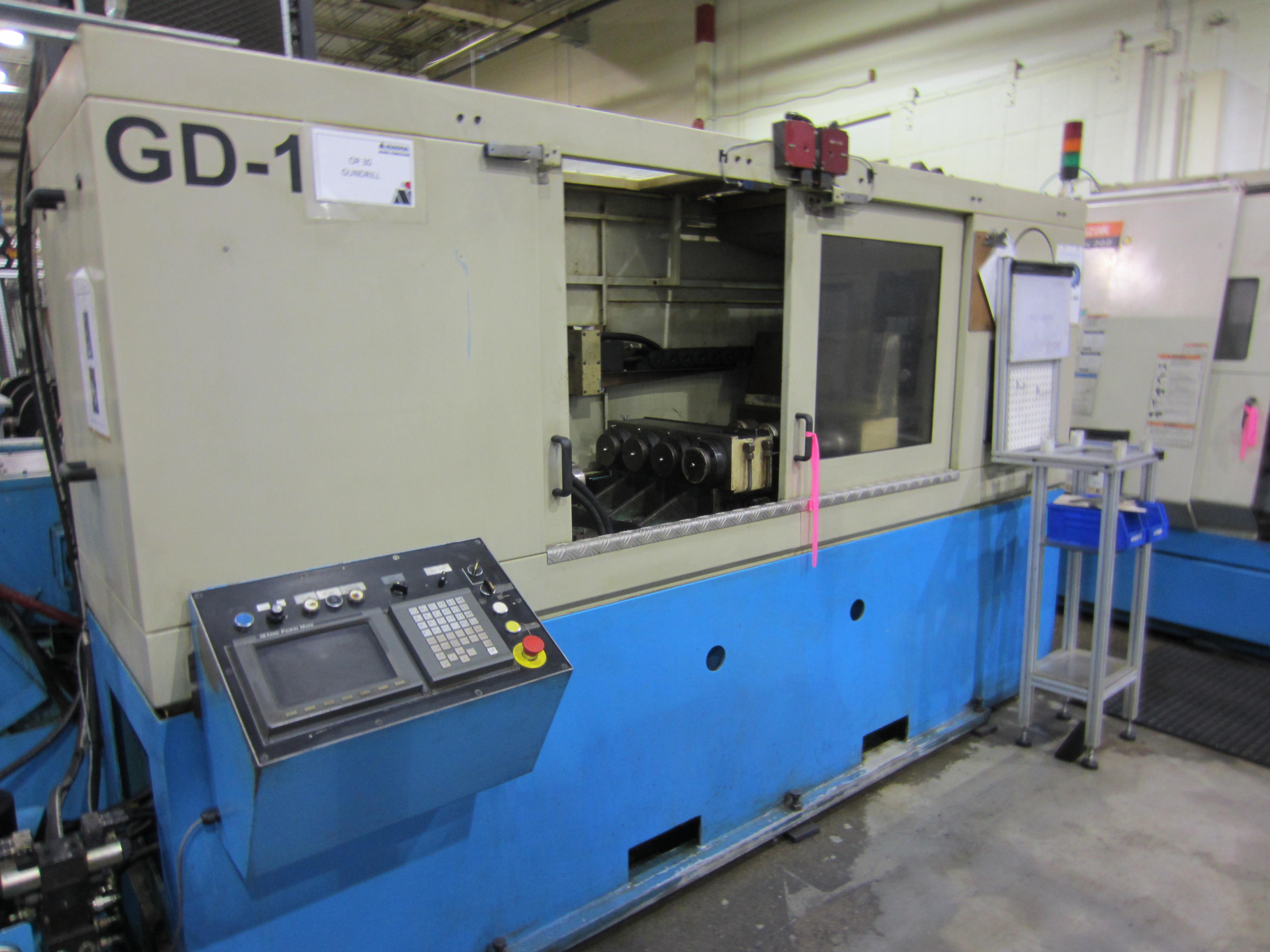

MANUFACTURER..................... MOLLART
AGE.............................. 2001
MODEL............................ DRILLSPRINT

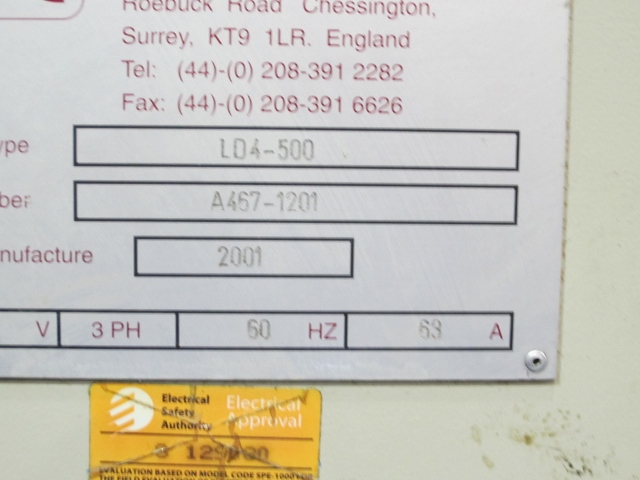

SERIAL NUMBER.................... A467-1201

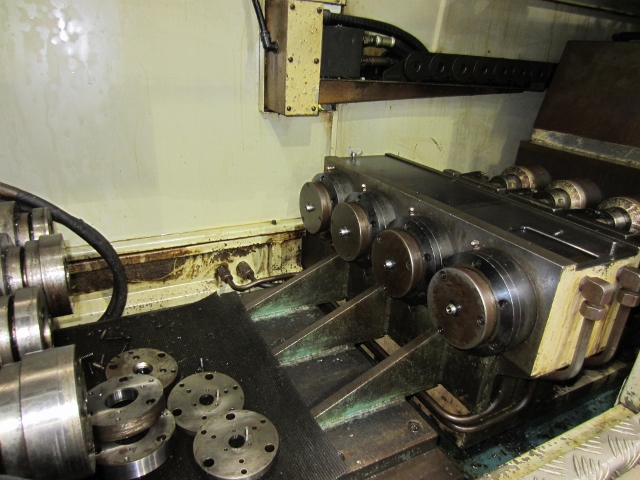

NUMBER OF SPINDLES............... 4
MAX. DRILL DEPTH................. 20" (500 MM)
GUNDRILL DIAMETER RANGE.......... .078" - .5" (2 MM - 12 MM)
HP FOR TWO SPINDLES.............. 5 HP (4 KW)
SPINDLE CENTER DISTANCE.......... 5.19" (132 MM)
RPM PER SPINDLE.................. 0 - 6000 RPM
Z AXIS RAPID SPEED............... 15.5 IPM (10 M/MIN)
DRILL FEED RANGE................. 0 - 157.5 IPM (0 - 4000 MM/MIN)

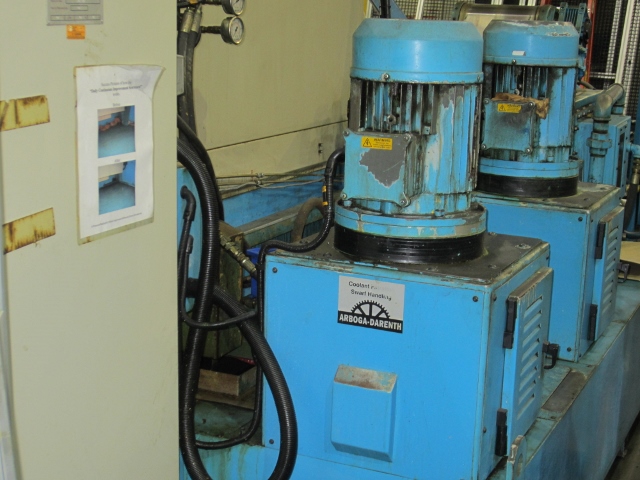

COOLANT SYSTEM
TANK CAPACITY................. 317 GALLONS (1200 LITRES)
MAX. COOLANT PRESSURE......... 1450 PSI (100 BAR)
COOLANT DELIVERY.............. 2 X 11.9 GPM (45 LITRES/MIN)
WEIGHT OF DRY COOLANT SYSTEM.. 2,200 LBS (1,000 KG)
MACHINE WEIGHT................... 7,260 LBS (3,000 KG)
EQUIPPED WITH:

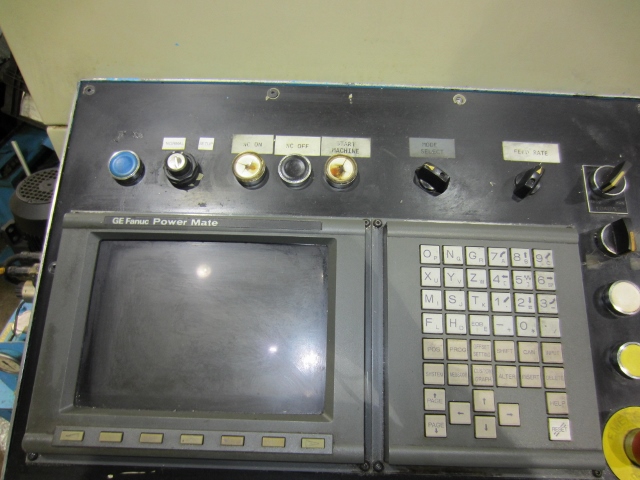

FANUC POWERMATE D CONTROL
CNC CONTROLLED COUNTER ROTATION

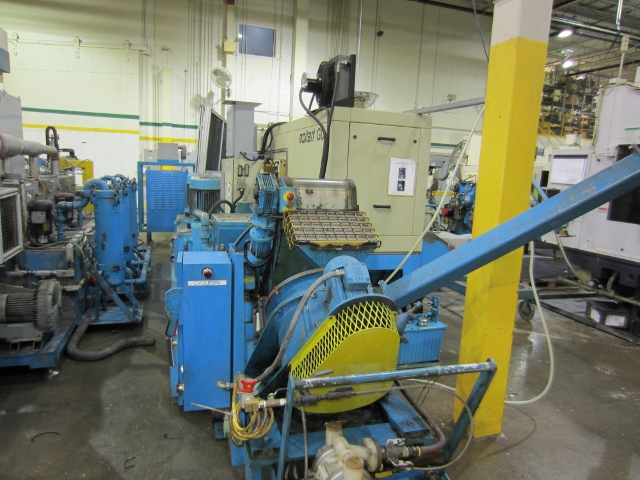

MAGNETIC CONVEYOR
DRUM TYPE FILTER
DESIGNED FOR OVERHEAD GANTRY
