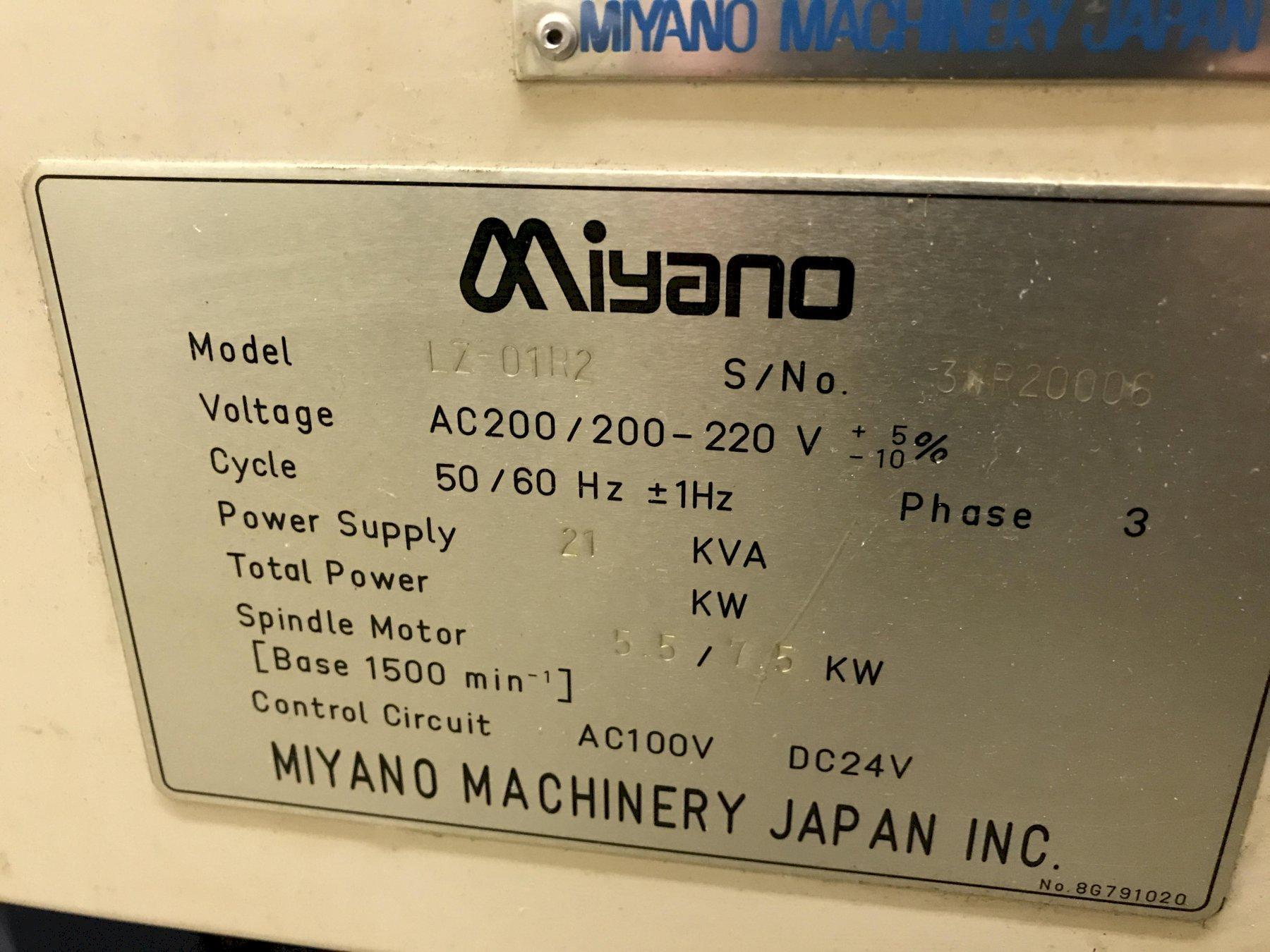

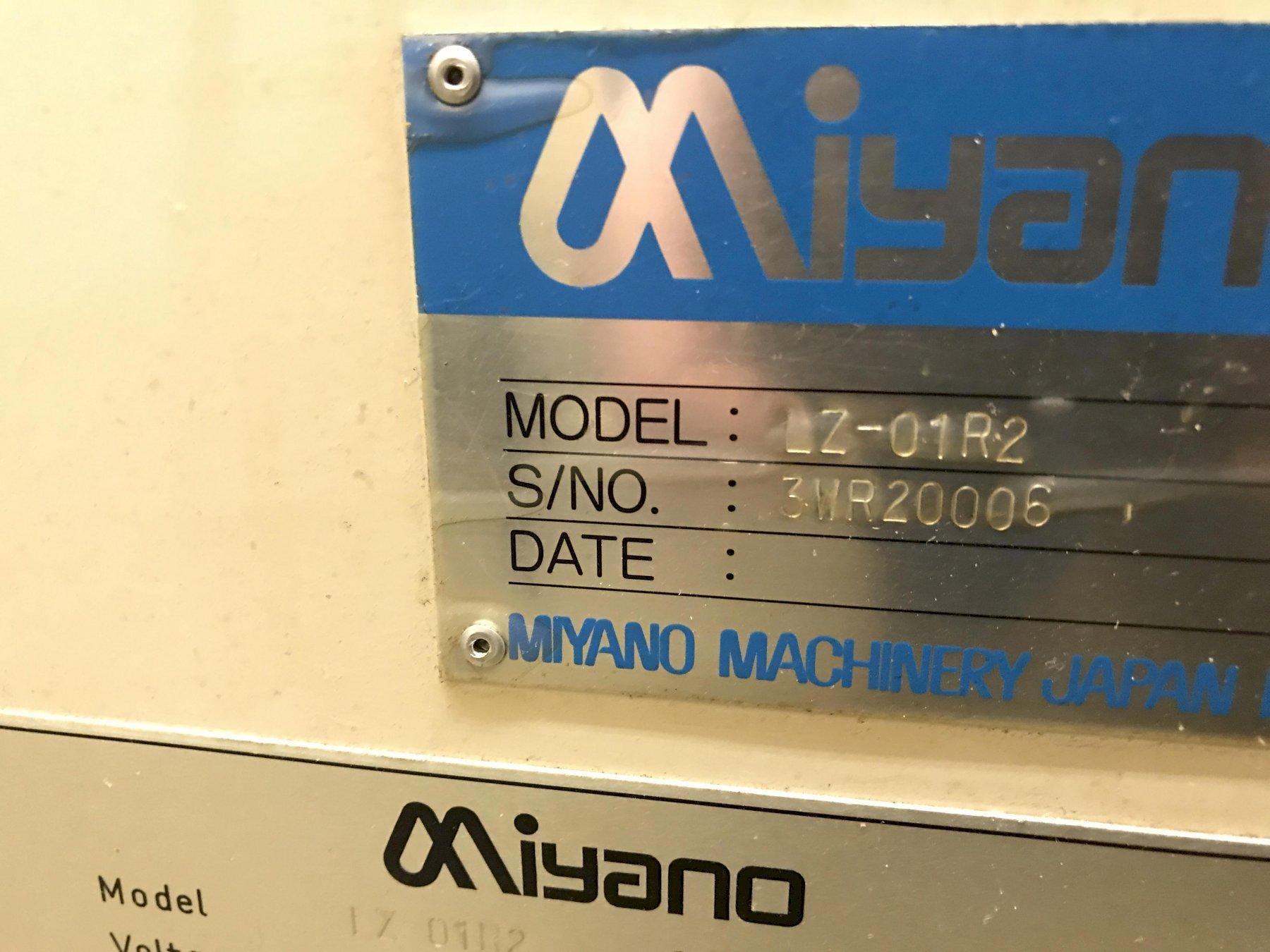

GENERAL SPECIFICATIONS:
MACHINING CAPACITY
MAX. WORK LENGTH..................... 3.15"
MAX. BLANK DIA. FOR POWER CHUCK...... 2.750"
MAX. BLANK DIA. FOR COLLET CHUCK..... 2.0"
SPINDLE SPEEDS (INF. VARY).............. 60 - 6,000 RPM
POWER CHUCK SIZE........................ 6"
TURRET STATIONS......................... 12
MAX. INDEX CLEARANCE.................... 20"
SLIDE STROKE (HEADSTOCK)
MAX.SLIDE STROKE X................... 9.64"
Z................... 9.44"
RAPID TRAVERSE X..................... 786 IPM
Z..................... 786 IPM
FEED PER MINUTE...................... 6,0000 MM/MIN
JOG FEED RATE........................ 0 - 1,200 MM/MIN
REVOLVING TOOL
NUMBER OF REVOLVING TOOLS............ MAX. 6
SPINDLE SPEED RANGE.................. 100 TO 4,000 RPM
SPINDLE SPEEDS....................... INF. VARIABLE
MAIN SPINDLE MOTOR...................... 7.3/10 HP
REVOLVING TOOL MOTOR.................... 3.3 HP
AUTO LOAD SYSTEM
TYPE OF GRIPPERS DOUBLE SET
MAXIMUM WORK SIZE (DIA. x LENGTH) 2.75" x 3.15"
MINIMUM WORK SIZE (DIA. x LENGTH) 0.4" x 0.4"
MAXIMUM WORKPIECE WEIGHT 1.54 LBS x 2
LOADER SLIDE STROKE 1.57" / 9.84"
LOAD / UNLOAD TIME (MINIMUM) 4 SECONDS
EQUIPPED WITH:

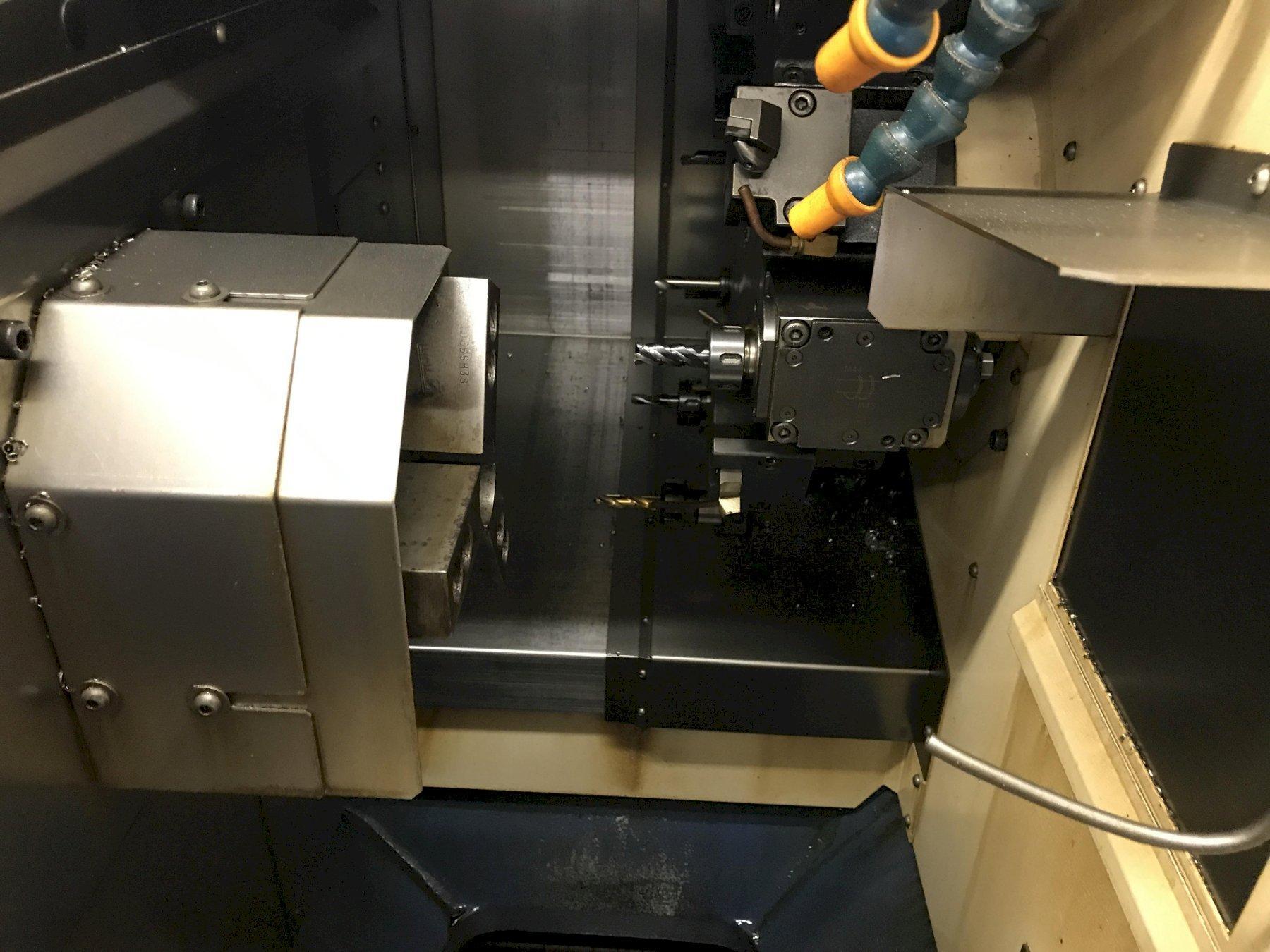

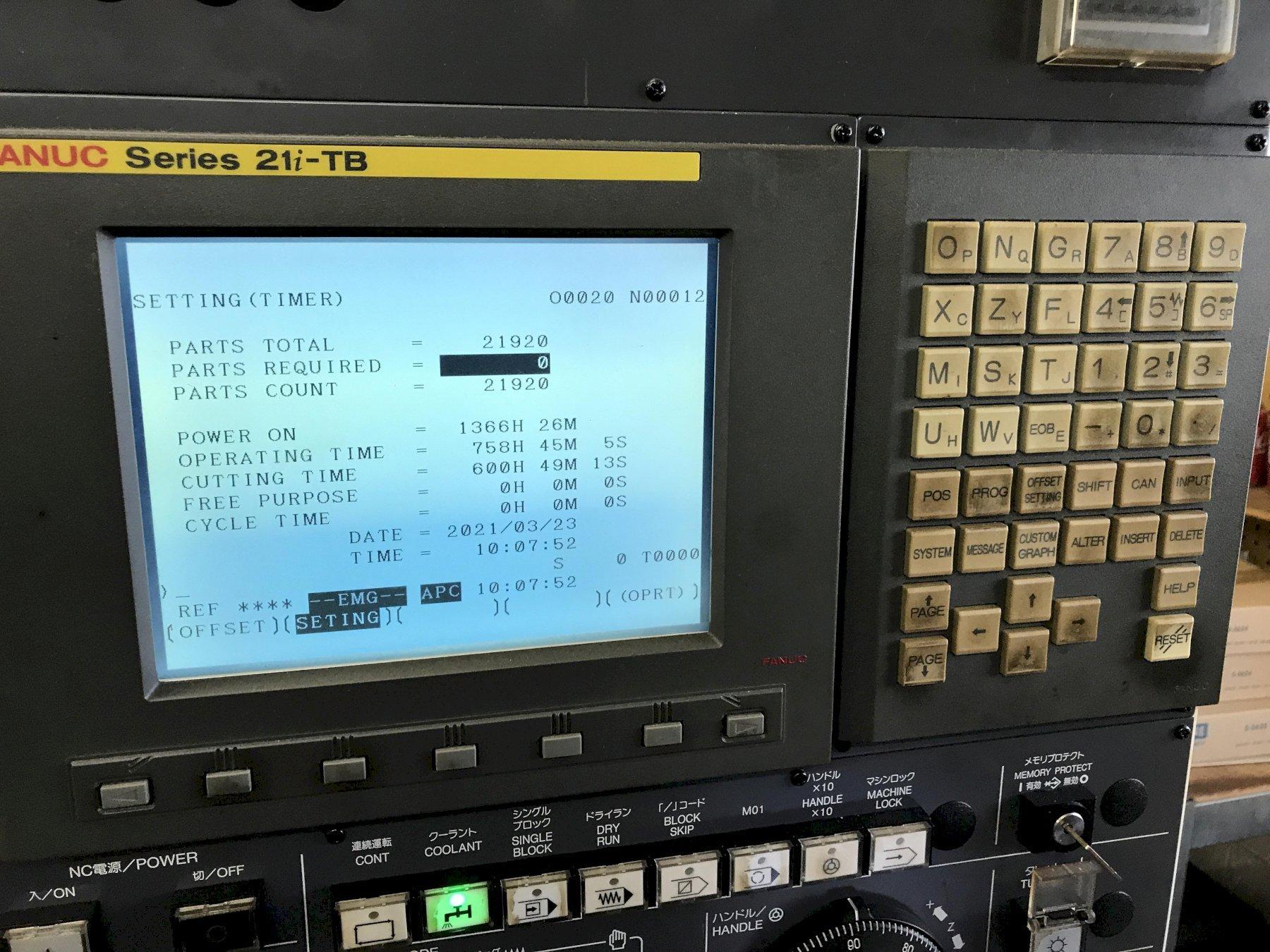

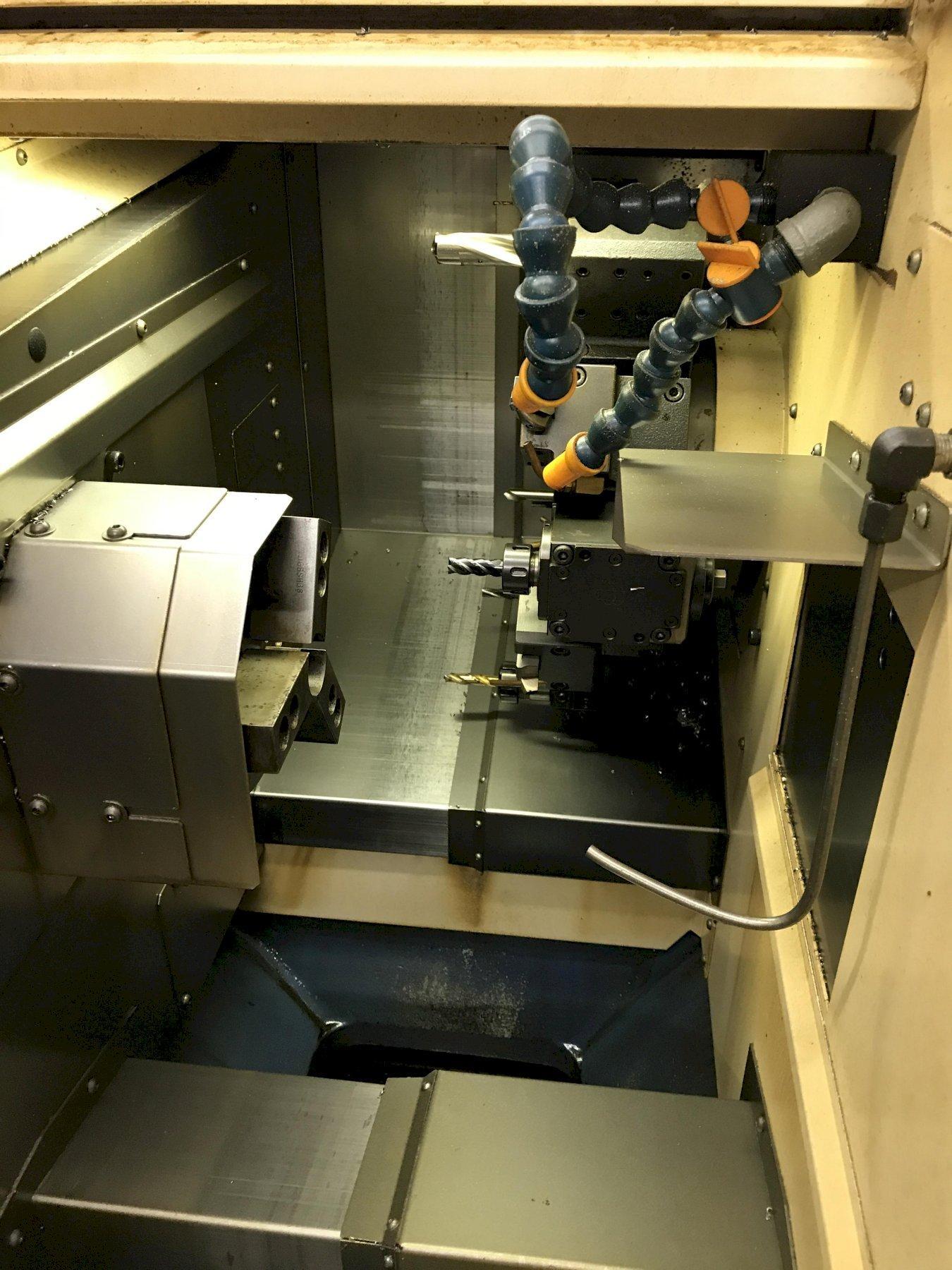

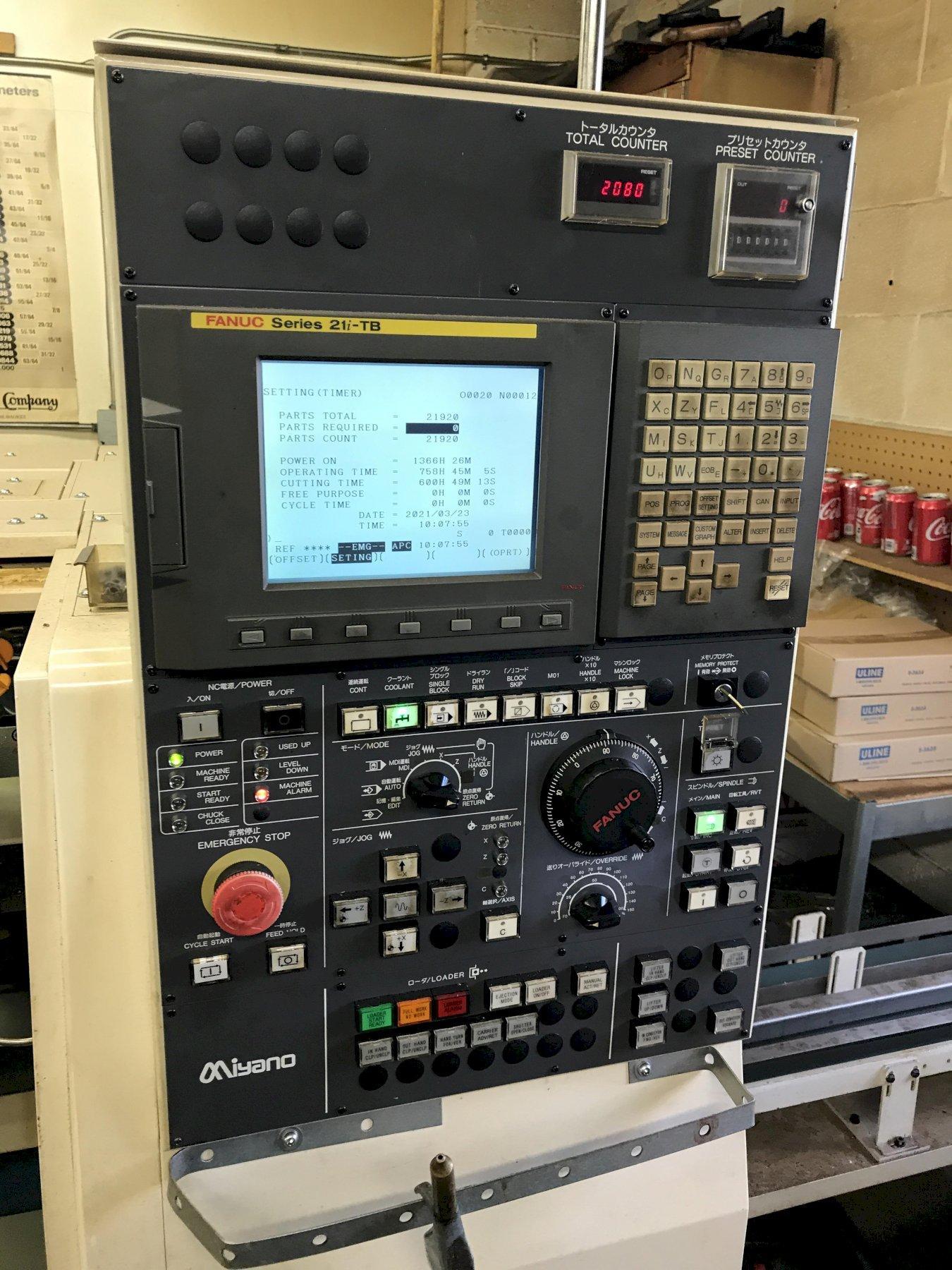

FANUC 21TB CNC CONTROL WITH 10.4" LCD & RS-232C PORT
6" 3-JAW HYDRAULIC CHUCK WITH JAWS, HIGH PRESSURE COOLANT

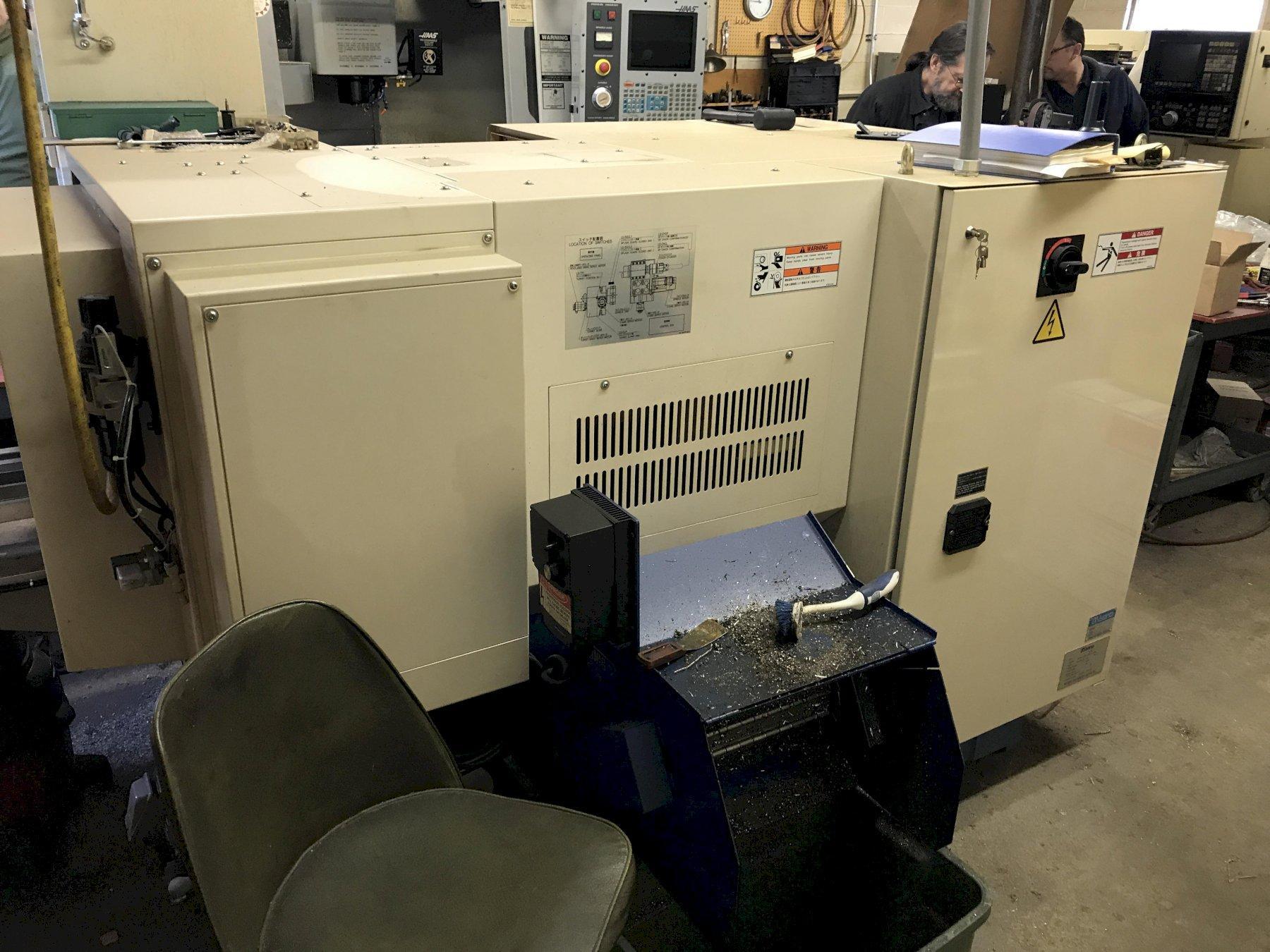

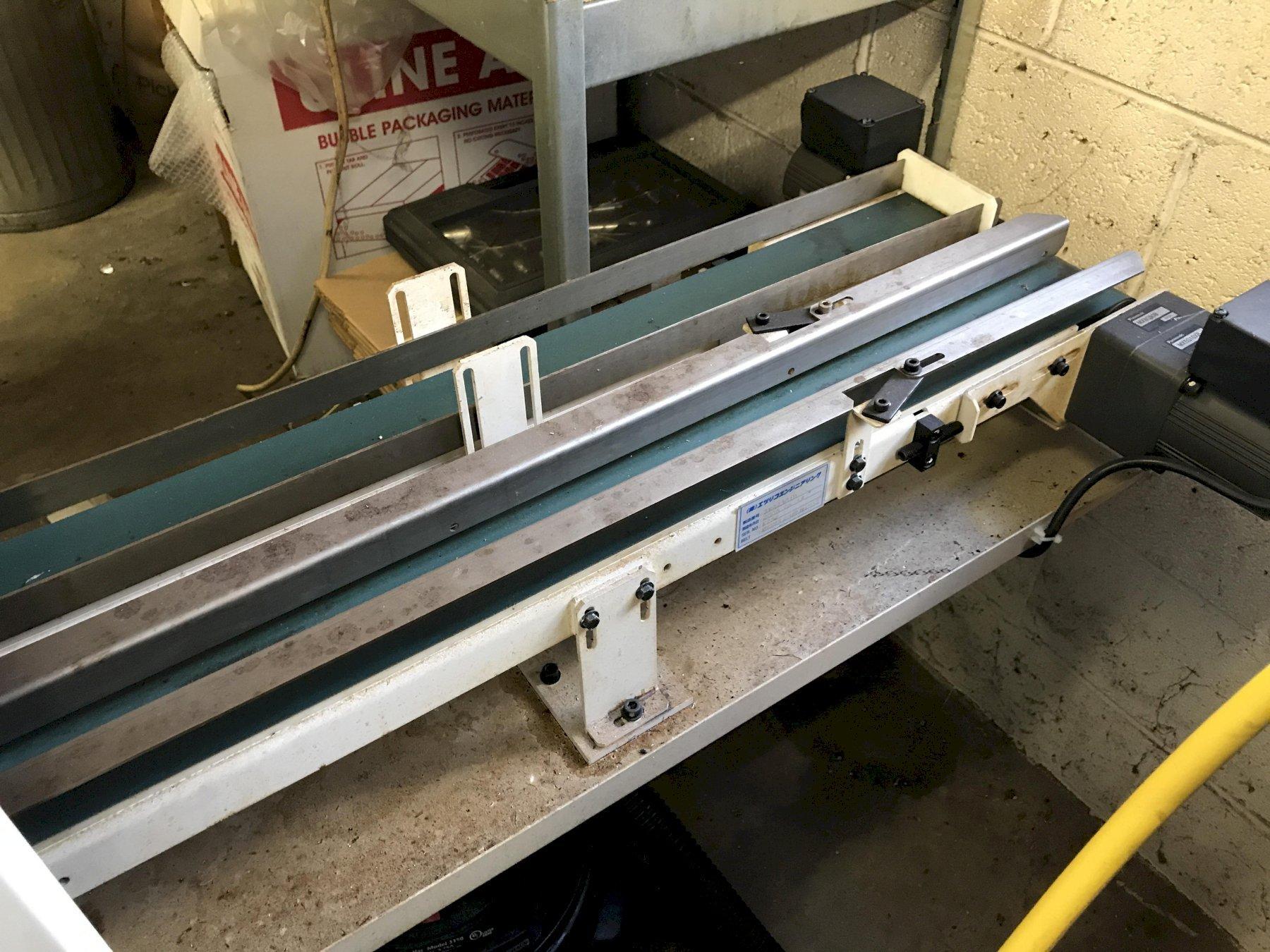

INBOUND CONVEYOR WITH SENSOR, FULL AUTO LOADING SYSTEM
TOTAL COUNTER & PRESET COUNTER, STANDARD COOLANT SYSTEM
ALL AVAILABLE TOOL BLOCK HOLDERS & ALL AVAILABLE MANUALS
