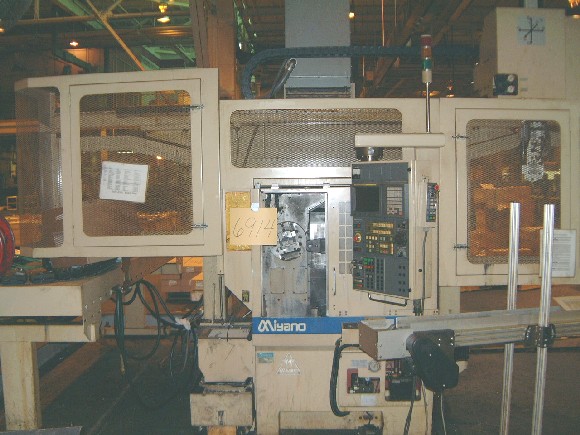

MIYANO LP-21, 11" SW OVER BED, 2.2" HOLE, 40-4000 RPM, FANUC 18-T CTRL, PICK & PLACE GANTRY, CHIP CONVEYOR, 1997

GENERAL SPECIFICAITONS:
MANUFACTURER MIYANO
MODEL LP-21
NEW (APPROX.) 1997
POWER CHUCK SIZE 8"
COLLET CHUCK (ROUND) 1.88"
COLLET CHUCK (HEX.) 1.73" FLAT
COLLET CHUCK (SQUARE) 1.24" FLAT
SWING OVER BED 11"
SPINDLE NOSE TYPE A2-6
SPIINDLE NOSE DIA. 6.5" DIA.
SPINDLE I.D. OF FRONT BEARING 3.94" DIA.
SPINLDE THOURGH HOLE 2.2" DIA.
SPINDLE I.D. OF DRAW PIPE 1.85" DIA.
SPINDLE SPEED RANGE 40 - 4000 RPM
SPINLDE MOTOR 7.5 KW
TURRET TOOLING STATIONS 12
TURRET DISTANCE ACROSS FLAT 14.17"
TURRET HOLE DIA. FOR I.D. TOOLS 1-1/4" DIA.
TURRET SHANK SIZE 1" SQ.
TURRET MAX. INDEXING CLEARANCE 23.6" DIA.
TURRET INDEXING TIME 0.5 SEC/POS.
SLIDE STROKE X-AXIS 6.89"
SLIDE STROKE Z-AXIS 10.63"
RAPID TRAVERSE SPEED X-AXIS 40 FT/MIN.
RAPID TRAVERSE SPEED Z-AXIS 52 FT/MIN.
HYD. TANK CAPACITY 3.96 GAL.
HYD. PUMP MOTOR 1.5 KW
HYD. MAX. DELIVERY PRESSURE 640 PSI
COOLANT TANK CAPACITY 34 GAL.
COOLANT PUMP MOTOR 0.75 KW
LUBRICATING TANK CAPACITY 0.52 GAL.
LUBRICATING PUMP MOTOR 0.025 KW
ELECTRICS 220V/60 HZ
DIMENSIONS (APPROX.) 78.7"W x83.5"L x86.6"H
WEIGHT (APPROX.) 15,400 LBS

EQUIPPED WITH:

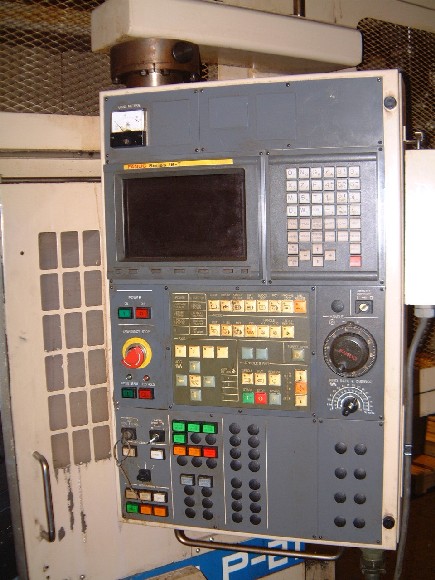

FANUC 18-T CONTROL

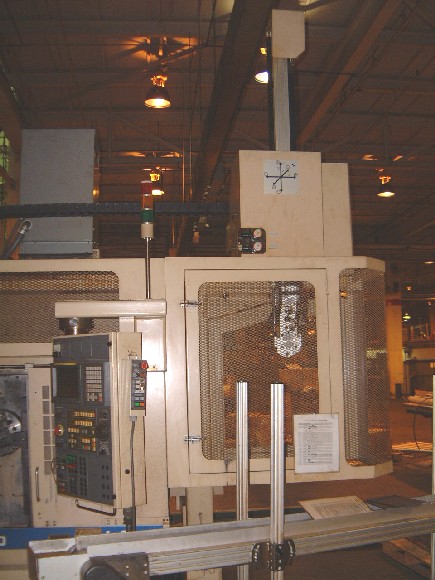

PICK & PLACE GANTRY (ROBOT)
CHIP CONVEYOR
