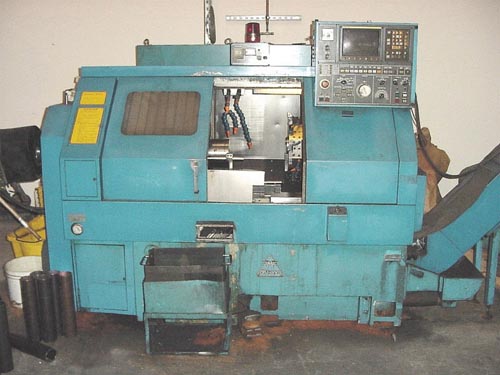

MIYANO LE-21, 12' LNS BARFEEDER, 1.75" BAR, 13.75" SW x 14.25" CC, FANUC OT

GENERAL SPECIFICATIONS:
MANUFACTURER............................ MIYANO
MODEL................................... LE-21
NEW APPROXIMATELY....................... 1988
MAX. SWING OVER WAYS.................... 13.75"
MAX. CUTTING DIAMETER................... 10"
DISTANCE BETWEEN CENTERS................ 14.25"
MAX. CUTTING LENGTH..................... 11.75"
HOLE THRU SPINDLE....................... 2.187"
MAX. BAR CAPACITY....................... 1.75"
SPINDLE SPEED RANGE..................... 40 - 4,000 RPM
MAIN MOTOR.............................. 15 HP
RAPID TRAVERSE RATE..................... 394 IPM

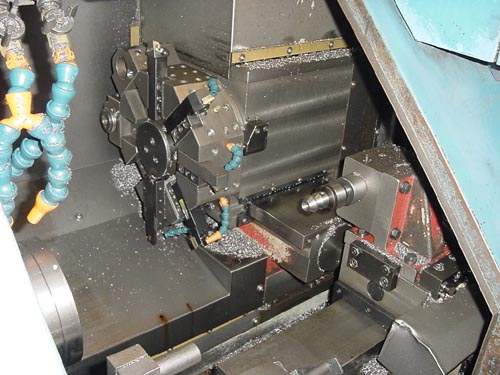

TURRET TOOLING STATIONS................. 8
DIMENSIONS (APPROX.).................... 75"Lx55"Wx60"H
WEIGHT (APPROX.)........................ 7,300 LBS.

EQUIPPED WITH:

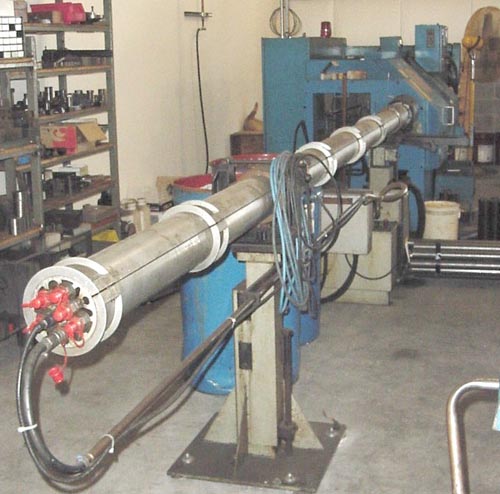

12'(6)TUBE LNS MDL 6.45-HS-5.2 SUPER HYDROBAR BARFEEDER(1/16"- 1-3/4" CAP.)
PARTS CATCHER
CHIP CONVEYOR

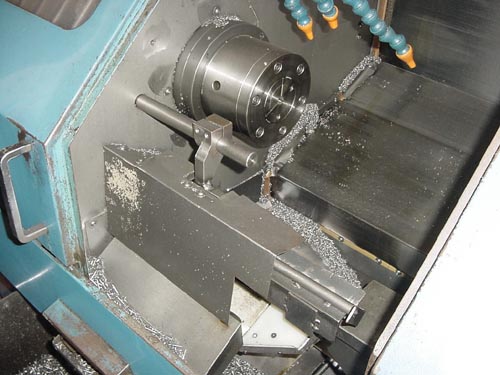

COLLET CHUCK
