MIYANO BND-51S, FANUC 21T, 2" BAR, 4000 RPM MAIN & SUB, 4050 RPM LIVE, TWIN C, BARFEED, '00

GENERAL SPECIFICATIONS:
MAXIMUM BAR CAPACITY (MAIN SPINDLE) 2"
MAXIMUM BAR CAPACITY (SUB SPINDLE) 1.61"
STANDARD TURNING DIAMETER 19.6"
STANDARD TURNING LENGTH 3.54"
MAXIMUM TURNING LENGTH 5"
X AXIS TRAVEL 5.9"
Z AXIS TRAVEL 14.96"
B AXIS TRAVEL (SUB SPINDLE PICKOFF) 15.75"
C AXIS INDEXING (MAIN & SUB SPINDLE) 0.001º
RAPID TRAVERSE RATE X AXIS 590.6 IPM
RAPID TRAVERSE RATE Z AXIS 944.9 IPM
SPINDLE NOSE (MAIN / SUB SPINDLE) A2-6 / FLAT
MAIN SPINDLE SPEEDS 54 - 4,000 RPM
SUB SPINDLE SPEEDS 133 - 4,000 RPM
SPINDLE MOTOR (MAIN / SUB SPINDLE) 20 / 7.5 HP AC

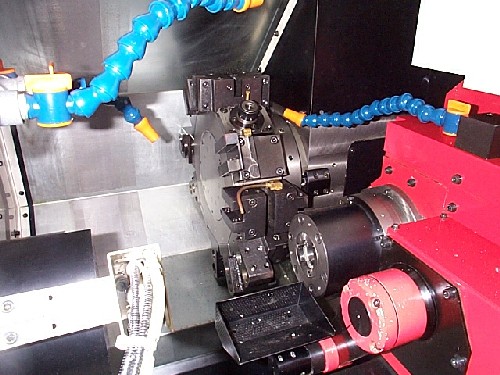

TURRET CAPACITY (6 STATIONS LIVE) 12 STATION TURRET
LIVE TOOLING MOTOR 3 HP
LIVE TOOLING SPEEDS 203 - 4,050 RPM

EQUIPPED WITH:

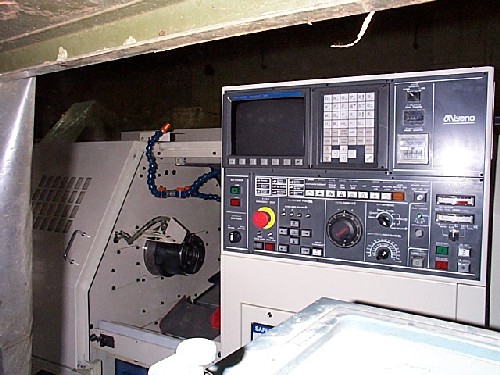

FANUC 21T CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
S-22 COLLET ON MAIN, S-16 COLLET ON SUB
TWIN C-AXES WITH SYNCHRONIZED SPINDLES
IEMCA MODEL TAL-65 12' AML BARFEED SYSTEM
43MM & 54MM GUIDE CHANNELS, CHIP CONVEYOR
PARTS CATCHER, PARTS CONVEYOR, LONG SHAFT SYSTEM
3 LIVE MILLING TOOL HOLDERS (2 OD, 1 ID)
ALL AVAILABLE TOOL HOLDERS & MANUALS
