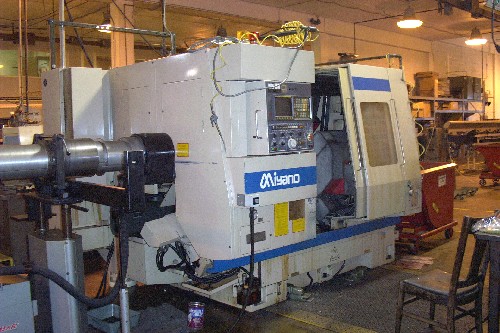

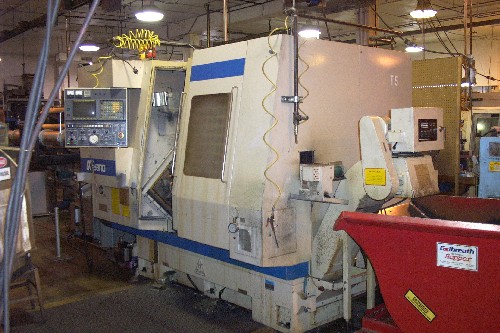

GENERAL SPECIFICATIONS:
MAXIMUM BAR CAPACITY (MAIN SPINDLE) 1.81"
MAXIMUM BAR CAPACITY (SUB SPINDLE) 1.62"
MAXIMUM TURNING LENGTH 15"
X AXIS TRAVEL (UPPER TURRET) 6.31"
Z AXIS TRAVEL (UPPER TURRET) 17.9"
X AXIS TRAVEL (LOWER TURRET) 5.5"
Z AXIS TRAVEL (LOWER TURRET) 7.87"
B AXIS TRAVEL (SUB SPINDLE PICKOFF) 17.31"
C AXIS INDEXING (MAIN & SUB SPINDLE) 0.001º
SPINDLE NOSE (MAIN / SUB SPINDLE) A2-6 / A2-5
MAIN SPINDLE SPEEDS 40 - 4,000 RPM
SUB SPINDLE SPEEDS 40 - 4,000 RPM
SPINDLE MOTOR (MAIN / SUB SPINDLE) 20 / 5 HP AC

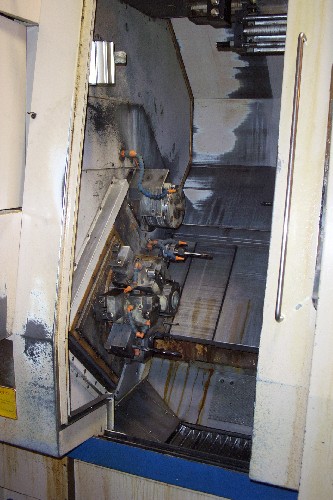

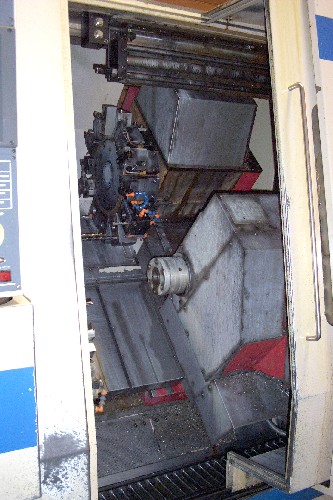

UPPER TURRET (6 STATIONS LIVE) 12 STATION TURRET
LOWER TURRET (4 STATIONS LIVE) 8 STATION TURRET
LIVE TOOLING MOTOR (UPPER / LOWER) 3 HP / 2 HP
LIVE TOOLING SPEEDS UPPER TURRET 100 - 3,000 RPM
EQUIPPED WITH:
FANUC 0TTC CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
S-22 COLLET ON MAIN, S-16 COLLET ON SUB
TWIN C-AXES WITH SYNCHRONIZED SPINDLES
LNS HYDROBAR FULL LENGTH (12') BARFEED SYSTEM
MAIN SPINDLE MOUNTED CUTOFF CONFIRMATION SENSOR
OVERHEAD GANTRY STYLE PARTS CATCHER, PARTS EJECTOR ON SUB
ALL AVAILABLE LIVE MILLING HOLDERS, PARTS OFFLOAD CONVEYOR
ALL AVAILABLE ID & OD TURNING TOOL HOLDERS & MANUALS
