Specifications
Equipped With
GENERAL SPECIFICATIONS:

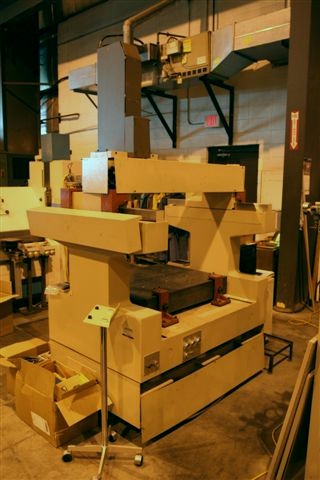

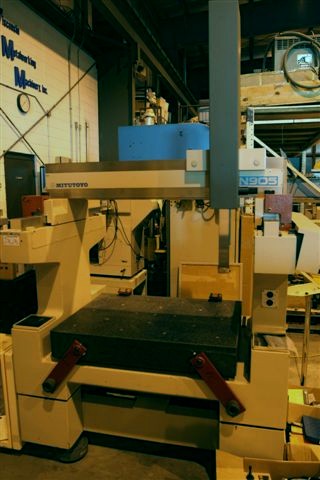

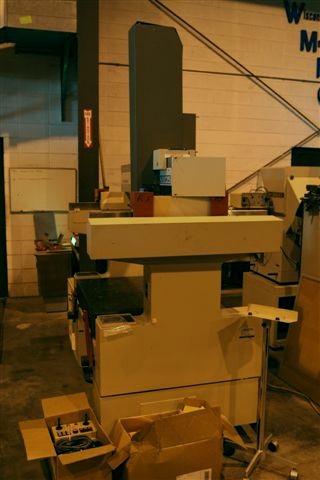

MANUFACTURER MITUTOYA
MODEL FN905
SERIAL # 841215
NEW (APPROX.) 1990
X-TRAVEL 36"
Y-TRAVEL 22"
Z-TRAVEL 18"
RESOLUTION .00005"
AXIS DRIVES DC SERVO
DRIVING SPEED (LOW RANGE) .118"/SEC.
DRIVING SPEED (HIGH RANGE) .315-2.756"/SEC.
FEEDBACK METHOD (SPEED) TACHOMETER GENERATOR
FEEDBACK METHOD (POSITION) SCALE

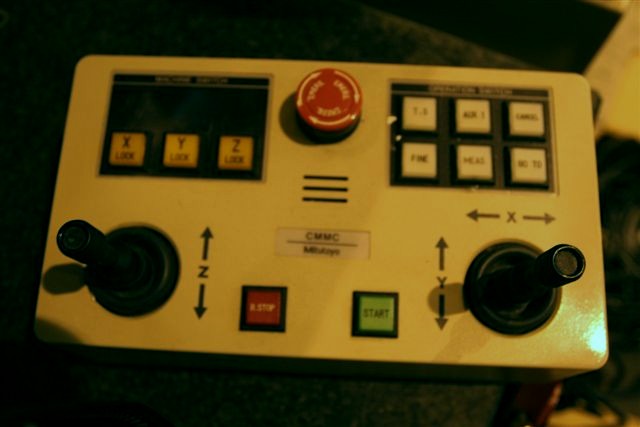

CONTROL UNIT CMMC-1
EQUIPPED WITH:

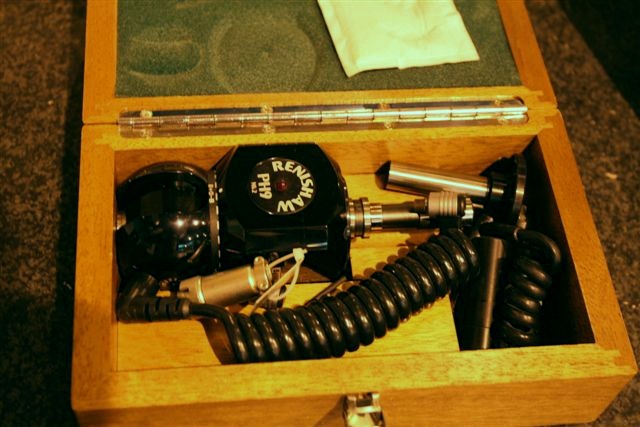

RENISHAW PH-9 MK2 PROBE

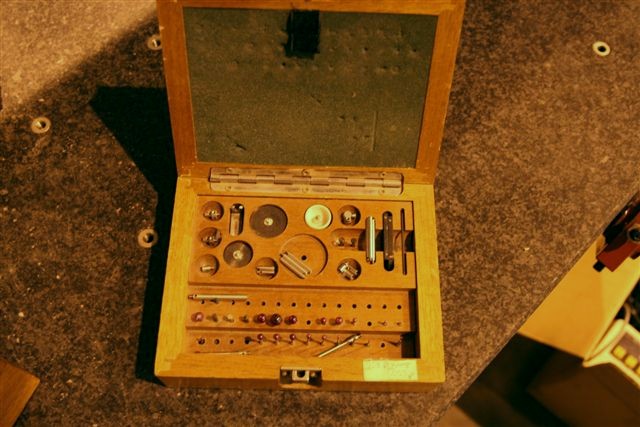

VARIOUS STYLUS & EXTENSIONS
PC-DMIS SOFTWAR3E FOR WINDOWS (MAY NEED TO RELICENSE)
CALIBRATED 3/27/06, ACCURACY: X .00009, Y .00015, Z .00042
FACTORY PACKAGED FOR SHIPMENT
