Specifications
Equipped With
GENERAL SPECIFICATIONS:

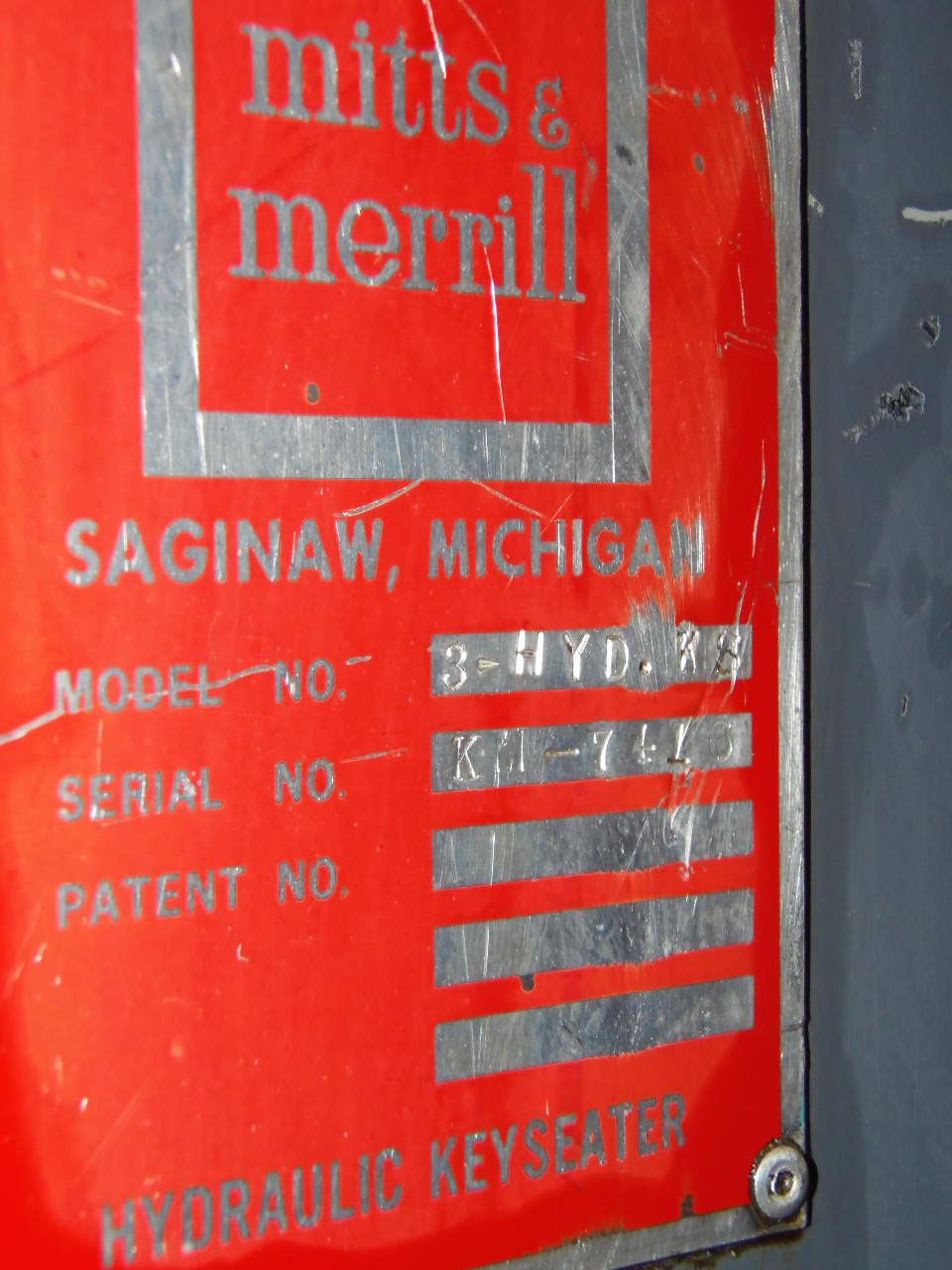

MAKE........................ MITTS AND MERRILL
MODEL....................... #3

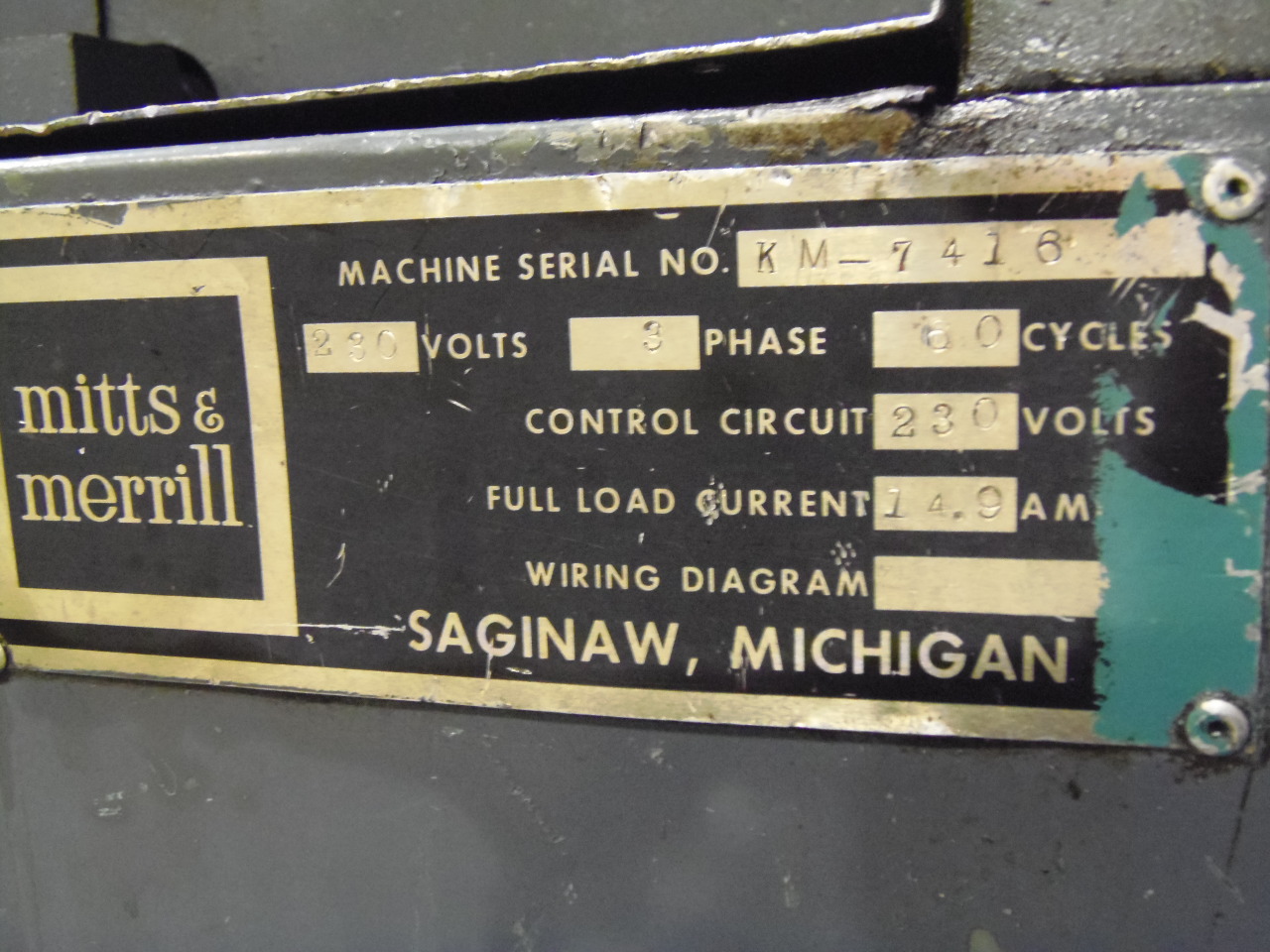

SERIAL NUMBER............... KM-7416
AGE (YEAR).................. 1974
MAXIMUM KEYWAY LENGTH....... 15"
MAXIMUM KEYWAY WIDTH........ 2"
LARGEST STANDARD POST....... 3 3/8"
HEIGHT FLOOR TO TABLE....... 40 5/8"
FLOOR SPACE................. 55" X 24"
DEPTH OF PIT................ 14" (NA W/ STAND)
CUTTING SPEED VARIABLE MIN.. 11.3 FPM
CUTTING SPEED VARIABLE MAX.. 26.5 FPM
RETURN SPEED CONSTANT....... 42 FPM
CROSSHEAD PULL @1000 PSI.... 8,300 LBS.
FEED RATES (VARI) PER STROKE .002 TO .008
EQUIPPED WITH:

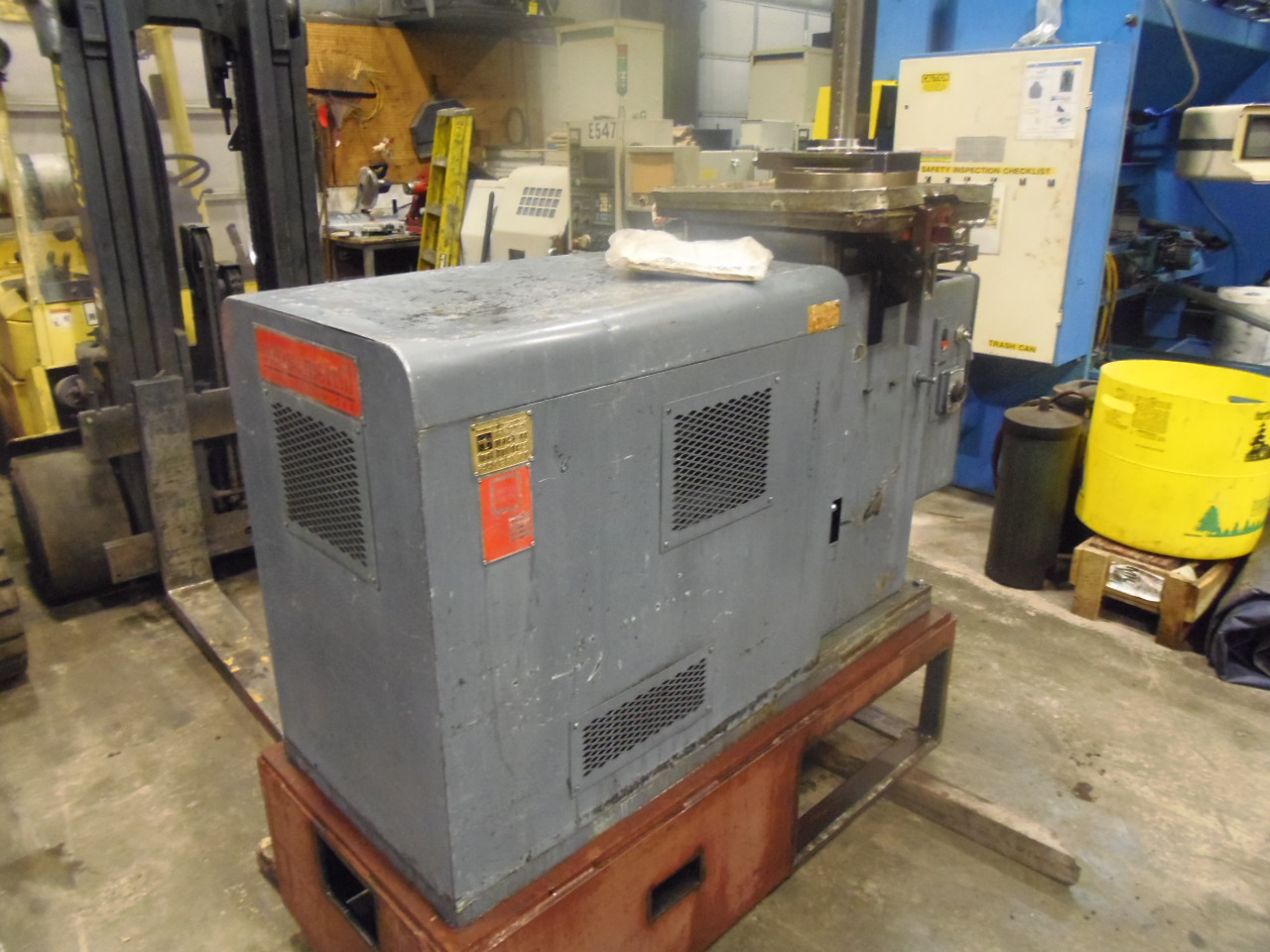

STAND (FLUSH FLOOR, NO PIT REQUIRED)

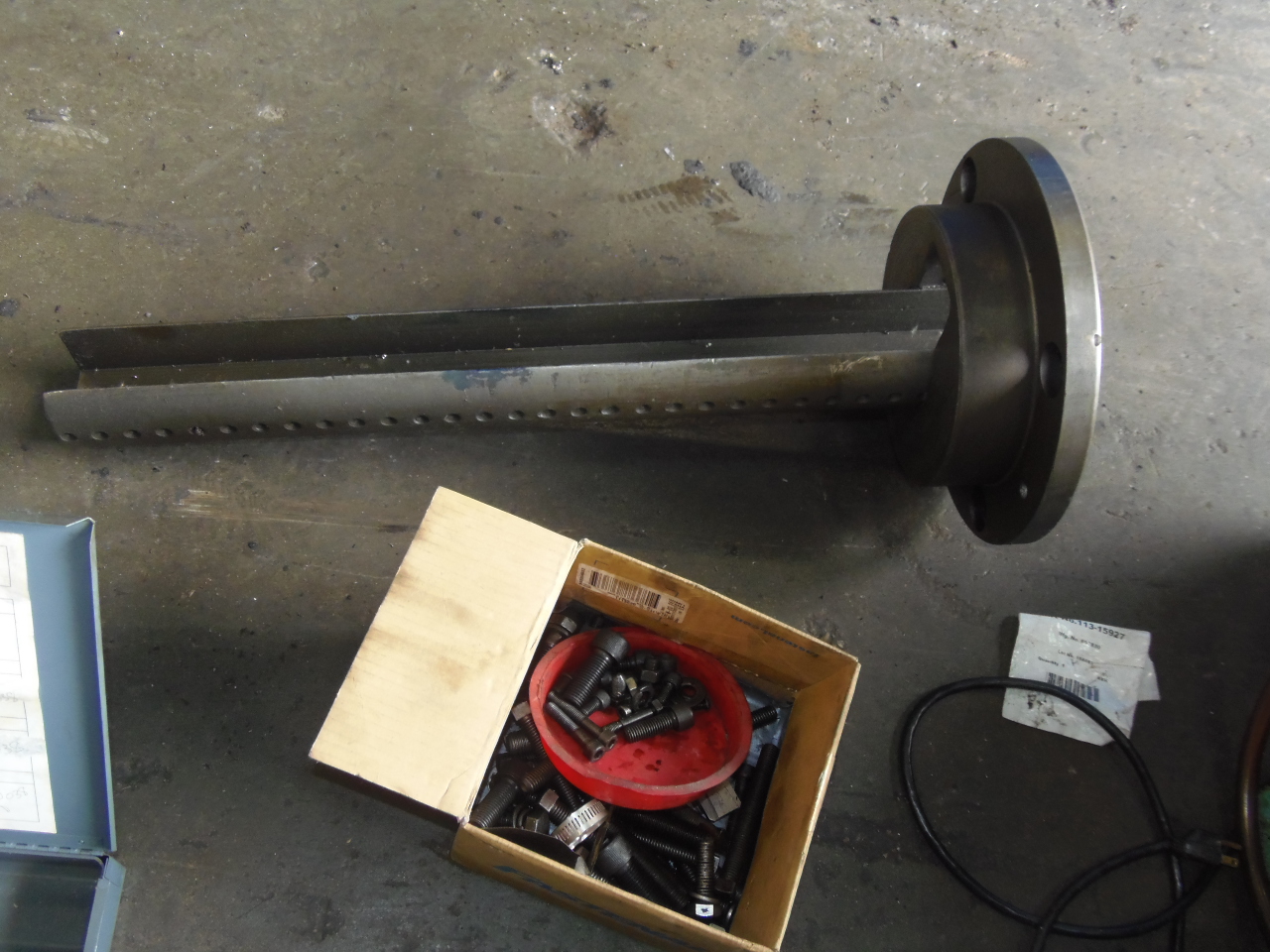

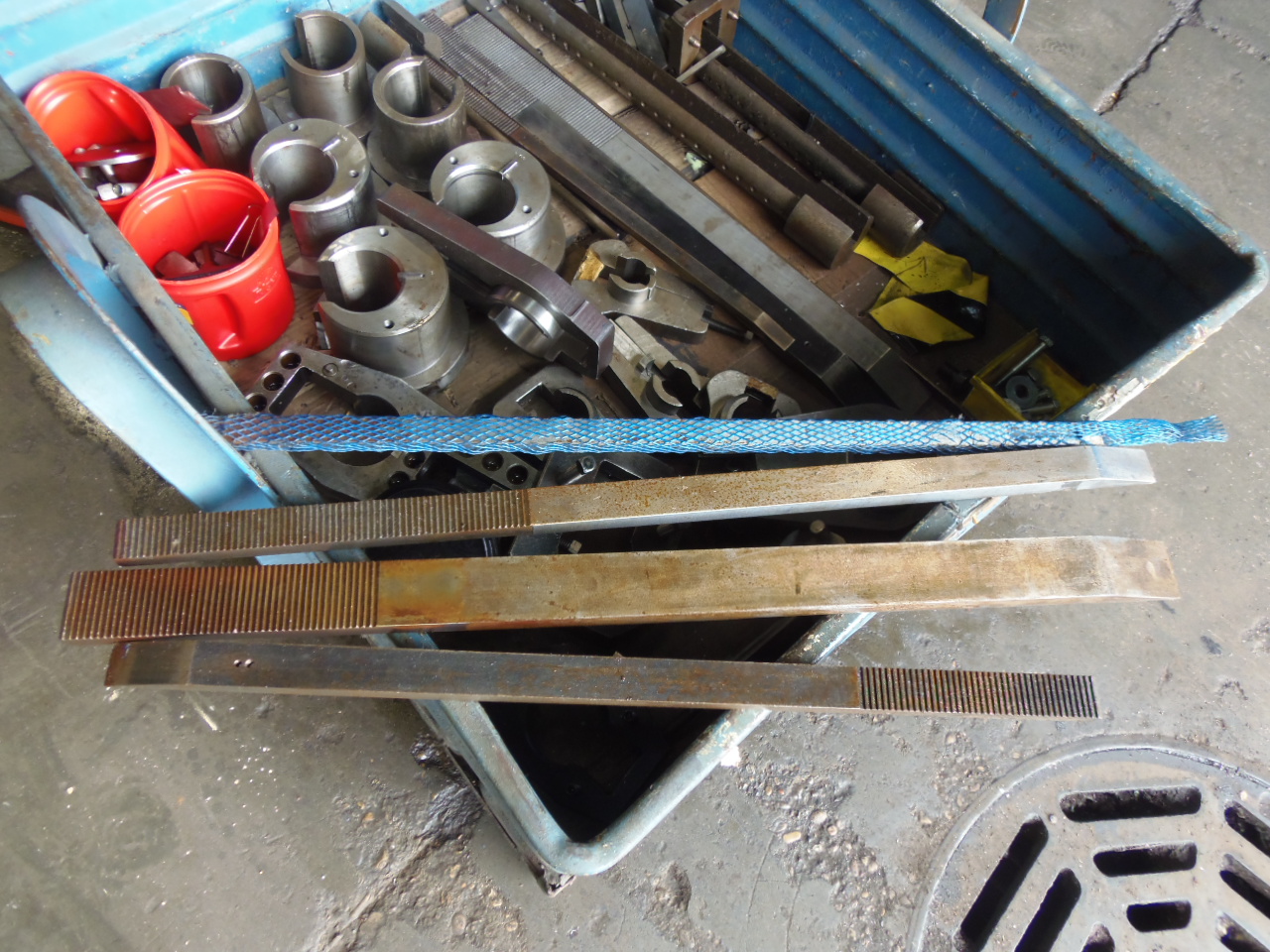

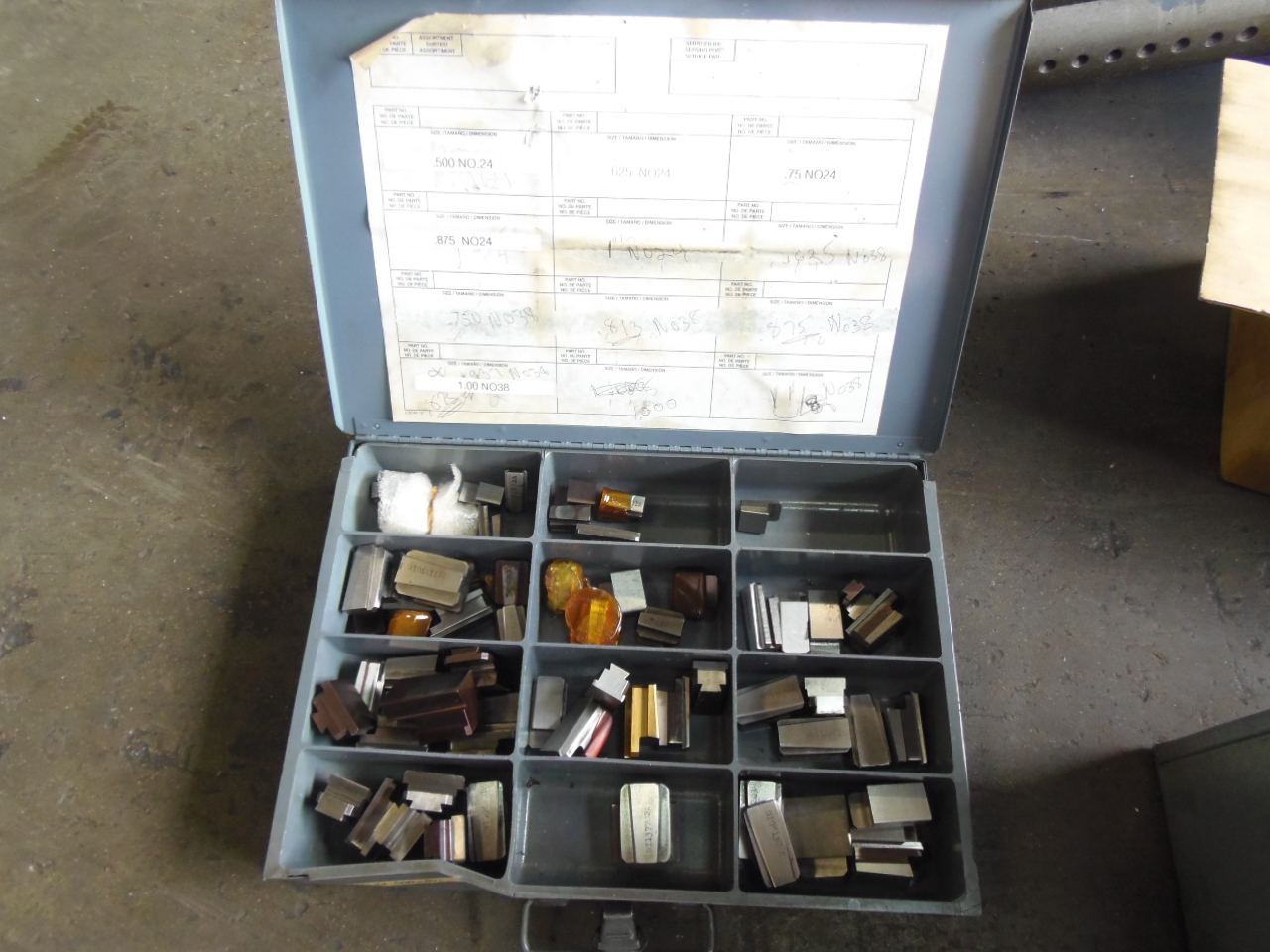

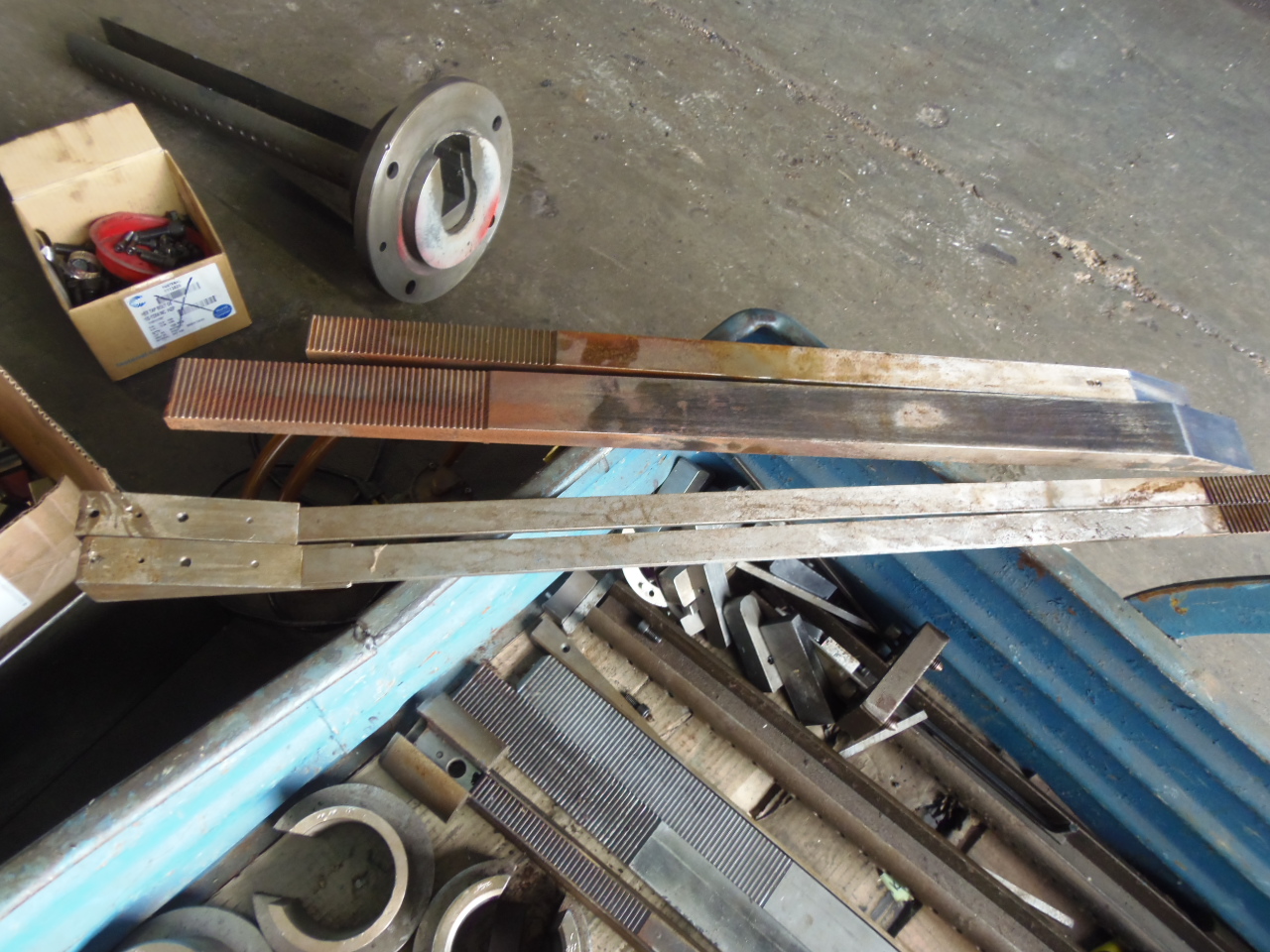

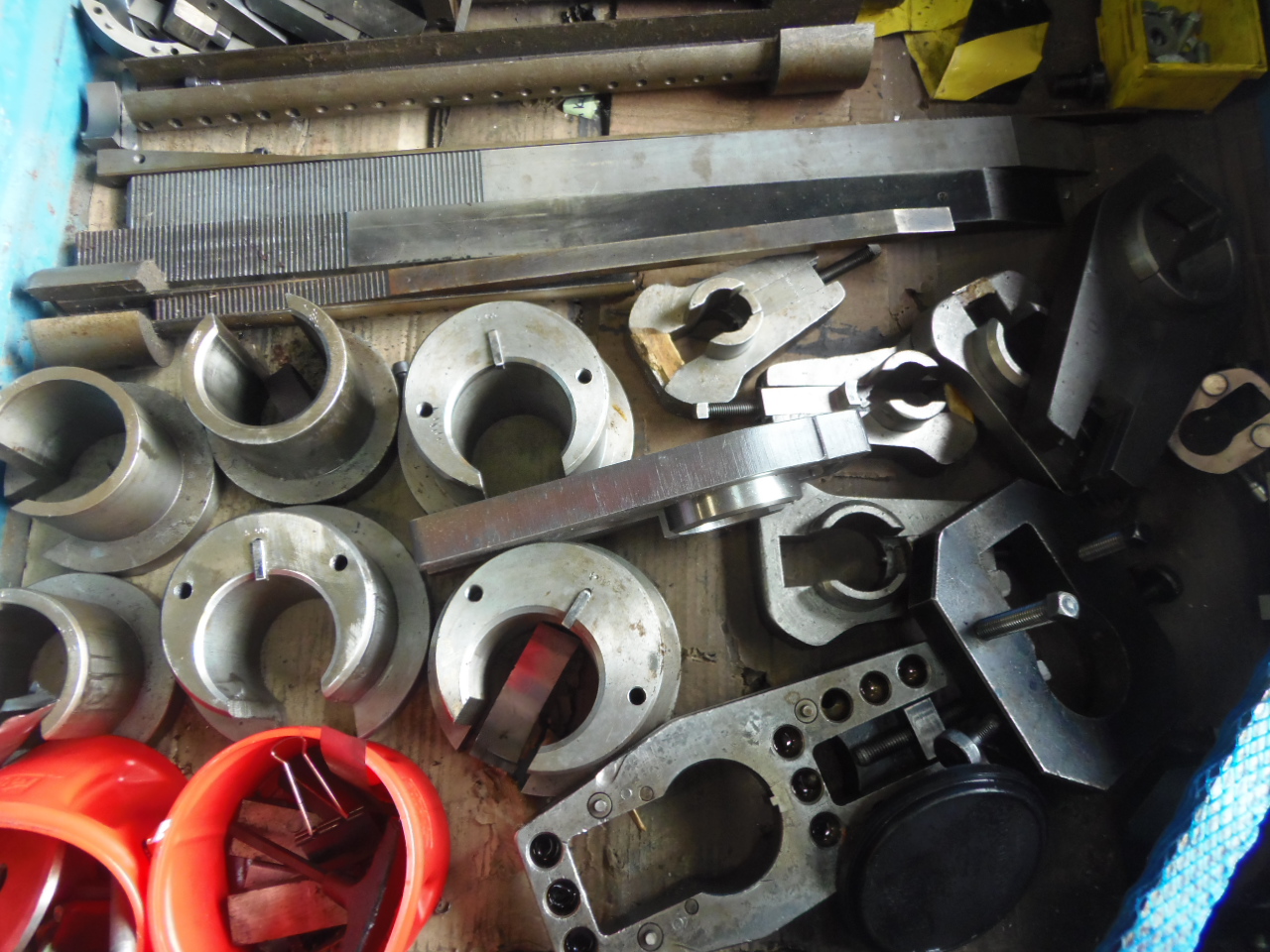

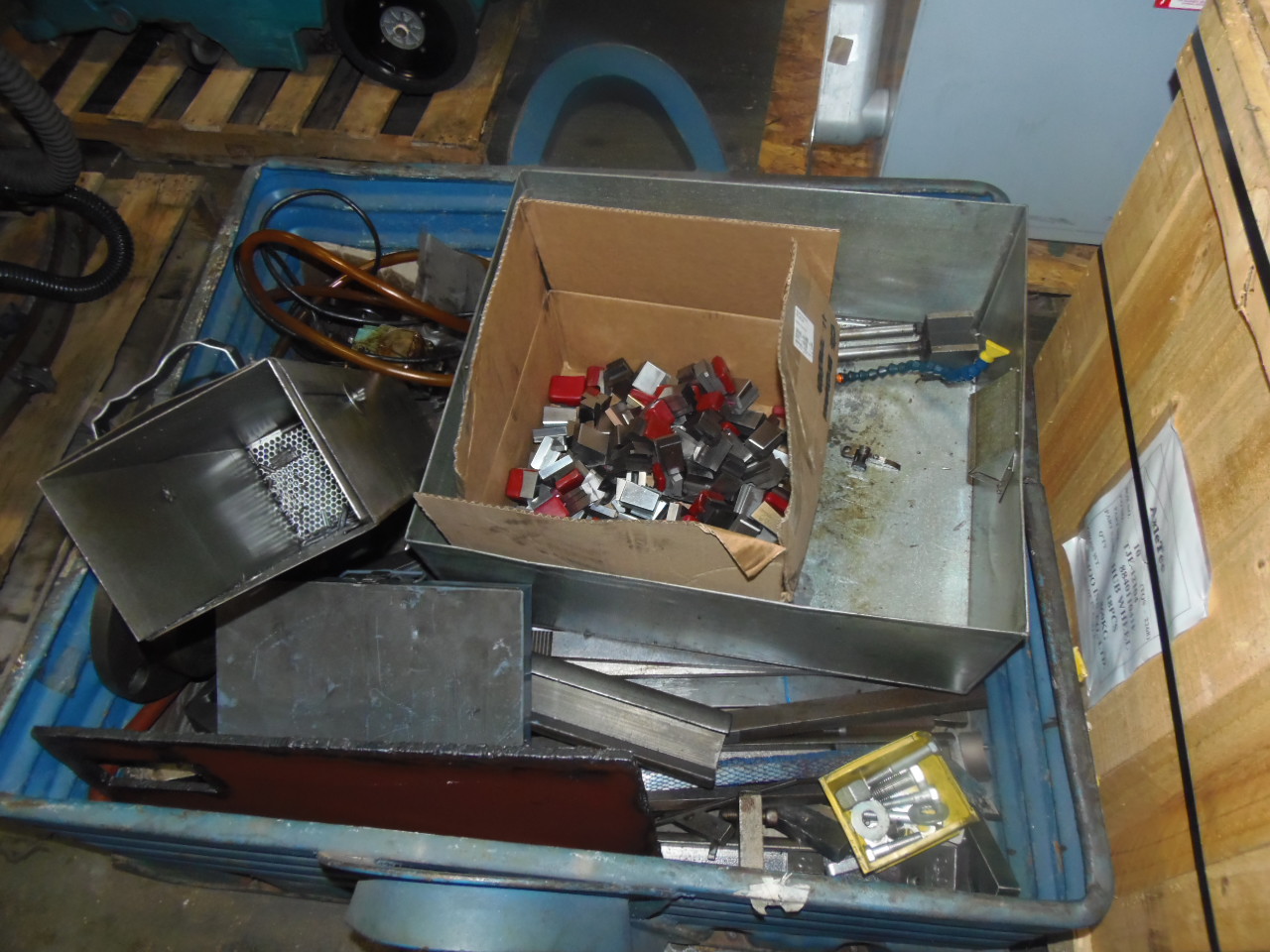

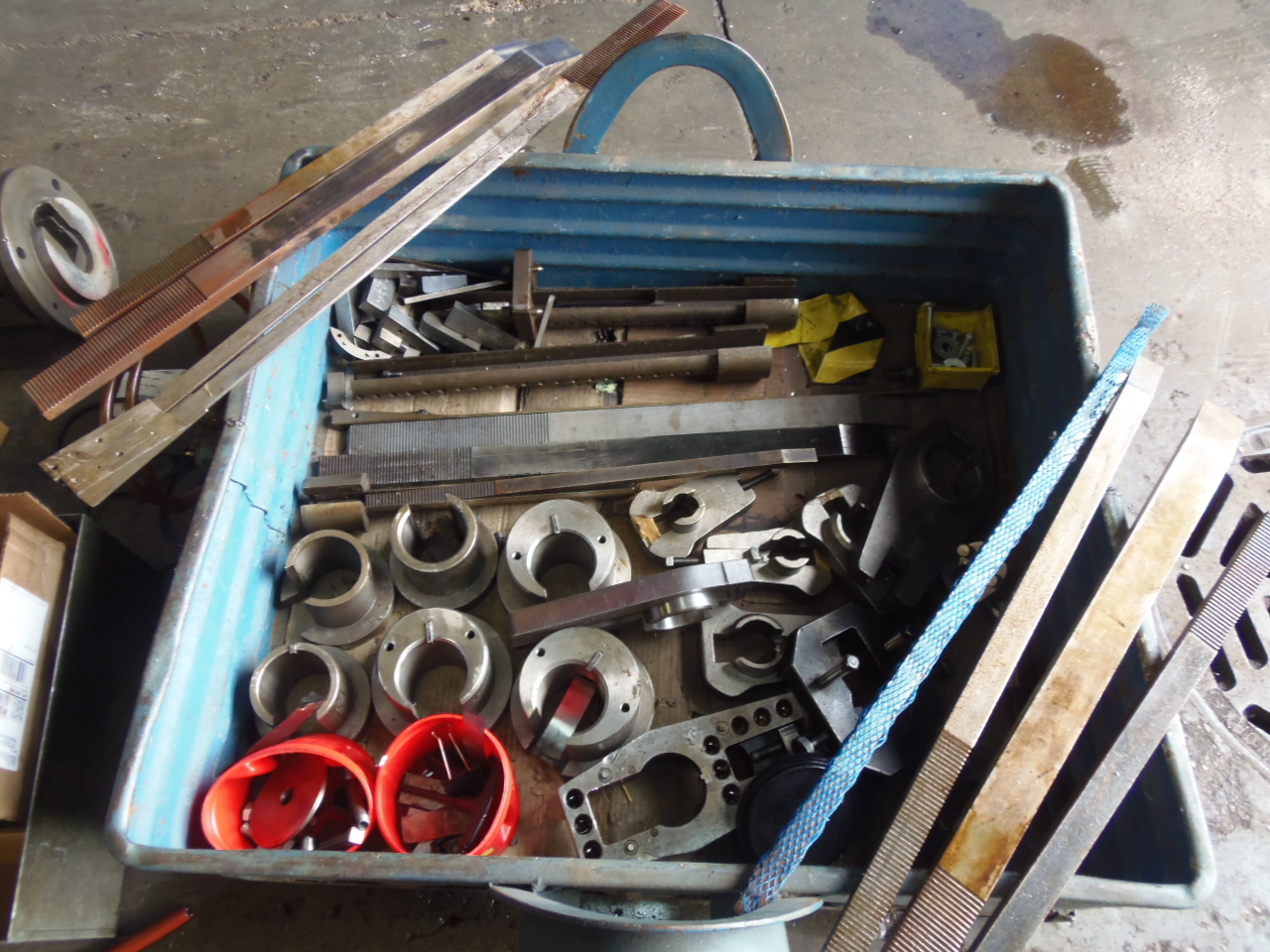

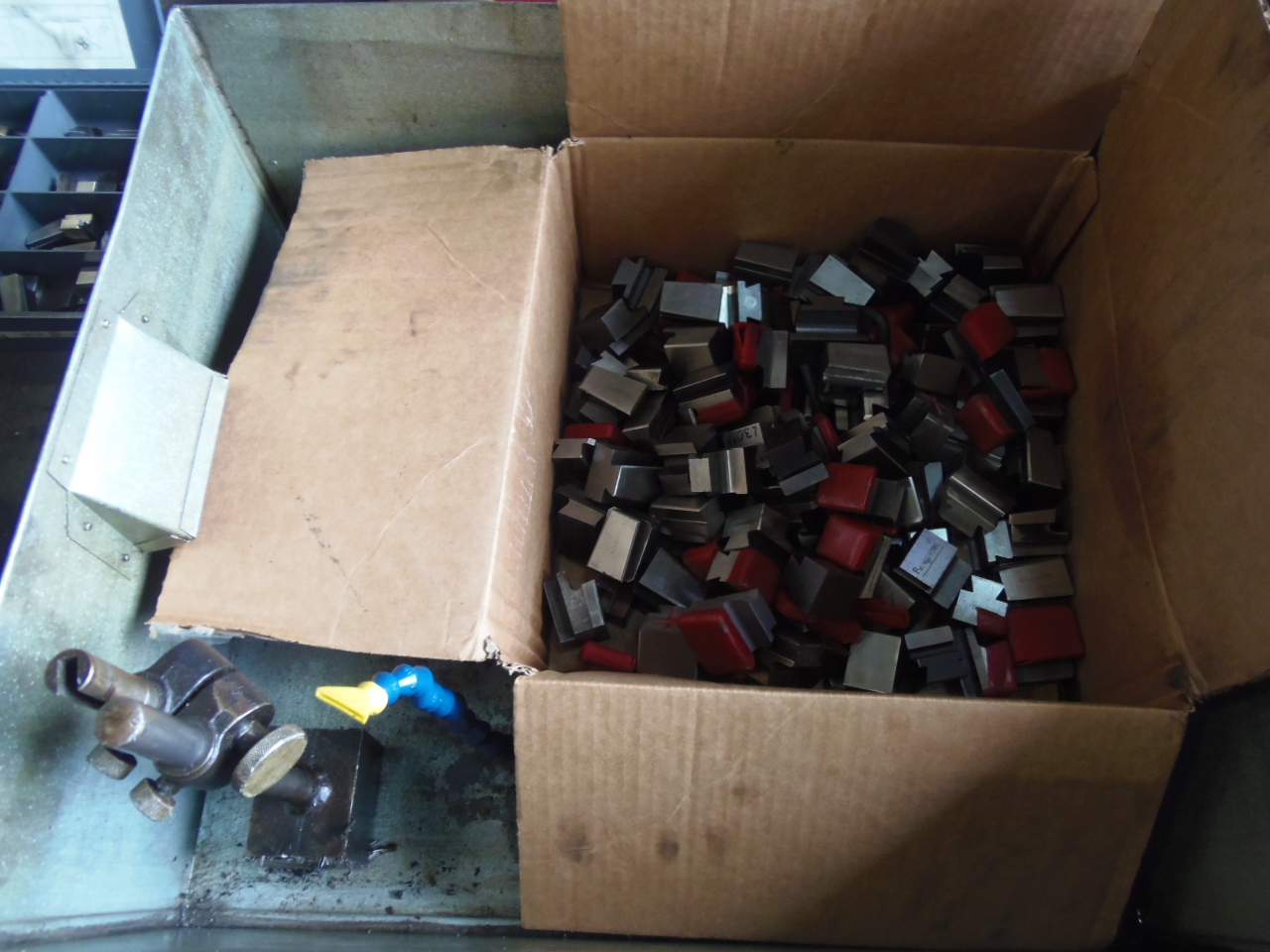

LOTS OF TOOLING
SPECIFICATIONS SUBJECT TO VERIFICATION
