Specifications
Equipped With
GENERAL SPECIFICATIONS:

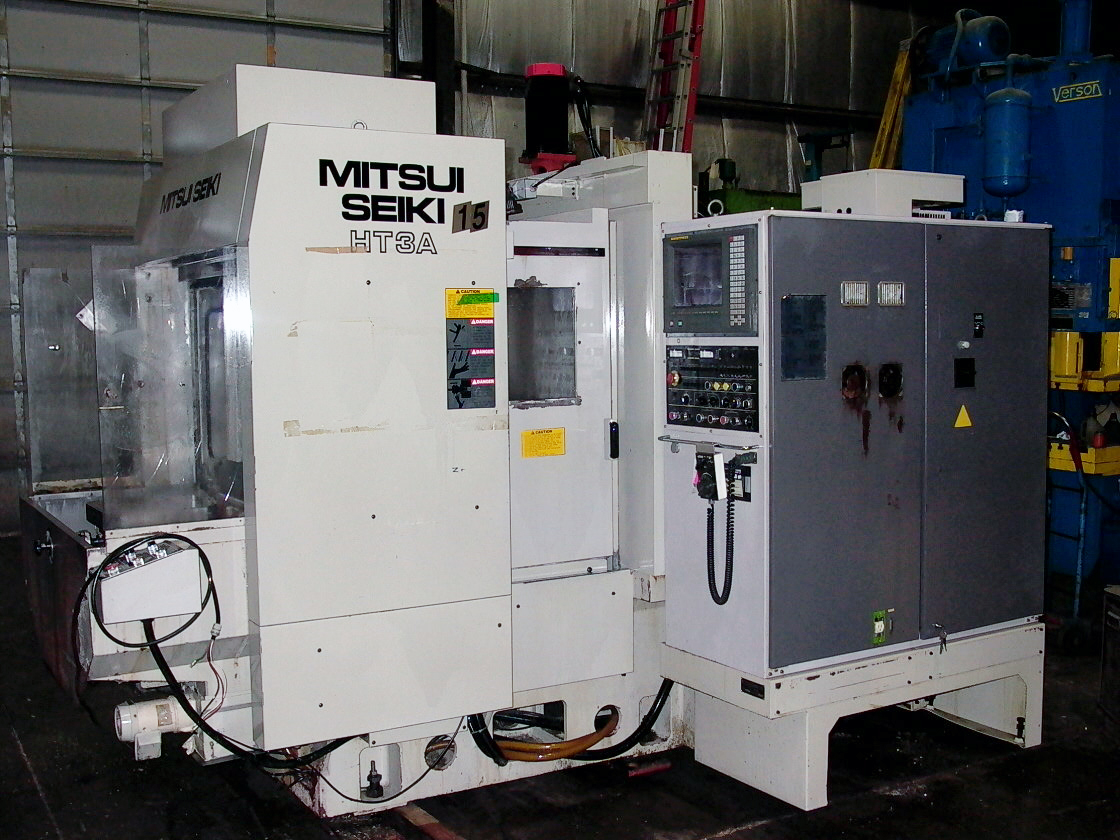

MAKE........................................... MITSUI SEIKI
MODEL.......................................... HT3A
SERIAL NUMBER.................................. 252
AGE (YEAR)..................................... 1995

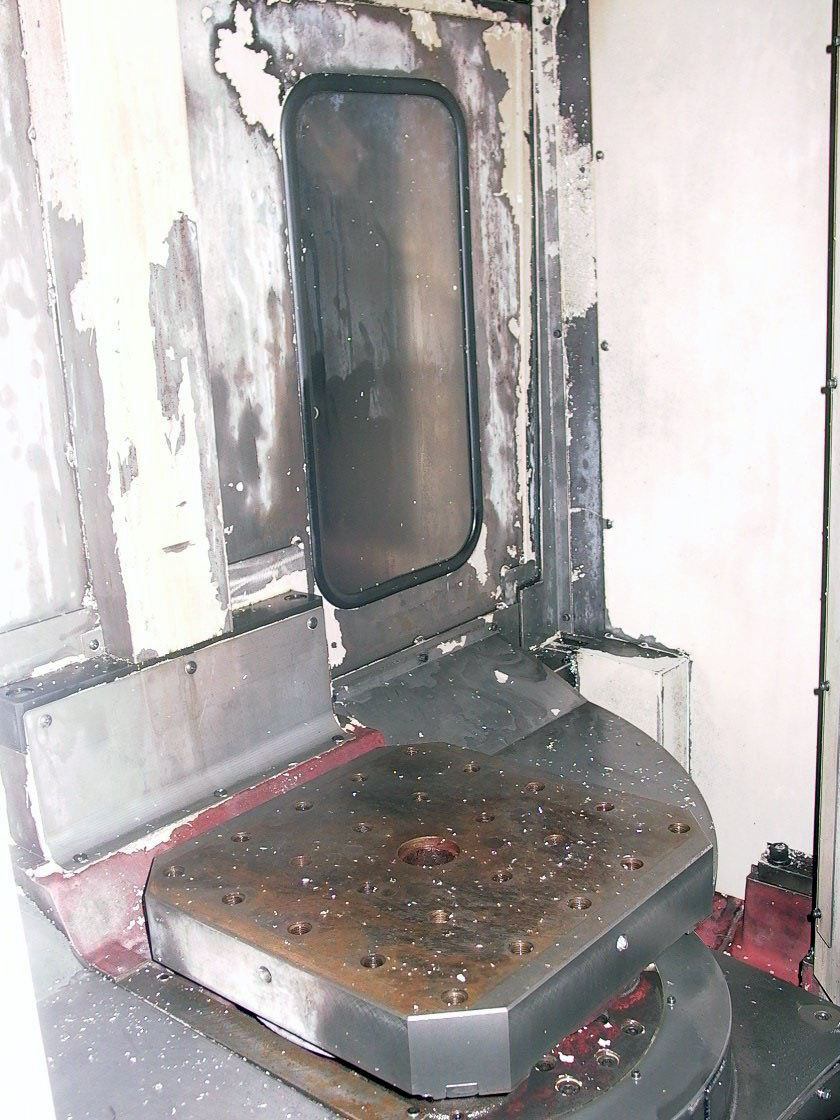

DUAL PALLET.................................... 15.75" X 15.75"
TRAVELS (X).................................... 21.65"
(Y).................................... 19.68"
(Z).................................... 21.65"
DISTANCE SPINDLE AXIS TO TOP SURFACE OF PALLET: 5.9" - 25.59"
DISTANCE SPINDLE END TO PALLET CENTER.......... 4.72"- 24.4"
MAIN DRIVE MOTOR............................... 20HP (30 MINUTE RATING)
SPINDLE TAPER.................................. BT 40
MAX SPINDLE SPEED.............................. 12,000 RPM
MAX PALLET LOAD................................ 882 LBS
RAPIDS X, Y, & Z............................... 945 IPM
CUTTING FEEDS.................................. .039-394 IPM
NUMBER OF TOOLS................................ 90
MAX TOOL LENGTH................................ 11.81"
MAX TOOL WEIGHT................................ 22 LBS
MACHINE WEIGHT APPROX.......................... 22,046 LBS.
EQUIPPED WITH:

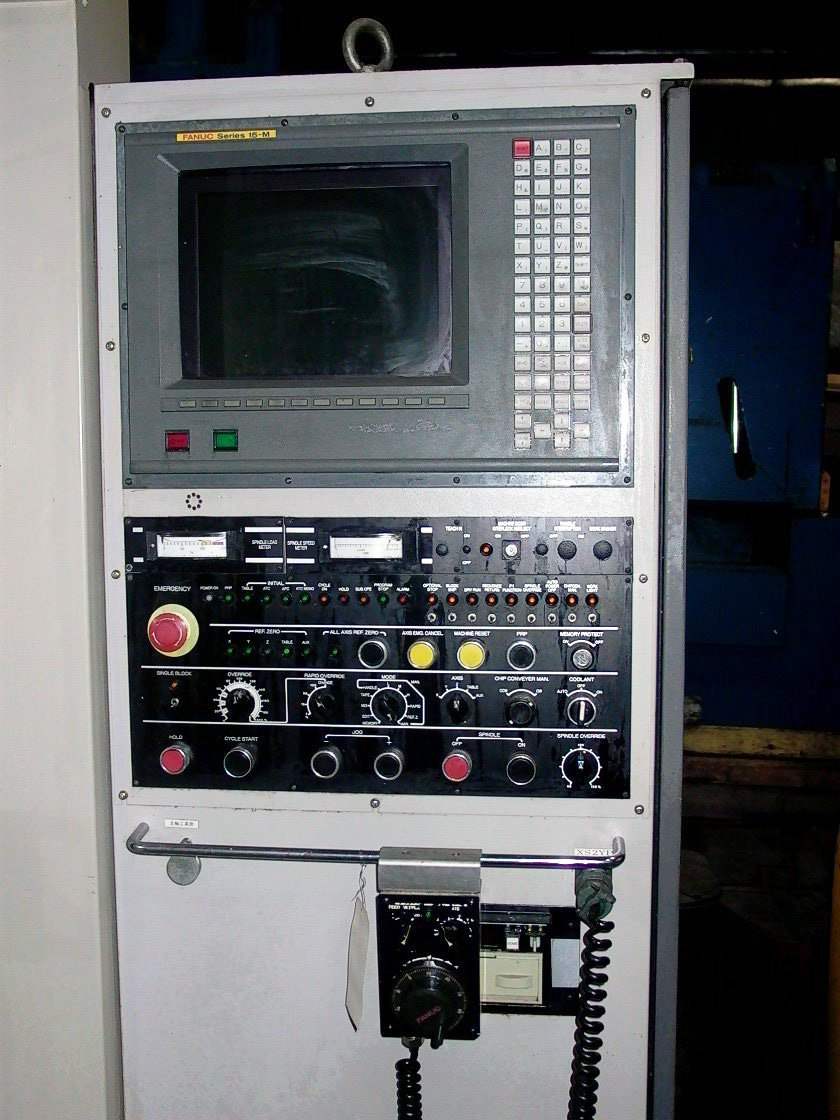

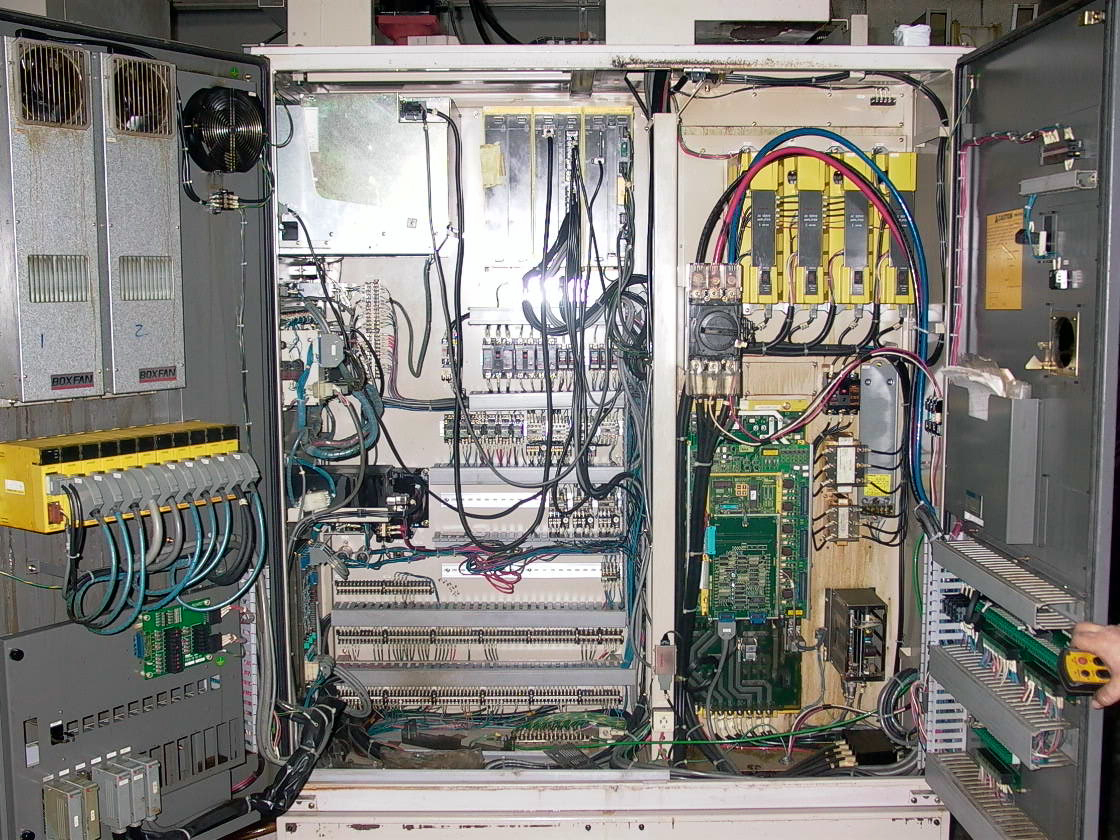

FANUC 15-M CONTROLS

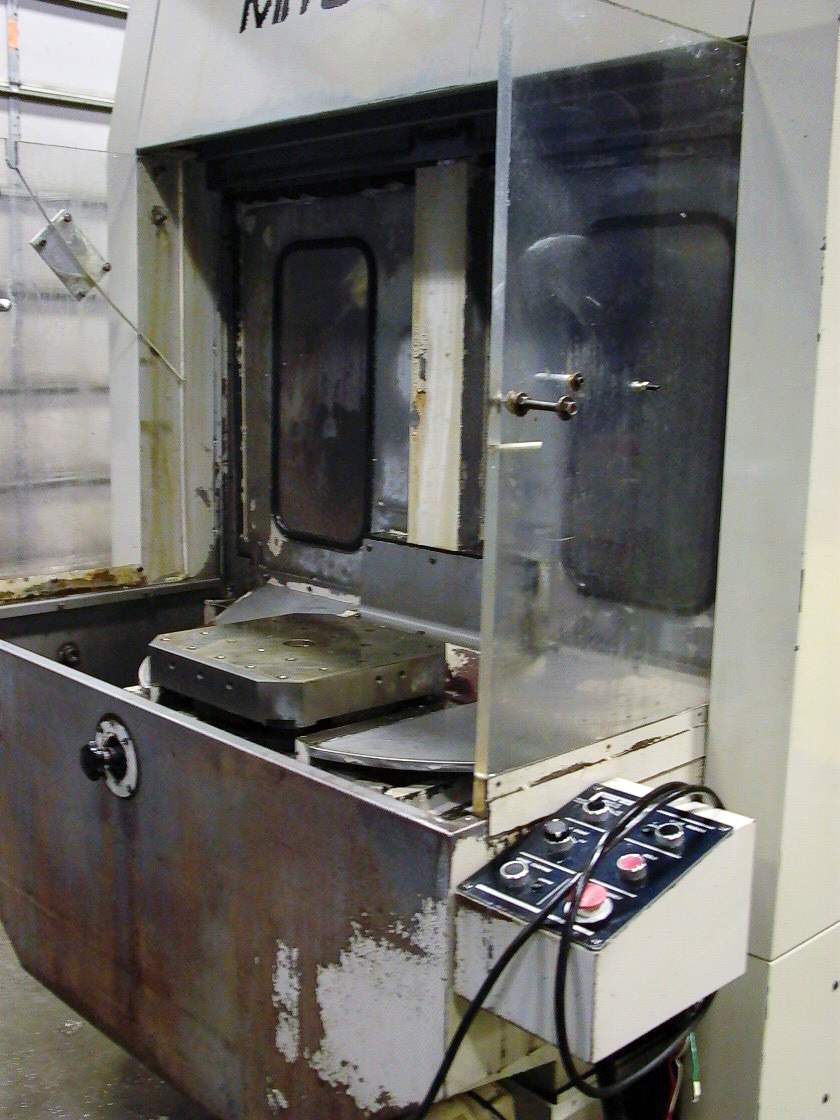

DUAL PALLET SYSTEM
INCLINE CHIP CONVEYOR
4TH AXIS ROTARY TABLE
