Specifications
Equipped With
GENERAL SPECIFICATIONS
MANUFACTURER........................... MITUSBISHI
AGE.................................... 1999

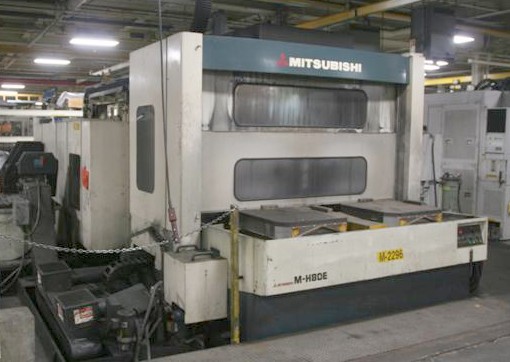

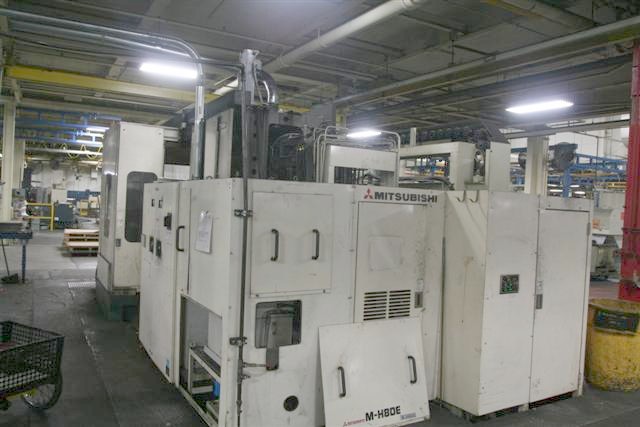

MODEL.................................. M-H80E
X-Axis Travel ......................... 49.2" (1250MM)
Y-Axis Travel ......................... 39.4" (1000MM)
Z-Axis Travel ......................... 33.5" (850MM)

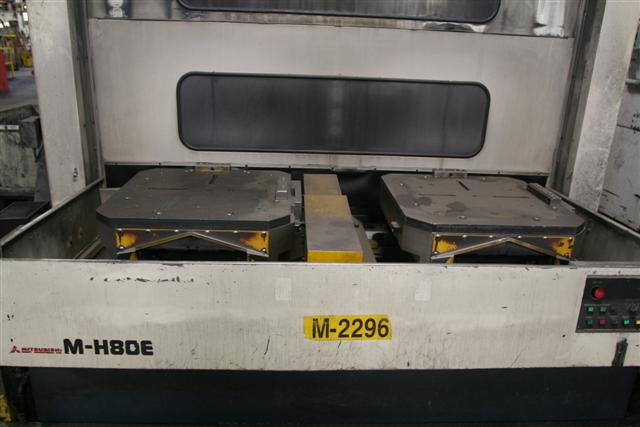

Number of Pallets ..................... 2
Pallet Size ........................... 31.5" x 31.5" (800MM X 800MM)

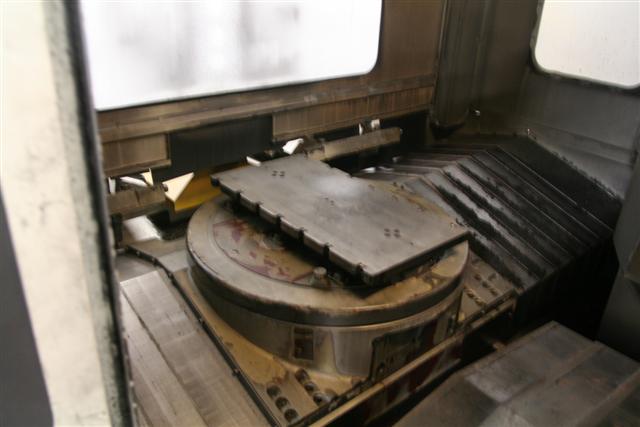

Pallet Indexing ....................... 1 Degree
Spindle Speed Range ................... 35-6,000 RPM

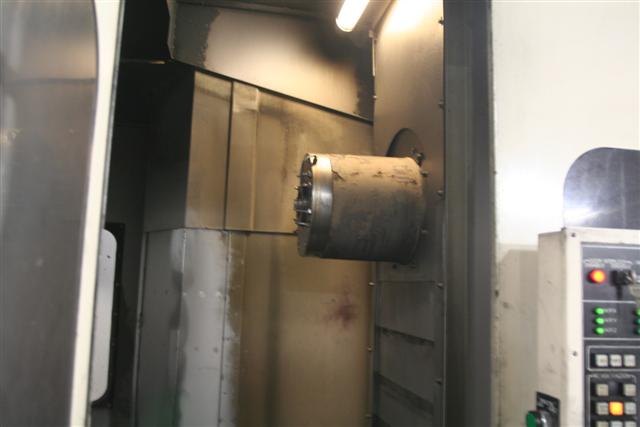

Spindle Taper ......................... CAT 50

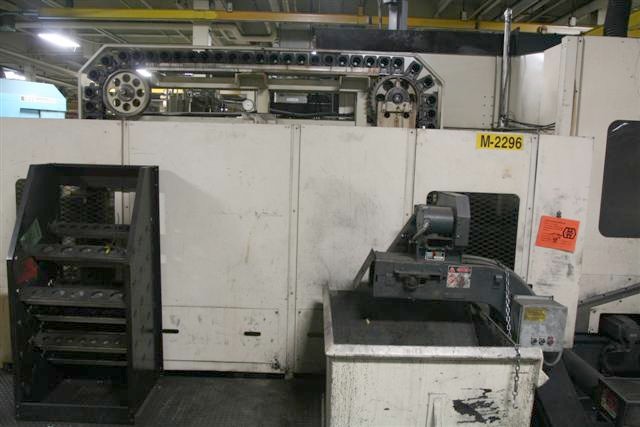

Number of tools........................ 80 ATC
Spindle Drive Motor ................... 37.5 HP (30 KW) AC
Rapid Traverse (X,Y,Z) ................ 1574 IPM
EQUIPPED WITH:

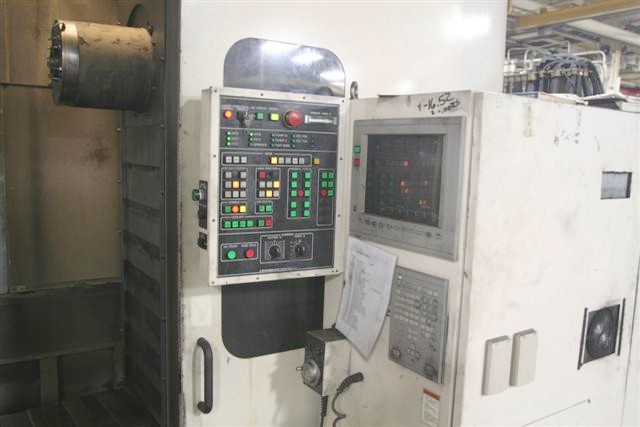

Mitsubishi Meldas 520 cnc control
Thru Spindle Coolant

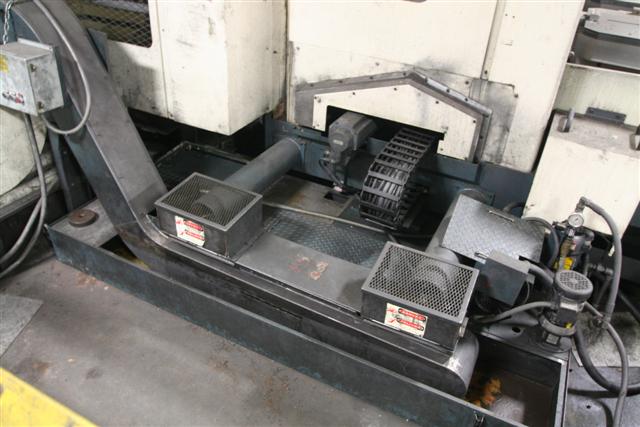

Chip Conveyor
Full enclosure
Machine can be inspected under power
