Specifications
Equipped With
GENERAL SPECIFICATIONS:

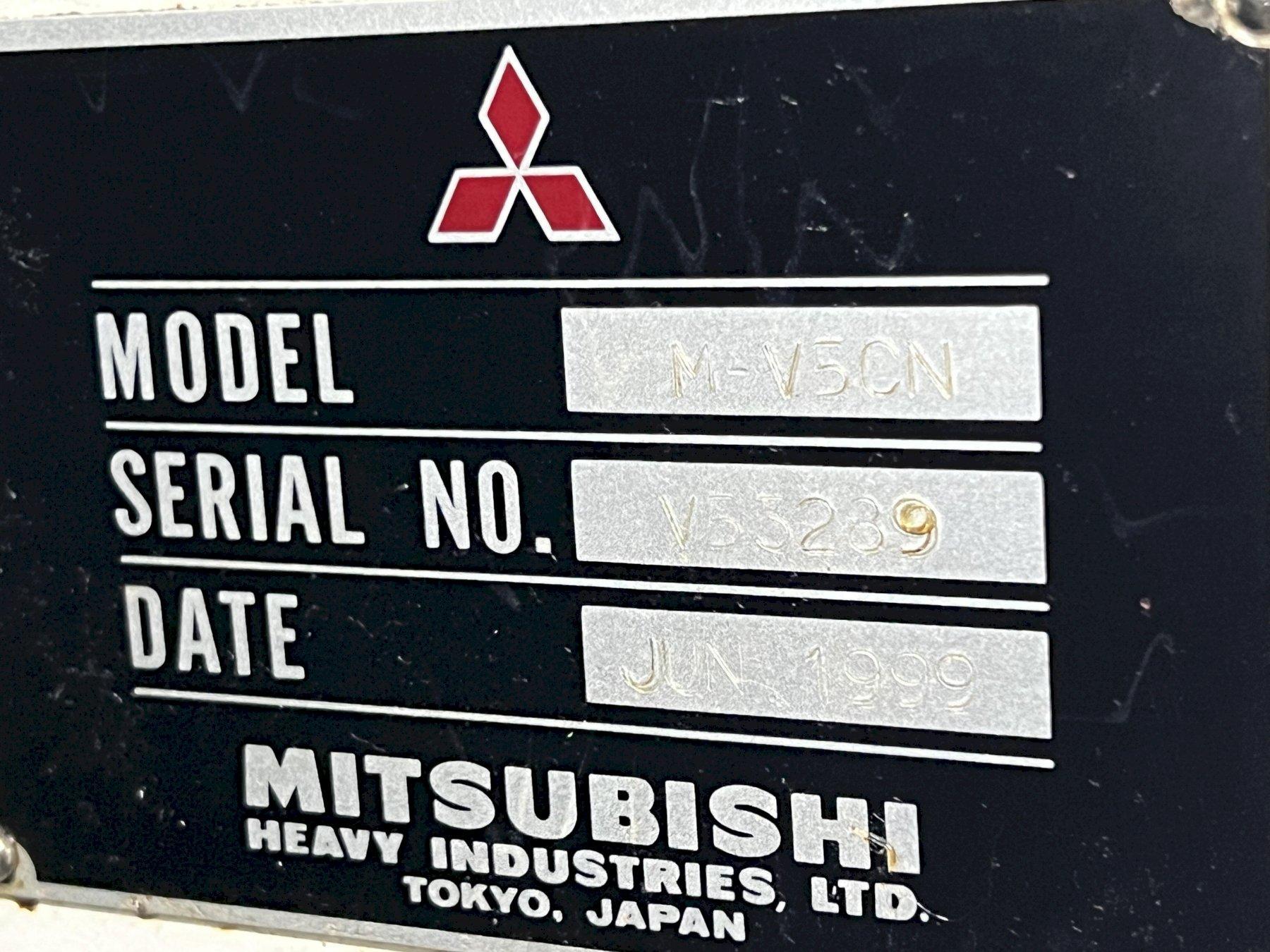

MAKE................. MITSUBISHI
MODEL................ M-V5CN
SERIAL NUMBER........ V55289
AGE (YEAR)........... 1999

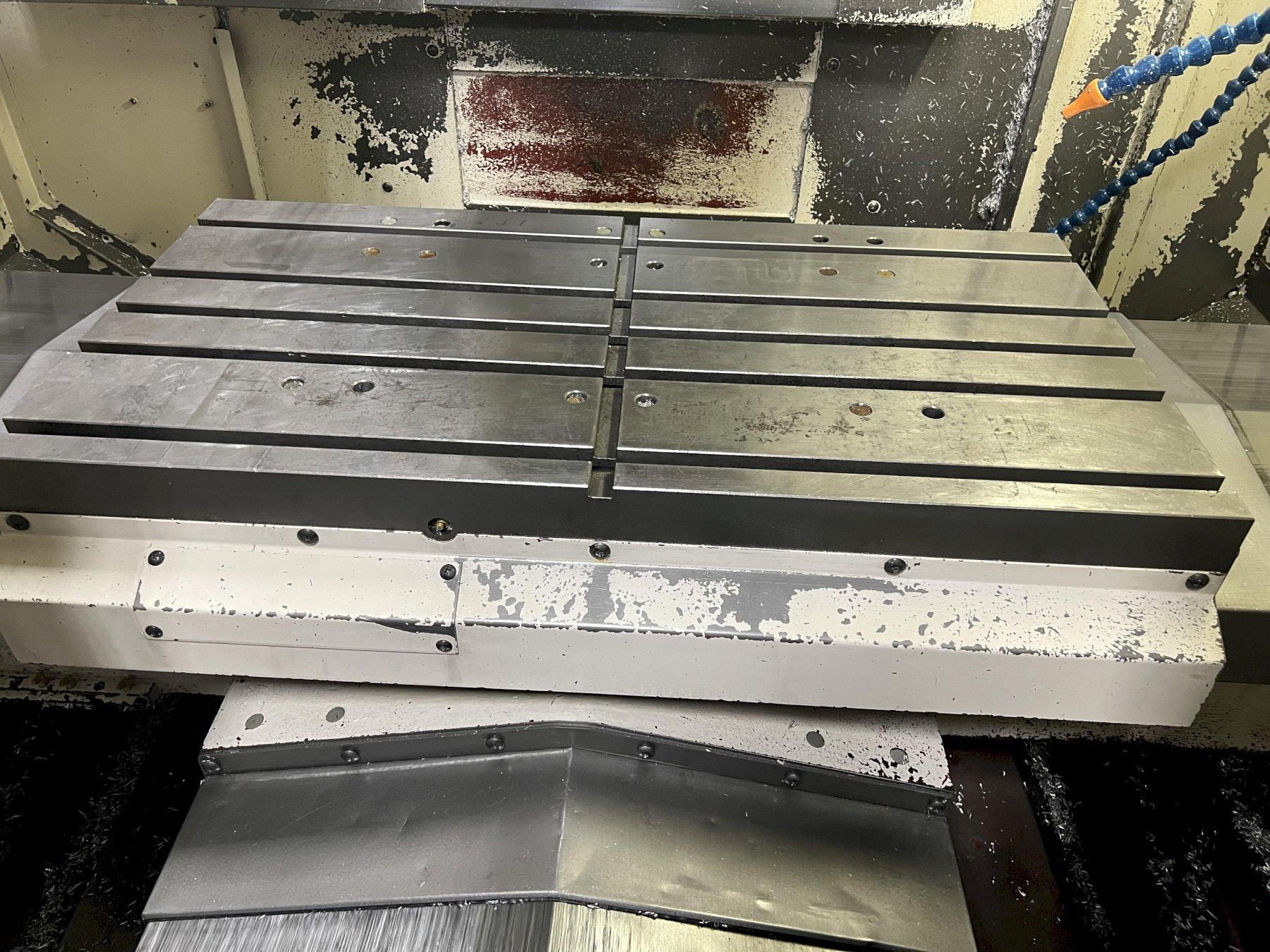

TABLE SIZE........... 39.4" X 20.1" (1000 MM X 510 MM)
TABLE CAPACITY....... 1100 LBS (500 KG)
X AXIS TRAVEL........ 31.5" (800 MM)
Y AXIS TRAVEL........ 20.1" (510 MM)
Z AXIS TRAVEL........ 18.1" (460 MM)
SPINDLE NOSE TO TABLE 5.9-24" (150-610 MM)
X, Y RAPIDS.......... 1,181 IPM (30 M/MIN)
Z RAPIDS............. 787 IPM (20 M/MIN)

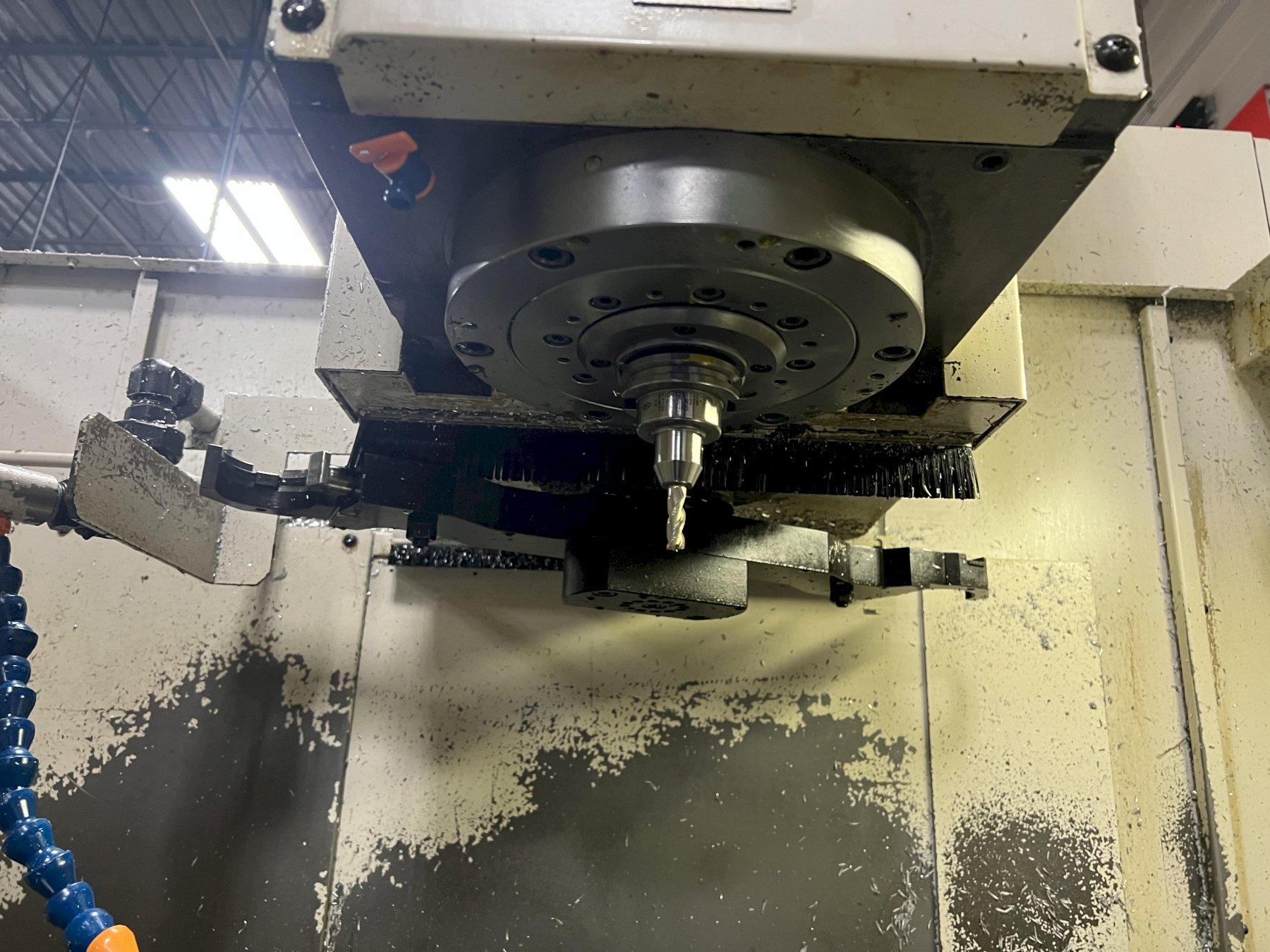

SPINDLE SPEEDS....... 80-8000 RPM
SPINDLE TAPER........ ISO/N.T. #40
ATC STORAGE.......... 18
MACHINE WEIGHT....... 10,000 LBS.
DIMENSIONS........... 92" FB x 85" LR x 108" H
EQUIPPED WITH:
MELDAS CNC CONTROL
SPINDLE REPLACED 2021
SPECIFICATIONS SUBJECT TO VERIFICATION
