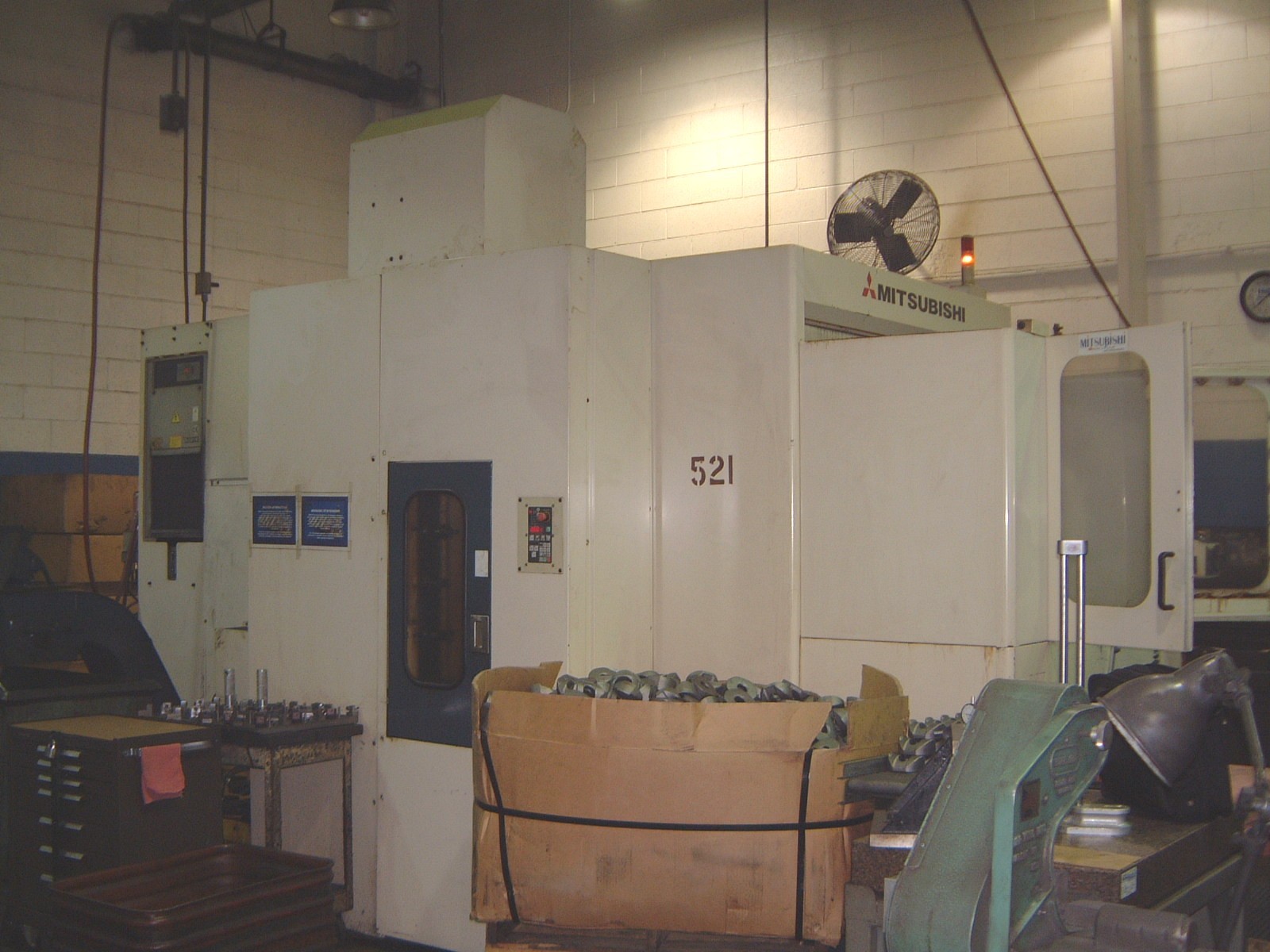

MITSUBISHI M-H4B, 25.6"-X, 22"-Y, 25.6"-Z, 2 PALLETS-16", CAT 40 TAPER, 30 HP, 60 ATC, FANUC 18I-M CTRL, COOLANT THRU SPDL, 1998

GENERAL SPECIFICATIONS:
MANUFACTURER MITSUBISHI
MODEL M-H4B
NEW (APPROX.) 1998
2 PALLETS 16"
X TRAVEL 25.6"
Y TRAVEL 22"
Z TRAVEL 25.6"
RAPIDS (X,Y,Z) 1575 IPM
SPINDLE TAPER CAT 40
SPINDLE SPEEDS 120 - 12,000 RPM
SPINDLE MOTOR 30 HP
AUTOMATIC TOOL CHANGER 60 TOOLS
TOOL CHANGE TIME 1.3 SEC.
WEIGHT (APPROX.) 23,100 LBS.

EQUIPPED WITH:

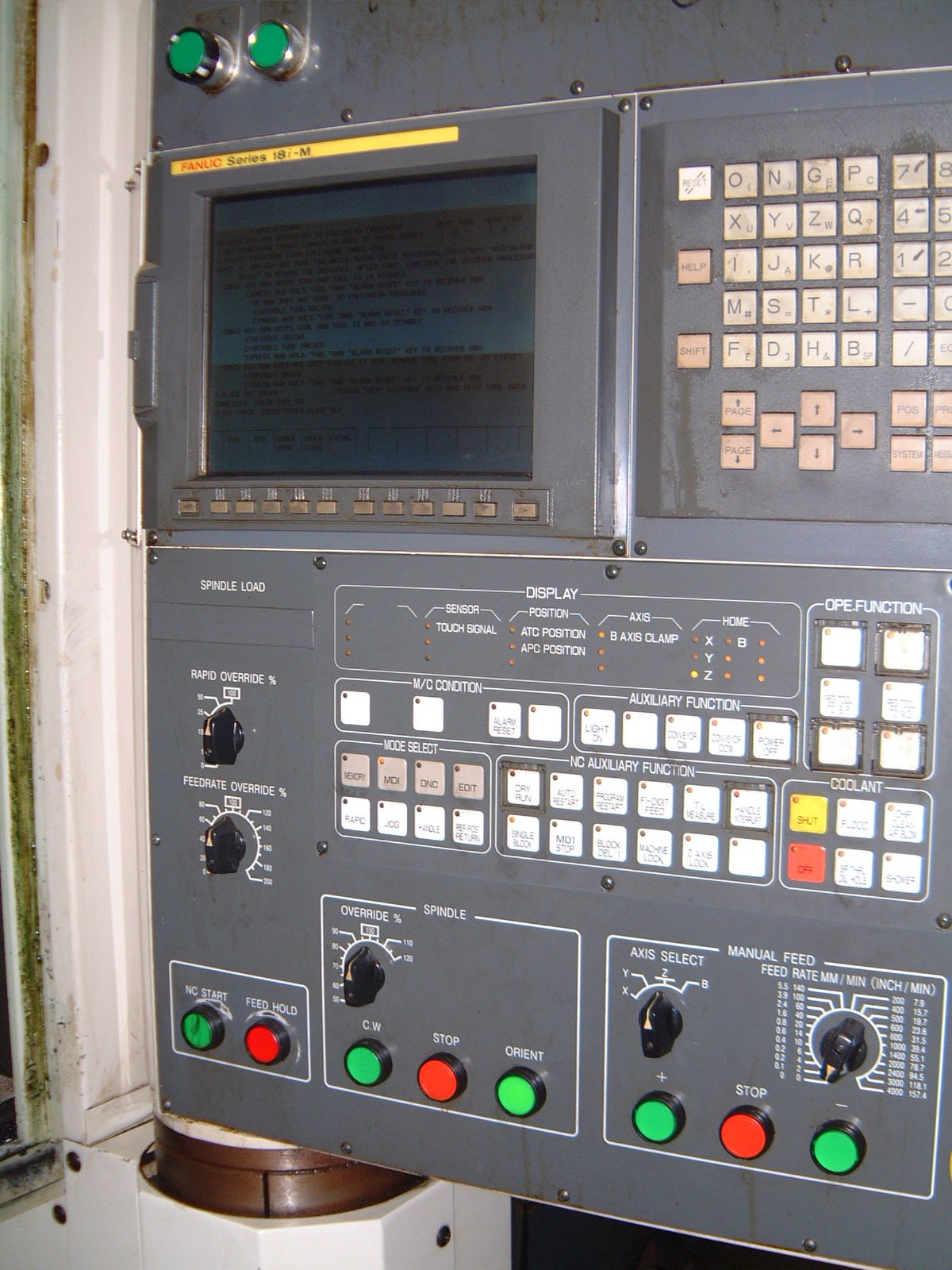

FANUC 18i-M CONTROL
COOLANT THRU SPINDLE
FLOOD COOLANT
TOTAL HOURS 20,419 (OPERATING HRS 9,490, CUTTING HRS 5,000)
