GENERAL SPECIFICATIONS

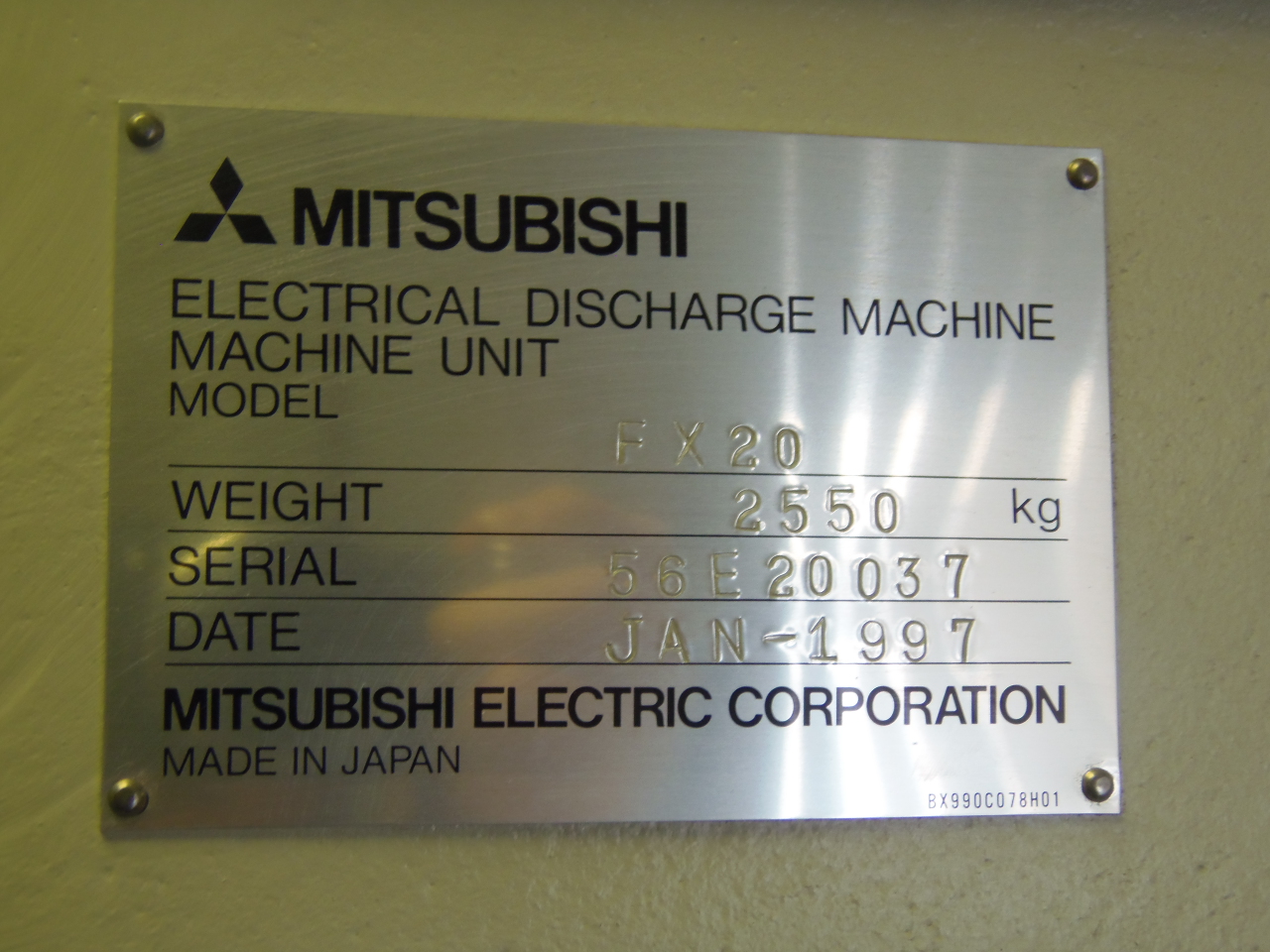

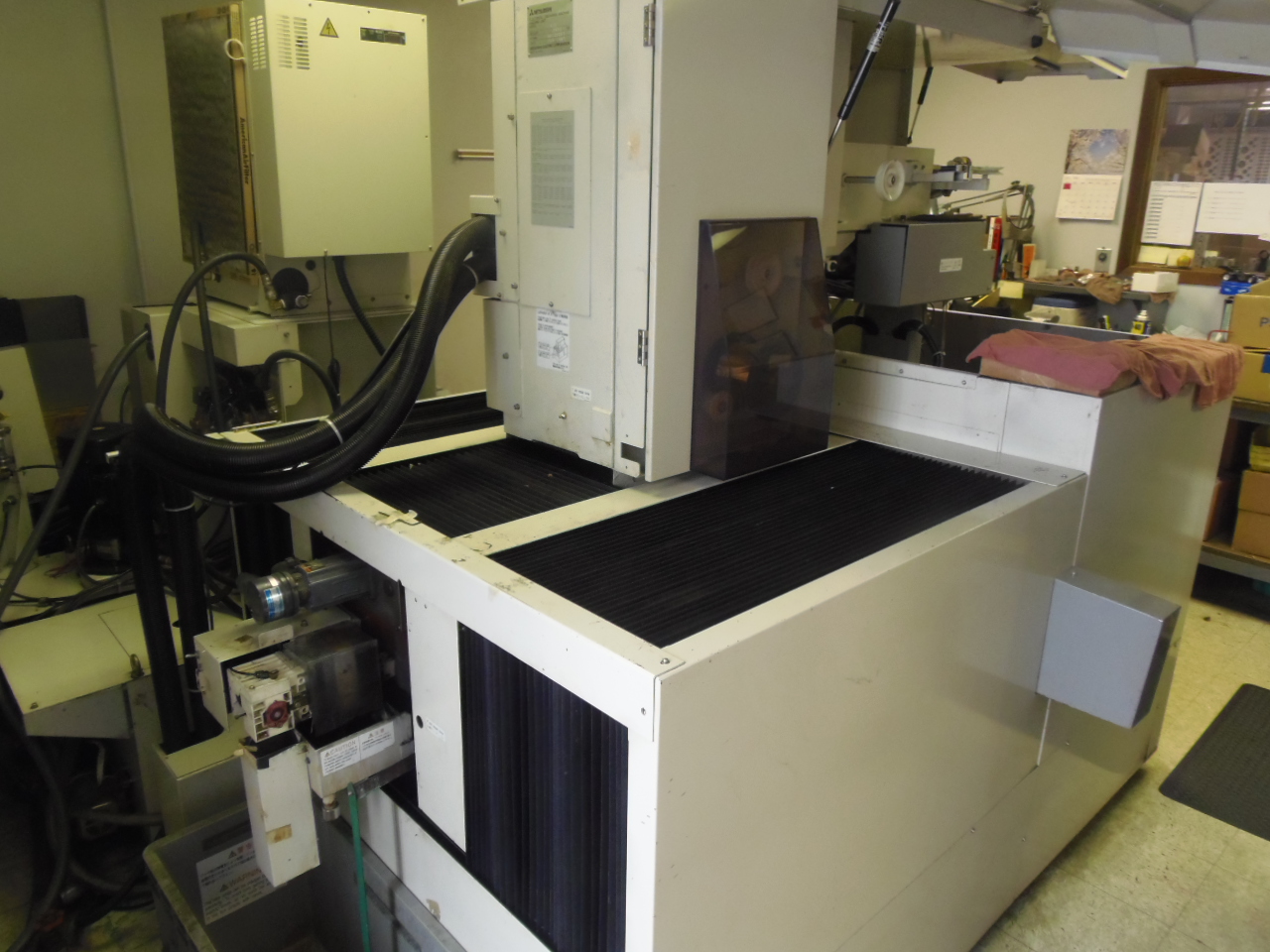

MAKE........................ MITSUBISHI
MODEL....................... FX20
AGE......................... 1997
MAX. WORKPIECE DIM.......... 41.4" X 31.5" X 11.8"
MAX. WORKPIECE WEIGHT....... 1764 LB.
TABLE DIMENSIONS............ 30.7" X 24.8"
MACHINING RANGE............. 19.69" X 13.77" X 11.81"

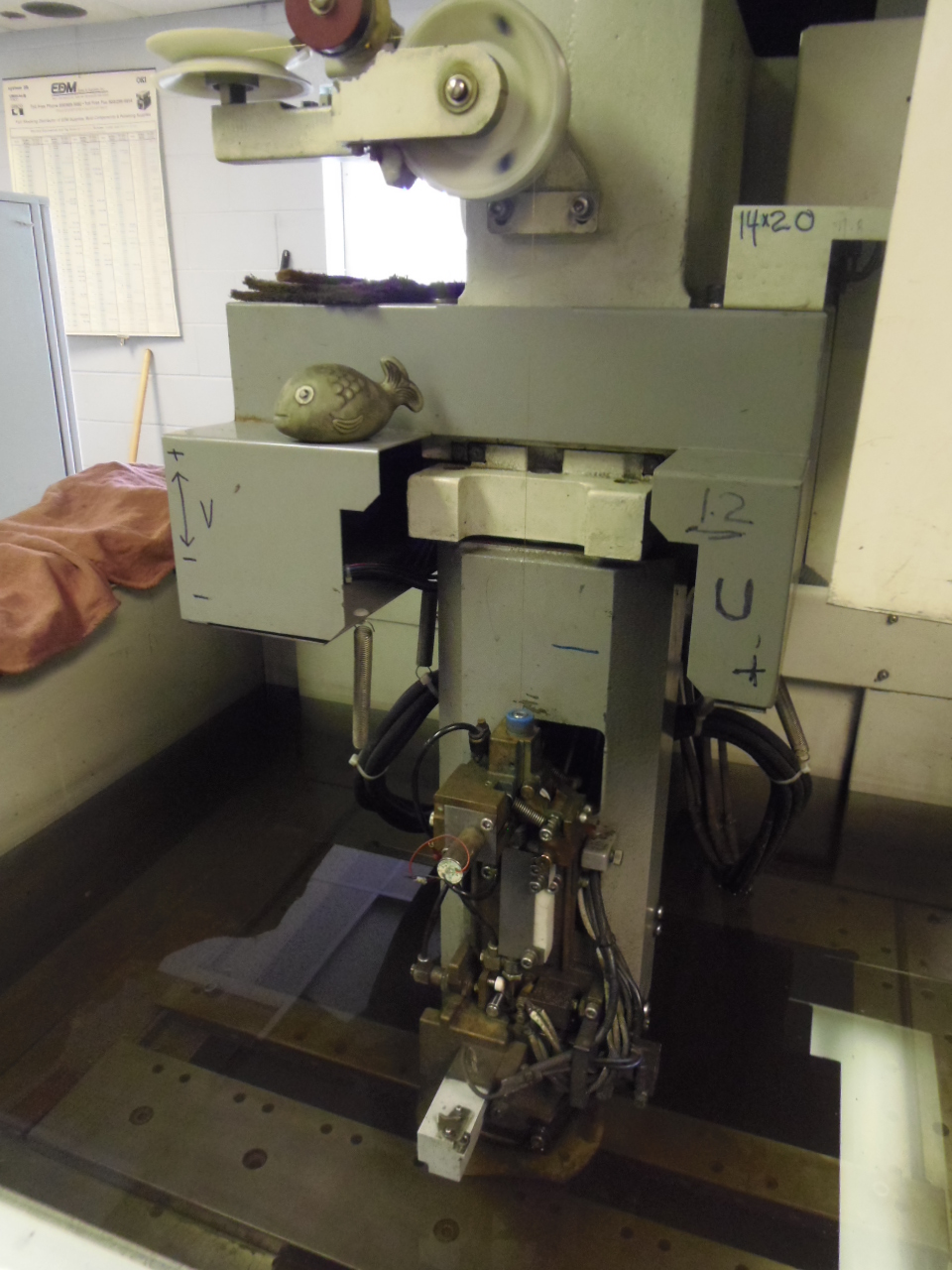

U/V TRAVEL.................. +/- 1.25"
RESOLUTION.................. .000004"
TAPER ANGLE................. +/- 15 DEG. @ 3.9"
WIRE DIAMETER............... .008" - .012"
MAX. WORKPIECE AWF HEIGHT... 11.81"
MACHINE WEIGHT.............. 5,622 LBS.
INPUT POWER (TOTAL)......... 200-208v @ 13.5 KVA
EQUIPPED WITH:
AE POWER SUPPLY
AF3 AUTOMATIC WIRE THREADER
PROGRAMMABLE 5TH AXIS (Z)

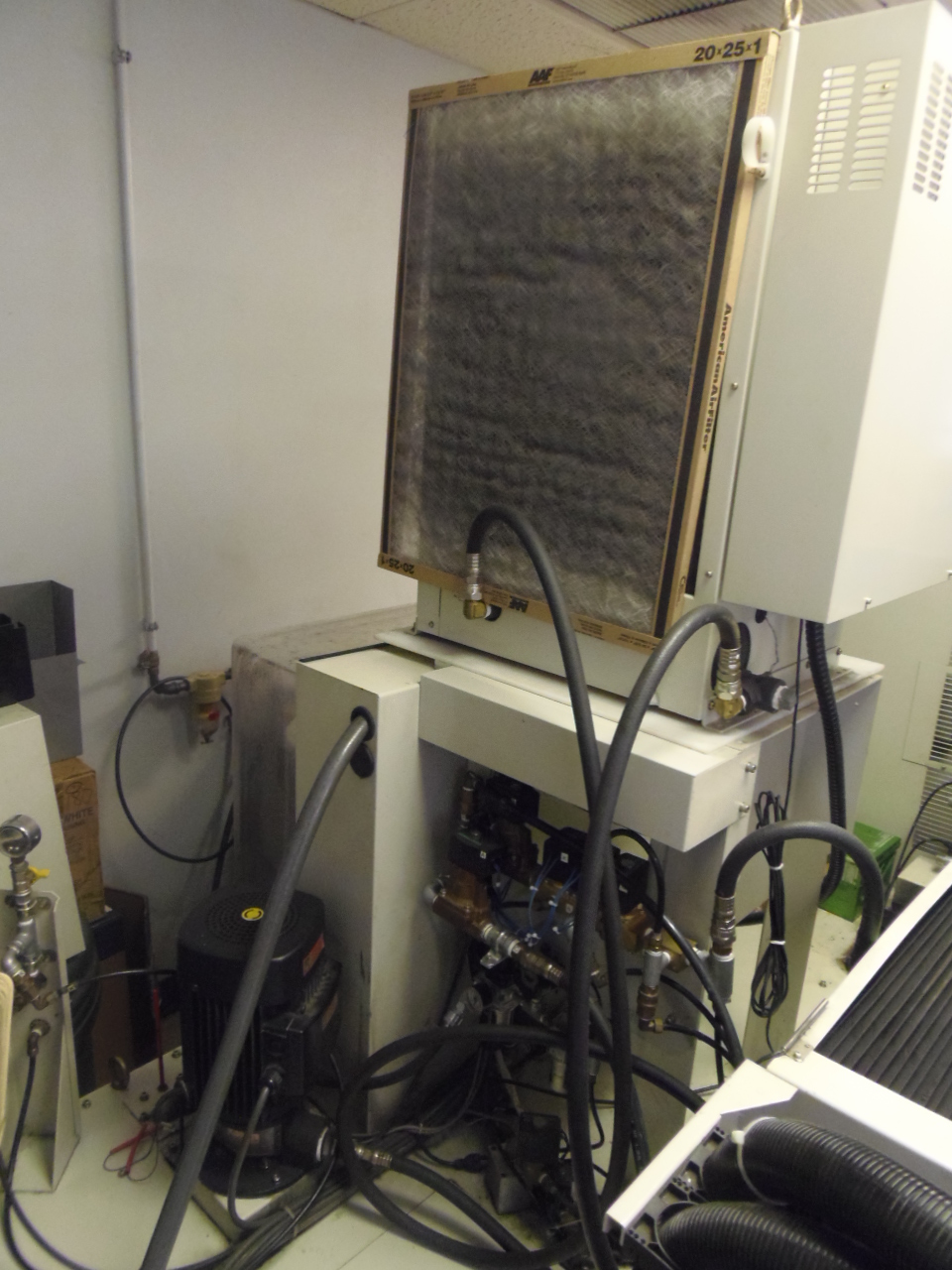

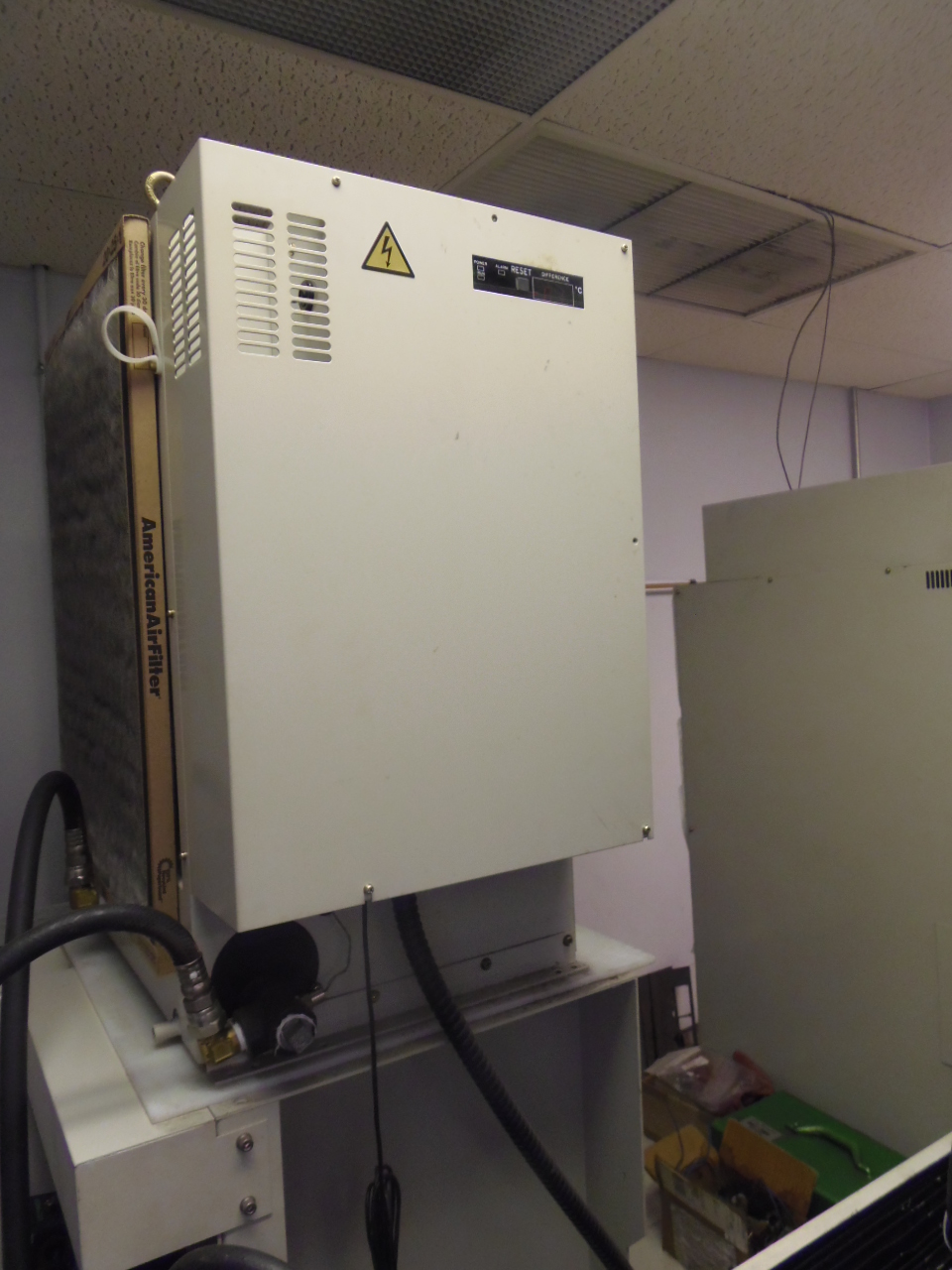

FTS WATER CHILLER

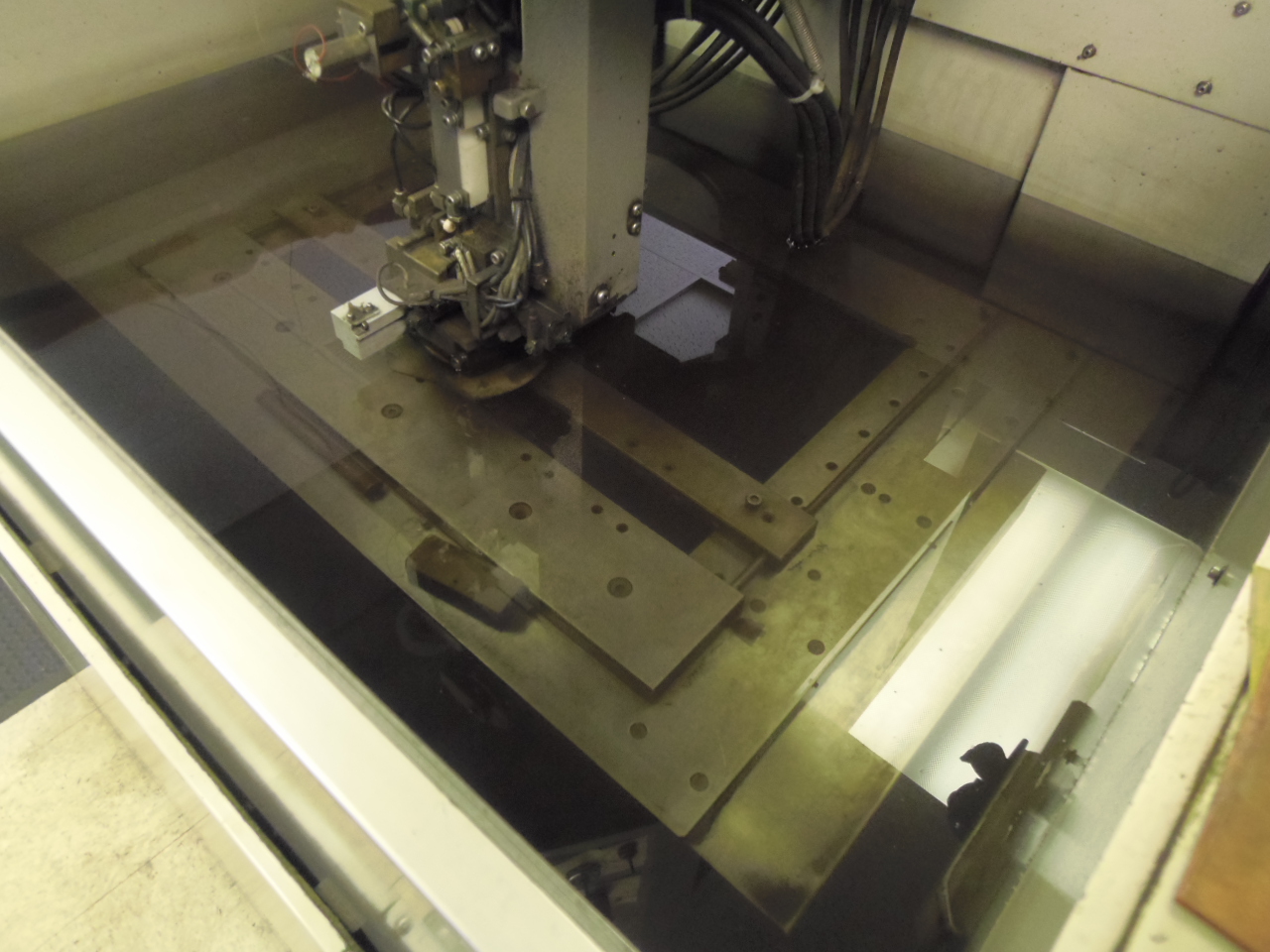

SUBMERGED CUTTING TANK

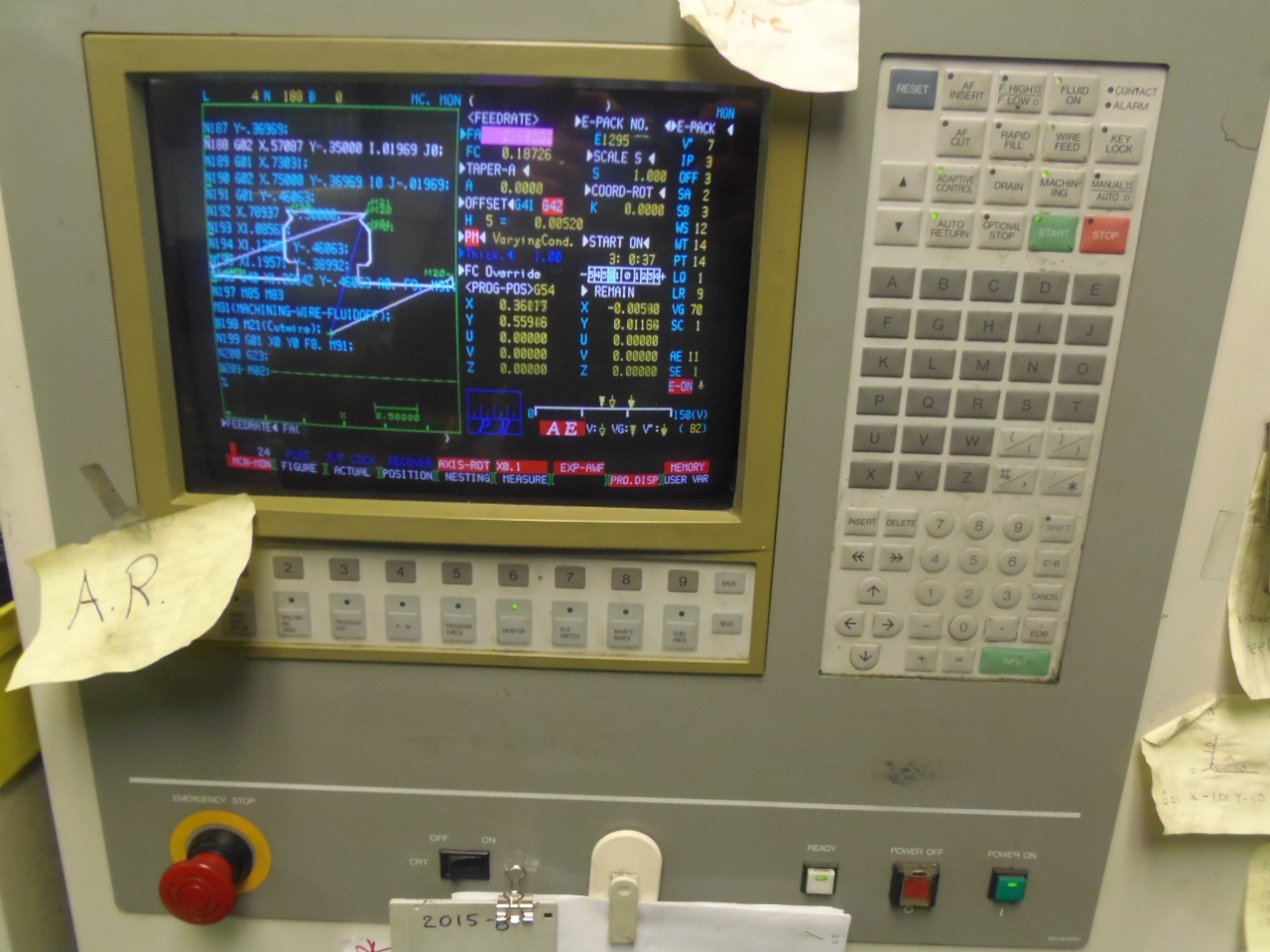

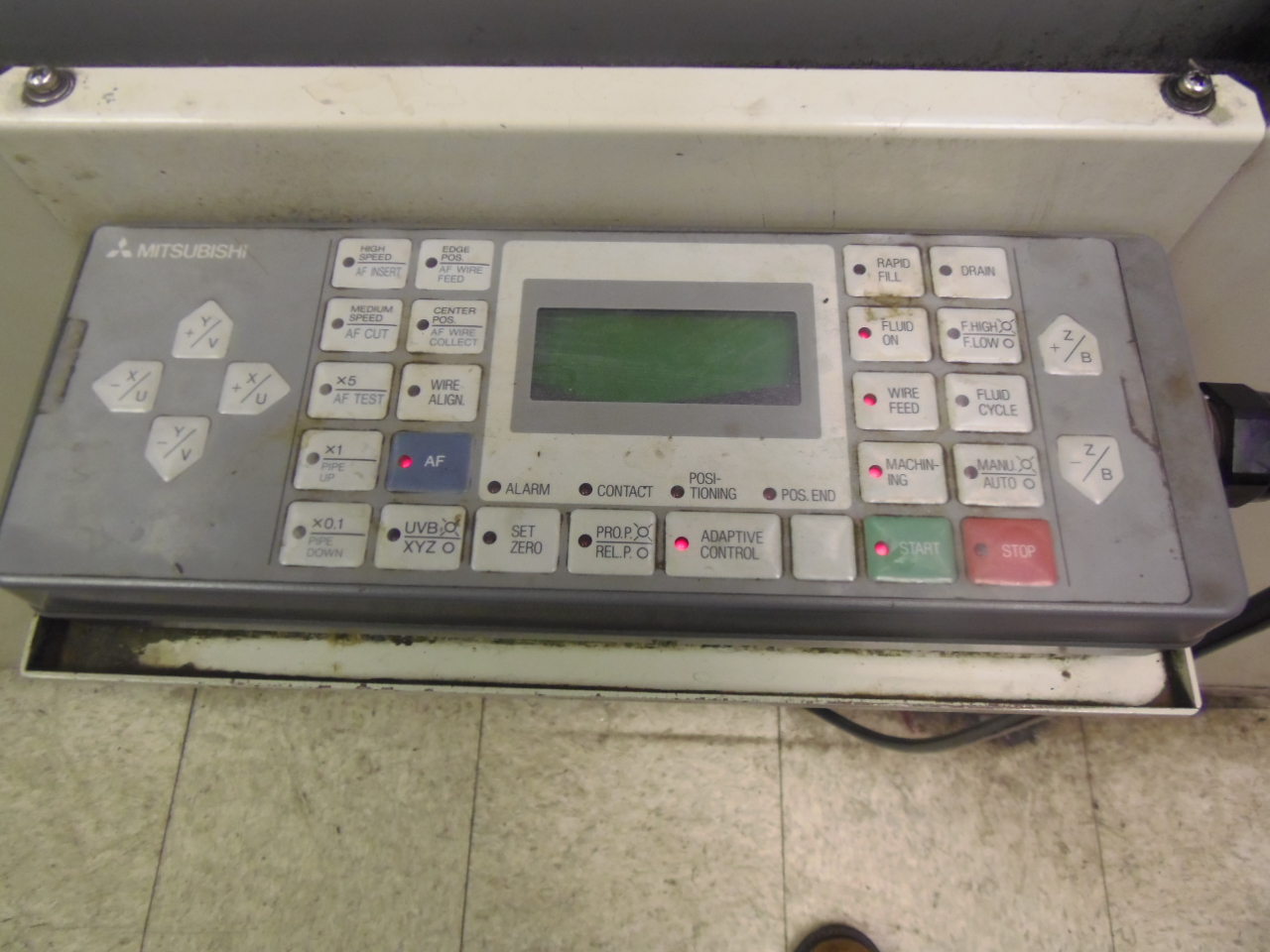

ADVANCED PENDENT CONTROL

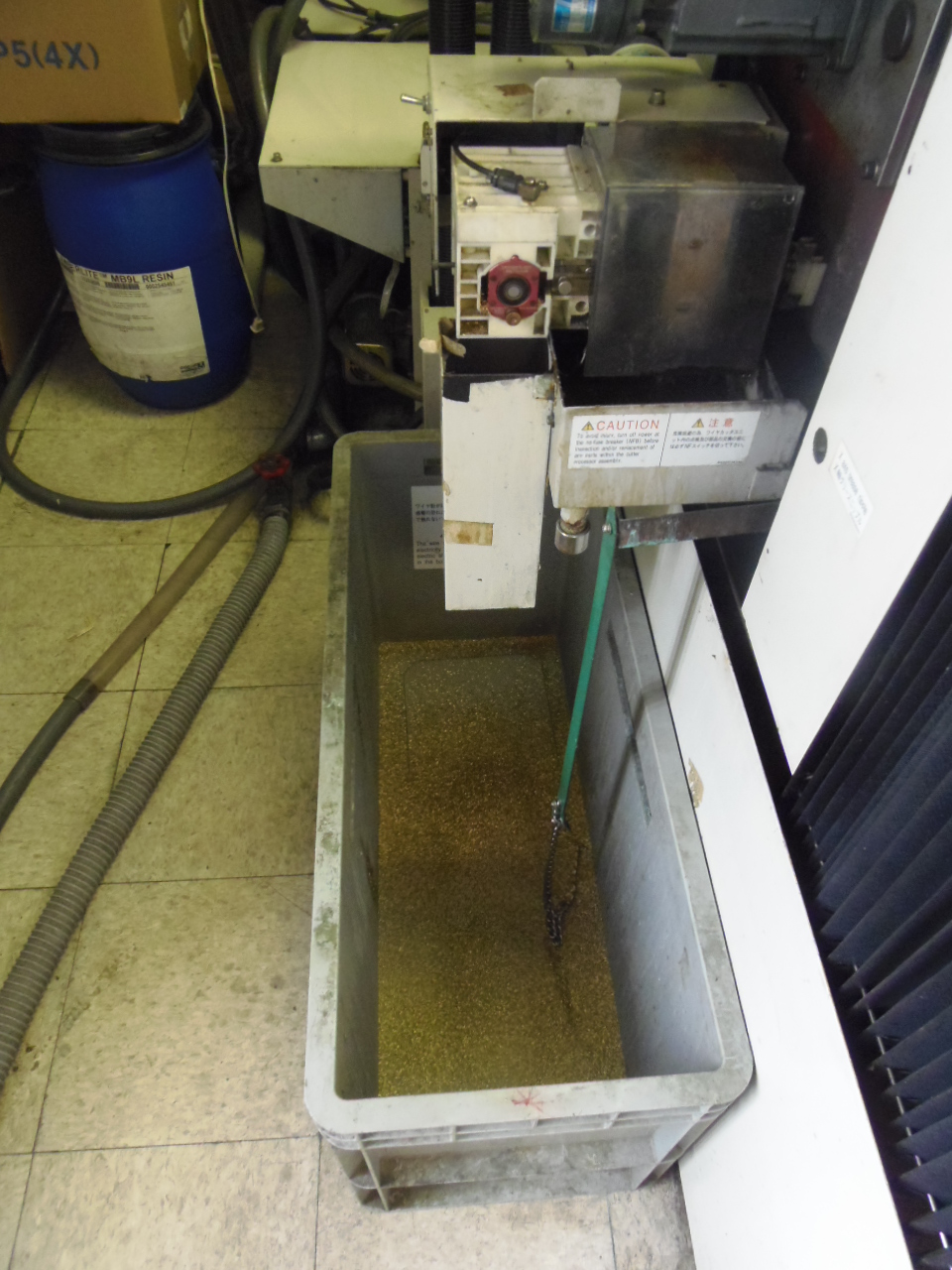

WIRE CHOPPER
MANUALS
WIRE ALIGNMENT BLOCK
SPECIFICATIONS SUBJECT TO VERIFICATION
