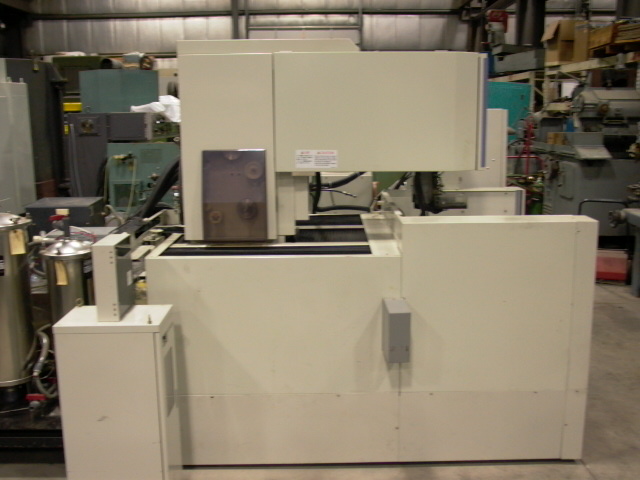

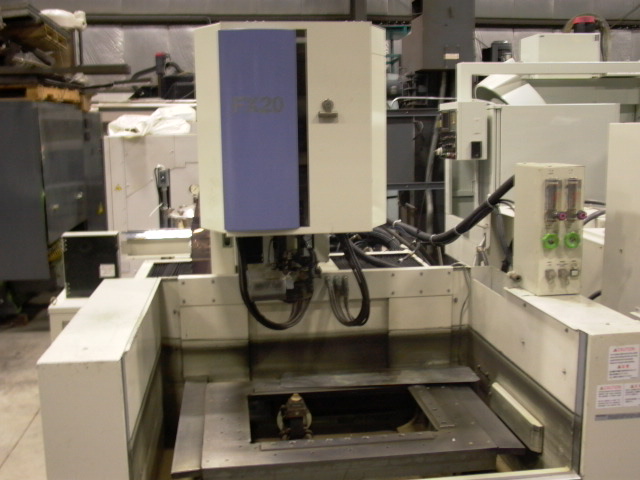

MITSUBISHI FX-20, CNC WIRE EDM, 5 AXIS, SUBMERGED, 19.7" X 13.8" X10.6, 1997

GENERAL SPECIFICATIONS:
MANUFACTURER MITSUBISHI
MODEL FX 20
AGE APPROXIMATELY 1997
SERIAL# 07E20297
MAX WORKSPACE DIMENSIONS 37" X 27" X 10.6"
MAX WORKPIECE WEIGHT 1864 LBS
TRAVELS (X) 19.7"
(Y) 13.8"
(Z) 10.6"
TABLE FEED RATE 51.18 IPM
WIRE DIAMETERS .008-.012"
WIRE SPOOL SIZE 11 LBS
TAPER CAPACITY 15 DEGREES@4" THICK
MACHINE WEIGHT 5400 LBS
DIMENSIONS 72" X 84" X 72.5"

EQUIPPED WITH:

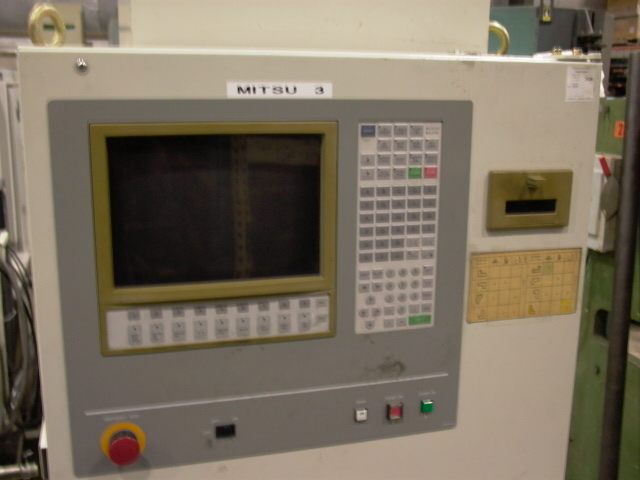

MITSUBISHI 32 BIT CNC CONTROL

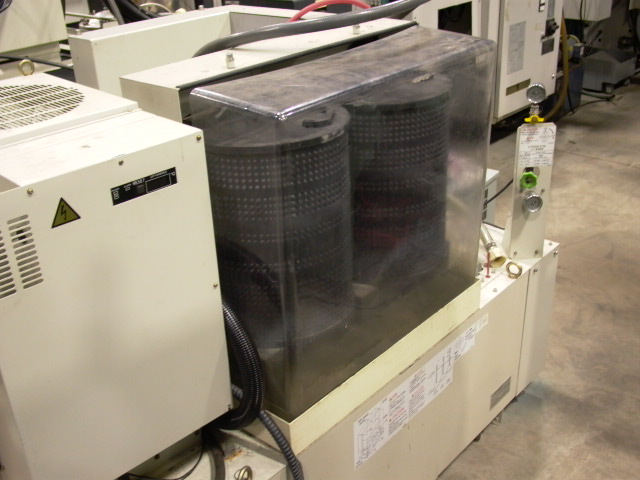

DIELECTRIC FILTRATION SYSTEM
SUBMERGED CUTTING
ELECTRIC CHILLER
W11-FX2 POWER SUPPLY
