Specifications
Equipped With
GENERAL SPECIFICATIONS:

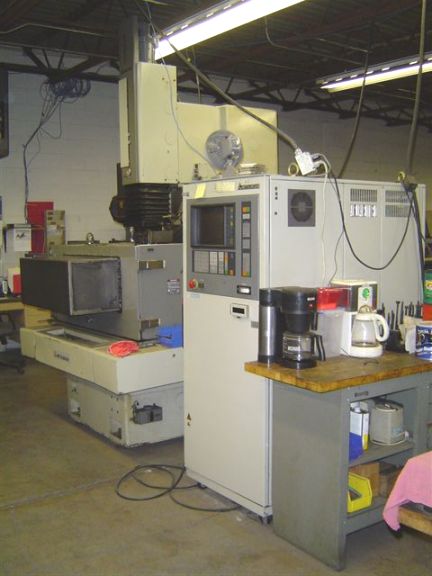

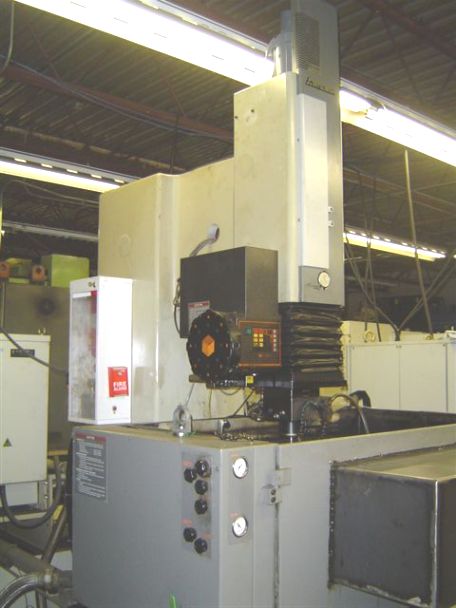

MANUFACTURER...........................MITSUBISHI
MODEL..................................M 55J
SERIAL#................................005J7039
AGE APPROXIMATELY......................1990
TABLE SIZE.............................31.5" X 23.6"
MAX WORKPIECE SIZE.....................37" X 23.5" X 12"
MAX WORKPIECE WEIGHT...................2200 LBS
TANK SIZE..............................39" X 25.5" X 16"
TRAVELS (X)............................17.72"
(Y)....................................13.98"
MAIN SPINDLE STROKE....................13.98"

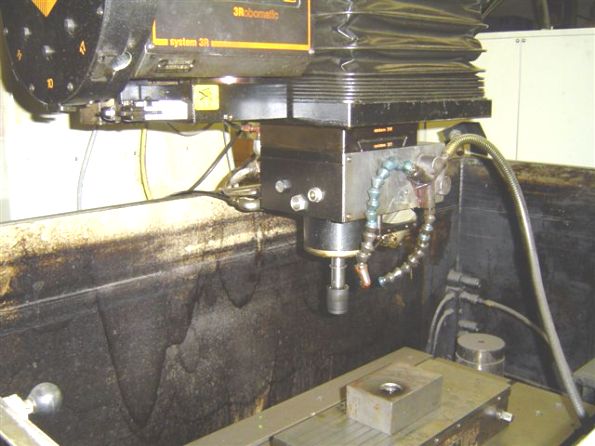

ELECTRODE MOUNT DIMENSION..............11.8" X 9.8"
MAX ELECTRODE WEIGHT...................440 LBS.
DAYLIGHT...............................9.8"-23.6"
DIELECTRIC CAPACITY....................65 GAL.
DIMENSIONS.............................72" X 72" X 107"
WEIGHT APPROXIMATELY...................8200 LBS
EQUIPPED WITH:
COMPLETE DIELECTRIC COOLANT AND FILTRATION SYSTEM

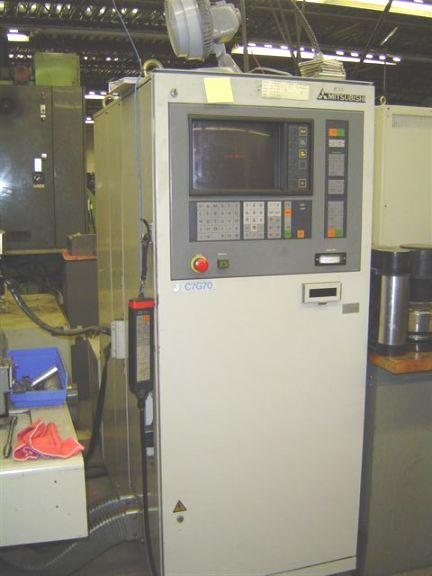

MITSUBISHI C7G70 3 AXIS 70 AMP CONTROL W/CRT

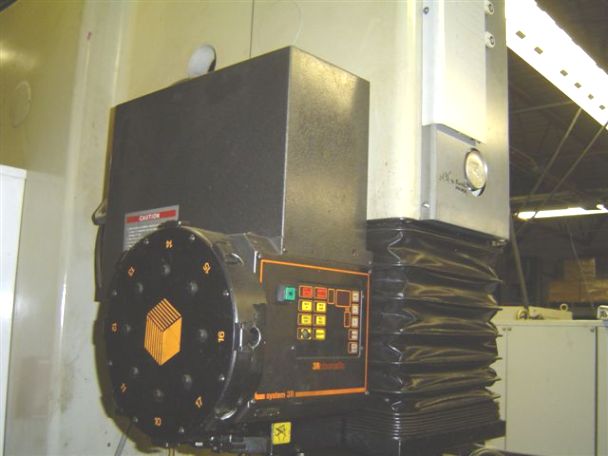

3R ROBOMATIC 16 ATC TOOLCHANGER
HAND PENDANT CONTROL
FIRE SUPPRESSION SYSTEM
MANUALS
