Specifications
Equipped With
GENERAL SPECIFICATIONS
MANUFACTURER...........................MILLTRONICS
MODEL..................................VMD30 SERIES A
SERIAL NUMBER..........................4422
AGE....................................1997
TRAVELS X..............................70" (1778 MM)
Y..............................30" (762 MM)
Z..............................24" (609 MM)
TABLE SIZE.............................70" X 24"
TABLE TO SPINDLE
MAX....................................36" (914 MM)
MIN....................................12" (304 MM)M
SPINDLE TAPER..........................CAT 40
SPINDLE MOTOR..........................15 HP
SPINDLE SPEED..........................6000 RPM
TOOL CHANGER SIZE......................20

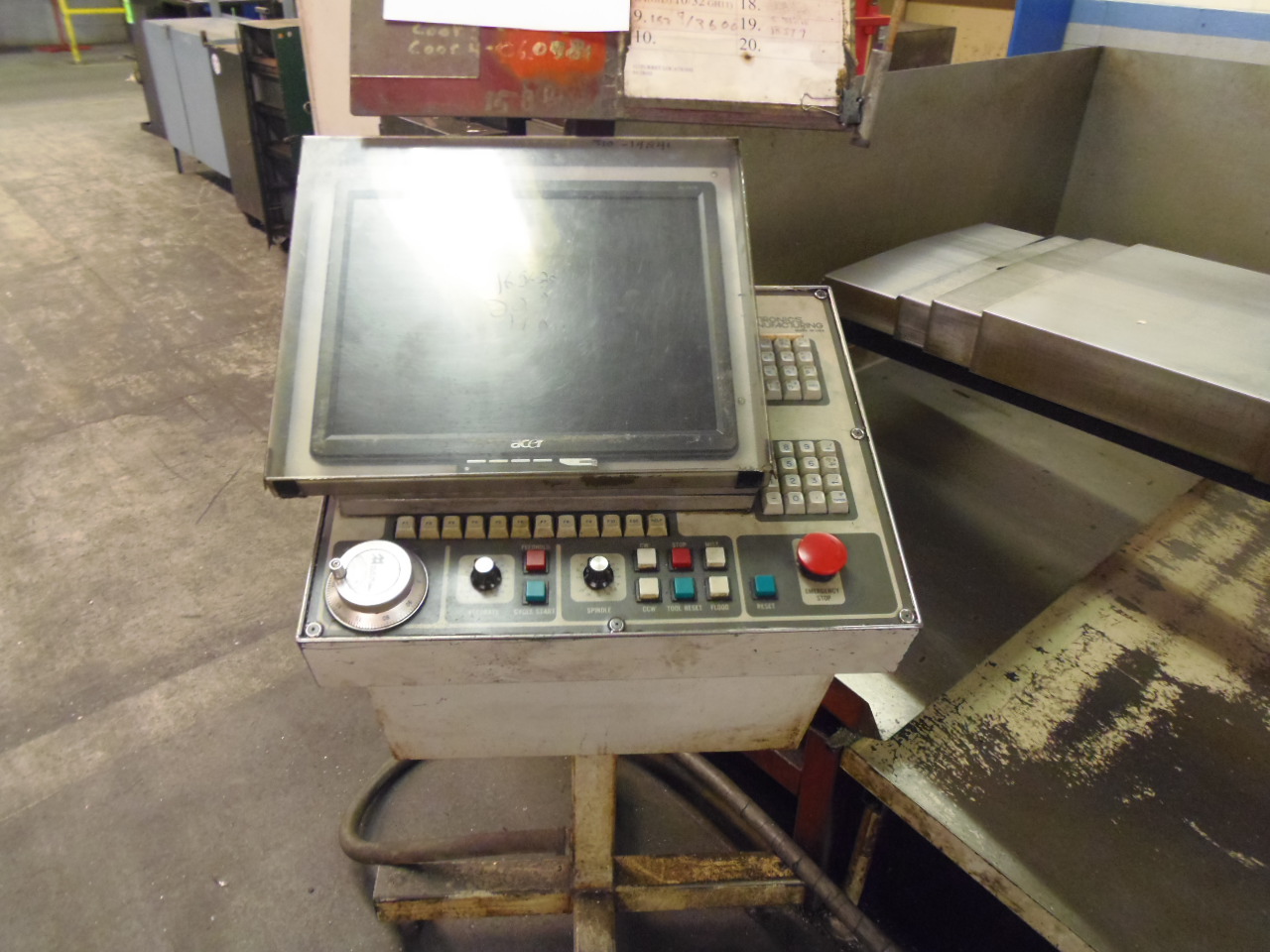

CONTROL................................CENTURION 6
EQUIPPED WITH:
COOLANT SYSTEM
CHIP GUARDS
