Specifications
Equipped With
GENERAL SPECIFICATIONS
MANUFACTURER...........................MILLTRONICS
MODEL..................................VMD30 SERIES A
SERIAL NUMBER..........................4421
AGE....................................1997
TRAVELS X..............................70" (1778 MM)
Y..............................30" (762 MM)
Z..............................24" (609 MM)
TABLE SIZE.............................70" X 24"
TABLE TO SPINDLE
MAX....................................36" (914 MM)
MIN....................................12" (304 MM)M
SPINDLE TAPER..........................CAT 40
TOOL CHANGER SIZE......................20

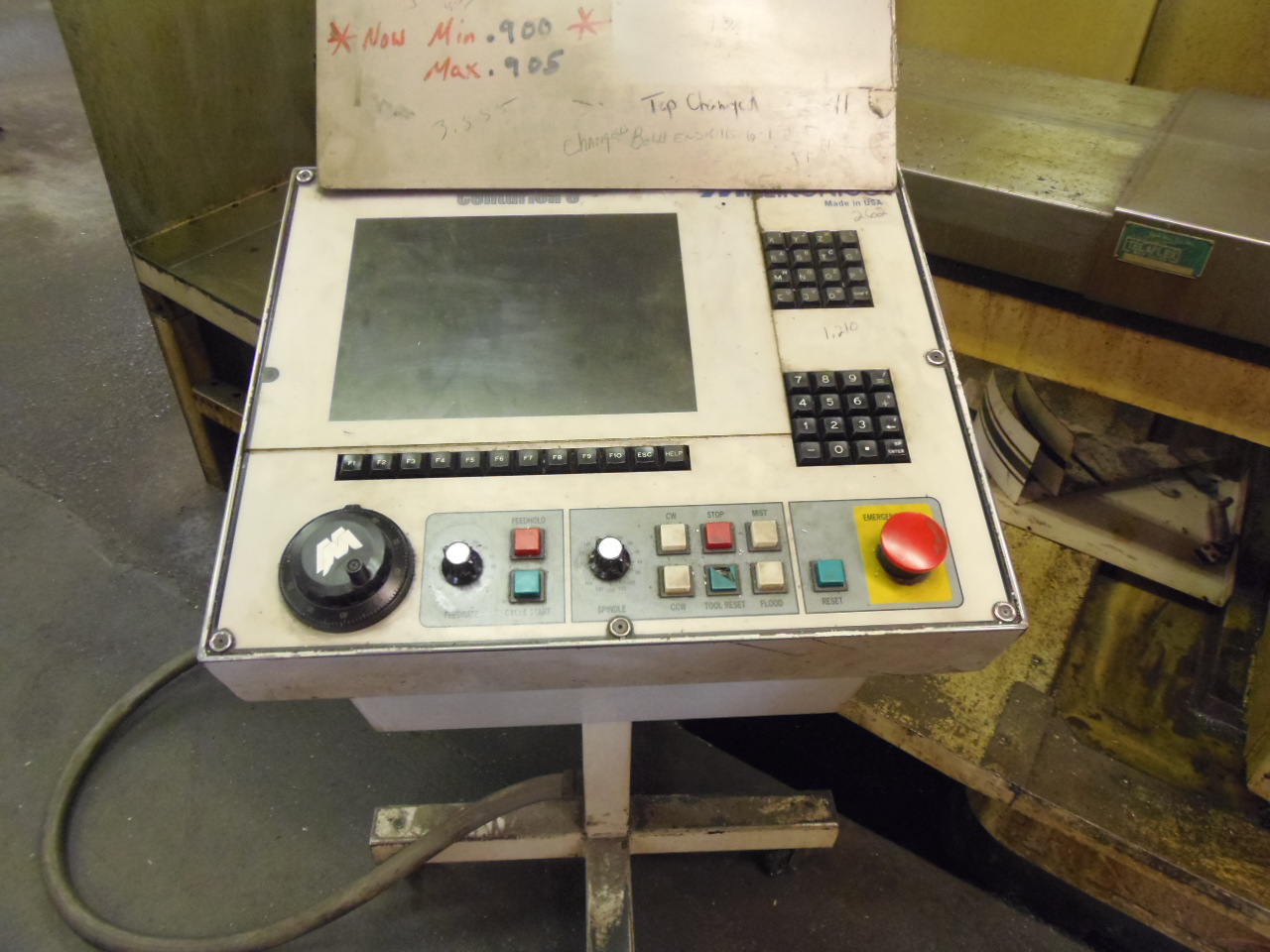

CONTROL................................CENTURION 6
WEIGHT APPOXIMATELY....................16,000 LBS
DIMENSIONS.............................120"L-R X 102" F-B X 8'H
EQUIPPED WITH:
COOLANT SYSTEM
CHIP GUARDS
