Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER....................... MILLTRONICS
AGE APPROXIMATELY.................. 2001
SERIAL#............................ 6447
TABLE SIZE......................... 45" X 16"
TRAVELS (X)........................ 30"
(Y)........................ 16"
(Z)........................ 26"
THROAT DEPTH....................... 16"
SPINDLE TO TABLE TOP............... 4" TO 30"
MAX TABLE LOAD..................... 1500 LBS.
SPINDLE TAPER...................... CAT 40
SPINDLE MOTOR...................... 15HP
SPINDLE SPEED...................... 50-8000
ATC................................ 20 TOOLS
WEIGHT APPROX. .................... 9000 LBS.
DIMENSIONS......................... 9' X 7'X 100"H
EQUIPPED WITH:

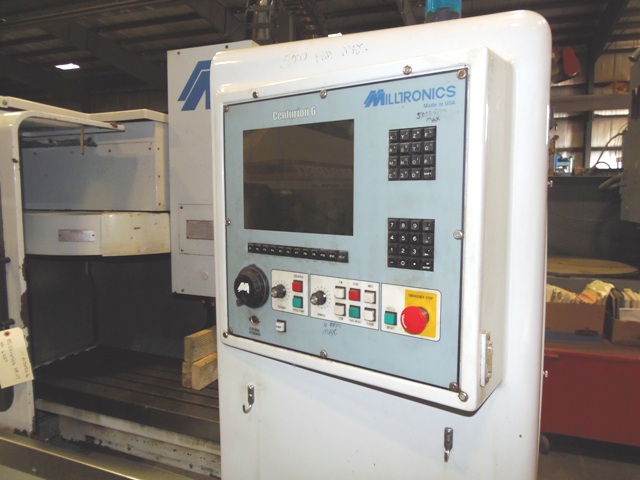

CENTURION 6 CONTROL
CHIP AUGER
RIGID TAP
COOLANT
FULL ENCLOSURE
