Specifications
| CNC Control |
yes |
| Type of CNC Control |
Centurion 6 |
| Tailstock |
yes |
Equipped With
GENERAL SPECIFICATIONS:
Make - Milltronics
Model - ML-15
Serial Number -
Bed Length - 40"
Swing Over Bed - 15"
Swing Over Cross Slide - 7.8"
Swing Over Gap - 22" / 10.5" Gap
Travel (X Axis) Cross Slide - 7.5"
Travel (Z-Axis) Long Slide - 32.5"
Center Height - 7.5"
Center Distance - 36"
Bed Width - 11.8"
Spindle Motor HP (1 Min / 30 Min) - 7.5 / 5
Spindle Bore - 2.18"
Spindle Nose - Camlock D1-6
Spindle Speeds (3 Ranges) - 20 to 3000 RPM

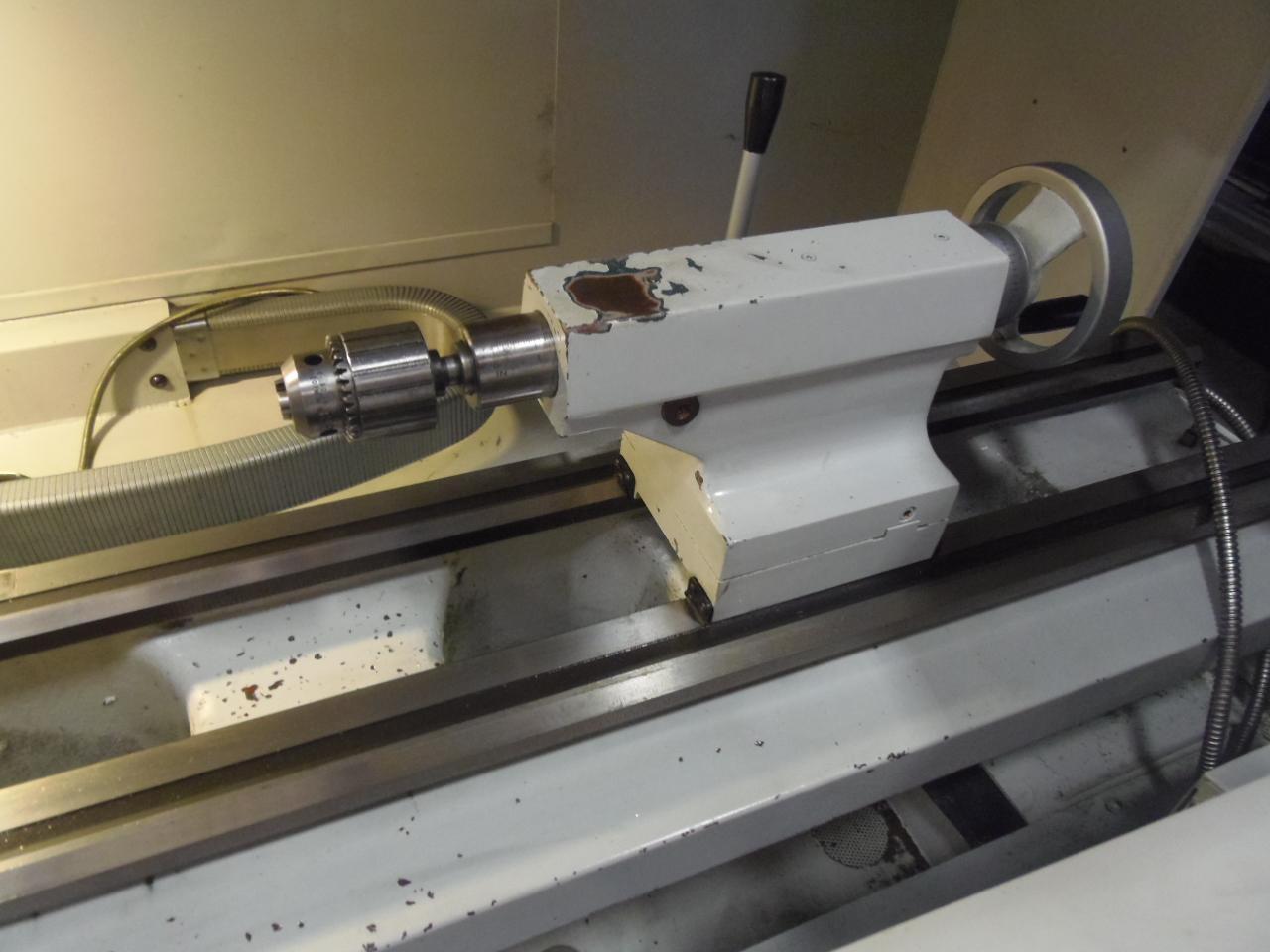

Tailstock Quill Travel - 6"
Tailstock Quill Diameter - 2.04"
Tailstock Quill Taper - No. 4 MT
Rapid Traverse Rate - 300 ipm
Feedrate Range - .1 to 100 ipm
Floor Space Requirement - 48" x 92"
Machine Weight - 4000 Lbs.
Equipped with:

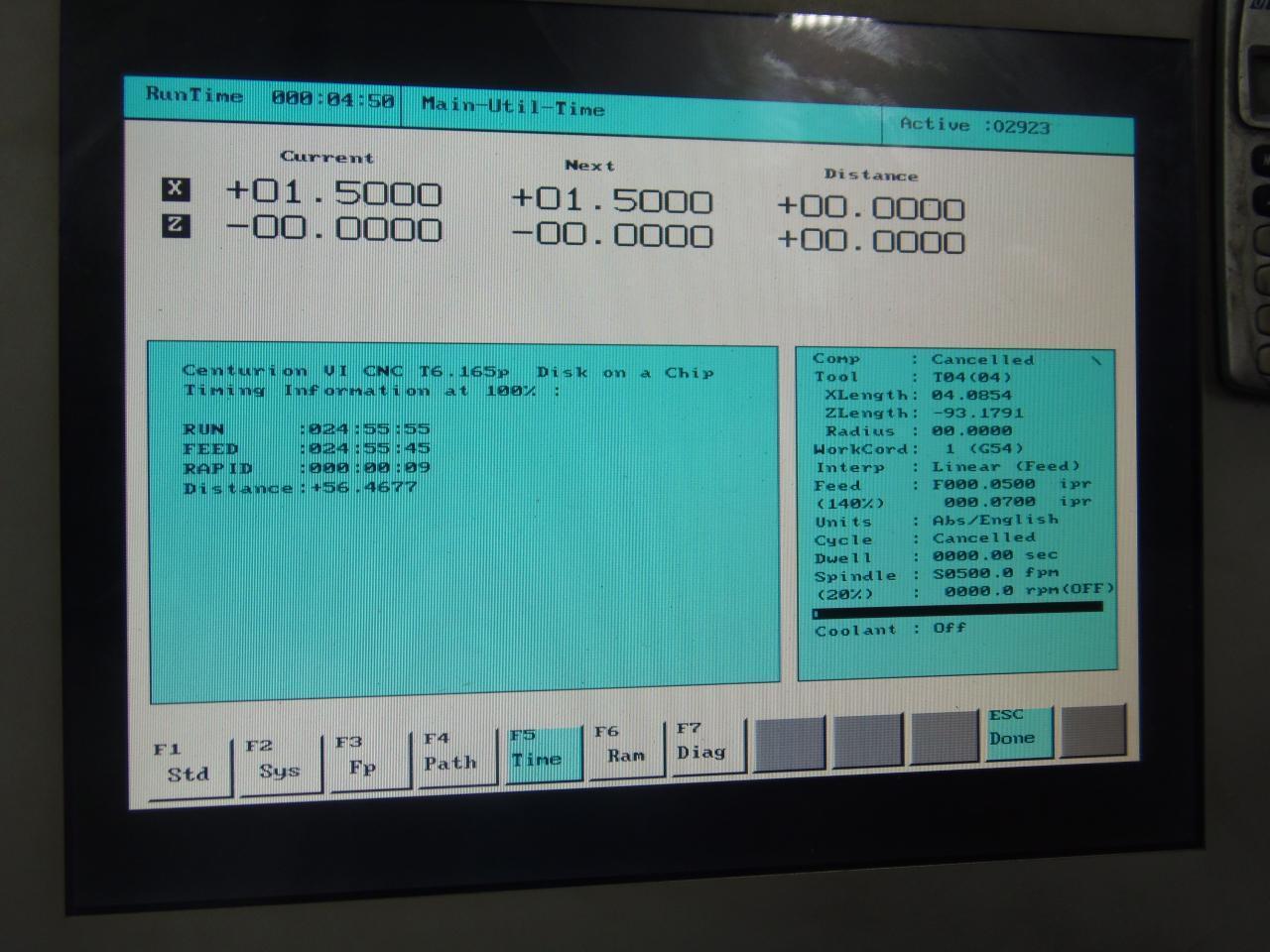

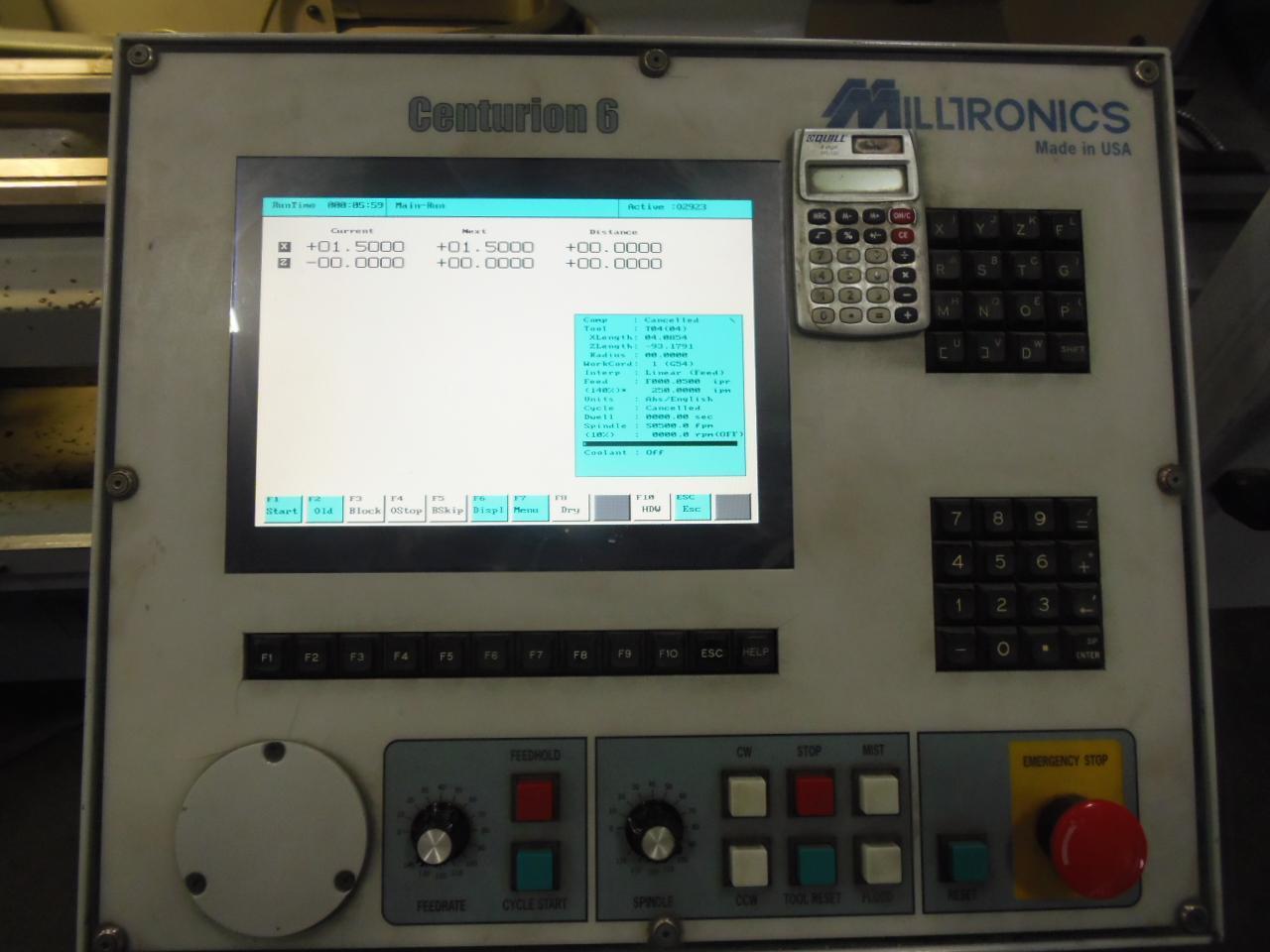

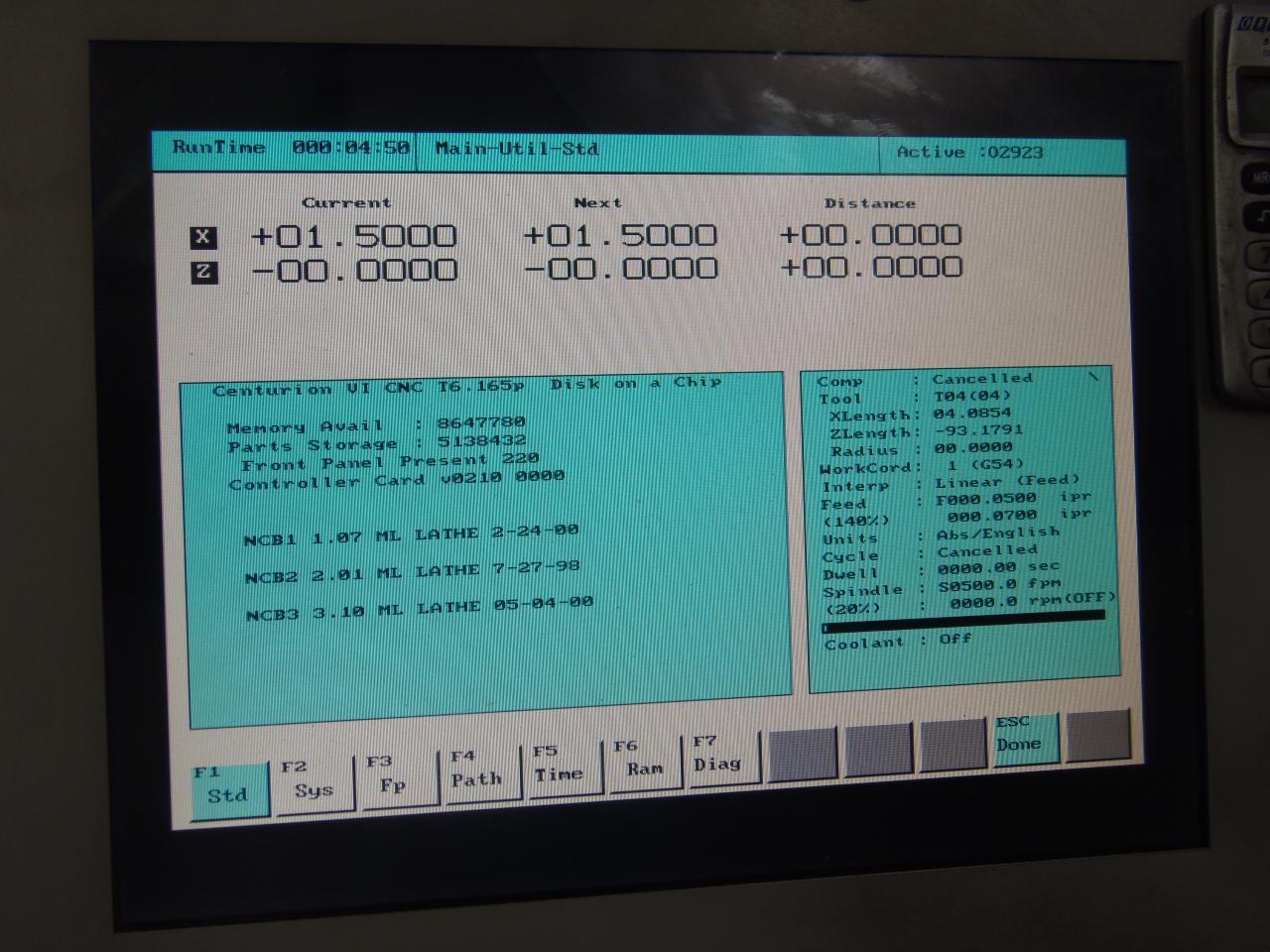

Centurion 6 PC Based Conversational Control
Conversational and G/M Code Programming
Constant Surface Feed & Threading

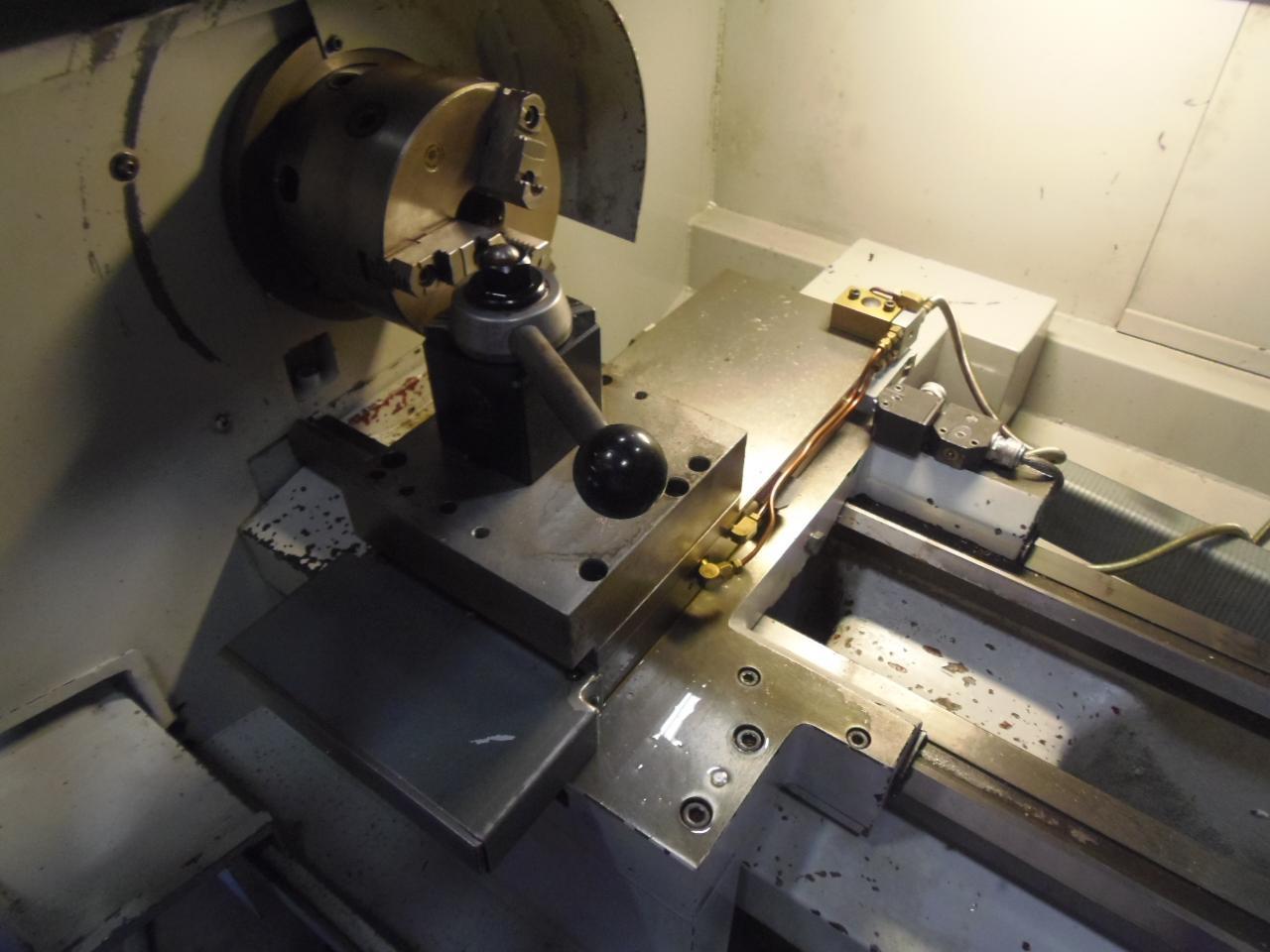

3-Jaw Chuck
Quick Change Tool Post

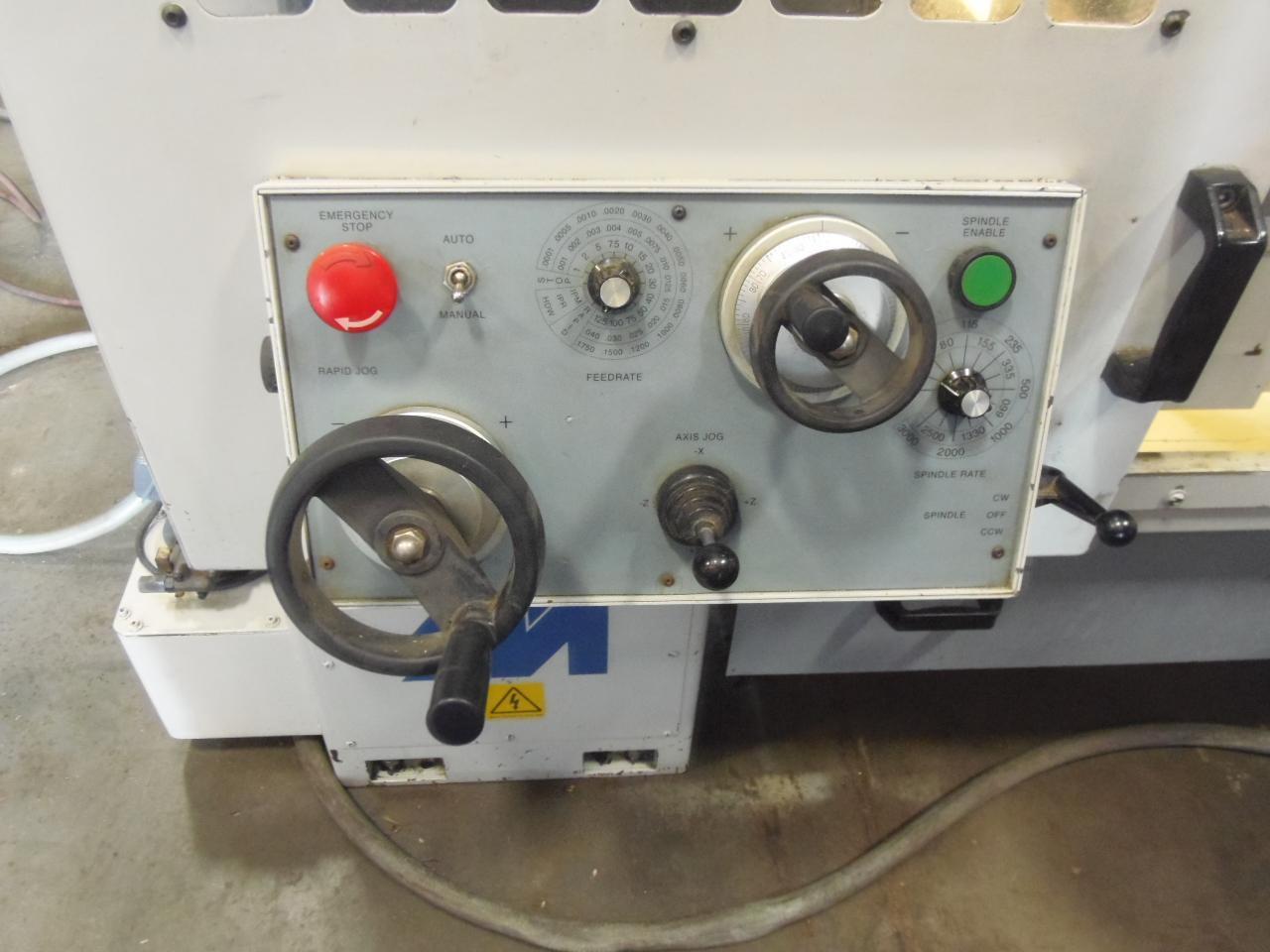

Dual Handwheels
3-1/2" Floppy

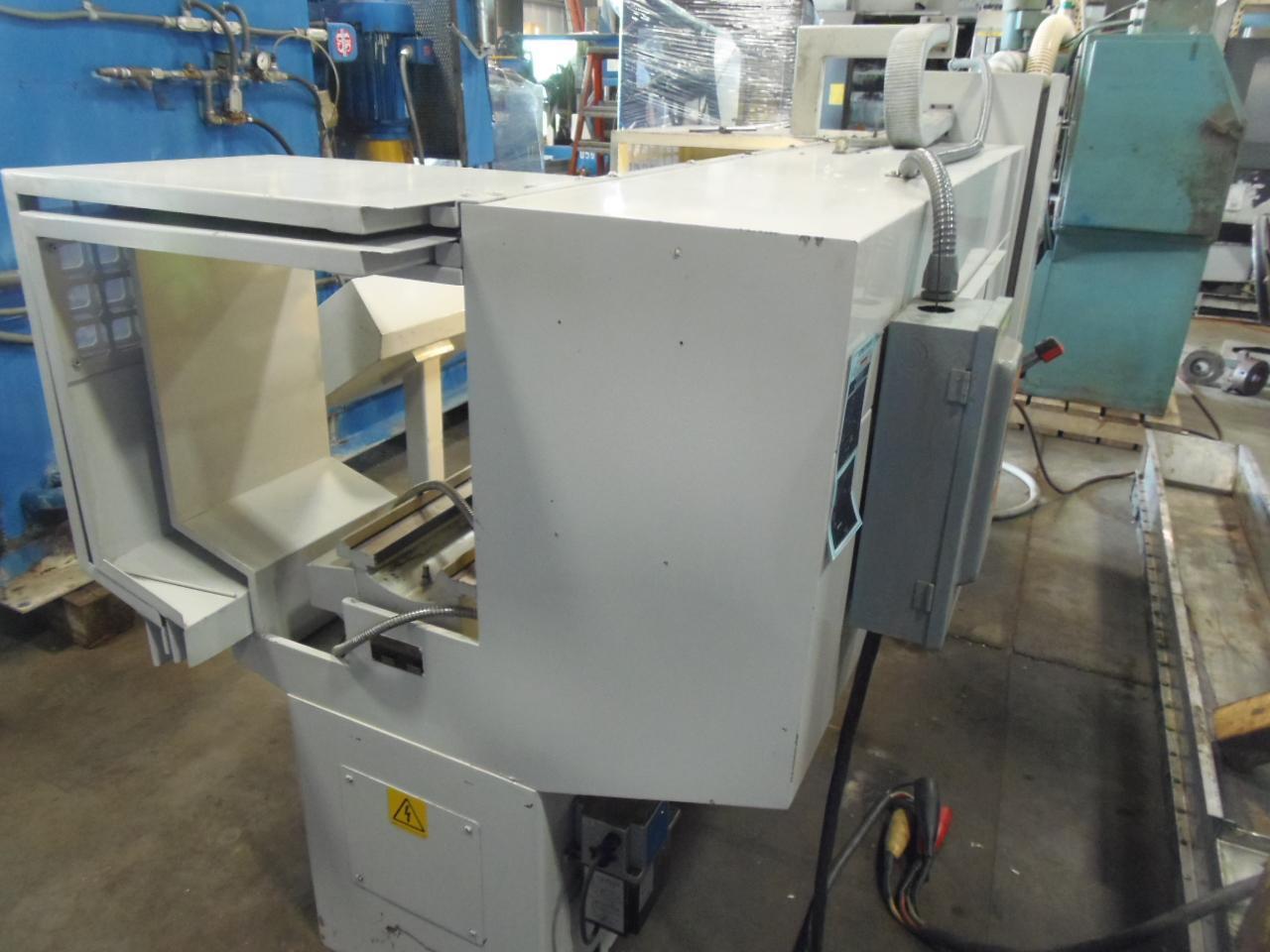

Full Enclosure with Sliding Doors
Auto Metered Lubrication
Flood Coolant
SPECIFICATIONS SUBJECT TO VERIFICATION
